ix

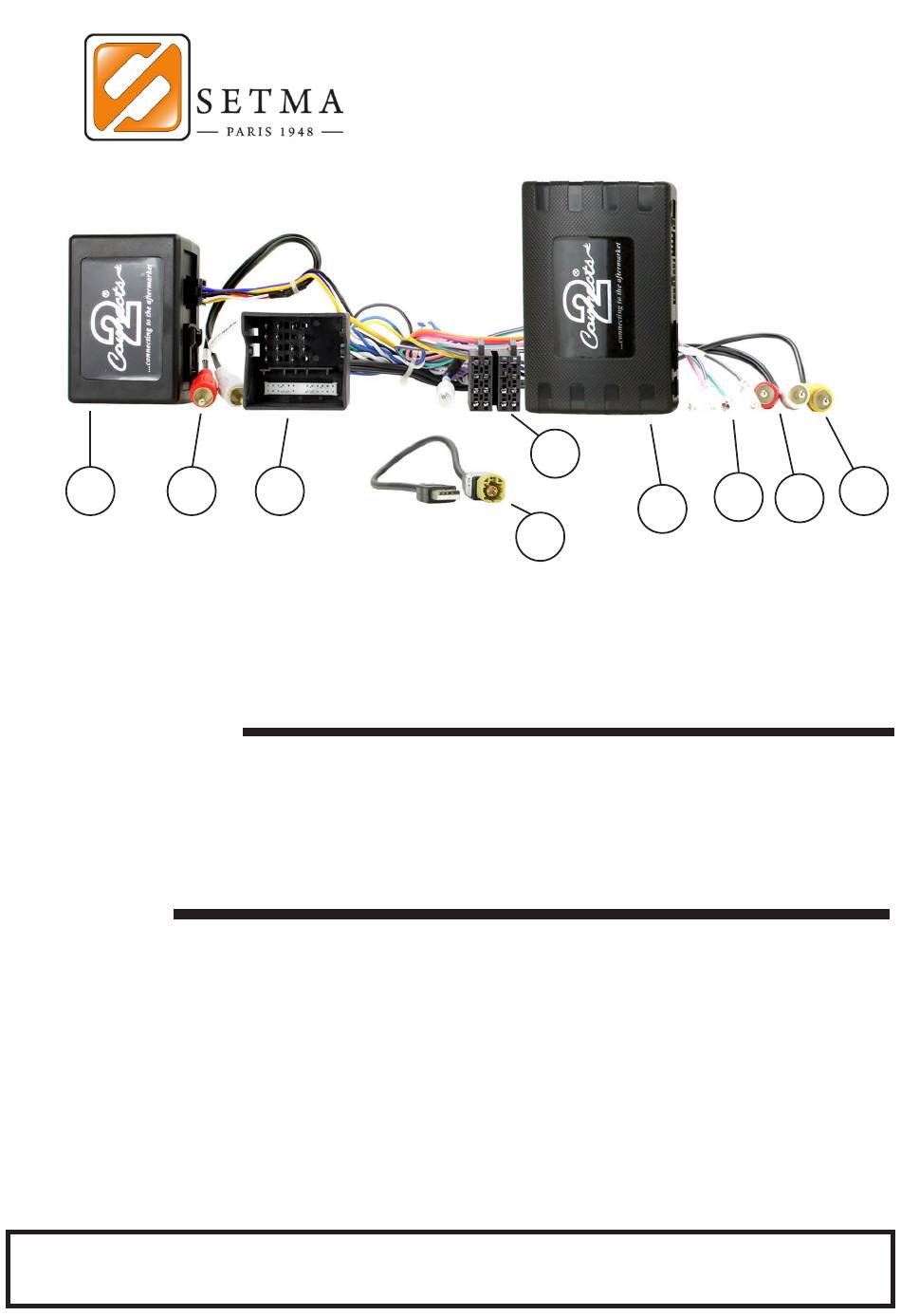

i. Interface Box
ii. ISO Connector (16 Pin)
iii. Quadlock Connector (40 Pin)
iv. RCA Amplifier (Red/White)
v. RCA AUX (Red/White)
APPLICATION
Porsche Panamera
Porsche Macan (95B)
Porsche Cayenne
For fiber-amplified vehicles with MOST 25 systems and quadlock connectors.
FEATURES
• Retains Steering Wheel Control Functionality
• Retains Phone Button Functionality
• Retains MOST 25 Fiber Amplified System
• Retains USB and AUX Inputs
• Retains Reversing Camera
• Retains Parking Sensor Audio and OEM Parking Sensor Graphics
• Provides Outputs for Park Brake, Reverse Gear, Speed Pulse, Mute & Amp Remote
• Updateable via USB
The information provided in this document is subject to change without notice due to manufacturer changes and/or improvements to the product/s. This
instruction manual is based on documented data and research. The manufacturer of this product cannot be held responsible for any changes made to the
vehicle by the manufacturer or damages that may occur through the installation of this product in accordance with the steps outlined herein.
iv
iii
vi. RCA Camera (Yellow)
vii. Flying Wires
viii. USB Retention Harness
ix. Amp Retention Interface
2009 - 2016
2014 - 2016
2011 - 2016
(contact supplier for more information)
Infodapter Interface
for Porsche Vehicles
ii
viii
Note: Application data is subject to change at any time
DISCLAIMER
E01PO28005
vii
v
i
vi
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Setma E01PO28005
Summary of Contents for Setma E01PO28005

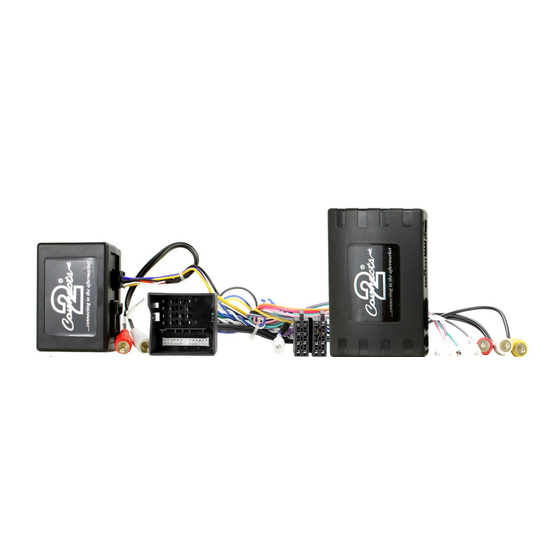

- Page 1 E01PO28005 Infodapter Interface for Porsche Vehicles viii i. Interface Box vi. RCA Camera (Yellow) ii. ISO Connector (16 Pin) vii. Flying Wires iii. Quadlock Connector (40 Pin) viii. USB Retention Harness iv. RCA Amplifier (Red/White) ix. Amp Retention Interface v. RCA AUX (Red/White)
- Page 2 Please ensure that the correct tools are used during the installation to avoid damage to the vehicle or product. SETMA can not be held responsible for the installation of this product.
- Page 3 14. Test stereo and steering wheel control functionality for correct operation before reassembling the vehicle dashboard. If steering wheel control functions are unresponsive, please uninstall the interface and wiring and reinstall carefully in accordance with the above steps. For further help and support, please contact us directly at support. adv@setma-sa.com...
- Page 4 WIRING DIAGRAM Connect to aftermarket stereo Connect to vehicle USB Retention Lead Flying Wires Pink - Speed Pulse Green - Park Brake Purple/White - Reverse Gear *Blue/White - Amp Remote Grey - Mute *Note - must be connected to radio remote ouput Quadlock Connector Connect to quadlock connector from vehicle ISO Connector...
- Page 5 USER GUIDE STEERING WHEEL CONTROL FUNCTIONALITY The following diagram, though based on careful research, is an example only. Individual steering wheel control configurations may differ. In Normal Mode Volume Up (Scroll Up) Pick Up Volume Down (Scroll Down) Instrument Cluster Nav Mute (Short Press) Instrument Cluster Nav Enter Infodapter Menu (Long Press)
- Page 6 *PROGRAMMABLE BUTTON The diamond button on the steering wheel can be programmed to perform a specific radio function whilst in the Infodapter menus on both a long and short press. Function options include Source, Track +, Track +, DSC + and DSC - To assign a function to the button, enter the Infodapter menu and go into the ‘Preferences’...
- Page 7 PREFERENCES -> Camera Connected (None/Generic/OEM) Choose the style of camera connected to the vehicle (if applicable) -> *Camera Active (OEM/Reverse) Choose whether the camera image appears on the display at times triggered by the Porsche system, or only when reverse gear is active *Only available when using OEM reversing camera ->...
- Page 8 OEM PARKING SENSOR GRAPHICS The Infodapter interface will automatically generate a replication of the OEM front/rear parking sensor graphics based on the vehicle’s data. These graphics have been designed to exactly replicate Porsche’s original as closely as possible to retain the OEM feel of the system. SWITCHING BETWEEN CAMERA AND GRAPHIC DISPLAY MODES To toggle between the reversing camera and the parking graphics whilst one of them is active on screen, hold down Button 1 whilst the camera or graphics are active.
