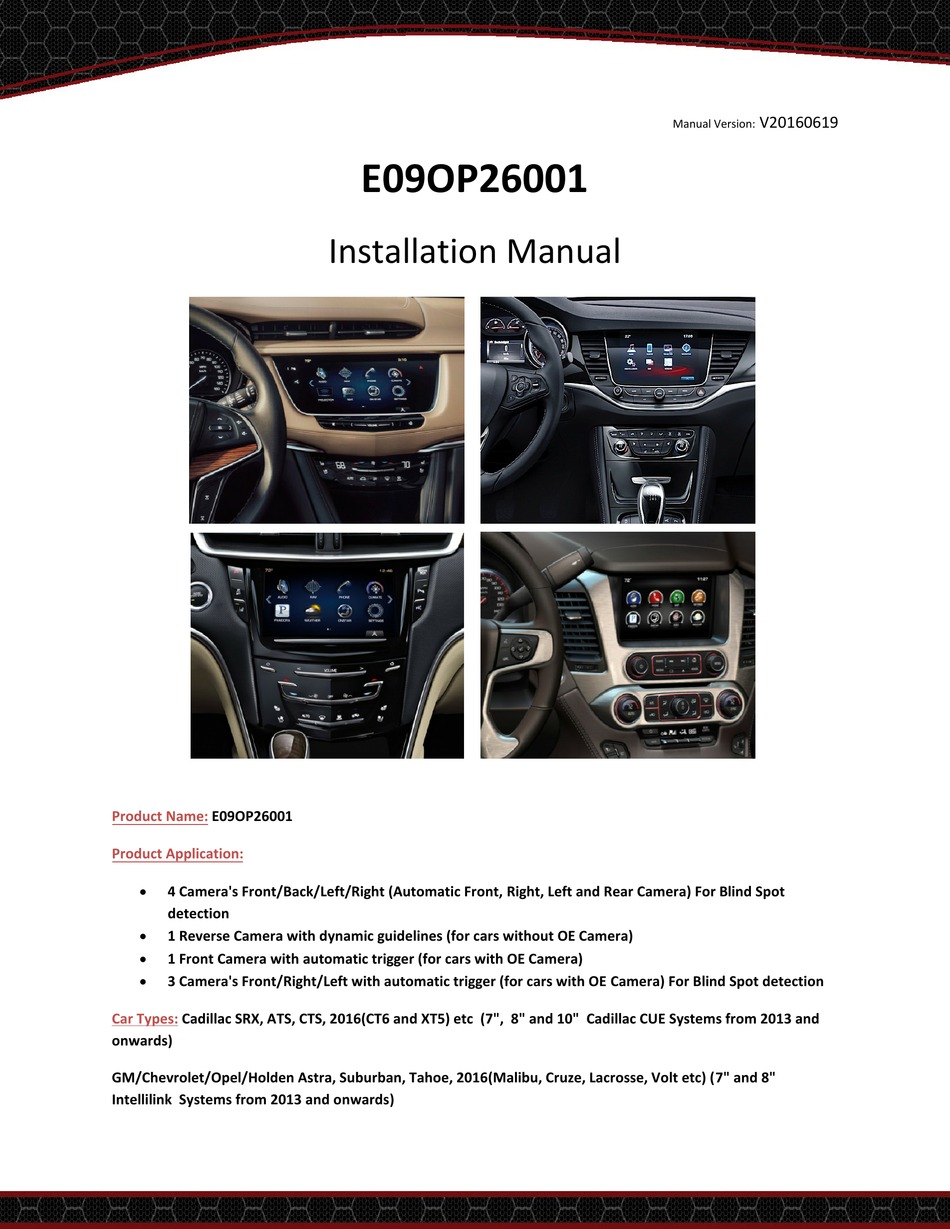

E09OP26001
Product Name:
Product Application:
4 Camera's Front/Back/Left/Right (Automatic Front, Right, Left and Rear Camera) For Blind Spot
detection
1 Reverse Camera with dynamic guidelines (for cars without OE Camera)
1 Front Camera with automatic trigger (for cars with OE Camera)
3 Camera's Front/Right/Left with automatic trigger (for cars with OE Camera) For Blind Spot detection
Car Types:
Cadillac SRX, ATS, CTS, 2016(CT6 and XT5) etc (7", 8" and 10" Cadillac CUE Systems from 2013 and
onwards)
GM/Chevrolet/Opel/Holden Astra, Suburban, Tahoe, 2016(Malibu, Cruze, Lacrosse, Volt etc) (7" and 8"
Intellilink Systems from 2013 and onwards)
E09OP26001
Installation Manual
V20160619
Manual Version:

Advertisement

loading
Need help?

Need help?

Do you have a question about the E09OP26001 and is the answer not in the manual?

Questions and answers

Related Manuals for Setma E09OP26001

Summary of Contents for Setma E09OP26001

  • Page 1 V20160619 Manual Version: E09OP26001 Installation Manual E09OP26001 Product Name: Product Application:  4 Camera's Front/Back/Left/Right (Automatic Front, Right, Left and Rear Camera) For Blind Spot detection  1 Reverse Camera with dynamic guidelines (for cars without OE Camera)  1 Front Camera with automatic trigger (for cars with OE Camera) ...
  • Page 2 Optional camera's available. 1. Description: The E09OP26001 camera interface is the latest line of product from SETMA. It will enable user to install Front Camera, Reverse Camera, Right Side Camera and Left Side Camera. This will enable the driver to eliminate blind spots while driving and parking.
  • Page 3 Reverse Camera and Guidelines shown on Cadillac CUE 2016. Move according to data from steering wheel position. Only reverse camera can be chosen by selecting the desired Dips if other camera's not needed. Parking Sensor will be displayed with the reverse guidelines and reverse camera.
  • Page 4 2. Camera Interface Functions:  The Reverse Camera is automatically triggered when engaging the reverse gear of the car. The display is also equipped with dynamic reverse guidelines which help guide the driver while reversing the car. If car is equipped with parking sensors, They will be displayed with the reversing image.

  • Page 5: Installation

    3. Installation: Installation of this interface is very easy as it is completely plug and play. There is no need to open the radio to insert any PCB. All the installation is done behind the HMI Unit which on the 2016 models is usually located under the glove box.
  • Page 6 In order to install the interface you will need to open the glove compartment to gain access to the HU/CD unit. Once gaining access you will need to remove the main harness and insert our harness in its place and insert the OE harness into our plug in order to complete the T-Harness.

  • Page 7: Connection Diagram

    4. Connection Diagram: Connect LVDS behind the HMI. In place of blue connector Connect Power harness behind HMI Power for all for camera's Front Cam Port Right, Left Touch Pad for and Back Cam forced switch Port *NOTE: Make sure that the power harness is connected like this.
  • Page 8 5. Camera Connection:  All camera's will be connected with the green wire. It can provide 12V/3A which is sufficient to supply power for the 3 or 4 camera's. Connect RCA accordingly Power  OEM Style and Blind spot camera's with sensors are also available.
  • Page 9 6. Interface DIP Settings: DIP Down= ON DIP UP= OFF Default Front camera installed Front camera not installed DOWN(ON) Left camera installed (AV1) Left camera not installed DOWN(ON) Right camera installed (AV2) Right camera not installed DOWN(ON) Reverse triggered by Green Reverse triggered by Green UP(OFF) wire...
  • Page 10 8. Other Uses of Interface and their DIP settings:  In case interface is used only for adding only Reverse Camera or external 360 Surround View System: Interface Dip 1, 2, 3,4 set to= UP (OFF) Interface Dip 5 set to= DOWN (ON) ...
  • Page 11 9. Parameters: Name Parameter Front Cam Video , Reverse Cam 0.7Vpp with 75 ohm impedance video NTSC/PAL/SECAM automatic switch Reverse Control wire >5V will force into camera mode. these wires can tolerate 12V for <10 seconds. Normal Power consumption 4.8W Standby current <...
