- Page 1 E09VW39005...
- Page 2 Contents ............................. 2 Safety Instructions ........................3 Service / Communication ......................4 Shipment ............................ 4 Product Description ........................5 Installation ..........................6-7 Technical data ..........................8...
- Page 3 Safety instructions: Read through mounting guidelines: Please read through all safety instructions and handling directions intently before installa- tion and start up of the device. Keep mounting guidelines: Keep the instruction manual and safety instructions for potential further reference. Caution advises: Please follow all caution advises contained in the mounting guidelines.

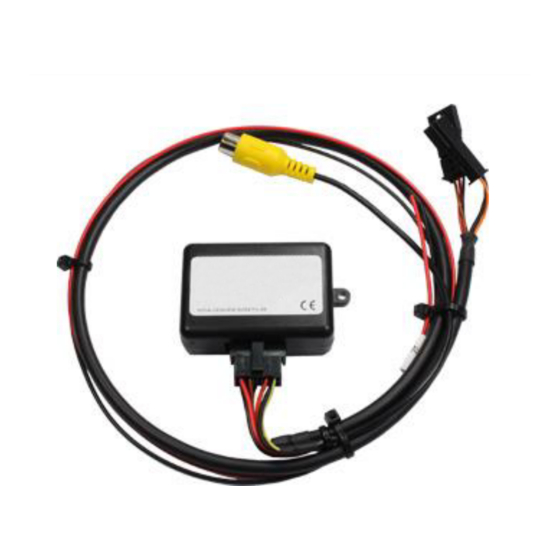

- Page 4 Product Description: E09VW39005 Item: Function: This interface allows for the connection of a video source in conjunction with a factory-fitted VW-RGB rear view camera. For use with the following systems: VW with MFD3 / RNS510 system Golf6, Passat Connection Assignment:...
- Page 5 Installation: Warning: Please do not attempt to install the interface while the ignition is turned on! 1. Removing the navigation system from the center console 2. Disconnect quadlock and the 26 pin AMP- socket from the navigation system. 3. Slide the plastic cover from the 26 pin AMP plug and romve the pins 11/12/13/25/26 .
- Page 6 5. Connect the cinch socket of the to the external monitor or multimedia interface Video output Rear view camera video output AFTERMARKET MULTIMEDIA MONITOR INTERFACE 6. Connect the black wire with ground, the red wire with switched plus (+12V). 7. Reconnect Quadlock connector to navigation system and remount the system in the center console.
- Page 7 Technical Data: Hardwareversion: V1.0.0 Voltage supply: 12V DC Voltage-operating capacity: 10,5 – 14,8 V Standby current: Power input: 1,1W Temperature range: - 30°C up to + 80°C Weight:...
