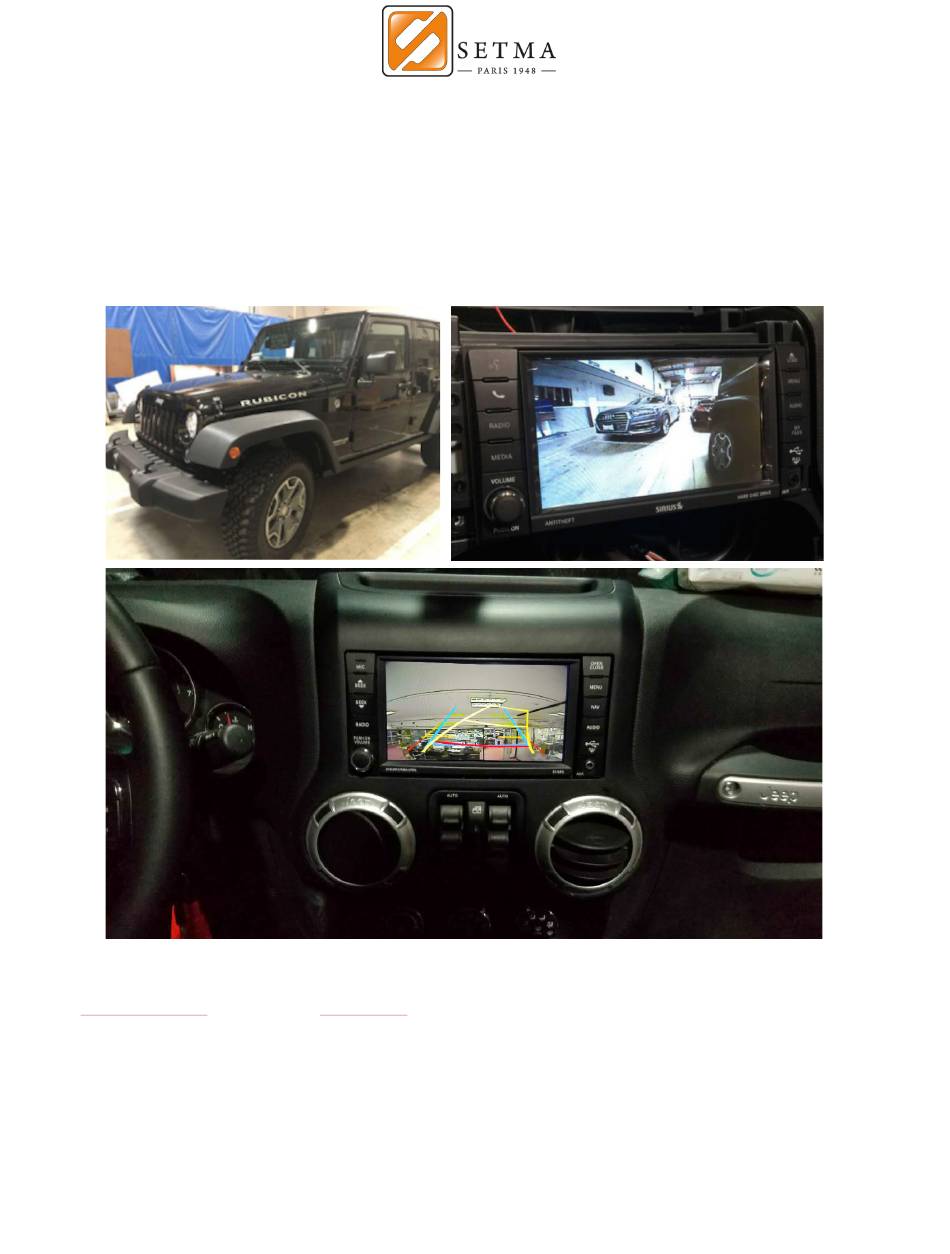

- Page 1 V20170322 Manual Version: E09CR06000 Installation Manual Product Name: E09CR06000 Car Types: Compatible with Jeep Wrangler .
- Page 2 What's in the box: ① ② ③ Item Qty Description Part No. Camera Interface Power Harness RCA Harness 1. Description: The E09CR06000 camera interface is enable user to install Reverse Camera with guide line ,or 360 surround view system or any other CVBS video. All connection is plug and play. CAN decoder built in which makes camera installation simple. Reverse Guidelines shown on Wrangler. CAN Decoder analysis steering wheel position to show as overlay on reverse camera image. Using OSD menu user can select to show Reverse image only, with guidelines or select either guidelines . 2. Interface Functions: Ø The Reverse Camera is automatically triggered when engaging the reverse gear of the car. The display is also equipped with moving reverse guidelines which help guide the driver while reversing the car. The...
- Page 3 Guidelines are accurate as CAN code is used to generate them using the steering wheel position as a reference. 3. Installation: Installation of this interface is very easy as it is completely plug and play. There is no need to open the radio to insert any PCB etc. System connection Connect power harnesss behind LCD(pull out the plug which is behind monitor , Connect it to and make the the OEM interface’s T-harnesss in [in] video socket out between) Connect video device to [in] 【Power supply】 for video devices when the car is in 【Manual Trigger】 reverse gear to 12v will force into camera mode...
- Page 4 4. Settings: Please check the image position for each video input enabled and make sure they are positioned correctly. In case they are not use the 3 keys on the bottom of the interface to adjust the image using "Position-H" , "Position-V" and "H-SIZE" , "V-SIZE". Each Video input has separate memory state so fine position each video input in the same manner. Use these 4 settings to adjust the Position of the Image. Engage Reverse Gear and fine position the image in same manner. User can also select if user wants to turn Guidelines ON or OFF and can also select if Parking Sensors are ON or OFF. For this again use the 3 buttons on the bottom of the interface to access the OSD menu. Once in the menu navigate to settings for "Guide-CNTRL" and select as desired. Options: All-ON: Both guide line and PDC are displayed. PDC-ON: Only PDC displayed. Guide-ON: Only Guide-line displayed. ALL-Off: Both Guide line and PDC will not be displayed. Use this setting to turn off the guidelines.
- Page 5 6. Parameters: No. Name Parameter Video input /output 0.5～2Vpp with 75 Ω Impedance 2 Power consumption 4.32W [0.36A @12V] Standby current ≦20mA Work temperature -40°C to +85°C Dimensions 10.5*8.5*2.2cm **For more assistance please contact the sales team.**...
