- Page 1 Instruction Manual Wireless CarPlay/Android Auto Integration for Audi MIB/MIB II system Model No. E12AU02002 MCU Ver. 19.1.11.12 SW Ver. V2.0.1.4.lzy Manual Ver. 1.0 Date May 17. 2019...
-
Page 2: Table Of Contents
Content: ! Warning ! Compatibility ! Features ! Package Components ! Connection Diagram ! How to connect an external MIC (optional) ! DIP Setting ! Operation Instruction " How to switch from original to add-on interface " Add on module UI " How to connect/disconnect wireless Apple CarPlay " CarPlay operation 2 / 17 " Android Auto operation... -
Page 3: Warning
Warning: △, ! In order to protect the driving safety and avoid break the traffic law; please DO NOT operate the interface while driving. ! The reversing surveillance function just is used in reversing assistance. Please check the entire surroundings while reversing. ! All steps of installation should be done by the well-trained specialist. ! During installation, the ignition key should be taken off and after all installation finished, connect power cable last. ! Please DO NOT plug or pull the connected cables in the state of power-on, in order to avoid damaged monitor or accessory. ! Install wiring in a manner in which cables will not come in contact with metal parts. The wiring may be damaged by contact with metal parts, resulting in fire and shocks. Avoid all contact with hot surfaces when wiring the main unit. High temperatures may damage wiring, causing shorts, arcing and fires. ! Please DO NOT put the product in the damp environment or water, in order to avoid electric shock，damaged and fire accident caused by a short circuit. ! Kindly check all components are in the box when receiving the product. If anything missing, inform to the supplier/manufacturer. ! Start the engine before loading, check the interface whether have function displayed, key control whether correct, the vehicle interface whether having a scratch. Please give the feedback to the supplier/manufacturer if there have any questions. ! Please note that put the disassembled automotive components in a good way on the installation process, avoid scratching the 3 / 17... -
Page 4: Compatibility
instrument panel, the leftovers of connecting cables need to handle and DO NOT leave it in the car. The connecting plug must be insulated in order to short circuit. ! The cables should be connected in a good way; the vehicle installation space is a little small, so reduce space usage as far as possible. There should be a good plan about connect cables, avoid affecting the active component of connecting, such as control components of turning the steering wheel, throttle and brake pedal. There need to be fastened after connecting cables in case of a drop. Compatibility: 4 / 17... -
Page 5: Features
NOTE! This interface does NOT fit vehicles with 8.3 inch factory screen. Features: Support wireless & wired Apple CarPlay, wireless & wired Android Auto, AirPlay mirroring " USB HD video and lossless music playback (APE, WAV, FLAC, MP3, WMA, etc.) " Offer 2 CVBS video input (front & rear view camera) " Support PDC (Parking Distance Control) and FPG (Flexible Parking Guidelines) " Display front view automatically after shifting from R gear, also support setting the duration " Integrated DSP module offers high quality audio effect " Operate by OEM knob controller & steering wheel buttons " Support OEM microphone " 5 / 17... - Page 6 Further software update via USB port " Wireless/ Wireless/wired AirPlay USB media F/R view FPG PDC Further SW. Android Auto wired Mirroring playback cameras update CarPlay 6 / 17...
-

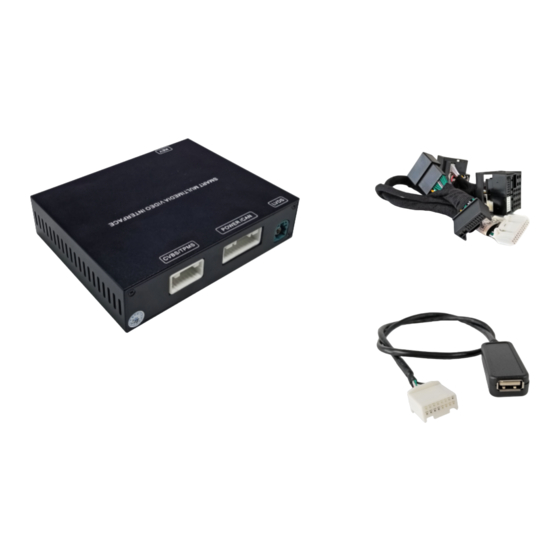

Page 7: Package Components
Package Components: 7 / 17... -
Page 8: Connection Diagram
USB/CVBS LVDS POWER/CAN Connection Diagram ANT DIP SW 8 / 17... -
Page 9: How To Connect An External Mic (Optional)
How to connect an external MIC (optional): OEM quadlock connector MIC+ MIC- MIC+ MIC- DONE Connect the external microphone to pinout MIC+ and MIC- of OEM quadlock connector. NOTE! Ignore this page if your car integrates original microphone. 9 / 17... -
Page 10: Dip Setting
DIP Setting: DIP DIP OFF Selection of car model Model Car without “PARK” Car with “PARK” button button OFF OFF External microphone OEM microphone 2013-2016 A3 (5.8 inch) OFF OFF 2017- A3 (5.8 inch) OFF OFF 2013-2016 A3 (7 inch) Factory test DIP setting (No.1~6): AD320C-B9 OFF – OFF – ON – OFF – ON – OFF OFF OFF OFF 2017- A3 (7 inch) NOTE! Please reboot the interface for effective after changing any DIP setting. 2016- A4/S4/A5/S5 (7 inch); OFF OFF OFF 2018- Q5 (7 inch) OFF OFF 2016-2018 Q7 (7 inch) 2013-2017 Q5 (MMI); OFF OFF OFF OFF... -
Page 11: Operation Instruction
Operation Instruction: How to switch from Original to Add-on interface Long press “Navi” How to delivering audio to OEM radio NOTE! Make sure switch to “AUX” mode on original car stereo for audio transmission before using the CarPlay integration. NOTE! If a car without Order: OEM - Add on - OEM AUX jack but with AMI, please plug in an AMI cable to factory AMI port, and do not connect anything with another side of the cable. OEM UI Add on Module Interface 11 / 17... -
Page 12: Add On Module Ui
Add on module UI Erreur ! Erreur ! Erreur ! Erreur ! Erreur ! Erreur ! Erreur ! Erreur ! Erreur ! Erreur ! Erreur ! Erreur ! Erreur ! Erreur ! Erreur ! Erreur ! Wireless AirPlay mirroring for iPhone Home of add on module UI Erreur ! Erreur ! Display when a mobile phone has connected to integration’s USB cable screen mirroring for iPhone Bluetooth Erreur ! -
Page 13: How To Connect/Disconnect Wireless Apple Carplay
How to connect wireless Apple CarPlay Wait for a few seconds, CarPlay Select icon will appear on the upper left, PHONELINK and make sure it means successfully. your iPhone enables WiFi & Bluetooth and stay on BT setting menu Your iPhone Device Select iAP2 Profile, then tap Pair & Allow on the pop-up Connect Mobile Device notification of iPhone Select your iPhone device Start Search in the searched list 13 / 17... -
Page 14: Carplay Operation
How to disconnect wireless Apple CarPlay Connected CarPlay devices, you can disconnect CarPlay in the next menu: select your device, and then tap it to disconnect CarPlay. Bluetooth paired devices, you can find out all BT paired devices list here Reset add on module CarPlay Operation Long press 3S to activate Siri Back to add on module 14 / 17... -
Page 15: Android Auto Operation
Android Auto Operation Erreur ! Plug in Android smartphone with USB cable, tap ANDROID AUTO to start Erreur ! Erreur ! Erreur ! ○ ,1: Return A area ○ ,2: Turn the dial to move menu-pointer; Click as confirm; Long press 3S to activate Google Assistant ○ ,3: Menu-pointer switch to A area; Long press to bring up upper left menu B area ○ ,4: Menu-pointer switch to B area 15 / 17... - Page 16 Other settings Audio effect setting Display setting Front image flip Right/Left driving horizontal mode, also available for CarPlay Choose reversing Automatic front view display camera type time, 0 means disable front view 16 / 17...
