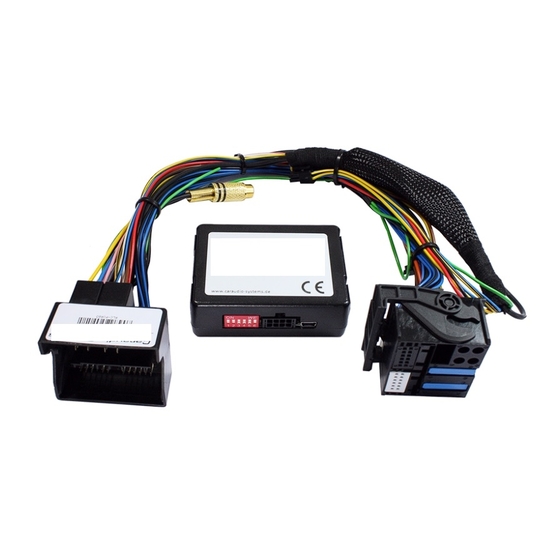

E09PO28000 Interface
Rear-‐view camera-‐input
and
video-‐in-‐motion
for Porsche vehicles with
PCM 3 and PCM 3.1 navigation systems
Only for vehicles WITHOUT factory rear-‐view camera
Product features
• Plug and play interface
• Integrated into the vehicle infotainment
• Rear-‐view camera input (+ coding)
• Rear-‐view camera power (+12V max. 400mA)
• Video-‐in-‐motion
• Automatic switching to rear-‐view camera input
• Optionally coding of ParkAssistant to retrofit factory PDC
Version 13.03.2015
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Setma E09PO28000
Summary of Contents for Setma E09PO28000
- Page 1 E09PO28000 Interface Rear-‐view camera-‐input and video-‐in-‐motion for Porsche vehicles with PCM 3 and PCM 3.1 navigation systems Only for vehicles WITHOUT factory rear-‐view camera Product features • Plug and play interface •...
-
Page 2: Table Of Contents
Contents 1. Prior to installation 1.1. Delivery contents 1.2. Check compatibility of vehicle and accessories 1.3. Setting the Dip-‐switches of the CAN-‐Box RLC-‐TV-‐521 1.4. Pin-‐assignments 2. Connection schema 3. Installation 3.1. -
Page 3: Prior To Installation
1. Prior to installation Read the manual prior to installation. Technical knowledge is necessary for installation. The place of installation must be free of moisture and away from heat sources. 1.1. Delivery contents Take down the SW-‐version and HW-‐version of the interface boxes, and store this manual for support purposes. -
Page 4: Pin--Assignments
1.3. Setting the dip switches of the CAN-‐box RLC-‐TV521 Vehicle/ navigation Dip 1 Dip 2 Dip 3 Dip 4 Dip 5 Dip 6 PCM 3 with video-‐in-‐motion activated ON ON ... -
Page 5: Connection Schema
2. Connection schema Version 13.03.2015 ... -
Page 6: Installation
3. Installation Switch off ignition and disconnect the vehicle’s battery! If according to factory rules disconnecting the battery has to be avoided, it is usually sufficient to put the vehicle in sleep-‐mode. In case the sleep-‐mode does not show success, disconnect the battery with a resistor lead. -
Page 7: Connection To Rear--View Camera
3.2. Connections to rear-‐view camera Connect the video RCA of the rear-‐view camera to the female RCA connector of harness RLC-‐POR03. Connect the green cable of harness RLC-‐POR03 to the camera power supply (+12V max 400mA). -
Page 8: Coding Of The Rear--View Camera (Only Pcm3.1)
3.3. Coding of the rear-‐view camera (only PCM3.1) HASH KEY/MODE BACK ACCEPT HANG UP Steering-‐wheel buttons left Steering-‐wheel buttons right It is necessary to code the rear-‐view camera input of the PCM 3.1 to use it for an after-‐ market rear-‐view camera. -
Page 9: Optionally Coding Of Parkassistant To Retrofit Factory Pdc (Only Pcm3.1)
3.4. Optionally coding of ParkAssistant to retrofit factory PDC (only PCM3.1) HASH KEY/MODE BACK ACCEPT HANG UP Steering-‐wheel buttons left Steering-‐wheel buttons right It is necessary to code the ParkAssistant of the PCM 3.1 to retrofit factory PDC. 1. -
Page 10: Alternatively Coding And Decoding Of Rear--View Camera And Parkassistant (E.g. If Steering--Wheel Buttons Not Existing, Only Pcm3.1)
3.5. Alternatively coding and decoding of rear-‐view camera and ParkAssistant (e.g. if steering-‐wheel buttons not existing, only PCM3.1) BACK HASH KEY/MODE ACCEPT HANG UP Alternatively to coding by steering-‐wheel buttons the coding and decoding of rear-‐view camera and ParkAssistant can be done by loose white cable in connection with dip 3 and 4 of ... -
Page 11: Coding And Decoding Of Rear--View Camera (Only Cayenne With Pcm3)
3.6. Coding and decoding of rear-‐view camera (only Porsche Cayenne with PCM3) The rear-‐view camera coding and decoding can be done by loose white cable in connection with dip 3 of CAN-‐box RLC-‐TV521. Dip Function ON ...
