UM3538
User manual
Getting started with the STEVAL-DPSG474Q digital power supply control board
Introduction
The
STEVAL-DPSG474Q
is a digital power supply control board based on the STM32G474QE microcontroller from the
STM32G4 family. The STM32G474QE microcontroller includes the high-performance Arm Cortex®-M4 32-bit RISC core
operating at up to 170 MHz, a floating-point unit (FPU), a full set of digital signal processing (DSP) instructions, and high-speed
embedded memories (512 KB of flash memory and 128 KB of SRAM). The device integrates peripherals that accelerate
mathematical and arithmetic functions, including a CORDIC unit for trigonometric functions and an FMAC unit for filter functions.
The microcontroller offers five fast 12-bit ADCs (5 Msps), seven ultrafast comparators, six operational amplifiers, seven DAC
channels (three external and four internal), a low-power real-time clock (RTC), 32-bit timers, three timers dedicated to motor
control, seven general-purpose 16-bit timers, one 16-bit low-power timer, and a high-resolution timer (HRTIM) with 184 ps
resolution, specifically designed for power conversion systems.
The board is equipped with two connectors: a 68-pin digital interface and a 32-pin analog main interface designed for integration
with a power board. It delivers comprehensive PWM control signals, sensing networks, and built-in protection mechanisms
necessary to support a broad spectrum of digital power supply applications. The board can be powered by an external 5 V
supply, which may be connected via a dedicated USB port or through the main analog connector.
The board incorporates a standard STDC14 14-pin connector dedicated to programming and debugging, alongside an available
virtual COM port interface. Additional connectors support I²C, SPI, UART, and various other I/O interfaces. User interaction is
facilitated through an integrated reset button and a user-configurable button. Multiple test points are provided for comprehensive
analog and digital signal diagnostics. To enhance the interaction capabilities of the STEVAL-DPSG474Q, opto-isolated serial
communication interfaces and dedicated connectors are also integrated.

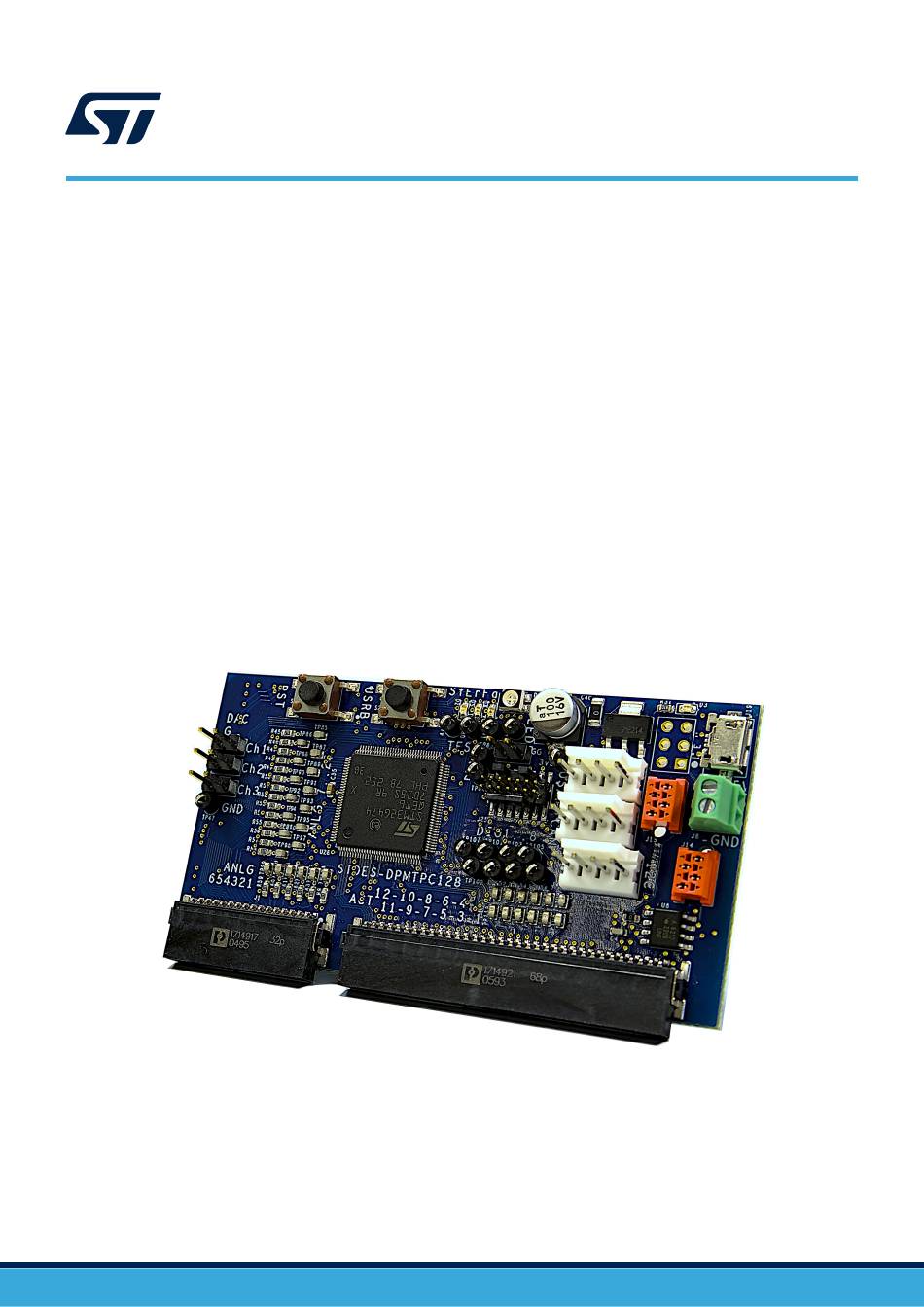

Figure 1.
STEVAL-DPSG474Q evaluation board
Notice:
For dedicated assistance, submit a request through our online support portal at www.st.com/support.
UM3538 - Rev 1 - July 2025
www.st.com
For further information, contact your local STMicroelectronics sales office.

Advertisement

loading
Need help?

Need help?

Do you have a question about the STEVAL-DPSG474Q and is the answer not in the manual?

Questions and answers

Summary of Contents for ST STEVAL-DPSG474Q

  • Page 1 Multiple test points are provided for comprehensive analog and digital signal diagnostics. To enhance the interaction capabilities of the STEVAL-DPSG474Q, opto-isolated serial communication interfaces and dedicated connectors are also integrated.
  • Page 2 Reset push-button • Board connectors • 68-pin digital & 32-pin analog main connectors • USB micro [Power] • STDC14 ST-LINK programming & debug connector • Analog waveform test points • Isolated serial COM • Expansion board DIG/AN connectors • Protection and filter for MCU pin connections •...
  • Page 3 UM3538 Description Description STEVAL-DPSG474Q is a control board dedicated to digital power applications. It consists of a platform based on the STM32G474QE microcontroller from the STM32G4 family. The STM32G474QE microcontroller features a high-performance Arm Cortex®-M4 32-bit core running up to 170 MHz, equipped with an FPU and DSP instructions.
  • Page 4 UM3538 Peripheral description Peripheral description • HRTIM 12Ch [6Compl.] – (A1,F1 + A2,F2) (FLT1, FLT6, EEV1, EEV2, EEV3) • ADVTIMs 18Ch [9Compl.] – ADVTIM1(1&1N,2&2N,3&3N, BKIN, BIN2), ADVTIM8(1&1N,2&2N,3&3N, BKIN), ADVTIM20(1&1N,2&2N,3&3N, BKIN, BKIN2) • TIMERs – TIM2(Ch1, Ch2, Ch3), TIM3(Ch1,Ch2,Ch3,Ch4), TIM5(Ch1), TIM15(Ch1,Ch2) •...
  • Page 5 UM3538 Hardware description Hardware description Figure 2. STEVAL-DPSG474Q top view UM3538 - Rev 1 page 5/25...
  • Page 6 UM3538 Hardware description Figure 3. STEVAL-DPSG474Q bottom view 1. Power board analog 32-pins connector 2. Power board digital 68-pins connector 3. User button 4. Reset button 5. DAC pins 6. Mini-USB power supply (VCOM-pwr) 7. EXT power supply 8. IsolComm connectors 9.
  • Page 7 UM3538 Pinouts Pinouts SWD STDC14 connector The CN1 connector can be used either to connect a standard ST-LINKV3 dongle, which allows programming the microcontroller and debugging the user application using an SWD connection. Figure 4. SWD connector details Table 1.
  • Page 8 Pinouts Digital main connector The digital main connector is a 68-pin ST standard connector adopted in several power conversion evaluation kits, which allows an easy control board connection and a fast microcontroller change. Thanks to this modular approach, you can use the same control board for different applications or change the microcontroller to evaluate the performances of the latest ST products.
  • Page 9 UM3538 Pinouts DIGITAL_MAIN CLASS MCUPIN OPT1 OPT2 OPT3 OPT4 OPT5 PORT HRTIM1_CHC ACT6 PB13 HRTIM1_CHD ACT7 PB14 TIM15_CH1 HRTIM1_CHD TIM15_CH1 ACT8 PB15 TIM15_CH2 HRTIM1_CHE COMP7_OU ACT9 TIM3_CH3 TIM8_CH3 TIM20_CH3 HRTIM1_CHE ACT10 TIM3_CH4 TIM8_CH4 HRTIM1_CHF COMP6_OU ACT11 TIM3_CH1 HRTIM1_CHF COMP5_OU ACT12 TIM3_CH2 ACT13 TIM1_CH1...
  • Page 10 TIM8_BKIN Analog main connector The analog main connector is a 32-pin ST standard connector adopted in several power conversion evaluation kits, which allows an easy control board connection and a fast microcontroller change. Thanks to this modular approach, you can use the same control board for different applications or change the microcontroller to evaluate the performances of the latest ST products.
  • Page 11 UM3538 Pinouts ANALOG_MAI CLASS MCUPIN OPT1 OPT2 OPT3 OPT4 OPT5 PORT COMP4_IN ANLG11 ADC3_IN4 OPAMP3_VIN ANLG12 ADC2_IN12 COMP4_INM OPAMP3_VO OPAMP6_VIN ANLG13 ADC3_IN1 ADC1_IN12 COMP1_INP OPAMP2_VIN OPAMP2_VIN ANLG14 ADC3_IN12 COMP4_INP OPAMP1_VIN OPAMP2_VIN ANLG15 ADC2_IN11 ANLG ANLG16 ADC2_IN5 OPAMP1_VIN OPAMP2_VIN ANLG17 ADC2_IN4 COMP2_OUT COMP2_INP ANLG18...
  • Page 12 User LEDs The control board embeds three user LEDs that, in ST FW applications, are usually adopted to show the status of the power converter and if any fault occurred. The number of blinks of each LED depends on the final application.
  • Page 13 Standalone mode To use the STEVAL-DPSG474Q standalone, execute the following procedure. Step 1. Connect the ST-LINKV3 programmer to the STD14 (J6) connector and connect the USB cable to the Step 2. The green LED (D1) turns on. UM3538 - Rev 1...
  • Page 14 Step 1 and step 2 details (standalone mode) Figure 6. Step 1 and step 3 details (standalone mode) 6.3.2 Using with power board To use the STEVAL-DPSG474Q with another evaluation power board, follow the related user manual. UM3538 - Rev 1 page 14/25...
  • Page 15 Place capacitors as close as possible to each MCU Vdd Pin I2C_SDA I2C_S DA I2C_SCL I2C_S CL con4-s trip-ma le STLINK - STDC14 SECTION TEST POINT User LEDs ST-LInk V3 & Adapter CON DIG1 Re s e rve d TP 1 TIM3_CH4 TP 2 TP 3 TP 4 DIG2...
  • Page 16 UM3538 Bill of materials Bill of materials Table 6. STEVAL-DPSG474Q bill of materials Item Q.ty Ref. Part/value Description Manufacturer Order code C1 C2 C5 C6 C7 C8 C9 C10 C11 C12 C13 CAP CER 0.1UF 50V C14 C15 C16 0.1uF Wurth Electronics Inc.
  • Page 17 UM3538 Bill of materials Item Q.ty Ref. Part/value Description Manufacturer Order code ESDALC6V1W5, TVS DIODE 3V IC1 IC2 ESDALC6V1W5 SOT323-5L SOT323-5 CONN HEADER .100 J1 J2 J5 con4-strip-male Wurth Electronics Inc. 61300411121 STR 4POS CONN FMALE-ON- TE Connectivity AMP COM ISO 215079-4 BRD 4POS VERT T/H Connectors...
  • Page 18 UM3538 Bill of materials Item Q.ty Ref. Part/value Description Manufacturer Order code R17 R18 R19 R20 R22 R23 R24 R25 R26 CHIP RESISTOR SMD R27 R28 R29 Stackpole Electronics RMCF0603FT10R0 1% 1/10W 0603 R30 R31 R32 R33 R34 R35 R36 R37 CHIP RESISTOR SMD Yageo RC1206JR-070RL...
  • Page 19 UM3538 Board versions Board versions Table 7. STEVAL-DPSG474Q versions Finished good Schematic diagrams Bill of materials STEVAL$DPSG474QA STEVAL$DPSG474QA schematic diagrams STEVAL$DPSG474QA bill of materials 1. This code identifies the STEVAL-DPSG474Q evaluation board first version. UM3538 - Rev 1 page 19/25...
  • Page 20 UM3538 Regulatory compliance information Regulatory compliance information Notice for US Federal Communication Commission (FCC) For evaluation only; not FCC approved for resale FCC NOTICE - This kit is designed to allow: (1) Product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and (2) Software developers to write software applications for use with the end product.
  • Page 21 UM3538 Revision history Table 8. Document revision history Date Revision Changes 25-Jul-2025 Initial release. UM3538 - Rev 1 page 21/25...
  • Page 22 UM3538 Contents Contents Features................2 Description .
  • Page 23 STEVAL-DPSG474Q bill of materials ........
  • Page 24 STEVAL-DPSG474Q circuit schematic ........
  • Page 25 The purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of the purchasers’ products.
