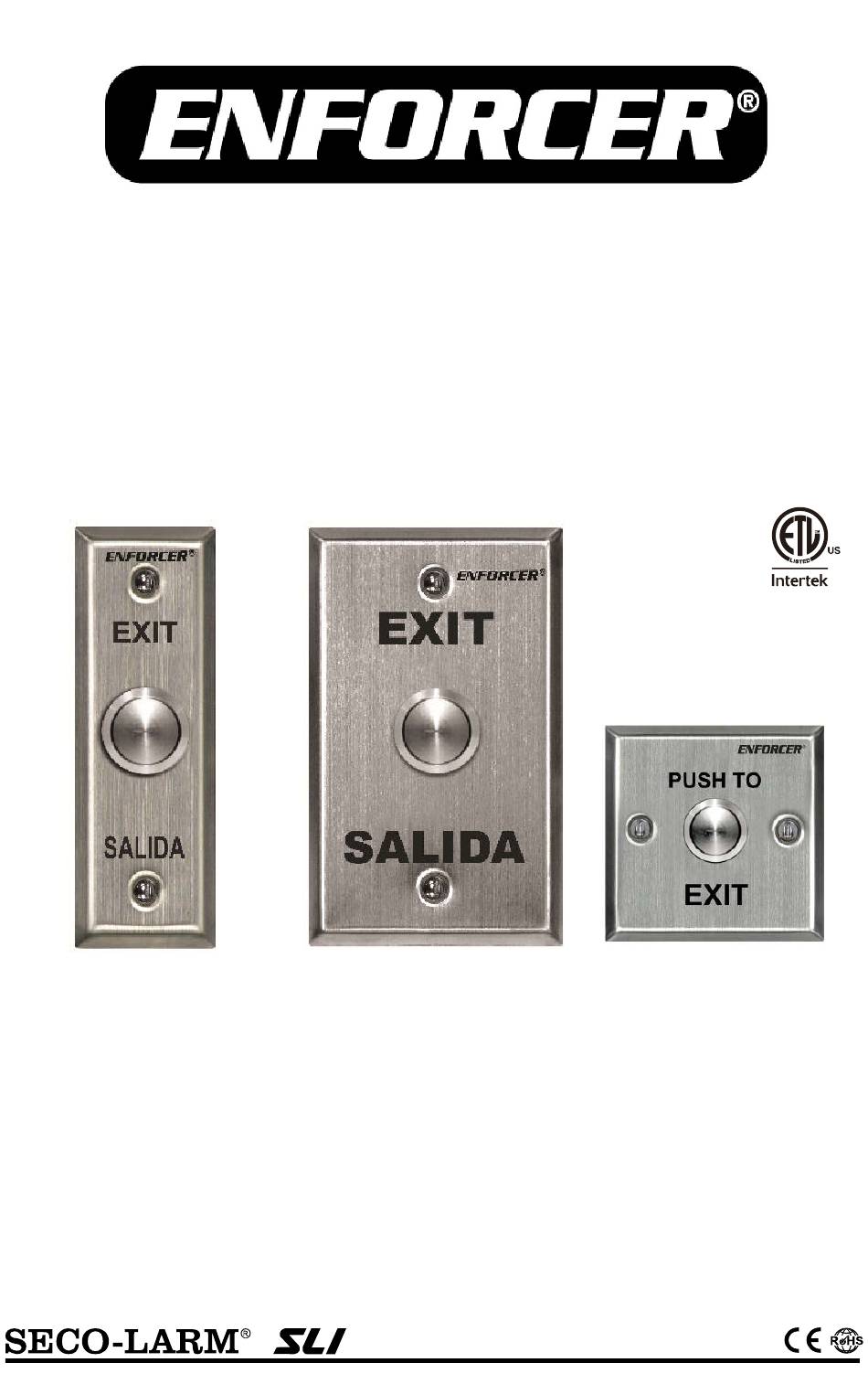

SD-7104SGEX1Q / SD-7204SGEX1Q

Vandal Resistant Push-to-Exit Plates

SD-7104SGEX1Q

Features:

 Switch contact rating: 50A@24VAC

 Equipped with NO/NC (DPST) switch

 "EXIT" and "SALIDA" silk-screened on

plate (except SD-7304SGEX1Q)

SD-7304SGEX1Q

Manual

SD-7204SGEX1Q

 Available with slimline, single-gang, and

European plates

 Vandal-resistant 1" (25mm) pushbutton

switch

5024193

Conforms to

UL Std. 294

SD-7304SGEX1Q

Need help?

Do you have a question about the SLI ENFORCER SD-7104SGEX1Q and is the answer not in the manual?

Page 1 SD-7104SGEX1Q / SD-7204SGEX1Q SD-7304SGEX1Q Vandal Resistant Push-to-Exit Plates Manual 5024193 Conforms to UL Std. 294 SD-7104SGEX1Q SD-7204SGEX1Q SD-7304SGEX1Q Features:  Switch contact rating: 50A@24VAC  Available with slimline, single-gang, and European plates  Equipped with NO/NC (DPST) switch  Vandal-resistant 1" (25mm) pushbutton ...
Page 2 Operating temperature -4°~140° F (-20°~60° C) "x1 "x " "x2 "x2 " "x3 "x " Dimensions (115x39x20 mm) (115x70x20 mm) (86x86x20 mm) Dimensions: Connections: " (30mm) (4) N.O. (2) N.C. 1" " (25mm) (1) N.C. (20mm) (3) N.O. SECO-LARM U.S.A., Inc.
Page 3 (outside the (inside the protected area) protected area) EXIT (–) SALIDA Tamper (on back) O/P (N.C.) (–) 12VDC Battery (optional) NOTE: Use only low-voltage, power-limited/Class 2 power supply and low-voltage field wiring not to exceed 98.5ft (30m). SECO-LARM U.S.A., Inc.
Page 4 WARRANTY: This SECO-LARM product is warranted against defects in material and workmanship while used in normal service for one (1) year from the date of sale to the original customer. SECO-LARM’s obligation is limited to the repair or replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM. This Warranty is void if...
