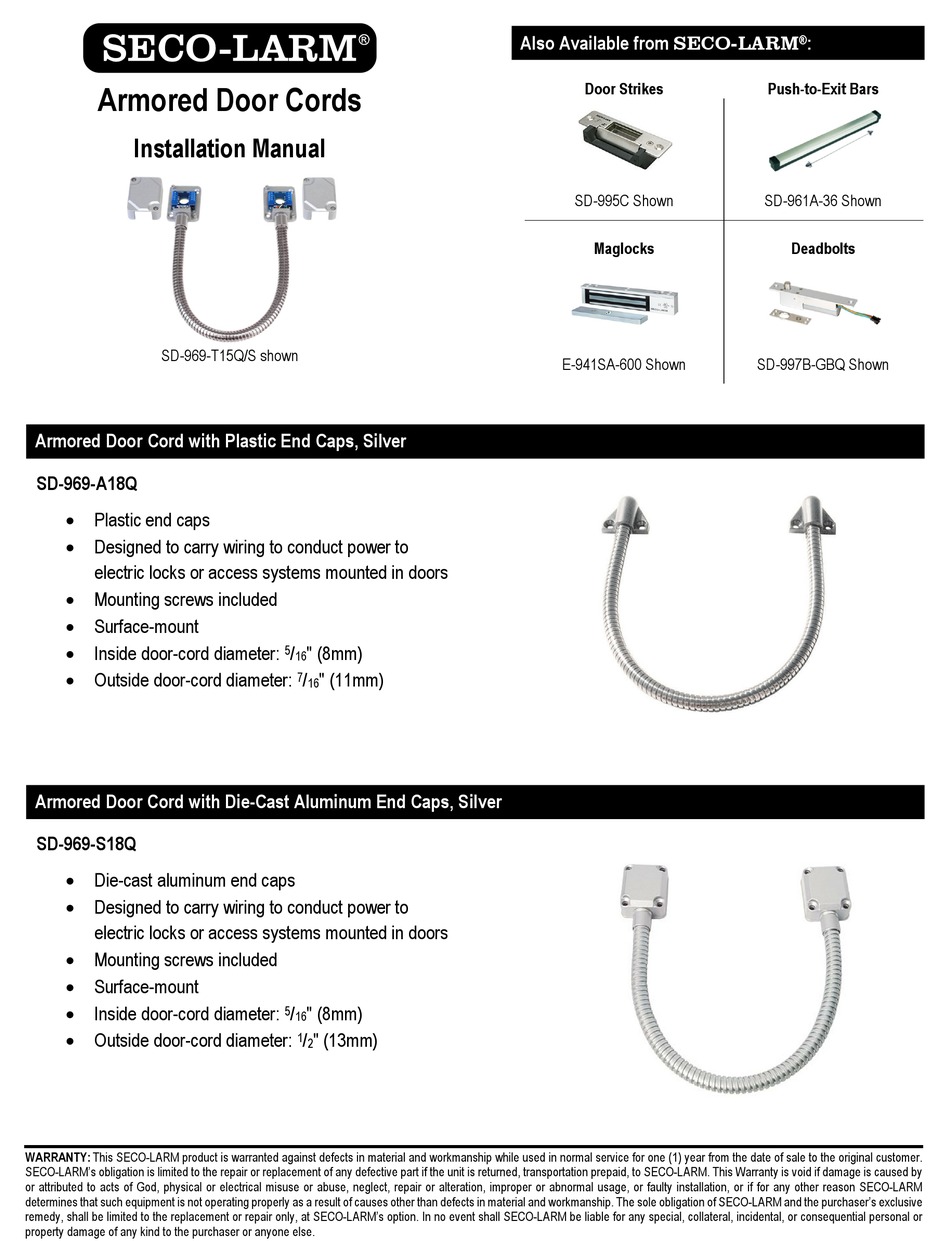

SECO-LARM SD-969-A18Q Installation Manual

Armored Door Cords
Installation Manual
SD-969-T15Q/S shown

Armored Door Cord with Plastic End Caps, Silver

SD-969-A18Q
 Plastic end caps
 Designed to carry wiring to conduct power to
electric locks or access systems mounted in doors
 Mounting screws included
 Surface-mount
 Inside door-cord diameter:
 Outside door-cord diameter:

Armored Door Cord with Die-Cast Aluminum End Caps, Silver

SD-969-S18Q
 Die-cast aluminum end caps
 Designed to carry wiring to conduct power to
electric locks or access systems mounted in doors
 Mounting screws included
 Surface-mount
 Inside door-cord diameter:
 Outside door-cord diameter:
WARRANTY: This SECO-LARM product is warranted against defects in material and workmanship while used in normal service for one (1) year from the date of sale to the original customer.
SECO-LARM's obligation is limited to the repair or replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM. This Warranty is void if damage is caused by
or attributed to acts of God, physical or electrical misuse or abuse, neglect, repair or alteration, improper or abnormal usage, or faulty installation, or if for any other reason SECO-LARM
determines that such equipment is not operating properly as a result of causes other than defects in material and workmanship. The sole obligation of SECO-LARM and the purchaser's exclusive
remedy, shall be limited to the replacement or repair only, at SECO-LARM's option. In no event shall SECO-LARM be liable for any special, collateral, incidental, or consequential personal or
property damage of any kind to the purchaser or anyone else.
/ " (8mm)
5
16
/ " (11mm)
7
16
/ " (8mm)
5
16
/ " (13mm)
1
2
