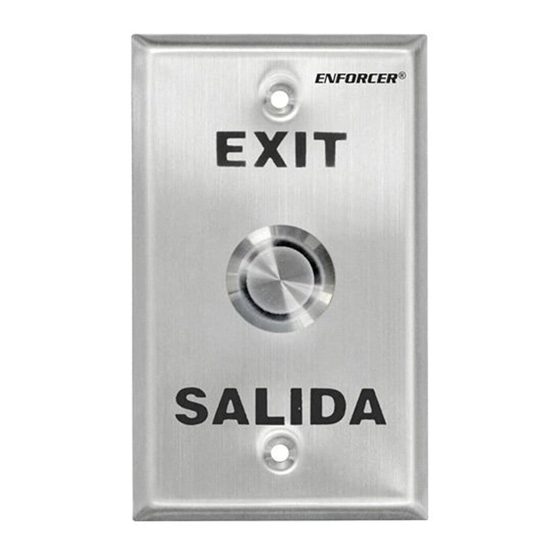

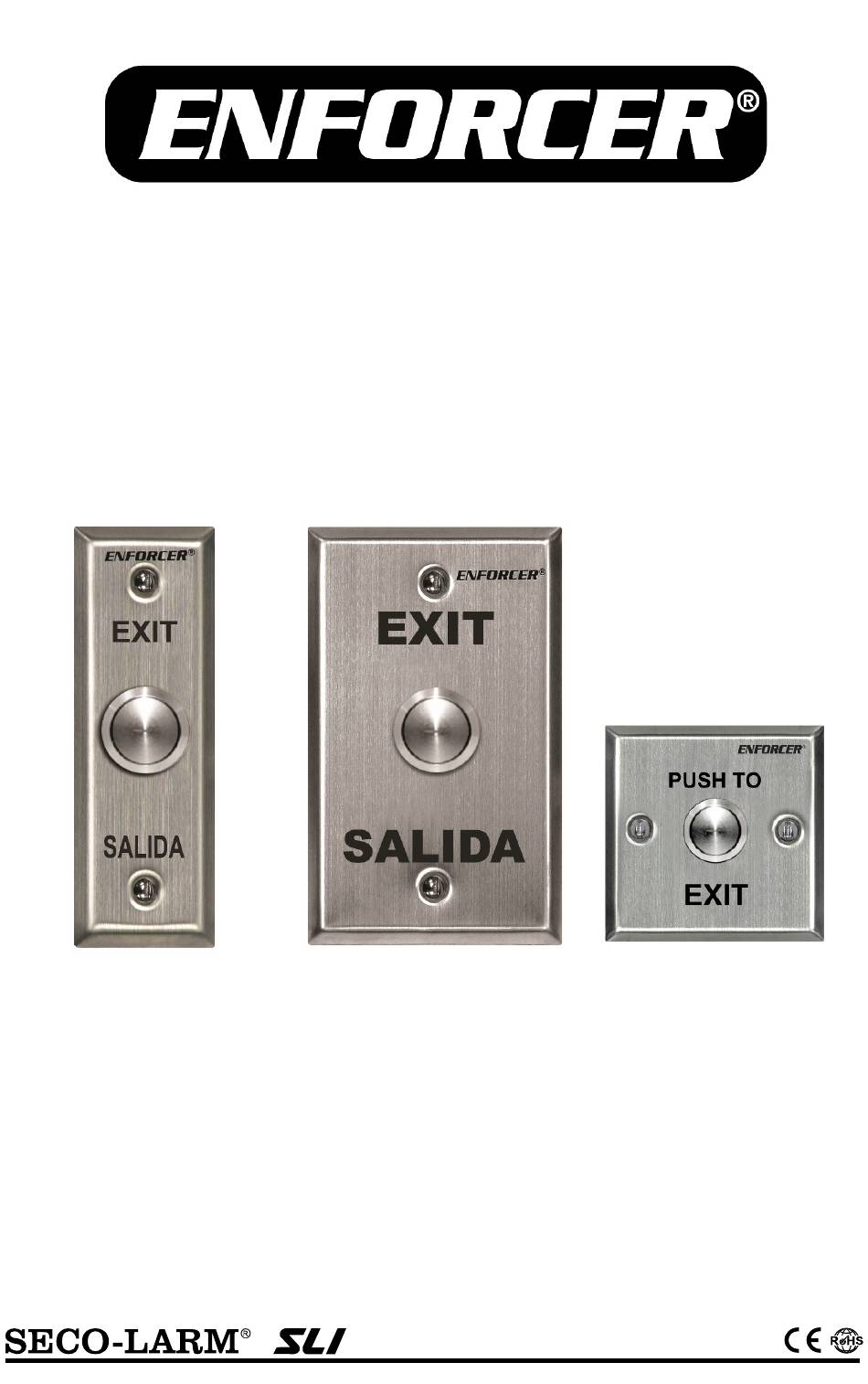

SD-7104SGEX1Q / SD-7204SGEX1Q
Vandal Resistant Push-to-Exit Plates
SD-7104SGEX1Q
Features:
• Switch contact rating: 50A@24VAC
• Equipped with NO/NC (DPST) switch
• "EXIT" and "SALIDA" silk-screened
on plate (except SD-7304SGEX1Q)
SD-7304SGEX1Q
Manual
SD-7204SGEX1Q
®
• Available in slimline, single-gang and
European plates.
• Vandal-Resistant 1" (25mm) push-button
switch
SD-7304SGEX1Q
