SECO-LARM Enforcer SD-7104SGEX1Q Installation Manual

Push-to-exit Plates Installation Manual

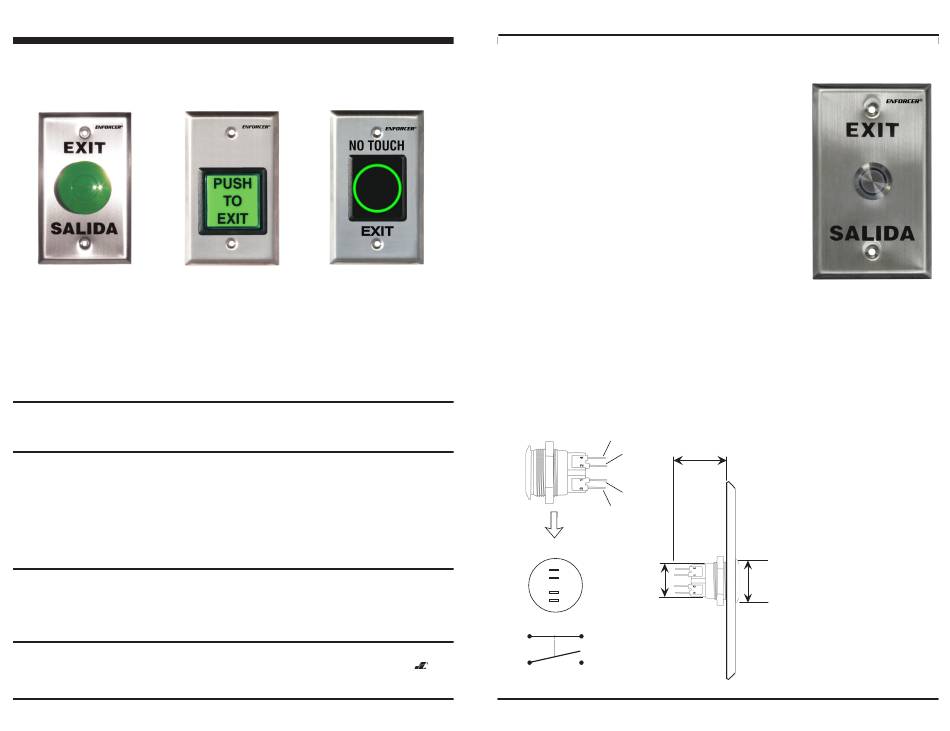

Other Popular Request-to-Exit Plates
SD-7201GC-PE1 SD-7202GC-PE
• •
Green, 1 1 / " dia., 2" square green, illuminated,
2
mushroom-cap push button. momentary push button.
• •
N.O./N.C. contact rated N.O./N.C. contact rated
5A @ 125 VAC. 10A @ 125 ~ 250 VAC.
• •
"EXIT" and "SALIDA" Includes: "PUSH TO EXIT" &
silk-screened on plate. "PRESIONE PARA SALIR"
button faces.
Note: The SD-7201GC-PE1 and SD-7202GC-PE are also available with timer.
WARNING: Incorrect mounting which leads to exposure to rain or moisture inside the enclosure could cause a
dangerous electric shock, damage the device, and void the warranty. Do not open the case of this device, as there are
no field-serviceable components inside.
WARRANTY: This SECO-LARM product is warranted against defects in material and workmanship while used in normal
service for a period of one (1) year from the date of sale to the original consumer customer. SECO-LARM's obligation is
limited to the repair or replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM.
This Warranty is void if damage is caused by or attributed to acts of God, physical or electrical misuse or abuse, neglect,
repair, or alteration, improper or abnormal usage, or faulty installation, or if for any other reason SECO-LARM determines
that such equipment is not operating properly as a result of causes other than defects in material and workmanship.
The sole obligation of SECO-LARM, and the purchaser's exclusive remedy, shall be limited to replacement or repair only, at
SECO-LARM's option. In no event shall SECO-LARM be liable for any special, collateral, incidental, or consequential
personal or property damages of any kind to the purchaser or anyone else.
NOTICE: The information and specifications printed in this manual are current at the time of publication. However, the
SECO-LARM policy is one of continual development and improvement. For this reason, SECO-LARM reserves the right
to change specifications without notice. SECO-LARM is also not responsible for misprints or typographical errors.
Copyright © 2009 SECO-LARM U.S.A., Inc. All rights reserved. This material may not be reproduced or copied, in
whole or in part, without the written permission of SECO-LARM.
SECO-LARM ® U.S.A., Inc.
16842 Millikan Avenue, Irvine, CA 92606
Tel: 800-662-0800 / 949-261-2999 Fax: 949-261-7326
SD-927PKC-NEQ
•
No Touch Request-To-Exit Plate.
•
Range up to 4" (10cm).
•
3A relay, triggers min. 0.5 sec. or as
long as hand is near the sensor.
•
Green LED-illuminated sensor area
for easy identification. LED turns red
to show the relay is triggered.
•
Quick connect screwless terminal
block.
FILE: DT/DTP/MiSD71_7204SGEX1Q_0912.pmd
ORDER PART# 763-158-1%
PITSW1
Website: www.seco-larm.com
E-mail: sales@seco-larm.com
SECO-LARM U.S.A., Inc.
Push-to-exit Plates Installation Manual
Installation Manual
ENFORCER
SD-7104SGEX1Q
–
Slim-Line
SD-7204SGEX1Q –
Single Gang
Vandal Resistant Push-To-Exit Plates
Installation:
1. Run two wires through the wall to the back-box.
2. Connect wires to either 1-2 (N.C.) or 3-4 (N.O.).
4. Screw plate to the back-box, using caution not to pinch any wires.
Connections:
N.O.
N.C.
N.C.
N.O.
4
/ "
13
16
2
(20mm)
1
3
1 N.C. 2
3 N.O. 4
®

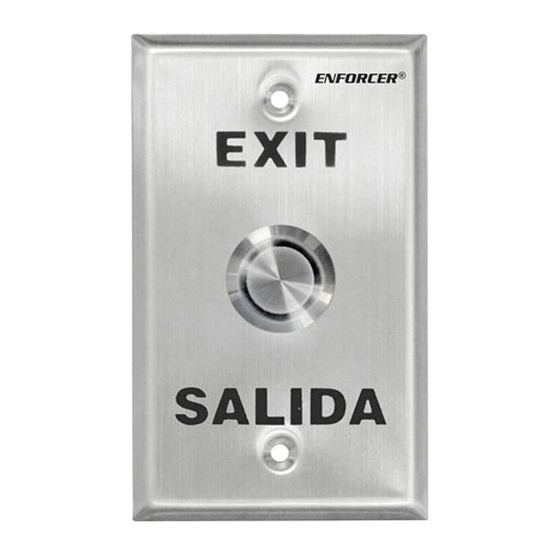

SD-7204SGEX1Q Shown
Features:
•
Vandal resistant, 1" (25mm) dia. momentary
pushbutton.
•
N.O./N.C. contact rated 5A @ 250VAC.
•
"EXIT" and "SALIDA" silk-screened on plate.
Included in this box:
•
1 3 / "
16 Stainless-steel push-to-exit plate with
(30mm)
vandal resistant switch.
•
2 mounting screws.
•
4 crimp style push on connectors.
1"
(25mm)
