SECO-LARM SD-C101-SGQ Installation Template

1
3
(44mm)
Model: SD-C101-SGQ
For Left-Hand Door
© 2014 SECO-LARM U.S.A. Inc. All rights reserved. This material may not be reproduced
or copied, in whole or in part, without the written permission of SECO-LARM.

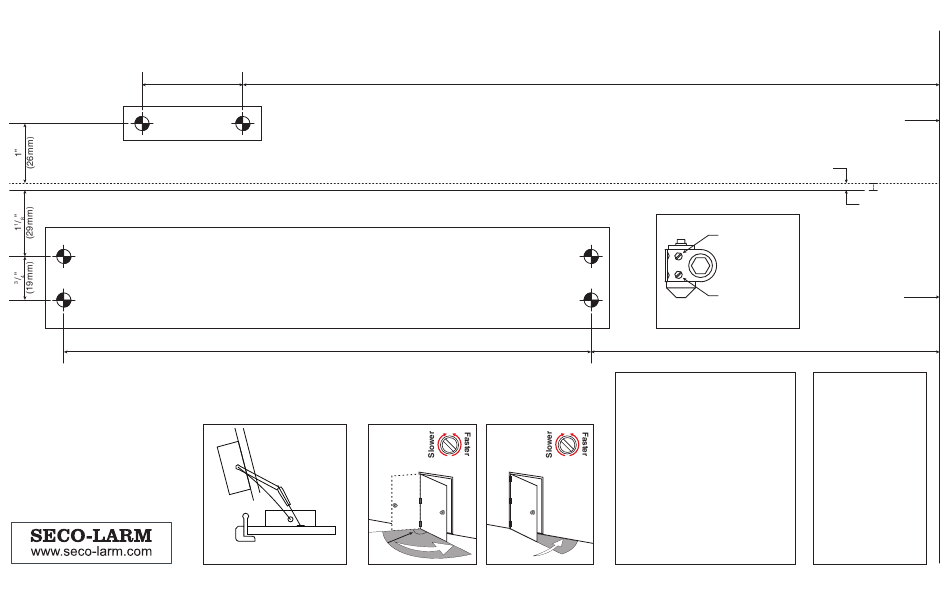

INSTALLATION TEMPLATE FOR ENFORCER DOOR CLOSER
/ "
4
Door Closer Standard Installation for Left-Hand Door
9 1 / "
16
(230mm)
Hinge
Door
130°
Left-Hand Door Opening
Sweep Latch
speed speed
adjustment adjustment
11 / "
15
16
(304mm)
L. Latch speed
adjustment
S. Sweep speed
adjustment
(152mm)
Installation Tips:
1. To ease opening and closing of the door,
you can "pre-load" the closer arm by using
a wrench on the axle to move it by 45
degrees, so that the arm will not have to
travel through the initial open sweep.
2. Adjust the "Back Check" (BC) setting so
that the door will open smoothly to the full
extent of the swing required.
3. Adjust the "Sweep" speed to have the door
swing slowly.
4. Adjust the "Latch" speed to have the door
swing the last few inches with enough force
to latch.
5. Door closer comes preset as ANSI size "3".
To change size:
1: 8 turns CCW 4: 5 turns CW
2: 4 turns CCW 5: 10 turns CW
3: No turns 6: 15 turns CW
CCW: Counterclockwise WARRANTY This SECO-LARM product is warranted against defects in material and workmanship while used
CW: Clockwise
DOOR EDGE
Top of jamb
/ " (3mm)
1
8
Top of door
Set this end to
right side of door
6"
Parts List:
8x Philips head wood screw
(ST6.3*38)
8x Philips head wood screw
(ST6.3*30)
4x Philips head machine
screw (1/4-20*25)
4x Philips head machine
screw (1/4-20*16)
1x Arm axle screw (M6*10)
1x Philips pan head screw
(M6*10)
1x Split washer
1x Washer
1x Hex wrench (4mm)
1x Axle cover cap
1x Parallel arm bracket
1x Closer body
1x Closer arm
in normal service for a period of one (1) year from the date of sale to the original consumer customer.
SD-C101-SGQ_mounting_template_1405.ai
