SECO-LARM ENFORCER SD-C101-SBBQ Installation Template

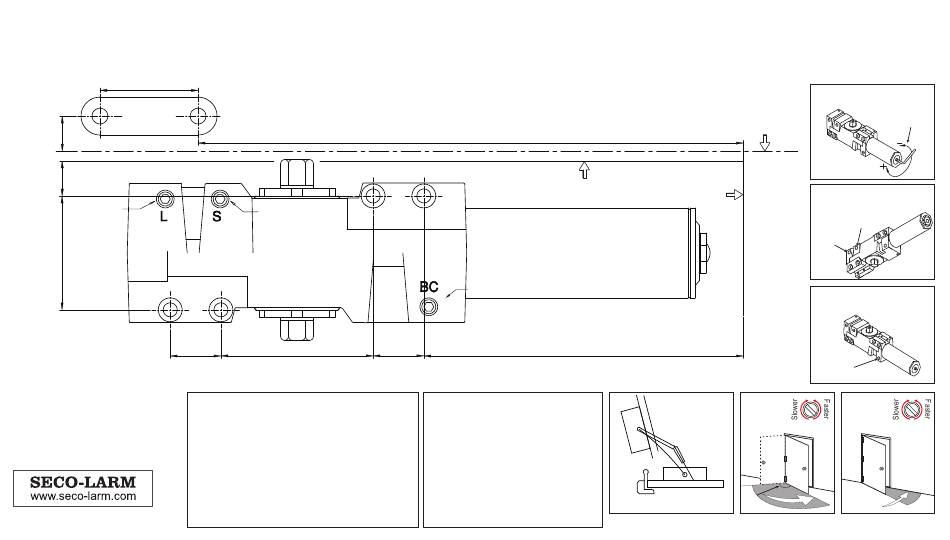

INSTALLATION TEMPLATE FOR ENFORCER HEAVY-DUTY SURFACE-TYPE DOOR CLOSER WITH BACK CHECK
1 / "
15
16
(49.2mm)
1 / "
11
16
(17.5mm)
1 / "
11
16
(17.5mm)
Latch
Screw
2 / "
1
4
(57mm)
1"
(25.4mm)
CCW: Counterclockwise CW: Clockwise
Model: SD-C101-SBBQ
For Left-Hand Door
®
© 2016 SECO-LARM U.S.A. Inc. All rights reserved. This material may not be reproduced
or copied, in whole or in part, without the written permission of SECO-LARM.
Sweep
Screw
3" (76.2mm)

Installation Tips:

1. To ease opening and closing of the door, you can "pre-load" the closer arm
by using a wrench on the axle to move it by 45 degrees, so that the arm will
not have to travel through the initial open sweep.
2. Adjust the "Back Check" (BC) setting so that the door will open smoothly to
the full extent of the swing required.
3. Adjust the Sweep "S" speed to have the door swing slowly.
4. Adjust the Latch "L" speed to have the door swing the last few inches with
enough force to latch.
5. Door closer comes preset as ANSI size "3". To change size, turn the spring
power adjustment screw:
1: 5 turns CCW 4: 5 turns CW
2: 3 turns CCW 5: 10 turns CW
3: No turns 6: 15 turns CW
10 / "
3
4
(273mm)
Top of Door
Back Check Screw
1"
(25.4mm)

Parts List:

4x Self-tapping & self-drilling machine screw (ST6.3*75)
1x Self-tapping & self-drilling wood screw (ST6.3*50)
4x Self-tapping & self-drilling wood screw (ST6.3*38)
4x Countersunk head self-tapping screw (ST6.3*70)
4x Countersunk head screw (1/4-20*38)
1x Half countersunk head screw (1/4-20*9.5)
1x Arm head screw (1/4-20*13.5)
4x Hollow screws
2x Cover screws
1x Hex wrench (2.5mm)
1x Hex wrench (4mm)
1x Parallel arm bracket
1x Black plastic cushion block
Frame Stop
Edge of Door
6 / "
5
16
(160mm)
Hinge
Door
Left-Hand Door Opening
Turn Power Adjustment screw CW to
increase or CCW to decrease Spring
Power
Spring Power
Adjustment
Turn Latch or Sweep Adjustment screw
CCW to increase or CW to decrease
Latch or Sweep Speed
Sweep speed screw
Latch speed
Screw
Turn Back Check Adjustment screw
CW to increase or CCW to decrease
Back Check
Back Check
Screw
Sweep Latch
speed speed
adjustment adjustment
130°
WARRANTY This SECO-LARM product is warranted against defects in material and workmanship while used
in normal service for a period of five (5) years from the date of sale to the original consumer customer.
MT_SD-C101-SBBQ_160125.ai
