SECO-LARM ENFORCER SD-7202GC-PEQ Installation Manual

Installation Manual
ENFORCER
SD-7202GC-PEQ
SD-7202GC-PTQ
SD-7223GW-LQ

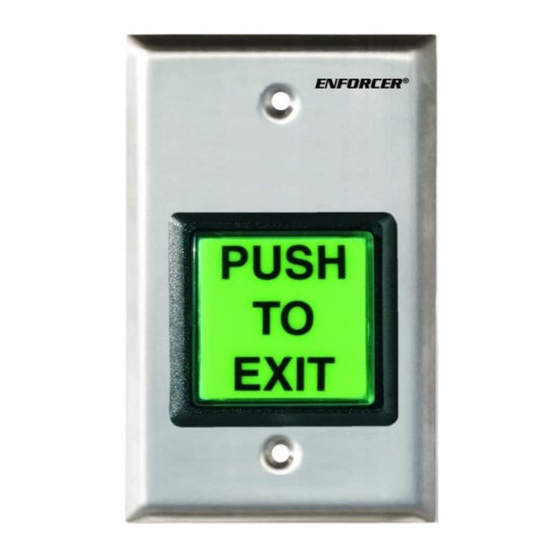

Illuminated Push-to-Exit Square Button
with Stainless or Plastic Plate

Features

• Large, illuminated push button with caption
"PUSH TO EXIT."
• Can be easily changed in the field to
"PRESIONE PARA SALIR."
• Push button rated 10A at 125~250VAC
(3A@24VDC for SD-7202GC-PTQ)
• Includes five colored 12-inch wire leads with
easy-to-attach spade lugs for fast installation.
• Available in stainless-steel or plastic single-gang plate.
• Replacement bulb included.
• SD-7223GW-LQ - - White Plastic single-gang plate version.
• SD-7202GC-PTQ - - Includes timer to extend activation time up to 180 sec.

INSTALLATION

1. Run four wires through the wall to a single-gang back-box:
a. Two wires for 12VDC or 24VDC for the light.
b. One wire from either the N.O. or N.C. terminal of a device such as an alarm or access control system which can
unlock an electrically-controlled lock.
c. One wire from the COM terminal of that device.
2. Connect four colored wires (included) to the switch (see fig. 1):
a. 2 x GREEN wires, one each to the brass-colored spade connectors on each side of the black switch.
b. GREEN/WHITE wire to the N.C. connector on the black switch (if needed).
c. BLUE/WHITE wire to the N.O. connector on the black switch (if needed).
d. WHITE wire to the COM connector on the black switch.
3. Connect the four colored wires to wires from the alarm or access control system and the light's power source (see fig. 1):
a. 2 x GREEN wires - - To 12VDC or 24VDC source. If 24VDC is used, connect the supplied 150-ohm, 1-Watt
resistor in line with one of the two GREEN wires.
b. GREEN/WHITE wire - - To the N.C. terminal of the alarm or access control system (if needed).
c. BLUE/WHITE wire - - To the N.O. terminal of the alarm or access control system (if needed).
d. WHITE wire - - To the COM terminal of alarm or access control system.
4. Screw the plate into the back-box, taking care not to crimp the wires.
CHANGING THE MESSAGE PLATE FROM ENGLISH TO SPANISH (IF NEEDED)
NOTE - - This should be done before connecting any wires.
1. Carefully twist the switch and bulb assembly counter-clockwise about 20
2. Insert the blunt end of a small tool or rod - - eg., screwdriver or pen, ~3/8" diameter - - into the black tube. It should slide in
easily all the way until it contacts the inside of the front lens/message plate assembly. Push the lens/message plate assembly with
your tool until it pops off (see fig. 3). Be careful not to lose the spring.
3. Take off the transparent green lens and replace the "PUSH TO EXIT" message plate with the "PRESIONE PARA SALIR" message plate, or
vice-versa. Make sure the message plate direction is correct.
4. Snap the lens assembly back on and replace the switch/bulb assembly.
Note: Products with model numbers that end with "Q" or that have a round green "Q" sticker are RoHS compliant.
®

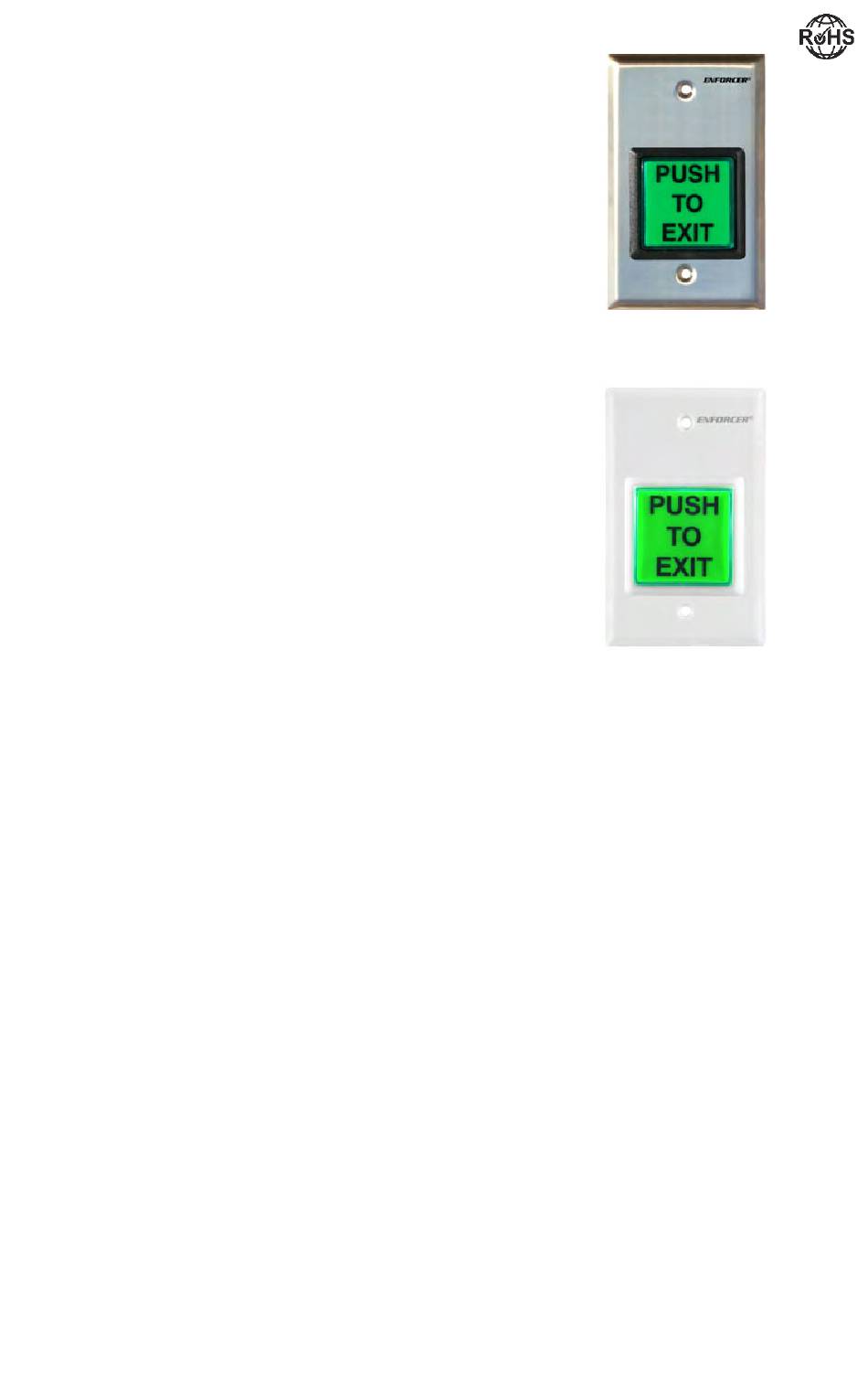

(Stainless plate)
(Stainless plate with Timer)
(Plastic white plate)
SD-7202GC-PEQ
SD-7223GW-LQ
o
, and then pull it out of the black tube (see fig. 2).
