Surface-Mount Electric Rim Strikes
Installation Manual
Model
SD-998C-D3Q
SD-998C-BD3
SD-998C-D3AQ
SD-998C-BD3A
 12/24 VDC Operating voltage
 Non-polarized connection
 Horizontal adjustment
 Accommodates up to
 Reversible non-handed design fits either right-hand or left-handed doors
 Surface-mount on metal or wood frames
 Works with standard rim-type exit devices including SECO-LARM SD-962xR-36A and SD-962xR-36G
 For Indoor Use Only
 Static strength – 1,500-lb (6673N)
 Tested for 250,000 cycles (UL Tested)
 Low current draw: 540mA@12VDC, 270mA@ 24VDC
 Field-selectable for fail-safe or fail-secure operation
 The SD-998C series is intended to be used with UL Listed Exit Hardware
 The SD-998C series shall not impair the intended operation of an emergency unit
 The SD-998C series shall not impair the operation of panic hardware mounted on the door

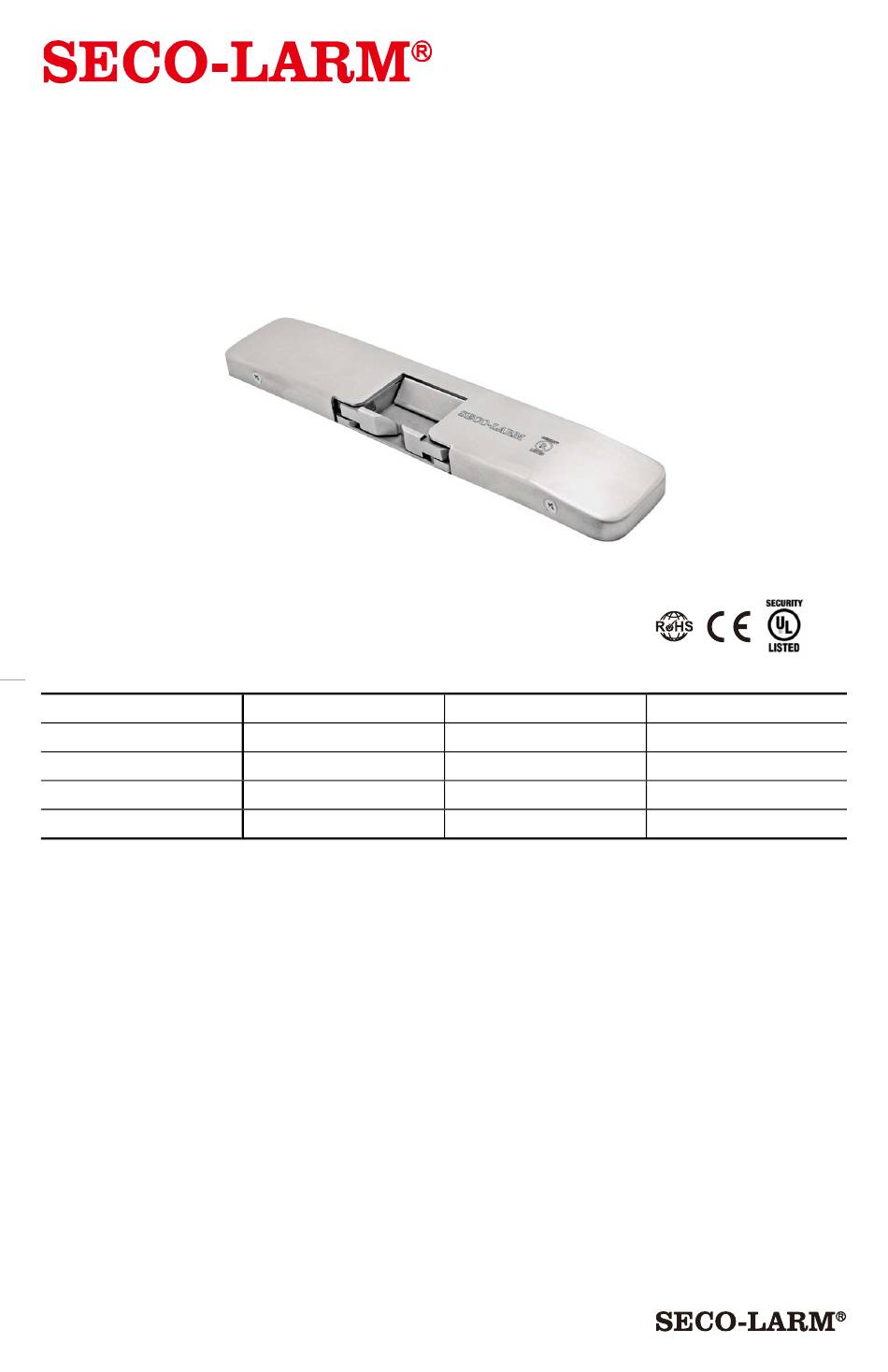

SD-998C-D3AQ shown
Housing thickness
/
" (19mm)
3
4
/
" (19mm)
3
4
/
" (13mm)
1
2
/
" (13mm)
1
2
/
" Pullman latch
3
4
Latch Throw
/
" (19mm)
3
4
/
" (19mm)
3
4
/
" (13mm)
1
2
/
" (13mm)
1
2
43RG
Material
Aluminum
Black (Anodized)
Aluminum
Black (Anodized)
