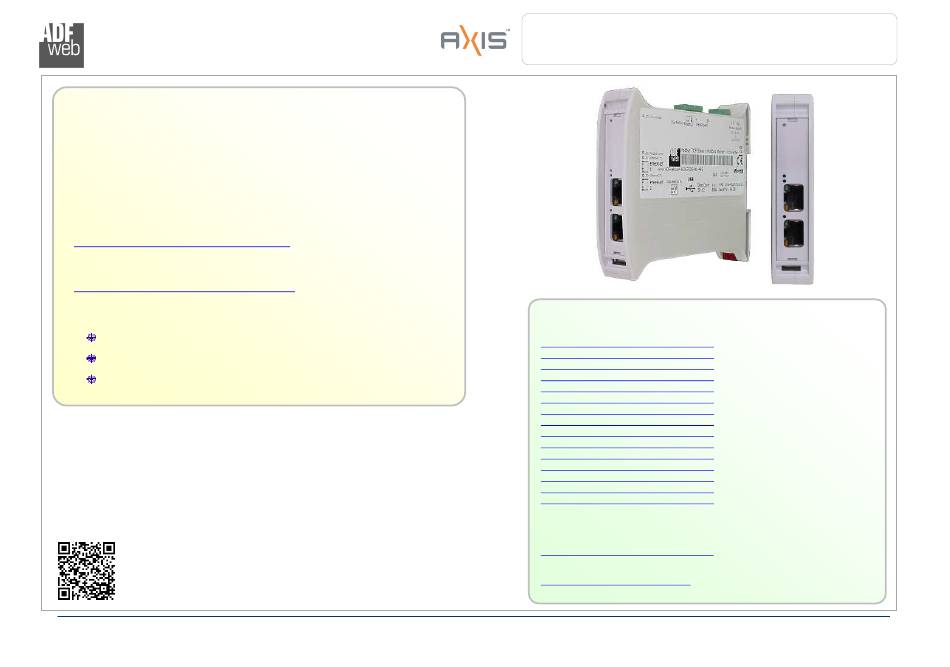

- Page 1 Page 1 of 22 Industrial Electronic Devices User Manual Revision 1.000 English Modbus TCP Slave / SNMP - Converter (Order Code: HD67167-A1) for Website information: www.adfweb.com?Product=HD67167 for Price information: www.adfweb.com?Price=HD67167-A1 Benefits and Main Features: For others SNMP products, see also the following links:...
-
Page 2: Table Of Contents
User Manual Modbus TCP Slave / SNMP Document code: MN67167_ENG Revision 1.000 Page 2 of 22 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Dear customer, we thank you for your attention and we remind you that Page you need to check that the following document is: INDEX UPDATED DOCUMENTATION Updated... -
Page 3: Security Alert
User Manual Modbus TCP Slave / SNMP Document code: MN67167_ENG Revision 1.000 Page 3 of 22 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application. -
Page 4: Example Of Connection
User Manual Modbus TCP Slave / SNMP Document code: MN67167_ENG Revision 1.000 Page 4 of 22 Industrial Electronic Devices EXAMPLES OF CONNECTION: ADFweb.com S.r.l. -
Page 5: Connection Scheme
User Manual Modbus TCP Slave / SNMP Document code: MN67167_ENG Revision 1.000 Page 5 of 22 Industrial Electronic Devices CONNECTION SCHEME: Figure 1: Connection scheme for HD67167-A1 ADFweb.com S.r.l. -
Page 6: Characteristics
Page 6 of 22 Industrial Electronic Devices CHARACTERISTICS: The HD67167-A1 is a Modbus TCP Slave / SNMP Converter. It has the following characteristics: Up to 1024 bytes in reading and 1024 bytes in writing; Isolation between Power Supply - Ethernet. -
Page 7: Power Supply
The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below. Vmin Vmax Vmin Vmax Consumption at 24V DC: Device Consumption [W/VA] HD67167-A1 Caution: Do not reverse the polarity power HD67167-A1 ADFweb.com S.r.l. -
Page 8: Function Modes
User Manual Modbus TCP Slave / SNMP Document code: MN67167_ENG Revision 1.000 Page 8 of 22 Industrial Electronic Devices FUNCTION MODES: The device has got two function modes depending on the position of the ‘Dip2 of Dip-Switch A’: The first, with ‘Dip2 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device. The second, with ‘Dip2 of Dip-Switch A’... -
Page 9: Leds
User Manual Modbus TCP Slave / SNMP Document code: MN67167_ENG Revision 1.000 Page 9 of 22 Industrial Electronic Devices LEDS: The device has got six LEDs that are used to give information about the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode ON: Device powered... -
Page 10: Ethernet
User Manual Modbus TCP Slave / SNMP Document code: MN67167_ENG Revision 1.000 Page 10 of 22 Industrial Electronic Devices ETHERNET: The SNMP connection, Modbus TCP connection and the updating of the converters must be made using Connector3 and/or Connector4 with at least a Category 5E cable. -
Page 11: Use Of Compositor Sw67167
User Manual Modbus TCP Slave / SNMP Document code: MN67167_ENG Revision 1.000 Page 11 of 22 Industrial Electronic Devices USE OF COMPOSITOR SW67167: To configure the Converter, use the available software that runs with Windows called SW67167. It is downloadable on the site www.adfweb.com and its operation is described in this document. -
Page 12: New Configuration / Open Configuration
User Manual Modbus TCP Slave / SNMP Document code: MN67167_ENG Revision 1.000 Page 12 of 22 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a programmable “Modbus TCP slave / SNMP - Converter”... -
Page 13: Software Options
User Manual Modbus TCP Slave / SNMP Document code: MN67167_ENG Revision 1.000 Page 13 of 22 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor. -
Page 14: Set Communication
User Manual Modbus TCP Slave / SNMP Document code: MN67167_ENG Revision 1.000 Page 14 of 22 Industrial Electronic Devices SET COMMUNICATION: This section define the fundamental communication parameters of two buses, SNMP and Modbus TCP. By Pressing the “Set Communication” button from the main window for SW67167 (Fig. 2) the window “Set Communication”... -
Page 15: Update Device
User Manual Modbus TCP Slave / SNMP Document code: MN67167_ENG Revision 1.000 Page 15 of 22 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if necessary. - Page 16 A1 device. Note: When you receive the device, for the first time, you also have to update the Firmware in the HD67167-A1 device. Warning: If Fig. 5 appears when you try to do the Update try these points before seeking assistance: Try to repeat the operations for the update;...
-
Page 17: Snmp Communication
Reading Modbus TCP data from SNMP: In order to read the data from the HD67167-A1 it is necessary to use the “snmpget” command. The Input array is contained to this internal directory: 1.3.6.1.4.1.33118.1.1.1.4.x.0, where ‘x’ is the number of data block. Each data block has a dimension of 128 bytes. - Page 18 Writing Modbus TCP data from SNMP: In order to write the data to the HD67167-A1 it is necessary to use the “snmpset” command. The Output array is contained to this internal directory: 1.3.6.1.4.1.33118.1.1.1.4.x.0, where ‘x’ is the number of data block. Each data block has a dimension of 128 bytes.
-
Page 19: Mechanical Dimensions
User Manual Modbus TCP Slave / SNMP Document code: MN67167_ENG Revision 1.000 Page 19 of 22 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 7: Mechanical dimensions scheme for HD67167-A1 ADFweb.com S.r.l. -
Page 20: Ordering Informations
Enclosure Type A: 1M, 35mm DIN Rail mounting Device Family HD67167: Modbus TCP Slave / SNMP - Converter Order Code: HD67167-A1 Modbus TCP Slave / SNMP – Converter ACCESSORIES: Order Code: AC34001 35mm Rail DIN - Power Supply 220/240V AC 50/60Hz – 12 V AC Order Code: AC34002 35mm Rail DIN - Power Supply 110V AC 50/60Hz –... -
Page 21: Disclaimer
User Manual Modbus TCP Slave / SNMP Document code: MN67167_ENG Revision 1.000 Page 21 of 22 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user. -
Page 22: Warranties And Technical Support
User Manual Modbus TCP Slave / SNMP Document code: MN67167_ENG Revision 1.000 Page 22 of 22 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following:...
