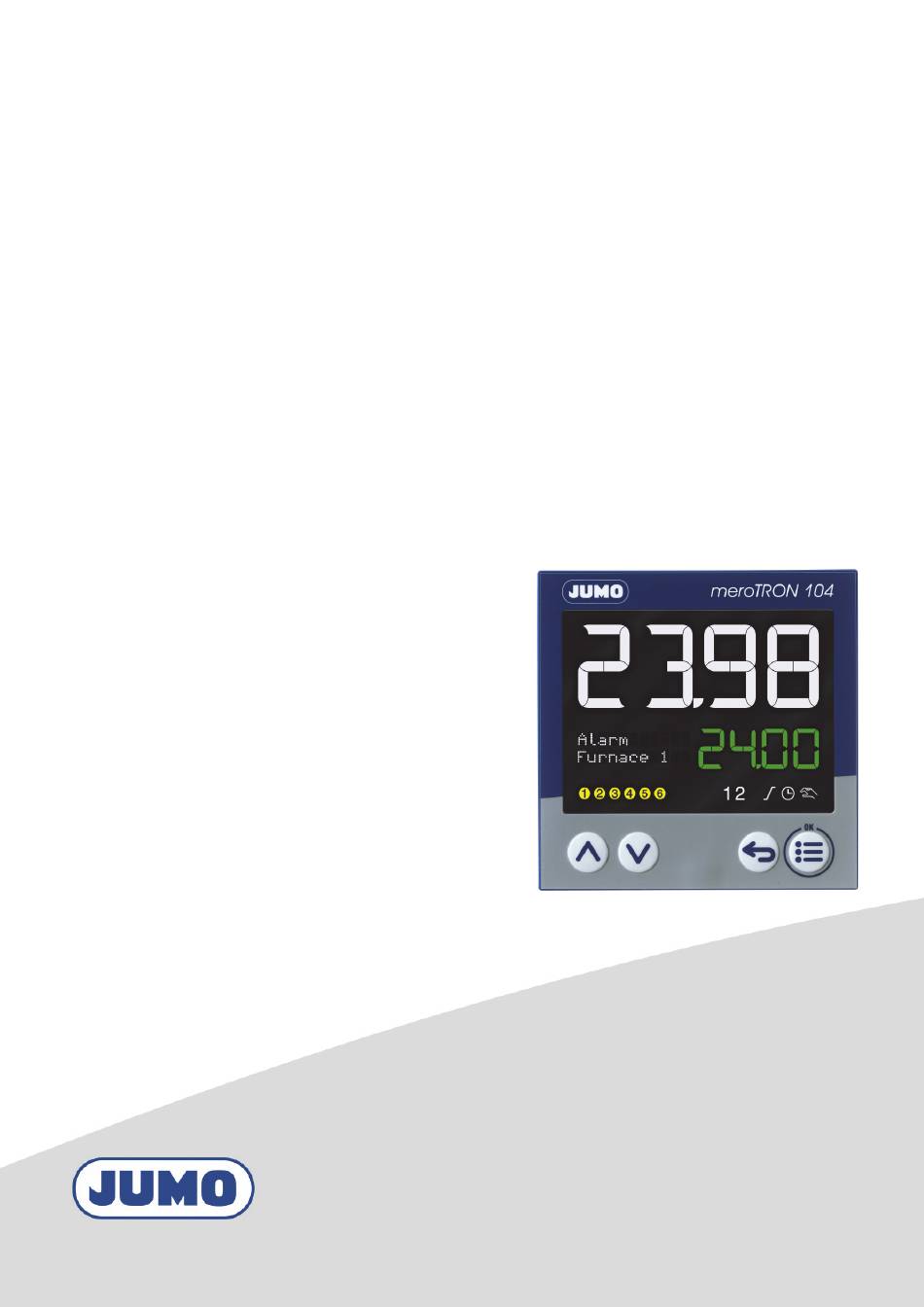

- Page 1 JUMO meroTRON 104 for boiler controllers Operating Instructions 70305100T91Z001K000 V1.00/EN/2025-03-17...
- Page 2 Further information and downloads qr-703051-en.jumo.info...
- Page 3 Table of contents Table of contents About this documentation ........4 Applicable documentation.
- Page 4 About this documentation 1 About this documentation Applicable documentation In addition to this document, the quick start guide 70305100T97... or the operating manual 70305100T90... of the device must be observed. This applies in particular to the safety information in- cluded in these documents. The quick start guide contains information including instructions on how to mount the device and set up the electrical connections.
- Page 5 1 About this documentation Warning symbols CAUTION! This symbol in connection with the signal word indicates that material damage or data loss will occur if the respective precautionary measures are not taken. READ THE DOCUMENTATION! This symbol, which is attached to the device, indicates that the associated documentation for the de- vice must be observed.
- Page 6 Safety 2 Safety Intended use The device is designed for use in an industrial environment as specified in the technical data. Other uses beyond those defined are not viewed as intended uses. The device has been manufactured in compliance with applicable standards and directives as well as the applicable safety regulations.
- Page 7 Description 3 Description The JUMO meroTRON in the boiler controller version is a modular controller for the meat processing industry with predefined functionality and operation. It takes into account control according to the core temperature. In this version, the controller has two analog inputs for boiler temperature and core temperature, two dig- ital inputs and four relay outputs.
- Page 8 Operation 4 Operation Display and control elements NOTE! Screenshots of the product are used in this document. The text is shown on the product as running text and may therefore be partially cut off. Basic display 1 Basic display 2 1 Boiler temperature T°Core 2 Core temperature...
- Page 9 4 Operation Basic settings NOTE! Before starting up the device, the date and time have to be set to ensure correct functioning and precise recordings (see operating manual 703051). • To make settings in the menu, press the key < 2 s. •...
- Page 10 4 Operation 4.2.1 Preset parameters Menu level 1 Menu level 2...
- Page 11 4 Operation Basic display (basic status) • To start the program, press key < 2 s. • The program can be stopped at any point by pressing the key > 2 s. • After starting the selected program, the setpoint values for the boiler tem- perature and core temperature are shown for 5 s.
- Page 12 4 Operation Program start in real time • Enter the start time in the startup menu. • Acknowledge program start in the startup menu. • Start the program in basic display 1. • symbol flashes and the lead time until the program start is dis- played •...
- Page 13 4 Operation Error messages 4.5.1 Possible error messages Door open (digital input 2) The status is signaled by the "Door open" and "Waiting" display flashing alternately while the status dis- play for relay 2 flashes. Once this message is active, the program cannot be started. If the door is opened during operation, the heating (relay 1 status message) and fan (relay 6 status message) are switched off and the program is stopped.
- Page 14 4 Operation • A sensor break is signaled while the status display for relay 2 flashes. The program is aborted. • Signaling via relay 2 remains active until the problem is rectified. • The relay can be acknowledged in basic display 2 with the key <...
- Page 16 JUMO GmbH & Co. KG JUMO UK LTD JUMO Process Control, Inc. Street address: JUMO House 6724 Joy Road Moritz-Juchheim-Straße 1 Temple Bank, Riverway East Syracuse, NY 13057, USA 36039 Fulda, Germany Harlow, Essex, CM20 2DY, UK Delivery address: Phone:...
