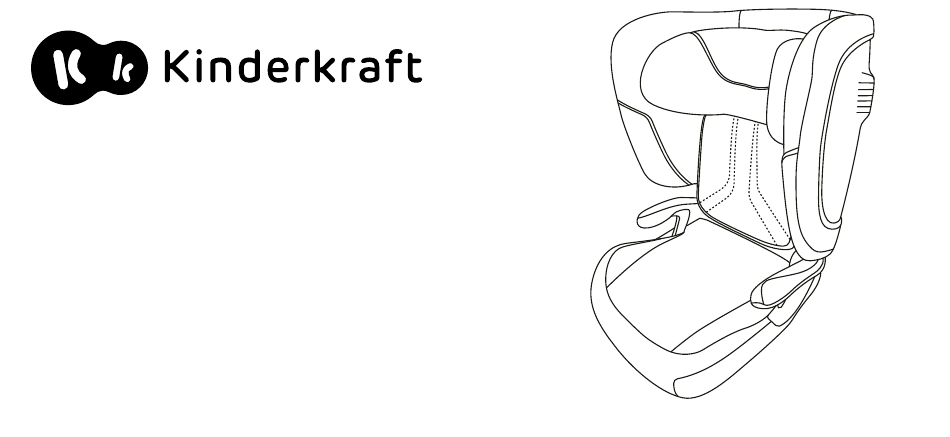

UNITY 2 i-Size
Manual
MODEL: UNITY 2 i-Size ECE R129.03 v.1.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the UNITY 2 and is the answer not in the manual?

Questions and answers

Related Manuals for Kinderkraft UNITY 2

Summary of Contents for Kinderkraft UNITY 2

  • Page 1 UNITY 2 i-Size Manual MODEL: UNITY 2 i-Size ECE R129.03 v.1.0...
  • Page 2 (UN/ECE R129/03). The UNITY 2 i-Size car seat is designed for children between 100 cm - 150 cm in height. The car seat can be installed in the car in the places indicated by the manufacturer in the vehicle manual.
  • Page 3 Hight of the child Car seat positioning Car seat mounting ISOFIX + three-point car seat belt 100-150cm three-point car seat belt...

  • Page 4: Safety Instructions

    2.0 Safety instructions Please take a few minutes to read this instruction manual in order to ensure the proper safety of your child. • The car seat MUST NOT be installed on the vehicle seats mounted backwards or sideways. • The car seat MUST NOT be placed on the vehicle seats with an active front air-bag.
  • Page 5 In the event of an emergency, you have to quickly unfasten the car seat !WARNINGS! belt. This means that the release button of the safety harness is not fully secured; make sure your child does not play with the safety harness. Please take a few minutes to read this instruction manual in order to ensure The car seat should be replaced when it has been subjected to violent the proper security of your child.
  • Page 6 Do not use any attachment points, other than those described in the Do not use any replacement covers, other than those recommended by instruction manual and marked on a car seat. the manufacturer, as the cover is an integral part of the safety system of a car seat.
  • Page 7 3.0 Unfolding the car seat 1. Place the car seat on the vehicle seat. Keeping your hand on it, pull the backrest of the car seat upwards. 2. Pay attention to the release lever, it should be in the upper position The movable back of the car seat is a design solution that allows it to be adjusted to the shape of the vehicle seat.
  • Page 8 4.0 Securing the child in the car seat 4.1 Headrest height adjustment 1. Grasp the headrest adjustment lever located on the back of the headrest and pull it gently upwards. 2. Adjust the headrest by selecting one of fifteen options and when the height is adjusted, release the adjustment lever.
  • Page 9 4.2 Correct headrest adjustment Verify whether the safety harness fits the child's body properly; if not, adjust the headrest height The headrest should be adjusted so that the shoulder safety harness passes between the child's shoulder and neck (through the middle of the collarbone). The harness should not press against the child's neck or slide off the shoulder.
  • Page 10 4.3 Seat inclination adjustment mechanism Before installation, make sure that the car seat is in the most upright position in position No. 1 1. Pull the seat inclination adjustment lever 2. Adjust the seat inclination angle and release the lever in the required position (one of five possible options) 3.
  • Page 11 5.0 Installation in the vehicle 5.1 Installation using ISOFIX connectors 1. Press the ISOFIX latch release buttons and slide them out completely. 2. Grasp the car seat with both hands and insert both latches into the places of installation on the vehicle seat. When you hear a "click" of each of the ISOFIX latches, push the seat of the car seat against the backrest of the vehicle seat, exerting firm even pressure on both sides.
  • Page 12 3. Make sure that the backrest of the car seat rests flat against the backrest of the vehicle seat. NOTE! The ISOFIX connectors are properly attached only when both button indicators are completely green. Pay attention to the audible clicking sound of the ISOFIX connectors and grasp the car seat to check whether it is securely installed without any play.
  • Page 13 4. Place the child in the car seat. 5. Adjust the headrest to the child's height. 6. Pass the car seat belt through the car seat shoulder belt guide and waist belt guides, and then fasten it. You should hear a characteristic "click".
  • Page 14 7. The waist seat belt must run as low as possible across your child's pelvis. Make sure the belt lies flat on the child's body. 8. Pull the waist section of the belt towards the buckle and then the shoulder section towards the belt retractor, eliminating any slack.
  • Page 15 5.2 Installation using the vehicle three-point seat belt. 1. Make sure that the backrest of the car seat rests flat against the backrest of the vehicle seat. 2. Place the child in the car seat. 3. Adjust the headrest to the child's height. 4.
  • Page 16 5. The waist section of the seat belt must run as low as possible across your child's pelvis. Make sure the belt lies flat on the child's body. 6. Pull the waist section of the belt towards the buckle and then the shoulder section towards the belt retractor, eliminating any slack.
  • Page 17 6.0 Removing the car seat (ISOFIX installation system) 1. Press the ISOFIX release buttons on both ISOFIX latches simultaneously. 2. When the latches are released and the ISOFIX button indicators turn red, slide the car seat out of the ISOFIX guides. 3.
  • Page 18 7.0 Folding the car seat Note! To fold the car seat, it is necessary to set the inclination angle to a vertical position! 1. Press the lever located at the back of the car seat. 2. Fold the backrest. 3. Lower the headrest so that it touches the seat. Release lever...

  • Page 19: Removing The Cover

    8.0 Removing the cover 1. Adjust the headrest to its highest position. 2. Move the material from the backrest to the headrest, expose the upper part of the shell and unfasten the fastening elastic bands, then expose the lower part of the shell and the seat. 3.

  • Page 20: Installing The Cover

    5. Slide the fabric of the sides down, starting at the edges and stretching it gently. 6. Remove the elastic bands from the lower part of the backrest, stretching them gently. 7. Gently slide the fabric around the waist belt guides, sliding it out from under the plastic edges on both sides.
  • Page 21 • Prolonged sun exposure of the cover is prohibited. • Plastic parts can be cleaned with soap and water. • Do not use aggressive cleaning agents (such as bleach/stain removers). The full text of the Warranty Terms and Conditions is available at WWW.KINDERKRAFT.COM...
