IS5 COMMUNICATIONS RAPTOR iMX950 Quick Start Manual

Intelligent cyber secure platform
Hide thumbs Also See for RAPTOR iMX950:

Advertisement

Quick Links

Download this manual
RAPTOR
MX950-Q
S
G
I
UICK
TART
UIDE
RAPTOR iMX950-Quick Start Guide
Intelligent Cyber Secure Platform
iMX950
Version: 1.50, Date: May 2024
© 2024 iS5 Communications Inc. All rights reserved.
i

Advertisement

loading
Need help?

Need help?

Do you have a question about the RAPTOR iMX950 and is the answer not in the manual?

Questions and answers

Related Manuals for IS5 COMMUNICATIONS RAPTOR iMX950

Summary of Contents for IS5 COMMUNICATIONS RAPTOR iMX950

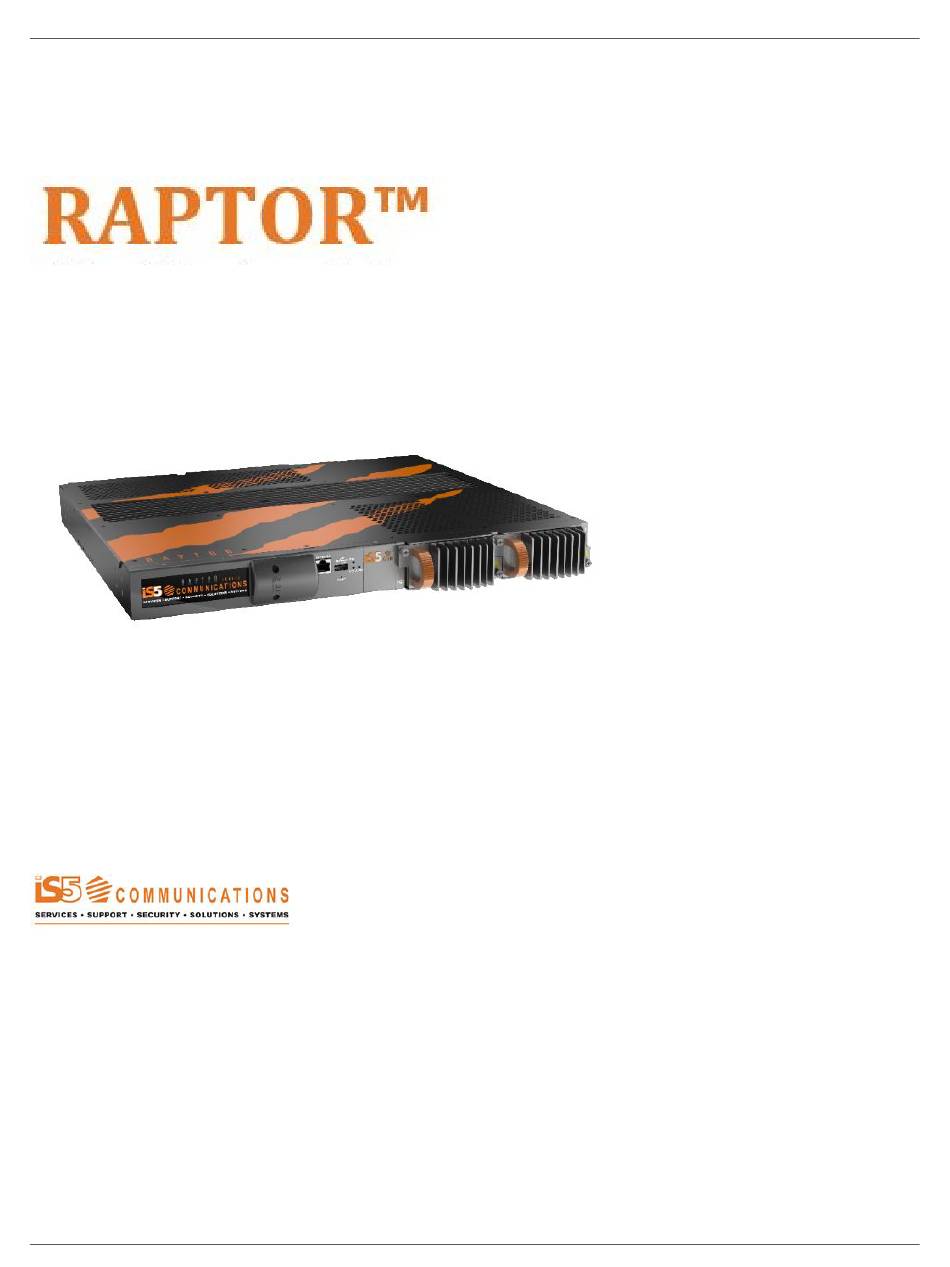

  • Page 1 RAPTOR MX950-Q UICK TART UIDE RAPTOR iMX950-Quick Start Guide Intelligent Cyber Secure Platform iMX950 Version: 1.50, Date: May 2024 © 2024 iS5 Communications Inc. All rights reserved.
  • Page 2 There may occasionally be uninten- tional errors on this publication. iS5 reserves the right to revise the contents of this publication without notice. Contact Information iS5 Communications Inc. 5895 Ambler Dr., Mississauga, Ontario, L4W 5B7 Tel: 1+ 905-670-0004 Website: http://www.is5com.com/ Technical Support: E-mail: support@is5com.com...
  • Page 3 (EULA) ICENSE GREEMENT End User License Agreement (EULA) TERMS AND CONDITIONS FOR SOFTWARE PROGRAMS AND EMBEDDED SOFTWARE IN PRODUCTS EULA All products which consist of or include software (including operating software for hardware sup- plied by Supplier and software in object code format that is embedded in any hardware) and/or any documentation shall be subject to the End User License Agreement (“EULA”) attached hereto as Ex- hibit A.
  • Page 4 (EULA) ICENSE GREEMENT quent appeal. If a Patent Claim is made or appears likely, Buyer agrees to permit Supplier to procure for Buyer the right to continue using the affected product, or to replace or modify the product with one that is at least functionally equivalent. If Supplier determines that none of those alternatives is reasonably available, then Buyer will return the product and Supplier will refund Buyer’s remaining net book value of the product calculated according to generally accepted accounting principles.
  • Page 5 Buyer’s knowledge, any of its agents or representatives. Exhibit A: End User License Agreement IMPORTANT – READ CAREFULLY: iS5 Communications Inc. (“iS5Com”) licenses the iS5Com Materials (as defined below) subject to the terms and conditions of this end user license agreement (the “EULA”). BY SELECTING “ACCEPT”...
  • Page 6 A: E XHIBIT ICENSE GREEMENT (EULA) ICENSE GREEMENT – “iS5Com Software” means Software supplied by or on behalf of iS5Com under the Contract. For greater certainty, iS5Com Software shall include all operating Software for iS5Com Hard- ware, and iS5Com Firmware. –...
  • Page 7 A: E XHIBIT ICENSE GREEMENT (EULA) ICENSE GREEMENT Except as otherwise provided in Section 2.1 above, the Customer shall not: (a) copy iS5Com Materials for any purpose, except for the sole purpose of making an archival or back-up copy; (b) modify, translate or adapt the iS5Com Materials, or create derivative works based upon all or part of such iS5Com Materials;...
  • Page 8 A: E XHIBIT ICENSE GREEMENT (EULA) ICENSE GREEMENT CONFIDENTIALITY 4.1 Confidentiality – The Customer acknowledges that iS5Com Materials contain Confidential Information of iS5Com and that disclosure of such Confidential Information to any third party could cause great loss to iS5Com. The Customer agrees to limit access to iS5Com Materials to those em- ployees or officers of the Customer who require access to use iS5Com Materials as permitted by the Contract and this EULA and shall ensure that such employees or officers keep the Con- fidential Information confidential and do not use it otherwise than in accordance with the Con-...
  • Page 9 A: E XHIBIT ICENSE GREEMENT (EULA) ICENSE GREEMENT FREE; AND (B) THE IS5COM MATERIALS ARE PROVIDED “AS IS” WITHOUT WARRANTY OR CONDITION OF ANY KIND. 5.2 Limitation of Liability – EXCEPT AS EXPRESSLY PROVIDED IN THE CONTRACT, IN NO EVENT SHALL IS5COM BE LIABLE TO THE CUSTOMER OR ANY THIRD PARTY FOR ANY DIRECT, INDIRECT, SPECIAL OR CONSE- QUENTIAL DAMAGES ARISING UNDER OR IN CONNECTION WITH THIS EULA EVEN IF ADVISE OF THE POSSIBILITY THEREOF.
  • Page 10 A: E XHIBIT ICENSE GREEMENT (EULA) ICENSE GREEMENT iS5Com. The division of this EULA into sections and the insertion of headings are for conve- nience of reference only and shall not affect the construction or interpretation of this EULA. References herein to Sections are to sections of this Agreement. Where the word “include”, “includes”...
  • Page 11 SUPPORT iSUPPORT Support can be directed to iS5Com’s Technical Action Center at https://is5com.com/isupport/ . You can also call Tech Support: +1 844-475-8324 Service Level Agreements can be tailored to suit your needs with our standard Service Level Agreement packages or through customized solutions. Return Manufacturing Authorization is easy and simplified for our customers.
  • Page 12 Contents RAPTOR iMX950-Quick Start Guide ....i Copyright Notice ....... ii End User License Agreement (EULA) .
  • Page 13 Chapter: 11 Command Line: Upgrading the RAPTOR using TFTP ..32 Chapter: 12 Xmodem: Upgrading the RAPTOR from release 1.13.05 or earlier . . 37 Chapter: 13 Web Interface: Logging into the RAPTOR ....47 Chapter: 14 Web Interface: System Settings .
  • Page 14 NTRODUCTION HAPTER 1.1. Introduction The Quick Start Guide provides instruction for first time users on how to login to the RAPTOR through the WebUI, Console or SSH interfaces, how to backup and restore configurations, and how to upgrade the device. This document explains how to use Command Line Interface ( CLI) interface and Web user interface ( WebUI) to perform the following tasks: •...
  • Page 15 HAPTER UPPORTED PGRADE ATHS 2. Supported Upgrade Paths This section documents the supported upgrade paths on the RAPTOR The RAPTOR supports the following upgrade paths. If the release that your device is running is not listed on the table below, it is recommended that the iS5Com support team is contacted for more detailed instructions.
  • Page 16 HAPTER UPPORTED PGRADE ATHS Table 1: Upgrade Paths (Continued) (Sheet 2 of 2) Initial Running Version Destination Version Notes 1.13.05 1.14.10 1.13.05 1.15.13 1.14.10 1.15.13 1.14.10 1.16.09 1.15.13 1.16.09 1.15.13 1.17.09 1.16.09 1.17.09 1.15.13 1.17.13 1.16.09 1.17.13 1.17.09 1.17.13 1.16.09 1.41 / 1.18.05 1.17.09 1.41 / 1.18.05...
  • Page 17 RAPTOR HAPTER ONSOLE OGGING INTO THE 3. Console Port: Logging into the RAPTOR The following sections describe how the serial console interface on the RAPTOR is used to configure an IP Address, save a configuration, and upgrade the firmware. On a laptop, install a terminal emulator. A popular option is Putty. A link to download Putty is: https://www.chiark.greenend.org.uk/~sgtatham/putty/latest.html : Use an USB to RJ45 Console Cable to connect between the PC and the RAPTOR...
  • Page 18 RAPTOR HAPTER ONSOLE OGGING INTO THE Form a serial connection from your computer to the console port of the RAPTOR, by attaching the console port to the USB port of your laptop or PC and the RJ45 termination to the console port on the RAPTOR.
  • Page 19 RAPTOR HAPTER ONSOLE OGGING INTO THE Navigate to Ports to determine which COM number the serial connection is using. You may have to unplug and reinsert the USB connection on your PC to make a determination of which COM number has been assigned to your serial connection.
  • Page 20 RAPTOR HAPTER ONSOLE OGGING INTO THE When the Ports leaf is expanded it will appear similar to the image below. ESULT Putty can be configured by selecting the type of connection, entering the port number, and setting the baud rate. Additional serial parameters can be configured in Putty by selecting the Serial category found at the bottom of the Category panel.
  • Page 21 RAPTOR HAPTER ONSOLE OGGING INTO THE • Flow Control: none You should confirm in Putty’s user interface that it has been configured with the appropriate Baud rate, Data, Parity, stop and flow control values. The following image provides an image of the port and baud rate being set. ESULT...
  • Page 22 RAPTOR HAPTER ONSOLE OGGING INTO THE Click Open to launch a terminal. A blank terminal window will appear. ESULT...
  • Page 23 RAPTOR HAPTER ONSOLE OGGING INTO THE Press Enter. The login prompt will appear. ESULT To access the command line interface CLI shell, at the RAPTOR login prompt, use the user name admin and password admin. If this is the first login to the device, then you will be prompted to change the pass- ESULT word.
  • Page 24 RAPTOR HAPTER ONSOLE OGGING INTO THE Enter the new password. You will be prompted to confirm the new password. ESULT Re-enter new password: 10. Re-enter the new password. The console prompt will appear. ESULT iS5Comm# ESULT You have logged into the RAPTOR via the console port.
  • Page 25 SSH: L RAPTOR HAPTER OGGING INTO THE 4. SSH: Logging into the RAPTOR This section describes how an SSH session can be established between a laptop and the RAPTOR. ONTEXT RAPTOR can be configured through an SSH Interface from a terminal emulator such as Putty. The command line interface allows the user to control various parameters at the system and protocol level.
  • Page 26 SSH: L RAPTOR HAPTER OGGING INTO THE...
  • Page 27 SSH: L RAPTOR HAPTER OGGING INTO THE A login prompt will appear on a terminal screen after Open is pressed. ESULT To access the command line interface CLI shell, at the iS5Com login prompt, use the user name admin and password admin. If this is the first login to the device, you will be prompted to change the password.
  • Page 28 SSH: L RAPTOR HAPTER OGGING INTO THE Re-enter the new password. The console prompt will appear. ESULT iS5Comm# ESULT You have logged into the RAPTOR via a SSH connection.
  • Page 29 HAPTER OMMAND WITCH 5. Command Line: Switch Name This section will document how to configure the RAPTOR’s name. REREQUISITE To perform the tasks in this section, you will have already logged into the RAPTOR via the console cable or through SSH. Configure the switch name.
  • Page 30 HAPTER OMMAND WITCH ROMPT 6. Command Line: Switch Prompt This section will document how to change the command line prompt. REREQUISITE In order to perform the tasks in this section you will have already logged into the RAPTOR via the console cable or through SSH.
  • Page 31 : IP A HAPTER OMMAND DDRESS ONFIGURATION 7. Command Line: IP Address Configuration This section will document the configuration of an IP Address and a default route. REREQUISITE To perform the tasks in this section, you will have already logged into the RAPTOR via the console cable or through SSH.
  • Page 32 HAPTER OMMAND DMIN ASSWORD 8. Command Line: Admin Password This section will document how to set the administrator password. REREQUISITE In order to perform the tasks in this section you will have already logged into the RAPTOR via the console cable or through SSH.
  • Page 33 HAPTER OMMAND AVE AND ESTORE ONFIGURATION 9. Command Line: Save and Restore Configuration This section will document how to save and restore the RAPTOR configuration. REREQUISITE To perform the tasks in this section, you will have already logged into the RAPTOR via the console cable or through SSH.
  • Page 34 HAPTER OMMAND AVE AND ESTORE ONFIGURATION File Copied Successfully For the configuration to be applied, the RAPTOR needs to be reloaded. iS5Comm# reload OR EXAMPLE Are you sure you want to reload the device? (Y/N) [N]? ESULT Confirm that you would like to reload the device by typing Y. The RAPTOR will be reloaded.
  • Page 35 RAPTOR HAPTER OMMAND PGRADING THE USING A 10. Command Line: Upgrading the RAPTOR using a This section will document how to upgrade the firmware on the RAPTOR. This process takes approxi- mately 5 minutes to execute. REREQUISITE To perform the tasks in this section, you will have already logged into the RAPTOR via an SSH connection or through the console port.
  • Page 36 RAPTOR HAPTER OMMAND PGRADING THE USING A Table 1: Upgrade Paths (Continued) (Sheet 2 of 2) Initial Running Version Destination Version Notes 1.10.xx 1.12.05 1.11.xx 1.12.05 1.11.06 1.13.05 1.12.05 1.13.05 1.12.05 1.14.10 1.13.05 1.14.10 1.13.05 1.15.13 1.14.10 1.15.13 1.14.10 1.16.09 1.15.13 1.16.09 1.15.13...
  • Page 37 RAPTOR HAPTER OMMAND PGRADING THE USING A If the release that your device is running is not listed in the Supported Upgrade Paths table, it is recom- mended that the iS5Com support team is contacted for more detailed instructions. Optionally, you may choose to upgrade the RAPTOR firmware. Rename the upgrade software file to “firmware-upgrade.tgz”...
  • Page 38 RAPTOR HAPTER OMMAND PGRADING THE USING A terminal:...
  • Page 39 RAPTOR HAPTER OMMAND PGRADING THE USING A Allow the RAPTOR to reboot, the U-Boot menu will appear. Do not interact with it. Do not interact with this menu and the boot process will proceed automatically. ESULT The clock will expire and the upgrade will proceed without user intervention. The upgrade process will terminate at a user prompt.
  • Page 40 RAPTOR HAPTER OMMAND PGRADING THE USING A rp-candidate rp-address 239.1.1.1 255.255.255.255 7.7.7.7 5 iS5Comm(pim-comp)# exit OR EXAMPLE Repeat step c for other PIM components you have configured on your switch. OR EXAMPLE Save your configuration iS5Comm(config)# exit OR EXAMPLE iS5Comm# write startup-configuration The configuration changes have now been saved.
  • Page 41 RAPTOR SFTP HAPTER OMMAND PGRADING THE USING 11. Command Line: Upgrading the RAPTOR using SFTP This section will document how to upgrade the firmware on the RAPTOR. This process takes approxi- mately 5 minutes to execute. REREQUISITE To perform the tasks in this section, you will have already logged into the RAPTOR via an SSH connection or through the console port.
  • Page 42 RAPTOR SFTP HAPTER OMMAND PGRADING THE USING Table 1: Upgrade Paths (Continued) (Sheet 2 of 2) Initial Running Version Destination Version Notes 1.9.xx 1.11.06 1.10.xx 1.11.06 1.10.xx 1.12.05 1.11.xx 1.12.05 1.11.06 1.13.05 1.12.05 1.13.05 1.12.05 1.14.10 1.13.05 1.14.10 1.13.05 1.15.13 1.14.10 1.15.13 1.14.10...
  • Page 43 RAPTOR SFTP HAPTER OMMAND PGRADING THE USING If the release that your device is running is not listed in the Supported Upgrade Paths table, it is recom- mended that the iS5Com support team is contacted for more detailed instructions. Install the SFTP server on a machine that has network connectivity to the RAPTOR. Configure the SFTP server such that its base directory contains the firmware file you wish to upload.
  • Page 44 RAPTOR SFTP HAPTER OMMAND PGRADING THE USING If you are upgrading the RAPTOR from release 1.13.05 or 1.12.05 then you may have to perform these additional steps. Login to the RAPTOR and type the following: iS5Comm# configure terminal OR EXAMPLE The prompt will appear as follows: ESULT iS5Comm(config)#...
  • Page 45 RAPTOR TFTP HAPTER OMMAND PGRADING THE USING 12. Command Line: Upgrading the RAPTOR using TFTP This section will document how to upgrade the firmware on the RAPTOR. This process takes approxi- mately 5 minutes to execute. REREQUISITE To perform the tasks in this section, you will have already logged into the RAPTOR via an SSH connection or through the console port.
  • Page 46 RAPTOR TFTP HAPTER OMMAND PGRADING THE USING Table 1: Upgrade Paths (Continued) (Sheet 2 of 2) Initial Running Version Destination Version Notes 1.9.xx 1.10.06 1.9.xx 1.11.06 1.10.xx 1.11.06 1.10.xx 1.12.05 1.11.xx 1.12.05 1.11.06 1.13.05 1.12.05 1.13.05 1.12.05 1.14.10 1.13.05 1.14.10 1.13.05 1.15.13 1.14.10...
  • Page 47 RAPTOR TFTP HAPTER OMMAND PGRADING THE USING If the release that your device is running is not listed in the Supported Upgrade Paths table, it is recom- mended that the iS5Com support team is contacted for more detailed instructions. Install the TFTP server on a machine that has network connectivity to the RAPTOR. Configure the TFTP server such that its base directory contains the firmware file you wish to upload.
  • Page 48 RAPTOR TFTP HAPTER OMMAND PGRADING THE USING Optionally, you may choose to upgrade the RAPTOR firmware. Copy the upgrade software file to the base directory on your TFTP server. Login to the RAPTOR. Type the following, you will have to change the IP address and filename for your particular needs.: iS5Comm# firmware upgrade tftp://192.168.0.7/firmware_upgrade.tgz OR EXAMPLE...
  • Page 49 RAPTOR TFTP HAPTER OMMAND PGRADING THE USING If you are upgrading the RAPTOR from release 1.13.05 or 1.12.05 then you may have to perform these additional steps. Login to the RAPTOR and type the following: iS5Comm# configure terminal OR EXAMPLE The prompt will appear as follows: ESULT iS5Comm(config)#...
  • Page 50 RAPTOR 1.13.05 HAPTER MODEM PGRADING THE FROM RELEASE OR EARLIER 13. Xmodem: Upgrading the RAPTOR from release 1.13.05 or earlier This section will document how to upgrade the firmware on the RAPTOR. This process takes approxi- mately 45 minutes to execute. REREQUISITE To perform the tasks in this section, you will require physical access to the RAPTOR via the management Ethernet port.
  • Page 51 RAPTOR 1.13.05 HAPTER MODEM PGRADING THE FROM RELEASE OR EARLIER : This procedure has been validated against release 1.13.05 NOTE Optionally, you may choose to upgrade the RAPTOR firmware. Login to the RAPTOR via the console cable. Hold the reset button for more than 2 seconds and use the u-boot menu to disable the silent boot by navigating to the option and pressing Enter.
  • Page 52 RAPTOR 1.13.05 HAPTER MODEM PGRADING THE FROM RELEASE OR EARLIER A Linux login prompt will appear. ESULT Use “root” as the RAPTOR username and the device’s Admin level password as the Password to enter the Linux shell. The following prompt will appear. ESULT...
  • Page 53 RAPTOR 1.13.05 HAPTER MODEM PGRADING THE FROM RELEASE OR EARLIER Set the IP address on the management port. Execute the following command from the serial console. /etc/init.d/xinetd start OR EXAMPLE The extended Internet service daemon has been started. ESULT Configure the IP address on the management port by executing the following command from the serial console.
  • Page 54 RAPTOR 1.13.05 HAPTER MODEM PGRADING THE FROM RELEASE OR EARLIER Open a new instance of Tera Term and select Telnet as the protocol with the IP address of the device configured in Step 2. Then press the OK button. The Tera Term new connection screen. OR EXAMPLE The Linux shell login prompt will appear.
  • Page 55 RAPTOR 1.13.05 HAPTER MODEM PGRADING THE FROM RELEASE OR EARLIER Use Tera Term to upload the file to the RAPTOR by selecting the menu option “File->Transfer->XMODEM->Send”. OR EXAMPLE...
  • Page 56 RAPTOR 1.13.05 HAPTER MODEM PGRADING THE FROM RELEASE OR EARLIER The following screen will appear. ESULT Select the 1K box at the bottom left of the screen. This will significantly reduce the file upload time. The following image highlights the 1K box being selected. ESULT...
  • Page 57 RAPTOR 1.13.05 HAPTER MODEM PGRADING THE FROM RELEASE OR EARLIER Navigate to the firmware upgrade file you wish to upload, select it and then press Open. A screen similar to the following is typical. OR EXAMPLE Once Open is pressed the upload will commence. This will take some time to complete. ESULT 10.
  • Page 58 RAPTOR 1.13.05 HAPTER MODEM PGRADING THE FROM RELEASE OR EARLIER 11. Execute the following command to perform the firmware upgrade. /upgrade/firmware_upgrade.sh OR EXAMPLE 12. Wait until the upgrade completes. The Telnet connection will close as the device reboots as part of the upgrade process.
  • Page 59 RAPTOR 1.13.05 HAPTER MODEM PGRADING THE FROM RELEASE OR EARLIER 13. If you are upgrading the RAPTOR from release 1.13.05 or 1.12.05 then you may have to perform these additional steps. Login to the RAPTOR and type the following: iS5Comm# configure terminal OR EXAMPLE The prompt will appear as follows: ESULT...
  • Page 60 RAPTOR HAPTER NTERFACE OGGING INTO THE 14. Web Interface: Logging into the RAPTOR This section describes how to login to the RAPTOR via the Web UI (Web User Interface). REREQUISITE Figure 1: Ethernet / IP Connectivity ONTEXT RAPTOR can be configured through Web User Interface ( Web UI) from web browsers. The Web UI allows the user to control various parameters at the System and Protocol level.
  • Page 61 RAPTOR HAPTER NTERFACE OGGING INTO THE Launch a web browser to enter the RAPTOR’s default IP address. The IP address of the RAPTOR’s interface is 192.168.10.1. The https protocol is now the default protocol. https://192.168.0.1 OR EXAMPLE Warnings from the browser about the web site having an invalid certificate may ESULT appear.
  • Page 62 RAPTOR HAPTER NTERFACE OGGING INTO THE Click the Advanced button. The following screen will appear. ESULT Launch a web browser to enter the RAPTOR’s default IP address. The IP address of the RAPTOR’s interface is 192.168.10.1. Enter https://192.168.10.1 into the browser’s address bar. The Login page appears.
  • Page 63 RAPTOR HAPTER NTERFACE OGGING INTO THE Enter the User Name “admin” and Password “admin” and click Login. If this is the first login to the device the user will be prompted to change the password. ESULT : The new password must meet the following criteria: NOTE Password length should be in the range of 8 - 20 !! characters Password should contain at least 1 lowercase characters !!
  • Page 64 RAPTOR HAPTER NTERFACE OGGING INTO THE Password should contain at least 1 numerical characters !! Password should contain at least 1 special characters !! New Password must be different from previous password Enter the User Name “admin” and Password “admin” and then a new password in the New Pass- word and Re-enter New Password fields.
  • Page 65 HAPTER NTERFACE YSTEM ETTINGS 15. Web Interface: System Settings This section will document how to configure common RAPTOR system settings. REREQUISITE To perform the tasks in this section, you will have already logged into the RAPTOR via the Web UI. Navigate to the System Settings page.
  • Page 66 : IP A HAPTER NTERFACE DDRESS AND EFAULT OUTES 16. Web Interface: IP Address and Default Routes This section will explain how to set the IP Address on the RAPTOR and create a default route. REREQUISITE To perform the tasks in this section, you will have already logged into the RAPTOR via the Web UI. Speak with your Network Administrator to determine the values of the following parameters: •...
  • Page 67 : IP A HAPTER NTERFACE DDRESS AND EFAULT OUTES – Select—select the VLAN interface for which configuration needs to be modified or deleted. In this case it will be VLAN interface #1. VLAN Interface—enter “1”. – Switch—default. – Admin State—select “UP” from the drop down list. –...
  • Page 68 : IP A HAPTER NTERFACE DDRESS AND EFAULT OUTES Figure 3: IP Route Configuration You will need two routes: one route to your network and a default route to your control center. Once these routes are established, a remote user can configure the switch for proper configuration. You will need to configure VLAN 1 to use the default gateway.
  • Page 69 HAPTER NTERFACE ASSWORD 17. Web Interface: User Password This section will explain how to change a users password. REREQUISITE To perform the tasks in this section, you will have already logged into the RAPTOR via the Web UI. Navigate to the Users page. In the Home Page, go to System >...
  • Page 70 ONFIGURATION HAPTER NTERFACE AVE AND ESTORE ONFIGURATIONS 18. Web Interface: Save and Restore Configura- tions This section will describe how to save and restore the RAPTOR’s configuration. REREQUISITE To perform the tasks in this section, you will have already logged into the RAPTOR via the Web UI. 18.1.
  • Page 71 ONFIGURATION HAPTER NTERFACE AVE AND ESTORE ONFIGURATIONS Figure 2: Save Configuration to USB To save the configuration to USB (see above), perform the following. Navigate to the Save Configuration screen. In the Home page, go to System > Save and Restore > Save OR EXAMPLE Set the fields as follows: Save option—select USB Save.
  • Page 72 ONFIGURATION HAPTER NTERFACE AVE AND ESTORE ONFIGURATIONS To save the configuration to TFTP, perform the following. Navigate to the Save Configuration screen. In the Home page, go to System > Save and Restore > Save OR EXAMPLE Set the fields as follows: OR EXAMPLE Figure 3: Save Configuration to TFTP...
  • Page 73 ESTORE ONFIGURATION HAPTER NTERFACE AVE AND ESTORE ONFIGURATIONS • Save option—select Remote Save. • Save Format—select either MIB OID or Script. Script format is human- readable. • Transfer Mode—select SFTP. • SFTP User Name—enter SFTP User Name . • SFTP Password—enter SFTP Password. •...
  • Page 74 ESTORE ONFIGURATION HAPTER NTERFACE AVE AND ESTORE ONFIGURATIONS Restore option—select USB Restore. • • Restore Format—select either MIB OID or Script. Script format is human- readable. • File Name—default file name where the switch’s configurations are saved is iss.conf. Use the default file name. For flash restore, perform the following: Navigate to the Restore page.
  • Page 75 RAPTOR TFTP HAPTER NTERFACE PGRADE THE USING 19. Web Interface: Upgrade the RAPTOR using TFTP This section will explain how to upgrade the RAPTOR firmware. This process takes approximately 20 minutes to execute when there is a fast network connection between the TFTP server and the RAPTOR. REREQUISITE To perform the tasks in this section, you will have already logged into the RAPTOR via the Web UI.
  • Page 76 RAPTOR TFTP HAPTER NTERFACE PGRADE THE USING Table 1: Upgrade Paths (Continued) (Sheet 2 of 2) Initial Running Version Destination Version Notes 1.9.xx 1.10.06 1.9.xx 1.11.06 1.10.xx 1.11.06 1.10.xx 1.12.05 1.11.xx 1.12.05 1.11.06 1.13.05 1.12.05 1.13.05 1.12.05 1.14.10 1.13.05 1.14.10 1.13.05 1.15.13 1.14.10...
  • Page 77 RAPTOR TFTP HAPTER NTERFACE PGRADE THE USING If the release that your device is running is not listed in the Supported Upgrade Paths table, it is recom- mended that the iS5Com support team is contacted for more detailed instructions. Install the TFTP server on a machine that has network connectivity to the RAPTOR. Configure the TFTP server such that its base directory contains the firmware file you wish to upload.
  • Page 78 RAPTOR TFTP HAPTER NTERFACE PGRADE THE USING Figure 1: System Upgrade Set the fields as follows: – Upgrade From field—select TFTP. – File Name—enter the file name to be downloaded from the TFTP Server. – Server IP Address—enter the IP address of the TFTP server. ESULT The RAPTOR will be upgraded and reloaded automatically.
  • Page 79 RAPTOR TFTP HAPTER NTERFACE PGRADE THE USING Click Apply to upgrade the RAPTOR. A timer will appear providing the elapsed time since the upgrade started. The screen ESULT will appear similar to the following: The screen will eventually change to the following:...
  • Page 80 RAPTOR TFTP HAPTER NTERFACE PGRADE THE USING...
  • Page 81 RAPTOR TFTP HAPTER NTERFACE PGRADE THE USING If you are upgrading the RAPTOR from release 1.13.05 or 1.12.05 then you may have to perform these additional steps. Login to the RAPTOR using your browser. If IGMP was configured on your RAPTOR before the upgrade, navigate to the IGMP configu- ration.
  • Page 82 RAPTOR TFTP HAPTER NTERFACE PGRADE THE USING Navigate on the left hand menu to the Save screen: System > Save & Restore > OR EXAMPLE Save Select “Flash Save” as the save option. Then click the Apply button. The configuration changes have now been saved. ESULT ESULT The RAPTOR upgrade is complete.
  • Page 83 RAPTOR HAPTER NTERFACE PGRADE THE USING 20. Web Interface: Upgrade the RAPTOR using USB This section will explain how to upgrade the RAPTOR firmware. This process takes approximately 5 minutes to execute. REREQUISITE To perform the tasks in this section, you will have already logged into the RAPTOR via the Web UI. For all upgrades, it is recommended that users back up their current running configuration prior to commencing the upgrade process.
  • Page 84 RAPTOR HAPTER NTERFACE PGRADE THE USING Table 1: Upgrade Paths (Continued) (Sheet 2 of 2) Initial Running Version Destination Version Notes 1.10.xx 1.12.05 1.11.xx 1.12.05 1.11.06 1.13.05 1.12.05 1.13.05 1.12.05 1.14.10 1.13.05 1.14.10 1.13.05 1.15.13 1.14.10 1.15.13 1.14.10 1.16.09 1.15.13 1.16.09 1.15.13 1.17.09...
  • Page 85 RAPTOR HAPTER NTERFACE PGRADE THE USING Figure 1: System Upgrade Set the fields as follows: – Upgrade From field—select USB. – File Name—enter the file name to be loaded from the USB.
  • Page 86 RAPTOR HAPTER NTERFACE PGRADE THE USING Click Apply to upgrade the RAPTOR. A timer will appear providing the elapsed time since the upgrade started. The screen ESULT will appear similar to the following.
  • Page 87 RAPTOR HAPTER NTERFACE PGRADE THE USING The screen will eventually change to the following. The RAPTOR firmware will be upgraded and reloaded automatically. After about 5 minutes, the device will be ready for users to login.
  • Page 88 RAPTOR HAPTER NTERFACE PGRADE THE USING If you are upgrading the RAPTOR from release 1.13.05 or 1.12.05 then you may have to perform these additional steps. Login to the RAPTOR using your browser. If IGMP was configured on your RAPTOR before the upgrade, navigate to the IGMP configu- ration.
  • Page 89 RAPTOR HAPTER NTERFACE PGRADE THE USING Navigate on the left hand menu to the Save screen: System > Save & Restore > OR EXAMPLE Save Select “Flash Save” as the save option. Then click the Apply button. The configuration changes have now been saved. ESULT ESULT The RAPTOR upgrade is complete.
  • Page 90 RAPTOR SFTP HAPTER NTERFACE PGRADE THE USING 21. Web Interface: Upgrade the RAPTOR using SFTP This section will explain how to upgrade the RAPTOR firmware. This process takes approximately 20 minutes to execute when there is a fast network connection between the TFTP server and the RAPTOR. REREQUISITE To perform the tasks in this section, you will have already logged into the RAPTOR via the Web UI.
  • Page 91 RAPTOR SFTP HAPTER NTERFACE PGRADE THE USING Table 1: Upgrade Paths (Continued) (Sheet 2 of 2) Initial Running Version Destination Version Notes 1.9.xx 1.10.06 1.9.xx 1.11.06 1.10.xx 1.11.06 1.10.xx 1.12.05 1.11.xx 1.12.05 1.11.06 1.13.05 1.12.05 1.13.05 1.12.05 1.14.10 1.13.05 1.14.10 1.13.05 1.15.13 1.14.10...
  • Page 92 RAPTOR SFTP HAPTER NTERFACE PGRADE THE USING If the release that your device is running is not listed in the Supported Upgrade Paths table, it is recom- mended that the iS5Com support team is contacted for more detailed instructions. Install the SFTP server on a machine that has network connectivity to the RAPTOR. Configure the SFTP server such that its base directory contains the firmware file you wish to upload.
  • Page 93 RAPTOR SFTP HAPTER NTERFACE PGRADE THE USING – SFTP Password—enter the Password of the SFTP server. ESULT...
  • Page 94 RAPTOR SFTP HAPTER NTERFACE PGRADE THE USING Click Apply to upgrade the RAPTOR. A timer will appear providing the elapsed time since the upgrade started. The screen ESULT will appear similar to the following: The screen will eventually change to the following:...
  • Page 95 RAPTOR SFTP HAPTER NTERFACE PGRADE THE USING The RAPTOR will be upgraded and reloaded automatically. After about 5 minutes the device will be ready for users to login to it.
  • Page 96 RAPTOR SFTP HAPTER NTERFACE PGRADE THE USING If you are upgrading the RAPTOR from release 1.13.05 or 1.12.05 then you may have to perform these additional steps. Login to the RAPTOR using your browser. If IGMP was configured on your RAPTOR before the upgrade, navigate to the IGMP configu- ration.
  • Page 97 RAPTOR SFTP HAPTER NTERFACE PGRADE THE USING Navigate on the left hand menu to the Save screen: System > Save & Restore > OR EXAMPLE Save Select “Flash Save” as the save option. Then click the Apply button. The configuration changes have now been saved. ESULT ESULT The RAPTOR upgrade is complete.
  • Page 98 W11 P HAPTER NSTALLATION OF RODUCT 22. Installation of W11 Product Key This section will explain how to install the W11 Product Key. REREQUISITE Once the iROC is connected to the Internet, the license will be activated automatically. Connect to Internet. Login to Windows. The login and password are user/user (see below). The Login to Windows page appears as shown below.
  • Page 99 W11 P HAPTER NSTALLATION OF RODUCT Figure 2: Update password screen.
  • Page 100 GLOSSARY ENTRIES ARP (Address Resolution Protocol). The ARP is a communication protocol used for discovering the link layer address, such as a MAC address, associated with a given Internet layer address, typically an IPv4 address. Command line interface (CLI) is a text-based interface that is used to operate software and oper- ating systems while allowing the user to respond to visual prompts by typing single commands into the interface and receiving a reply in the same way Internet Protocol (IP).
  • Page 101 secure client/server connection for applications such as database access and email, SSH supports a variety of authentication methods. VLAN Virtual Local Area Network (VLAN) is a logical subgroup within a local area network that is created via software rather than manually moving cables in the wiring closet. Web UI Web User Interface (Web UI) is a control panel in a device presented to the user via the Web browser.
