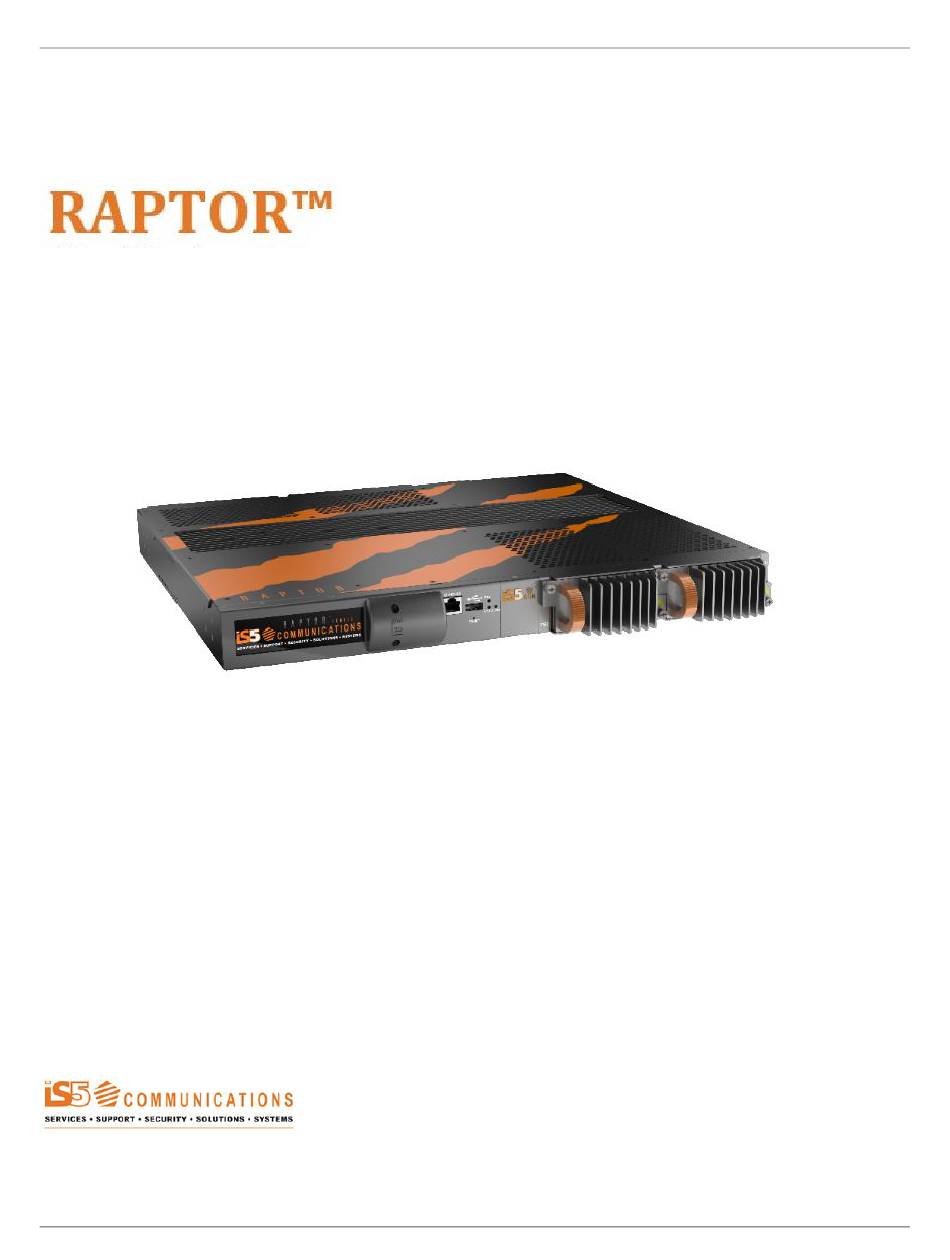

- Page 1 MX950 H ARDWARE NSTALLATION UIDE iMX950 Hardware Installation Guide Intelligent Cyber Secure Platform Version 1.3.04-2, June 2020 © 2020 iS5 Communications Inc. All rights reserved.
- Page 2 Contact Information iS5 Communications Inc. 5895 Ambler Dr., Mississauga, Ontario, L4W 5B7 Tel: 1+ 905-670-0004 // Fax: 1+ 289-401-5206 Website: http://www.is5com.com/ Technical Support: E-mail: support@is5com.com...
- Page 3 REFACE LERTS Preface This guide is intended for use of network technical support skilled persons who are responsible for instal- lation, commissioning, and maintenance of the device. Alerts...
- Page 4 REFACE ELATED OCUMENTS Related Documents RAPTOR Quick Start Guide RAPTOR WebUI Manuals RAPTOR CLI User Manuals RAPTOR Configuration Manuals Training Training is a key for customers to continue maintaining and using their iS5Com's device. Customers can select a standard training course or customized training courses at the iS5Com facility or a customer provided facility.
- Page 5 SUPPORT iSUPPORT Support can be directed to iS5Com’s Technical Action Center at https://is5com.com/isupport/ . You can also call Tech Support: +1 844-475-8324 Service Level Agreements can be tailored to suit your needs with our standard Service Level Agreement packages or through customized solutions. Return Manufacturing Authorization is easy and simplified for our customers.
-
Page 6: Table Of Contents
Introduction ....... . . 1 Key Features and Benefits of RAPTOR iMX950 ....1 Chapter: 2 LINE MODULES . - Page 7 Chapter: 7 Modules Installation ......16 Power Supply Modules Installation .....16 Removal of Power Supply Modules from Chassis .
-
Page 8: Introduction
In this document iMX950 and RAPTOR are used interchangeably. Figure 1: RAPTOR iMX950 1.1. Key Features and Benefits of RAPTOR iMX950 FEATURES BENEFITS Single platform function The multi-service platform allows the user to connect various plug-in modules to meet their functional requirements. -
Page 9: Line Modules
IST OF ODULES LINE MODULES HAPTER 2. LINE MODULES 2.1. List of Line Modules Part # Slots 1 - 3 Line Modules Description Blank Module 8GRJ45 8 X 10/100/1000Base-T(X) RJ45 8GSFP 8 X 100/1000Base-X SFP (optical transceivers not included) Part # Slot 4 Line Module Description Blank Module 4TGSFP... - Page 10 ODULES ETAILS LINE MODULES HAPTER iRM-8GSFP - 8 x 100/1000Base-X SFP (to be used in Slots 1, 2, and 3) iRM-4TGSFP - 4 x 1G/10GBase-X SFP (only for Slot 4)
-
Page 11: Mechanical Drawing Of A Line Module (Generic)
ECHANICAL RAWING OF A ODULE GENERIC LINE MODULES HAPTER 2.3. Mechanical Drawing of a Line Module (generic) Figure 1: Mechanical Drawing of a Line Module (generic) All dimensions are shown in inches. -
Page 12: Power Supply Modules
IST OF OWER UPPLY ODULES POWER SUPPLY MODULES HAPTER 3. POWER SUPPLY MODULES 3.1. List of Power Supply Modules Figure 1: Power Supply Module PART # DESCRIPTION NOMINAL RANGE / OPERATING RANGE Low Voltage Power Module 24 VDC Nominal, 2.5 A, 60W , 10-36 VDC Operating Medium Voltage Power Module 48 VDC Nominal, 1.25 A, 60 W, 36-72V DC... -
Page 13: Mechanical Drawing Of A Power Supply Module
ECHANICAL RAWING OF A OWER UPPLY ODULE POWER SUPPLY MODULES HAPTER 3.2. Mechanical Drawing of a Power Supply Module Figure 2: Mechanical Drawing of a Power Supply Module All power supply (PS) modules (LV, MV, and HV) have the same dimensions as shown above. All dimensions are shown in inches. -
Page 14: Chassis
HAPTER HASSIS 4. Chassis Figure 1: Front View of Chassis with a CD Card Cover Figure 2: Mechanical Drawing of Chassis : All dimensions are shown in inches (millimeters). NOTE... -
Page 15: Raptor Panels Description
RAPTOR P HAPTER ANELS ESCRIPTION 5. RAPTOR Panels Description This section contains views of the front and back panels of the RAPTOR. The locations of the power modules, interface module slots, and status indicators are shown. RAPTOR supports the following slot types: •... -
Page 16: Front Panel Elements
RONT ANEL LEMENTS RAPTOR P HAPTER ANELS ESCRIPTION 5.1. Front Panel Elements Figure 2: Front Panel Elements SD Card port may be used to store Syslog files. SD#1 (top) is disabled by default. SD slot #2 (bottom) is available for customer use. Management Port—this 10/100Base-T Ethernet port is used as an out-of-band factory service port. -
Page 17: Back Panel Elements
ANEL LEMENTS RAPTOR P HAPTER ANELS ESCRIPTION 5.2. Back Panel Elements Figure 3: Back Panel Elements 5.3. LED Indicators Summary TYPE DESRIPTION Description Power Status LED 1 Green: OK; No light: No power module installed Power Status LED 2 Green: OK; No light: No power module installed Alarm Alarm Indicator LED Indicates when an alarm condition exists;... -
Page 18: Port Mapping
ANELS ESCRIPTION 5.4. Port Mapping Figure 5 shows how the ports are numbered on the iMX950. This graphic was taken from the RAPTOR web user interface and is visible on most pages. Figure 5: Port layout on the RAPTOR iMX950... -
Page 19: Mounting And Installing Raptor
REVENTION OF LECTROSTATIC ISCHARGE AMAGE RAPTOR HAPTER OUNTING AND NSTALLING 6. Mounting and Installing RAPTOR The RAPTOR is designed for maximum mounting and display flexibility. It can be equipped with brackets that allow installation in a 48 cm (19 in) rack. 6.1. -
Page 20: Unpacking Device
NPACKING EVICE RAPTOR HAPTER OUNTING AND NSTALLING 6.3. Unpacking Device • Inspect the package for damage before opening. • Open the package and visually inspect all items for issues. • Confirm that all items are available. 6.4. Prerequisites for Mounting Device on a Rack 6.5. -
Page 21: Humidity And Dust Hazards
UMIDITY AND AZARDS RAPTOR HAPTER OUNTING AND NSTALLING rack is installed in a suitable environment that can withstand the maximum ambient temperature generated by the rack. • Do not exceed the maximum number of devices or weight restrictions specified by the rack manu- facturer. -
Page 22: Equipment Needed For Raptor's Installation
RAPTOR’ QUIPMENT EEDED FOR NSTALLATION RAPTOR HAPTER OUNTING AND NSTALLING To secure the device to a standard 48 cm (19 in) rack, perform the following: Install the mounting brackets to RAPTOR using 4 x M4 x 0.7 screws on each side (screws will be provided with the switch). -
Page 23: Modules Installation
OWER UPPLY ODULES NSTALLATION HAPTER ODULES NSTALLATION 7. Modules Installation The RAPTOR supports two hot-swappable power supply modules (PS1 and PS2). The use of two power supply modules is recommended for providing redundancy. 7.1. Power Supply Modules Installation REREQUISITE Equipment must be installed according to applicable local wiring codes and standards. Figure 1: Power Supply Modules... - Page 24 OWER UPPLY ODULES NSTALLATION HAPTER ODULES NSTALLATION Figure 2: Installing Power Supply Modules To install a power supply, perform the following: Insert the power supply modules in Power 1 and Power 2 slots respectively.Push and tighten every thumb screw until each power supply module is locked in position. Push and tighten every thumb screw until each power supply module is locked in position.
-
Page 25: Removal Of Power Supply Modules From Chassis
EMOVAL OF OWER UPPLY ODULES FROM HASSIS HAPTER ODULES NSTALLATION 7.2. Removal of Power Supply Modules from Chassis This section describes how to remove power modules from the Chassis. ONTEXT Figure 3: Removal of Power Supply Modules from Chassis To remove a PS module, perform the following steps: [Optional] If the device is installed in a rack, remove it from the rack. -
Page 26: Lines Modules Installation
INES ODULES NSTALLATION HAPTER ODULES NSTALLATION 7.3. Lines Modules Installation This section describes how to install line modules. ONTEXT Figure 4: Line Modules Installation... -
Page 27: Removal Of Line Modules From Chassis
EMOVAL OF ODULES FROM HASSIS HAPTER ODULES NSTALLATION Check the Ordering Information for line modules to be installed. Obtain all purchased line modules. Check and insert them in the correct positions in the upper or lower slots of the deposition sections. Line modules 1 and 3 are to be inserted before line modules 2 and 4. -
Page 28: Irm-4Tgsfp Module Installation
RM-4TGSFP M ODULE NSTALLATION HAPTER ODULES NSTALLATION 7.5. iRM-4TGSFP Module Installation This section describes how to install a line module into slot 4. ONTEXT Figure 6: Removal of Line Modules from Chassis 4TGSFP line module should only be inserted into LM Slot 4; it will not fully insert or function in any other slot. -
Page 29: Removal Of Irm-4Tgsfp Module
RM-4TGSFP M EMOVAL OF I ODULE HAPTER ODULES NSTALLATION 7.6. Removal of iRM-4TGSFP Module This section describes how to remove a line module from slot 4. ONTEXT Figure 7: Removal of iRM-4TGSFP Module Loosen the screws securing the module. Remove the 4TGSFP module from Slot 4. 7.7. - Page 30 SD C SD S NSERTING ARD IN HAPTER ODULES NSTALLATION Figure 8: Inserting SD Card in SD Slot Uninstall the SD card cover by removing the screws. Insert the SD card as shown into Slot 2 until a click is heard.
-
Page 31: Removing Sd Card
SD C EMOVING HAPTER ODULES NSTALLATION 7.8. Removing SD Card This section describes how to remove the SD Card from the RAPTOR. ONTEXT Figure 9: Removing SD Card Uninstall the SD card cover by removing the screws. Remove the SD card from the slot. -
Page 32: Electrical Wiring
OWER NPUTS AND AULT ELAY HAPTER LECTRICAL IRING 8. Electrical Wiring RAPTOR supports dual redundant hot swappable power supplies—Power Supply 1 (PWR1) and Power Supply 2 (PWR2). The connections for PWR1 and PWR2 are located on the terminal block. ONTEXT 8.1. - Page 33 AC P ONNECTING OWER HAPTER LECTRICAL IRING • The plug connector and wire gauge sizing is to be selected with appropriate design as per the Elec- trical code for a 60W, 1-phase device. Note for IT power distribution systems: This product is also designed for IT power distribution system with phase-to-phase voltage 230 V. This equipment must be connected to an earthed mains socket-outlet.
-
Page 34: Connecting Dc Power
DC P ONNECTING OWER HAPTER LECTRICAL IRING Connect the Neutral from the first power source to the PWR2 V-/N terminal screw. To keep the wires from pulling loose, use a small flat-blade screwdriver to tighten the wire-clamp screws on the front of the terminal block connector. After wiring is completed, reinsert the transparent plastic finger safe cover back onto the face of the terminal block. -
Page 35: Connecting Ground Wire For Safety Precautions
ONNECTING ROUND IRE FOR AFETY RECAUTIONS HAPTER LECTRICAL IRING If a DC Power Supply has been installed in PS2, perform the following steps. Connect the positive wire from the power source to the positive/live (+/L), screw #5, terminal on the terminal block. Connect the negative wire from the power source to the neutral/negative (-/N), screw #7, terminal on the terminal block. -
Page 36: Device Management
ERIAL ONSOLE HAPTER EVICE ANAGEMENT 9. Device Management 9.1. Serial Console Figure 1: Serial Console Connect a PC or terminal directly to the serial console to access the boot-time control and RAPTOR’s interfaces. The serial console port provides access to the console interface. The serial console port is RS232 with RJ45 connector with a console cable and port setup of 115200 bps, 8, N. -
Page 37: Rj45 Ethernet Pin Assignments
RJ45 E THERNET SSIGNMENTS HAPTER EVICE ANAGEMENT For RJ-45 cable specifications, refer to the following table. CABLE TYPE MAXIMUM LENGHT 10BASE-T Cat. 3, 4, 5 100 Ω UTP 100 m (328 ft) 100BASE-TX Cat. 5 100 Ω UTP UTP 100 m (328 ft) 1000BASE-T Cat. -
Page 38: Recommendations For Cables In High Electrical Noise
ECOMMENDATIONS FOR ABLES IN LECTRICAL OISE HAPTER EVICE ANAGEMENT 1000 Base-T MDI/MDI- X pin assignments are as follows: PIN # MDI PORT MDI-X PORT TD+ (transmit) RD+ (receive) TD- (transmit) RD- (receive) RD+ (receive) TD+ (transmit) Not used Not used Not used Not used RD-(receive) -
Page 39: Sfp
HAPTER EVICE ANAGEMENT • Power and data cables should not be run in parallel for long distances, and they should be installed in separate conduits. Power and data cables should intersect at 90° angles when necessary to reduce inductive coupling. •... -
Page 40: Mechanical Dimensions Of A Sfp Module
ECHANICAL IMENSIONS OF A MODULE HAPTER EVICE ANAGEMENT 9.6. Mechanical Dimensions of a SFP module Figure 3: Mechanical Dimensions of a SFP module The dimensions are in millimeters (inches) 9.7. Differences between SM and MM Fibers The main difference between MM and SM fibers is that the former has much larger core diameter. Typi- cally, MM has a core diameter of 50 or 62.5 µm and a cladding diameter of 125 µm, while a typical SM fiber has a core diameter between 8 and 10 µm and a cladding diameter of 125 µm. -
Page 41: General Fiber Optic Cables Handling Instructions
ENERAL IBER PTIC ABLES ANDLING NSTRUCTIONS HAPTER EVICE ANAGEMENT Figure 4: SM and MM Fibers SM fibers are better suited for moving information across longer distances and are routinely used by tele- communications. In comparison, MM fibers are ideal for local networks due to their low cost and greater bandwidth. -
Page 42: Technical Specifications
TECHNICAL SPECIFICATIONS HAPTER 10. TECHNICAL SPECIFICATIONS Flexible Communications Number of slots for Up to 4 slots communications modules Ports Ethernet Network Ports Slot #1- 3—supports up to 8 x 10/100/1000 RJ45s or 8 x 100/1000 SFPs per slot Slot #4—supports up to 4 x 10GB Base-X or 4x1GB Base-X Uplinks Serial Console Port RS-232 in RJ-45 connector with console cable. - Page 43 TECHNICAL SPECIFICATIONS HAPTER Power Redundant Input power Dual Power Supplies available in any combination of: • 24 VDC, 2.5 A (Nom.) • 48 VDC, 1.25 A (Nom.) • 100-240 VAC, 50/60 Hz, 100-240 VDC, 1 A (Nom.) Power Consumption • 60 W for DC Power Supplies •...
-
Page 44: Compliance Specifications
RODUCT AFETY ESTS COMPLIANCE SPECIFICATIONS HAPTER 11. COMPLIANCE SPECIFICATIONS 11.1. Product Safety Tests Description Specification Level IP Rating IEC 61850-3 clause 6.6.2 IP40 IEC 60529 clause 6.11 ISO 20653:2013 Clearance and Creepage IEC 61850-3 clause 6.6.1 Overvoltage Category II IEC 62368-1, clause 6.4.2 & 5.4.3 Pollution Degree II Impulse Voltage IEC 61850-3 clause 6.6.3... - Page 45 (EMC) T LECTROMAGNETIC OMPATIBILITY ESTS COMPLIANCE SPECIFICATIONS HAPTER Description Specification Level Electrostatic Discharges IEC 61850-3 clause 6.7.3 8 kV contact, 15 kV air IEC 61000-4-2 IEEE 1613 clause 8 IEEE 1613.1 clause 8 Radiated Radio Frequency IEC 61850-3 clause 6.7.3 20 V/m Magnetic Field IEC 61000-4-3...
-
Page 46: Climatic Environmental Tests
LIMATIC NVIRONMENTAL ESTS COMPLIANCE SPECIFICATIONS HAPTER 11.3. Climatic Environmental Tests Description Specification Level Cold Operational IEC 61850-3 clause 6.9.3.2 -40°C; 16 hours IEC 60068-2-1, test Ad Cold Operational IEEE 1613 clause 3.1.1 -40°C Dry Heat Storage IEC 61850-3 clause 6.9.3.3 +85°C;... -
Page 47: Altitude
LTITUDE COMPLIANCE SPECIFICATIONS HAPTER Description Specification Level Shock Withstand IEC 61850-3 clause 6.10.2 class 1 IEC 60255-21-2 15 g, 11 ms, half-sine, 3 shocks/direction/axis(18 total) Bump IEC 61850-3 clause 6.10.2 class 1 IEC 60255-21-2 10 g, 16 ms, half-sine, 1000 pulses Seismic, Single Axis Sweep IEC 61850-3 clause 6.10.3...
