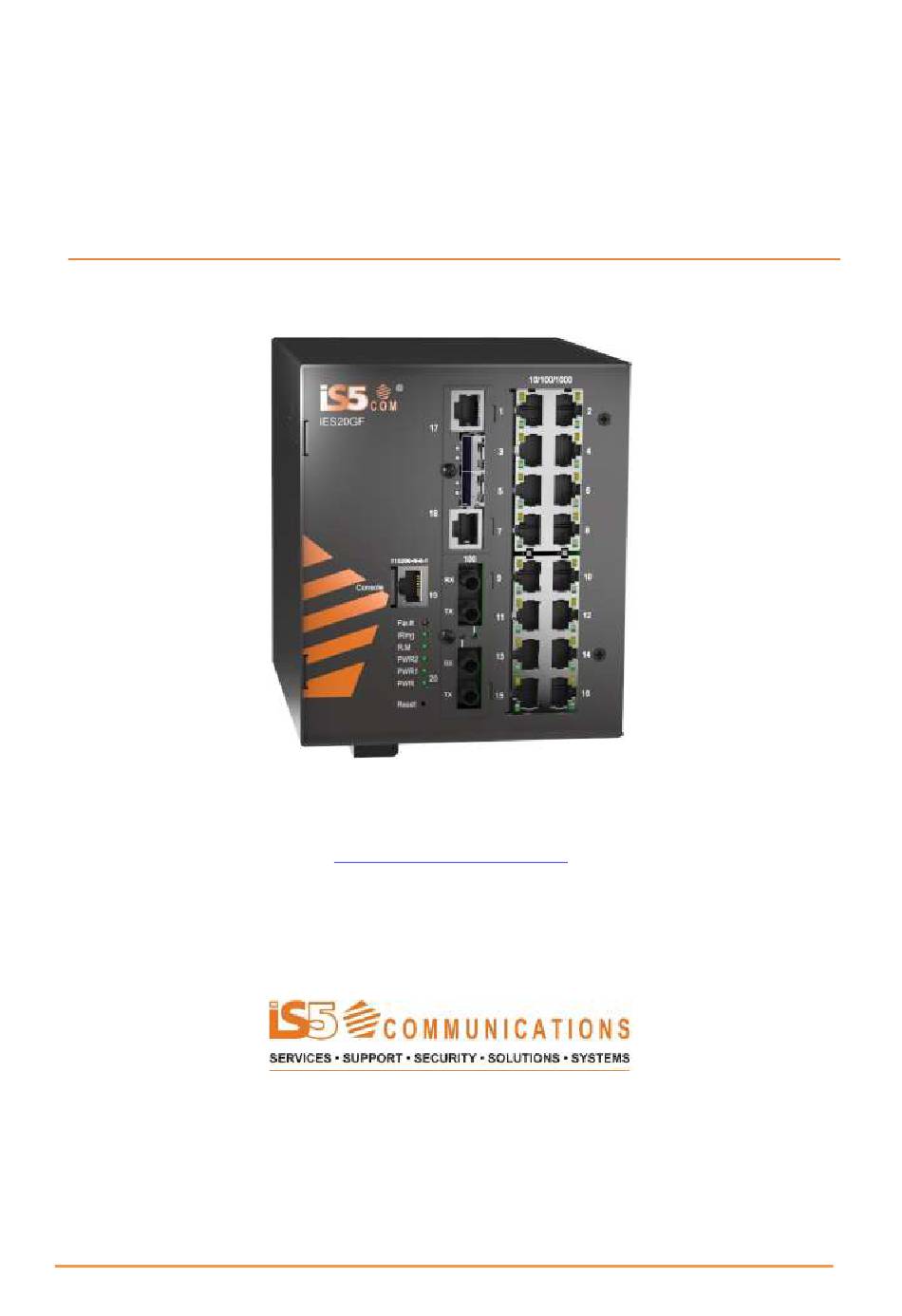

User's Manual
iES20GF
Intelligent 20 Port Managed Gigabit Ethernet Switch
IEC61850 and IEEE1613 Compliant
iES20GF-v1/iES20GF-v2
https://is5com.com/products/
Version 1.92, Nov 2021
© 2021 iS5 Communications Inc. All rights reserved.
UM-iES20GF-1.92.1-EN.docx
© 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iES20GF and is the answer not in the manual?

Questions and answers

Related Manuals for IS5 COMMUNICATIONS iES20GF

Summary of Contents for IS5 COMMUNICATIONS iES20GF

  • Page 1 User’s Manual iES20GF Intelligent 20 Port Managed Gigabit Ethernet Switch IEC61850 and IEEE1613 Compliant iES20GF-v1/iES20GF-v2 https://is5com.com/products/ Version 1.92, Nov 2021 © 2021 iS5 Communications Inc. All rights reserved. UM-iES20GF-1.92.1-EN.docx © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 2: Copyright Notice

    User’s Manual iES20GF COPYRIGHT NOTICE © 2021 iS5 Communications Inc. All rights reserved. No part of this publication may be reproduced in any form without the prior written consent of iS5 Communications Inc. (iS5). TRADEMARKS iS5Com is a registered trademark of iS5. All other trademarks belong to their respective owners.

  • Page 3: Table Of Contents

    Installing the Switch on DIN-Rail ..................... 13 3.1.1 Mounting on DIN-Rail ......................13 Wall Mount Installation ......................14 3.2.1 Mounting iES20GF on a Wall or Panel ..................14 Connection ..........................15 3.3.1 Ethernet Cables ........................15 3.3.2 Pin Assignments ........................15 3.3.3...
  • Page 4 User’s Manual 5.1.4 Guest Password ........................23 5.1.5 Authentication Method ......................23 5.1.6 Auto Logout ..........................24 5.1.7 IP Setting ..........................24 5.1.8 IPv6 Setting ..........................25 5.1.9 SNTP Configuration (only for SNTP Version) ................26 5.1.10 NTP Configuration (only for NTP Version) ................27 5.1.11 Daylight Saving Time ......................
  • Page 5 6.1.1 CLI Management by RS-232 Serial Console (115200, 8, none, 1, none) ........ 162 6.1.2 CLI Management by Telnet ....................164 6.1.3 Command Groups ......................... 165 7. Appendix A: iES20GF Modbus Information ......... 180 Table of Figures UM-iES20GF-1.92.1-EN.docx Page 3...
  • Page 6 User’s Manual Figure 1 – Rear Panel ........................... 12 Figure 2 – Side Panel ........................... 12 Figure 3 - DIN-Rail Bracket ........................13 Figure 4 - Switch Mounted on DIN-Rail ....................13 Figure 5 - Brackets Mounted on Side of Switch ..................14 Figure 6 - Brackets Mounted on back of Switch ...................
  • Page 7 User’s Manual Figure 59 – STP MSTI Port Configuration ..................... 59 Figure 60 –MSTI Port Configuration..................... 61 Figure 61 - STP Bridges ........................62 Figure 62 - STP Port Status ........................62 Figure 63 - STP Statistics ........................63 Figure 64 - MRP ...........................
  • Page 8 Figure 164 – Tera Term VT, Setup Menu ................... 162 Figure 165 – Tera Term VT, Serial port setup ..................162 Figure 166 - iES20GF Command Line Interface - Tera Term VT ............163 Figure 167 - Telnet Command Prompt ....................164 Figure 168 - iES20GF Command Line Interface - Telnet ..............
  • Page 9 User’s Manual Table 1 – Port Numbering ........................15 Table 2 – 10/100 Base-T(X) Line Pin Assignments ................15 Table 3 – 1000 Base-T Line Pin Assignments ..................15 Table 4 – 10/100 Base-T(X) MDI/MDI- X Pin Assignments ..............16 Table 5 –...

  • Page 10: Fcc Statement And Cautions

    This product contains no user-serviceable parts. Attempted service by unauthorized personnel shall render all warranties null and void. Changes or modifications not expressly approved by iS5 Communications Inc. could invalidate specifications, test results, and agency approvals, and void the user's authority to operate the equipment.

  • Page 11: Getting Started

    1. GETTING STARTED 1.1 About iES20GF The iES20GF is an intelligent managed 20 port Gigabit Ethernet switch with up to 20 x 10/100/1000Base- T(X) RJ45, and up to 4 x 100/1000Base-X SFP, or 4 x 100Base-FX, or 4 x 1000Base-SX/LX ports.

  • Page 12: References

    The following table shows all acronyms used in this document. Acronym Explanation Authentication, authorization, and accounting (network security services) Access Control Entry Access Control List Assured Forwarding Address Resolution Protocol UM-iES20GF-1.92.1-EN.docx Pages 3 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
  • Page 13 Link Aggregation Group LACP Link Aggregation Control Protocol LLDP Link Layer Discovery Protocol LLDP- MED LLDP - Media Endpoint Discovery LLDPDU LLDP Data Unit Management Information Base UM-iES20GF-1.92.1-EN.docx Pages 4 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
  • Page 14 SNMP Simple Network Management Protocol SNTP Simple Network Time Protocol SSAP Source Service Access Point Secure Shel TACACS Terminal Access Controller Access Control System Topology Change Notification UM-iES20GF-1.92.1-EN.docx Pages 5 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
  • Page 15 User Datagram Protocol Urgent Pointer Field Significant (an ACE value) User-based Security Model Coordinated Universal Time VACM View based Access Control Model VCXO Voltage Controlled Crystal Oscillator VLAN ID UM-iES20GF-1.92.1-EN.docx Pages 6 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 16: Software Features

    Redundant Power Supplies: Dual Input 10-48VDC, Dual Input Input Power 36-75VDC, or Dual Input 110-370VDC or 90-264VAC 20 Watts Power Consumption (Typ.) Present Overload Current Protection Internal Reverse Polarity Protection UM-iES20GF-1.92.1-EN.docx Pages 7 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 17: Hardware Overview

    LED for Ring. When the led light on, it means the iRing is activated. LED for Fault. When the light on, it means Power failure or Port down/fail. Console port (RJ-45) 100/1000Base-X SC/ST/LC or 100/1000 Base-X SFPs UM-iES20GF-1.92.1-EN.docx Pages 8 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
  • Page 18 LED for Ethernet ports link status. LED for Ethernet ports speed status 10/100/1000Base-T(X) ports LED for SC/ST/LC or SFP ports link status 100/1000Base-X SC/ST/LC or 100/1000 Base-X SFP UM-iES20GF-1.92.1-EN.docx Pages 9 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 19: Front Panel Led

    There are also connections for the Failsafe Relay. The Failsafe Relay is rated 1A @ 24VDC. Connections to the Terminal block are listed in the table below. UM-iES20GF-1.92.1-EN.docx Pages 10 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
  • Page 20 Failsafe Relay (Normally Closed) contact. Chassis Ground Connection The iES20GF chassis ground connection, located next to the terminal block, uses a #6-32 Screw. We recommend terminating the ground connection using a #6 ring lug, and a torque setting of 15 in.lbs (1.7Nm).

  • Page 21: Rear Panel

    User’s Manual 2.4 Rear Panel The components on the rear of the iES20GF are shown below: 1. Screw holes (4) for wall mount kit. 2. DIN-Rail mount Figure 1 – Rear Panel 2.5 Side Panel The components on the side of the iES10G are shown below: 1.

  • Page 22: Hardware Installation

    Figure 3 - DIN-Rail Bracket Step 2: Push the bottom of the switch toward the DIN-Rail until the bracket snaps in place. Figure 4 - Switch Mounted on DIN-Rail UM-iES20GF-1.92.1-EN.docx Pages 13 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 23: Wall Mount Installation

    The switch can also be panel or wall mounted. The following steps show how to mount the switch on a panel or wall. 3.2.1 Mounting iES20GF on a Wall or Panel Option 1: Side of switch Fix mounting brackets to the side of switch using the 4 screws included in the package.

  • Page 24: Connection

    3.3 Connection 3.3.1 Ethernet Cables The iES20GF switches have standard Ethernet ports. According to the link type, the switches use CAT 3, 4, 5, and 5e UTP cables to connect to any other network device (e.g. PCs, servers, switches, routers, or hubs).

  • Page 25: Sfp

    LC connectors. Remember that the TX port of Switch A should be connected to the RX port of Switch B. Switch A Switch B Fiber Figure 7 – SFPs UM-iES20GF-1.92.1-EN.docx Pages 16 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 26: Console Cable

    — — 1. NC indicates not connected. 2. TXD indicates transmit data 3. RXD indicates receive data 4. GND indicates ground Figure 8 – Console Cable Connection UM-iES20GF-1.92.1-EN.docx Pages 17 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 27: Redundancy Overview

    4.2 Fast Recovery Fast recovery mode can be set to connect multiple ports to one or more switches. iES20GF with fast recovery modes will provide redundant links. Only the first priority will be the active port, the other ports with different priorities will be backup ports.

  • Page 28: Web Management

    4. The login screen appears (see Figure 10 – Login Screen). Figure 10 – Login Screen 5. Enter the username and password. The default username and password are “admin”. UM-iES20GF-1.92.1-EN.docx Pages 19 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 29: Figure 11 - Main Interface Or System Information Tab

    Note: Session timeout is 10 minutes. On the left hand side, links to various settings are shown. Use them to access the different features of the switch. UM-iES20GF-1.92.1-EN.docx Pages 20 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 30: Basic Setting

    The offset is given in minutes east of GMT. The valid range is from -720 to 720 offset (minutes) minutes. Save Click to save changes. Click to undo any changes made locally and revert to previously saved Reset values. UM-iES20GF-1.92.1-EN.docx Pages 21 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 31: Banner

    The new system password. The allowed string length is 0 to 31, and only New Password ASCII characters from 32 to 126 are allowed. Confirm New Password Re-type the new password. Save Click to save changes. UM-iES20GF-1.92.1-EN.docx Pages 22 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 32: Guest Password

    5.1.5 Authentication Method Configure how a user is authenticated when he/she logs into the switch via one of the management interfaces. Figure 16 - Authentication Method Configuration UM-iES20GF-1.92.1-EN.docx Pages 23 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 33: Auto Logout

    Note: value 0-9999 min ; Default: 0 which means 10 min. 5.1.7 IP Setting You can configure IP information of the switch in this page. Figure 18 - IP Configuration UM-iES20GF-1.92.1-EN.docx Pages 24 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 34: Ipv6 Setting

    IPv6 settings will be used. The router Configuration may delay responding to a router solicitation for a few seconds, the total time needed to complete auto-configuration can be significantly longer. UM-iES20GF-1.92.1-EN.docx Pages 25 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 35: Sntp Configuration (Only For Sntp Version)

    Provide the IPv4 address of a SNTP server. Server Address Save Click to save changes Reset Click to undo any changes made locally and revert to previously saved values UM-iES20GF-1.92.1-EN.docx Pages 26 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 36: Ntp Configuration (Only For Ntp Version)

    Provide the IPv4 address of a NTP server. There 2 cells so a dual NTP server or active / active Server model is supported. Address Save Click to save changes. Reset Click to undo any changes made locally and revert to previously saved values. UM-iES20GF-1.92.1-EN.docx Pages 27 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 37: Daylight Saving Time

    Date - Select the starting date. (Non-Recurring) Start Time • Year - Select the starting year. (Non-Recurring) Settings • Hours - Select the starting hour. • Minutes - Select the starting minute. UM-iES20GF-1.92.1-EN.docx Pages 28 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 38: Switch Time Configuration

    HTTP application layering. HTTPS encrypts and decrypts user page requests as well as the pages that are returned by the web server. Configure HTTPS settings in the following page. Figure 24 - HTTPS Configuration UM-iES20GF-1.92.1-EN.docx Pages 29 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 39: Label Description

    This page allows the user to enable or disable Telnet settings. Figure 26 - Telnet Configuration Label Description Mode Indicates the selected Telnet mode. The modes include: Enabled: enable telnet. Disabled: disable Telnet. UM-iES20GF-1.92.1-EN.docx Pages 30 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 40: Lldp

    Disabled The switch will not send out LLDP information, and will drop LLDP information received from neighbours. Mode Enabled The switch will send out LLDP information, and will analyze LLDP information received from neighbours. UM-iES20GF-1.92.1-EN.docx Pages 31 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 41: Figure 28 - Lldp Neighbor Information

    Two types of counters are shown. Global Counters are counters that refer to the whole switch, while Local Counters refer to per port counters for the currently selected switch. UM-iES20GF-1.92.1-EN.docx Pages 32 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 42: Figure 29 - Lldp Global Counters

    Local Port The number of LLDP frames transmitted on the port Tx Frames The number of LLDP frames received on the port Rx Frames UM-iES20GF-1.92.1-EN.docx Pages 33 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 43: Modbus Tcp

    Header tags: <?xml version="1.0"?> and <configuration>. These tags are mandatory and must be present at the beginning of the file. Section tags: <platform>, <global> and <switch>. The platform section must be the first section tag UM-iES20GF-1.92.1-EN.docx Pages 34 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 44: Restore

    Save Configuration—click to save the configuration file. Figure 31 – Configuration Save 5.1.19 Restore This page allows the user to load a previously saved configuration to the switch. UM-iES20GF-1.92.1-EN.docx Pages 35 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 45: Firmware Update

    Green/Off with a frequency of 10 Hz while the firmware update is in progress. Do not restart or power off the device at this time or the switch may fail to function afterwards. Upgrade takes 10 minutes or more based on connection bandwidth. UM-iES20GF-1.92.1-EN.docx Pages 36 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 46: Dhcp Server/Relay

    Boot File Name The name of Boot File (Option 67). Save Click to save changes. Reset Click to undo any changes made locally and revert to previously saved values. UM-iES20GF-1.92.1-EN.docx Pages 37 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 47: Dhcp Dynamic Client List

    Add as Static Add dynamic entry to static table. Type The type of client (Dynamic or Static). Delete Delete selected entry. Select/Clear All Select or Clear all check boxes. UM-iES20GF-1.92.1-EN.docx Pages 38 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 48: Dhcp Relay Agent

    Drop: drop the package when a DHCP message containing the information is received. Save Click to save changes Reset Click to undo any changes made locally and revert to previously saved values. UM-iES20GF-1.92.1-EN.docx Pages 39 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 49: Figure 38 - Dhcp Relay Statistics

    Auto-refresh Check this box to refresh the page automatically. Auto-refresh Automatic refresh occurs every 3 seconds. Refresh Click to refresh the page immediately. Clear Clear all statistics. UM-iES20GF-1.92.1-EN.docx Pages 40 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 50: Port Setting

    Port Setting allows managing of individual ports of the switch, including traffic, power, and trunks. 5.3.1 Port Control This page shows current port configurations. Ports can also be configured here. Figure 39 – Port Configuration UM-iES20GF-1.92.1-EN.docx Pages 41 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
  • Page 51 Enabled: Both link up and link down power savings enabled. Refresh Click to refresh the page immediately. Save Click to save changes. Reset Click to undo any changes made locally and revert to previously saved values. UM-iES20GF-1.92.1-EN.docx Pages 42 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 52: Port Trunk

    Figure 41 - Aggregation Group Configuration Label Description Indicates the ID of each aggregation group. Normal means no aggregation. Group ID Only one group ID is valid per port. UM-iES20GF-1.92.1-EN.docx Pages 43 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 53: Figure 42 - Lacp Port Configuration

    This page allows the user to inspect the current LACP port configurations, and change them as well. Figure 42 – LACP Port Configuration UM-iES20GF-1.92.1-EN.docx Pages 44 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 54: Figure 43 - Lacp System Status

    Shows which ports are a part of this aggregation for this switch. Local Ports Click to refresh the page immediately. Refresh Check to enable an automatic refresh of the page at regular Intervals. Auto-refresh UM-iES20GF-1.92.1-EN.docx Pages 45 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 55: Lacp Port Status

    The partner’s port number associated with the port. Partner Port Click to refresh the page immediately. Refresh Check to enable an automatic refresh of the page at regular intervals. Auto- refresh UM-iES20GF-1.92.1-EN.docx Pages 46 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 56: Lacp Port Statistics

    Click to refresh the page immediately. Refresh Auto-refresh Check to enable an automatic refresh of the page at regular intervals. Click to clear the counters for all ports. Clear UM-iES20GF-1.92.1-EN.docx Pages 47 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 57: Loop Protection

    (shutting down the port). The valid value is 0 to 604800 seconds (7 days). A value of Time zero will keep a port disabled permanently (until the device is restarted). Figure 47 - Port Configuration UM-iES20GF-1.92.1-EN.docx Pages 48 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 58: Figure 48 - Loop Protection Status

    The time of the last loop event detected. Save Click to save changes Reset Click to undo any changes made locally and revert to previously saved values UM-iES20GF-1.92.1-EN.docx Pages 49 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 59: Redundancy

    RSTP links (e.g., a backbone switch). Dual Homing The two links work in active/backup mode, and connect each ring to the normal switches in RSTP mode. Click to apply the configurations. Save UM-iES20GF-1.92.1-EN.docx Pages 50 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 60: Ichain

    The second port connecting to the bridge Ring Port The list of the supported vendors is: • Moxx Vender • Advantexx • Hitshmaxx Click to apply the configurations. Save UM-iES20GF-1.92.1-EN.docx Pages 51 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 61: Rstp

    NOTE: Follow this rule to configure the MAX Age, Hello Time, and Forward Delay Time: 2 x (Forward Delay Time value –1) ≥ Max Age value ≥ 2 x (Hello Time value +1) UM-iES20GF-1.92.1-EN.docx Pages 52 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 62: Figure 53 - Rstp Port Setting

    Auto Edge Controls whether the bridge should enable automatic edge detection on the bridge port. This allows operEdge to be derived from whether BPDU's are received on the UM-iES20GF-1.92.1-EN.docx Pages 53 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 63: Figure 54 - Rstp Bridge Status

    The time that the Control Switch sends out the BPDU (Bridge Protocol Data Unit). Forward The delay used by STP Bridges to transit Root and Designated Ports to Forwarding Delay (used in STP compatible mode). UM-iES20GF-1.92.1-EN.docx Pages 54 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 64: Figure 55 - Rstp Port Status

    P2P enabling. False means P2P disabling. Role The Role of each port is Disabled or Designated. State The State of each port is Discarding or Forwarding. UM-iES20GF-1.92.1-EN.docx Pages 55 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 65: Mstp

    If recovery is not enabled, ports have to be disabled and re- Port Error enabled for normal STP operation. The condition is also cleared by a system Recovery reboot. UM-iES20GF-1.92.1-EN.docx Pages 56 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 66: Msti Mapping

    Spanning Tree (CIST), which is the default spanning tree instance for MSTP, and the other in the context of each individual spanning tree context, that is, MSTI. [6] Figure 57 - MSTI Configuration UM-iES20GF-1.92.1-EN.docx Pages 57 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 67: Msti Priorities

    MSTI instance number, and the 6-byte MAC address of the switch forms a Bridge Identifier. Click to save changes Save Reset Click to undo any changes made locally and revert to previously saved values UM-iES20GF-1.92.1-EN.docx Pages 58 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 68: Cist Ports

    Check to enable the bridge to detect edges at the bridge port automatically. This Auto Edge allows operEdge to be derived from whether BPDUs are received on the port or not. UM-iES20GF-1.92.1-EN.docx Pages 59 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
  • Page 69 Transiting to forwarding state is faster for point-to-point LANs than for shared media. Save Click to save changes. Click to undo any changes made locally and revert to previously saved values. Reset UM-iES20GF-1.92.1-EN.docx Pages 60 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 70: Msti Ports

    Configures the priority for ports having identical port cost. (See above). Save Click to save changes. Reset Click to undo any changes made locally and revert to previously saved values. UM-iES20GF-1.92.1-EN.docx Pages 61 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 71: Bridge Status

    The time since the bridge port was last initialized Uptime Click to refresh the page immediately. Refresh Check this box to enable an automatic refresh of the page at regular intervals. Auto-refresh UM-iES20GF-1.92.1-EN.docx Pages 62 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 72: Figure 63 - Stp Statistics

    The number of illegal spanning tree BPDU’s received (and discarded) on the port. Illegal Refresh Click to refresh the page immediately. Auto-refresh Check to enable an automatic refresh of the page at regular intervals. UM-iES20GF-1.92.1-EN.docx Pages 63 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 73: Mrp

    Fast Recovery is a function for port redundancy. The port has the highest recovery priority (the lowest number) will be the active port, others will be blocked (if included). UM-iES20GF-1.92.1-EN.docx Pages 64 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 74: Figure 65 - Fast Recovery

    The port has the highest recovery priority (the lowest number) will be the Recovery Priority active port, others will be blocked (if included). Save Click to save the configurations. UM-iES20GF-1.92.1-EN.docx Pages 65 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 75: Dual Port Recovery

    Dual Port Recovery mode is defined to work with unmanaged devices/switches or ring of switches. This feature can be set to on single port of switches on both sides of unmanaged ring. The iES20GF in Dual Port Recovery mode will provide redundant links.

  • Page 76: Figure 66 - Dual Port Recovery

    Set the maximum number of lost frames to start Dual Port Recovery mechanism (1-500 Retry retries default 3 )Note: Test Max Retry should be the same on both sides. Apply Click Apply to activate the configurations. UM-iES20GF-1.92.1-EN.docx Pages 67 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 77: Vlan

    To remove or exclude the port from the VLAN, make sure the box is unchecked as Members shown By default, no ports are members, and for every new VLAN entry all boxes are unchecked. UM-iES20GF-1.92.1-EN.docx Pages 68 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 78: Ports Configuration

    Port can be one of the following types: Unaware , Custom (C-port),Service (S-port), Custom Service (S-custom-port). If port type is Unaware, all frames are classified to the port VLAN ID and tags are not removed. UM-iES20GF-1.92.1-EN.docx Pages 69 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 79: Port Types

    802.1QinQ (double also be affected by the 2. If the TPID of tagged frame is not tag). Egress Rule. 0x8100 (ex. 0x88A8), it will be forwarded. UM-iES20GF-1.92.1-EN.docx Pages 70 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
  • Page 80 0x8100, it will be forwarded. by the user via Ethertype for Custom If the TPID of tagged frame is not 0x88A8 S-ports. (ex. 0x8100), it will be discarded. UM-iES20GF-1.92.1-EN.docx Pages 71 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 81: Figure 69 - Unaware And C-Port Port Types

    User’s Manual Figure 69 - Unaware and C-port Port Types UM-iES20GF-1.92.1-EN.docx Pages 72 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 82: Figure 70 - S-Port And S-Custom Port Types

    User’s Manual Figure 70 - S-port and S-custom Port Types UM-iES20GF-1.92.1-EN.docx Pages 73 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 83: Examples Of Vlan Settings

    Port 7 is VLAN Access mode = Untagged 20 Port 8 is VLAN Access mode = Untagged 10 Below are the switch settings. Figure 72 - VLAN Membership Configuration Figure 73 - VLAN Port Configuration UM-iES20GF-1.92.1-EN.docx Pages 74 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 84: Figure 74 - Vlan Membership Configuration

    Port 2 = VLAN 1Qtrunk mode = tagged 10, 20 Below are the switch settings. Figure 74 - VLAN Membership Configuration Figure 75 - VLAN Port Configuration UM-iES20GF-1.92.1-EN.docx Pages 75 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 85: Figure 76 - Vlan Membership Configuration

    Figure 77 - VLAN Port Configuration VLAN QinQ Mode: VLAN QinQ mode is usually adopted when there are unknown VLANs, as shown in the figure below VLAN “X” = Unknown VLAN UM-iES20GF-1.92.1-EN.docx Pages 76 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 86: Figure 78 - Vlan Membership Configuration

    VLAN ID Settings When setting the management VLAN, only the same VLAN ID port can be used to control the switch. iES20GF VLAN Settings: Figure 80 – IP Configuration UM-iES20GF-1.92.1-EN.docx Pages 77 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 87: Private Vlan

    Click to undo any changes made locally and revert to previously saved values. Check this box to refresh the page automatically. Automatic refresh occurs every Auto-refresh 3 seconds. Refresh Click to refresh the page immediately UM-iES20GF-1.92.1-EN.docx Pages 78 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 88: Figure 82 - Port Isolation Configuration

    Check this box to refresh the page automatically. Automatic refresh occurs every Auto-refresh 3 seconds. Save Click to save changes. Click to undo any changes made locally and revert to previously saved values. Reset UM-iES20GF-1.92.1-EN.docx Pages 79 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 89: Snmp

    Indicates the SNMPv3 engine ID. The string must contain an even number between 10 and 64 hexadecimal digits, but all-zeros and all-'F's are not allowed. Change of the Engine ID Engine ID will clear all original local users. UM-iES20GF-1.92.1-EN.docx Pages 80 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 90: Trap Community

    16-bit groups of contiguous zeros; but it can appear only once. It can also represent a legally valid IPv4 address. For example, '::192.1.2.34'. UM-iES20GF-1.92.1-EN.docx Pages 81 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 91: Snmp Community Configurations

    Reset 5.6.2 SNMP Community Configurations This page allows the user to configure SNMPv3 community table. The entry index key is Community. Figure 85 – SNMPv3 Community Configuration UM-iES20GF-1.92.1-EN.docx Pages 82 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 92: Snmp User Configurations

    A string identifying the user name that this entry should belong to. The allowed string length is 1 to 32, and the allowed content is ASCII characters from 33 to 126. UM-iES20GF-1.92.1-EN.docx Pages 83 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
  • Page 93 Privacy A string identifying the privacy pass phrase. The allowed string length is Password 8 to 32 and only ASCII characters from 33 to 126 are allowed. UM-iES20GF-1.92.1-EN.docx Pages 84 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 94: Snmp Group Configurations

    5.6.5 SNMP View Configurations This page allows the user to configure SNMPv3 view table. The entry index keys are View Name and OID Subtree. Figure 88 – SNMPv3 View Configuration UM-iES20GF-1.92.1-EN.docx Pages 85 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 95: Snmp Access Configurations

    The names of the MIB view identifies the MIB objects for which this request may request the View current values. The allowed string length is1 to 32, and only ASCII characters from 33 to 126 Name are allowed. UM-iES20GF-1.92.1-EN.docx Pages 86 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
  • Page 96 Click to add a new access configuration. Entry Save Click to save changes. Reset Click to undo any changes made locally and revert to previously saved values. UM-iES20GF-1.92.1-EN.docx Pages 87 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 97: Traffic Prioritization

    If the rate is exceeded, then a specific action is taken as soon as the event occurs. • Queuing used to prevent traffic congestion. Traffic is sent to specific queues for servicing and UM-iES20GF-1.92.1-EN.docx Pages 88 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 98: Figure 91 - Qos Ingress Port Classification

    If the port is VLAN aware and the frame is tagged, then the frame is classified to the DEI value in the tag. Otherwise the frame is classified to the default DEI value. UM-iES20GF-1.92.1-EN.docx Pages 89 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 99: Port Tag Remarking

    Shows the tag remarking mode for this port: Classified: use classified PCP/DEI values. Default: use default PCP/DEI values. Mapped: use mapped versions of QoS class and DP level. UM-iES20GF-1.92.1-EN.docx Pages 90 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 100: Port Dscp

    Remap: DSCP from the analyzer is remapped and the frame is remarked with remapped DSCP value. Click to save changes. Save Click to undo any changes made locally and revert to previously saved values. Reset UM-iES20GF-1.92.1-EN.docx Pages 91 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 101: Port Policing

    If flow control is enabled and the port is in flow control mode, then pause frames are Flow Control sent instead of discarding frames. Click to save changes. Save Reset Click to undo any changes made locally and revert to previously saved values. UM-iES20GF-1.92.1-EN.docx Pages 92 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 102: Queue Policing

    Click the port number to configure the schedulers. Details for configuration can be found in the QoS Egress Port Scheduler and Shapers section. Shows the scheduling mode for this port. Mode Shows the weight for this queue and port. Weight UM-iES20GF-1.92.1-EN.docx Pages 93 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 103: Port Shaping

    5.7.8.1.1 Strict Priority In the Scheduler Mode, from the drop-down list, select Strict Priority. Figure 98 - QoS Ingress Port Scheduler and Shapers Port 1- Strict Priority UM-iES20GF-1.92.1-EN.docx Pages 94 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 104: Figure 99 - Qos Egress Port Scheduler And Shapers Port 1 - Scheduler Mode Weighted

    5.7.8.1.2 Weighted In the Scheduler Mode, from the drop-down list, select Weighted. Figure 99 - QoS Egress Port Scheduler and Shapers Port 1 – Scheduler Mode Weighted UM-iES20GF-1.92.1-EN.docx Pages 95 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
  • Page 105 Click to undo any changes made locally and revert to previously saved values. Cancel Click to undo any changes made locally and return to the previous page. UM-iES20GF-1.92.1-EN.docx Pages 96 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 106: Dscp-Based Qos

    DP level of 1 corresponds to 'Discard Eligible' (Yellow) frames Reset Click to undo any changes made locally and revert to previously saved values. UM-iES20GF-1.92.1-EN.docx Pages 97 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 107: Dscp Translation

    DSCP value ranges form 0 to 63. Save Click to save changes. Reset Click to undo any changes made locally and revert to previously saved values. UM-iES20GF-1.92.1-EN.docx Pages 98 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 108: Dscp Classification

    Actual Drop Precedence Level. DSCP Select the classified DSCP value (0-63) Save Click to save changes. Reset Click to undo any changes made locally and revert to previously saved values. UM-iES20GF-1.92.1-EN.docx Pages 99 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 109: Qos Control List

    Allow all types of frames Valid Ethernet values can range from 0x600 to 0xFFFF or Any' but excluding Ethernet 0x800(IPv4) and 0x86DD(IPv6). The default value is Any. UM-iES20GF-1.92.1-EN.docx Pages 100 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 110: Qos Statistics

    Default means that the default classified value is not modified by this QCE. 5.7.13 QoS Statistics This page provides the statistics of individual queues for all switch ports. Figure 104 - QoS Statistics UM-iES20GF-1.92.1-EN.docx Pages 101 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 111: Figure 105 - Detailed Port Statistics Port 9

    On Figure 104 QoS Statistics, go to Port 9 (identified with a red rectangle) and click it. The following page appears. Figure 105 - Detailed Port Statistics Port 9 UM-iES20GF-1.92.1-EN.docx Pages 102 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 112: Qcl Status

    Conflict: Show conflict entries. Clear all statistics counters. Clear Check this box to refresh the page automatically. Automatic refresh occurs every 3 Auto-refresh seconds. Click to refresh the page. Refresh UM-iES20GF-1.92.1-EN.docx Pages 103 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 113: Multicast

    Save Click to save changes. Reset Click to undo any changes made locally and revert to previously saved values. UM-iES20GF-1.92.1-EN.docx Pages 104 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 114: Igmp Snooping Vlan Configurations

    Click to add a new entry into the table. IGMP VLAN Click to save changes. Save Click to undo any changes made locally and revert to previously saved values. Reset UM-iES20GF-1.92.1-EN.docx Pages 105 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 115: Igmp Snooping Status

    Check to enable an automatic refresh of the page at regular intervals. Router Port Port number on the switch. Router Port Status Indicates whether a specific port is a router port or not UM-iES20GF-1.92.1-EN.docx Pages 106 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 116: Igmp Snooping Group Information

    Updates the table, starting with the first entry in the IGMP Group Table. >> Updates the table, starting with the entry after the last entry currently displayed. UM-iES20GF-1.92.1-EN.docx Pages 107 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 117: Security

    Additionally, the bound device also benefits from a collection of active network traffic protection and maintenance tools — Alive Check, Stream Check, and DoS/DDoS auto- prevention. This page provides Device Binding related configuration. UM-iES20GF-1.92.1-EN.docx Pages 108 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 118: Figure 112 - Device Binding

    Indicates the DDOS Prevention status. Possible options are: DDOS ---: Disable. Prevention Analysing: Analyse the packet throughput for initialization. Status Running: Function ready. Attacked: DDOS attack happened. Click to save changes. Save UM-iES20GF-1.92.1-EN.docx Pages 109 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 119: Figure 113 - Alias Ip Address

    Only Log it: Just log the event. Indicates the Alive Check status. Possible statuses are: ---: Disable. Status Analysing: Analyse the packet throughput for initialization. Running: Function ready. Attacked: DDOS attack happened. UM-iES20GF-1.92.1-EN.docx Pages 110 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 120: Figure 115 - Ddos Prevention

    Indicates the DDOS prevention status. Possible statuses are: ---: disables DDOS prevention Status Analyzing: analyzes packet throughput for initialization Running: analysis completes and ready for next move Attacked: DDOS attacks occur UM-iES20GF-1.92.1-EN.docx Pages 111 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 121: Figure 116 - Device Description

    ---: no action Log it: simply logs the event Indicates the Stream Check status. Possible statuses are: Status ---: disables Stream Check Normal: Stream Check is enabled UM-iES20GF-1.92.1-EN.docx Pages 112 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 122: Acl

    Logging Disabled: frames received on the port are not logged. The default value is Disabled. Please note that system log memory capacity and logging rate is limited. UM-iES20GF-1.92.1-EN.docx Pages 113 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 123: Rate Limiter

    The rate limiter ID for the settings contained in the same row. The allowed values are: 0-3276700 in pps or 0, 100, 200, 300, ..., 1000000 in Rate kbps. UM-iES20GF-1.92.1-EN.docx Pages 114 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 124: Access Control List

    First select the ingress port for the ACE, then the Policy Filter (if specific chosen, Policy Value and Policy Bitmask fields appear) and then the frame type. Different parameter options are displayed according to the frame type you have selected. UM-iES20GF-1.92.1-EN.docx Pages 115 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 125: Figure 122 - Ace Configuration

    Deny: drops the frame matching the ACE. Specifies the rate limiter in number of base units. The allowed range is 1 to 16. Rate Limiter Disabled means the rate limiter operation is disabled. UM-iES20GF-1.92.1-EN.docx Pages 116 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 126: Figure 123 - Mac Parameters

    Any: no DMAC filter is specified (DMAC filter status is "don't-care"). DM AC Filter MC: frame must be Multicast. BC: frame must be Broadcast. UC: frame must be Unicast. UM-iES20GF-1.92.1-EN.docx Pages 117 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 127: Figure 124 - Vlan Parameters (Default Values Or With Filter "Specific")

    5.9.3.3.3 IP Parameters Figure 125 - IP Parameters The IP parameters are available to be configured when Frame Type of IPv4 is selected (see Figure 122 - ACE Configuration). UM-iES20GF-1.92.1-EN.docx Pages 118 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
  • Page 128 IP mask in the SIP Address and SIP Mask fields that appear. When Host or Network is selected for the source IP filter, you can enter a specific SIP address in dotted decimal notation. Address UM-iES20GF-1.92.1-EN.docx Pages 119 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 129: Figure 126 - Arp Parameters

    Any: no ARP/RARP OP flag is specified (OP is "don't-care"). ARP: frame must have ARP/RARP opcode set to ARP RARP: frame must have ARP/RARP opcode set to RARP. Other: frame has unknown ARP/RARP Opcode flag. UM-iES20GF-1.92.1-EN.docx Pages 120 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
  • Page 130 0: ARP/RARP frames where the PRO is equal to IP (0x800) must not match this entry. Ethernet 1: ARP/RARP frames where the PRO is equal to IP (0x800) must match this entry. Any: any value is allowed ("don't-care "). UM-iES20GF-1.92.1-EN.docx Pages 121 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 131: Figure 127 - Icmp Parameters

    The allowed range is 0 to 255. A frame matching the ACE will use this ICMP code value. 5.9.3.3.6 TCP /UDP Parameters Figure 128 - TCP / UDP Parameters UM-iES20GF-1.92.1-EN.docx Pages 122 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
  • Page 132 When Range is selected for the TCP/UDP destination filter, you can enter a specific TCP/UDP TCP/UDP destination range value. The allowed range is 0 to 65535. A frame matching Destination the ACE will use this TCP/UDP destination range. Range UM-iES20GF-1.92.1-EN.docx Pages 123 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 133: Figure 129 - Ethernet Type Parameters

    Ethernet value. The allowed range is from 0x600 to 0xFFFF excluding 0x800(IPv4), 0x806(ARP) Type Value and 0x86DD(IPv6). A frame that hits such ACE matches this EtherType value. UM-iES20GF-1.92.1-EN.docx Pages 124 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 134: Figure 130 - Acl Status

    The counter indicates the number of times the ACE was hit by a frame. Indicates the hardware status of the specific ACE. The specific ACE is not applied to the Conflict hardware due to hardware limitations. UM-iES20GF-1.92.1-EN.docx Pages 125 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
  • Page 135 Conflict: Show conflict entries in the ACL. Refresh Click to refresh the page. Auto-refresh Check to enable an automatic refresh of the page at regular intervals. UM-iES20GF-1.92.1-EN.docx Pages 126 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 136: Aaa

    Time Setting the Deadtime to a value greater than 0 (zero) will enable this feature, but only if more than one server has been configured. UM-iES20GF-1.92.1-EN.docx Pages 127 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 137: Figure 132 - Radius Authentication Server Configuration

    RADIUS Accounting Server. If the port is set to 0 (zero), Port the default port (1813) is used on the RADIUS Accounting Server. UM-iES20GF-1.92.1-EN.docx Pages 128 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 138: Figure 134 - Tacacs+ Authentication Server Configuration

    The RADIUS server number. Click to navigate to detailed statistics of the server. The IP address and UDP port number (in <IP Address>: <UDP Port> notation) of the server. Address For example, 0.0.0.0:1812. UM-iES20GF-1.92.1-EN.docx Pages 129 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 139: Figure 136 - Radius Accounting Server Status Configuration

    RFC4668 Section 7 Definitions. In RADIUS authentication, clients send Access-Requests, and servers reply with Access-Accepts, Access-Rejects, and Access-Challenges (as shown in the Receive Packets cell). Typically, Network UM-iES20GF-1.92.1-EN.docx Pages 130 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 140: Figure 137 - Radius Authentication Statistics For Server #1

    Authenticator attributes or unknown types are not included as malformed access responses. radiusAuthClient The number of RADIUS Access-Response packets ExtBadAuthentica containing invalid authenticators or Message Authenticator UM-iES20GF-1.92.1-EN.docx Pages 131 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
  • Page 141 A send to a different server is counted as a Request as well as a timeout. Other info: This section contains information about the state of the server and the latest round-trip time. UM-iES20GF-1.92.1-EN.docx Pages 132 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 142: Radius Accounting Server Statistics

    Use the server select box to switch between the backend servers to have show details for them. Packet Counters: RADIUS accounting server packet counter. There are five receive and four transmit counters. UM-iES20GF-1.92.1-EN.docx Pages 133 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
  • Page 143 Request as well as a timeout. Other info: This section contains information about the state of the server and the latest round-trip time. UM-iES20GF-1.92.1-EN.docx Pages 134 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
  • Page 144 3 seconds. Click to refresh the page immediately. Refresh Clears the counters for the selected server. The "Pending Requests" counter Clear will not be cleared by this operation. UM-iES20GF-1.92.1-EN.docx Pages 135 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 145: Nas (802.1X)

    This scenario will loop forever. Therefore, the server timeout should be smaller than the supplicant's EAPOL Start frame retransmission rate. UM-iES20GF-1.92.1-EN.docx Pages 136 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 146: Figure 139 - Network Access Server Configuration

    RADIUS user can be used by anyone, and only the MD5-Challenge method is supported. 802.1x and MAC-Based authentication configurations consist of two sections: system- and port wide. Figure 139 - Network Access Server Configuration UM-iES20GF-1.92.1-EN.docx Pages 137 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 147: System Configuration

    5.9.5.1.4 Port Configuration The table has one row for each port on the switch and a number of columns. Figure 140 - Network Access Server Port Configuration UM-iES20GF-1.92.1-EN.docx Pages 138 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 148: Force Authorized

    Port Security module. Only then will frames from the client be forwarded on the switch. There are no EAPOL frames involved in this authentication, and therefore, MAC-based Authentication has nothing to do with the UM-iES20GF-1.92.1-EN.docx Pages 139 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
  • Page 149 Reinitialize: forces a reinitialization of the clients on the port and hence a reauthentication immediately. The clients will transfer to the unauthorized state while the reauthentication is in progress. UM-iES20GF-1.92.1-EN.docx Pages 140 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 150: Figure 141 - Network Access Server Switch Status

    Note that Port counters are shown only for ports with Authorized port state such Port 20 (refer to Figure 141- Network Access Server Switch Status). Port 1 does not show Port counters. UM-iES20GF-1.92.1-EN.docx Pages 141 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 151: Figure 142 - Nat Statistics Admin State Force Authorized

    Click to refresh the page immediately. This button is available in the following modes: • Force Authorized • Force Unauthorized Clear • 802.1X Click to clear the counters for the selected port UM-iES20GF-1.92.1-EN.docx Pages 142 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 152: Figure 143 - Eapol Counters Admin State Force Authorized

    The number of valid EAPOL Request dot1xAuthEapolReqFrames Requests frames (other than Request Identity frames) that have been transmitted by the switch. UM-iES20GF-1.92.1-EN.docx Pages 143 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 153: Figure 144 - Nat Statistics Admin Mac-Based Auth

    "Last Client" will not be cleared, however. This button is available in the following modes: Clear This • MAC-based Auth.X Click to clear only the currently selected client's counters. UM-iES20GF-1.92.1-EN.docx Pages 144 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
  • Page 154 Counts all the backend server packets sent from the switch towards the backend server for a given port (left-most table) or client (right-most table). Possible retransmissions are not counted. UM-iES20GF-1.92.1-EN.docx Pages 145 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 155: Figure 145 - Last Supplicant/ Client Info Admin State Mac-Based Auth

    802.1X-based: The user name (supplicant identity) carried in the Identity most recently received Response Identity EAPOL frame. MAC-based: Not applicable (as shown on Figure 145). Figure 146 - Last Supplicant/ Client Info Admin State 802.1X-based. UM-iES20GF-1.92.1-EN.docx Pages 146 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 156: Figure 147 - Selected Counters / Attached Clients

    Hold Time seconds. Shows the date and time of the last authentication of the client (successful as Last Authentication well as unsuccessful). UM-iES20GF-1.92.1-EN.docx Pages 147 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 157: Warning

    Fault alarm when any selected power failure. This switch support dual powers. Port Link Fault alarm when any selected port link down/broken. Down/Broken Save Click to save changes. UM-iES20GF-1.92.1-EN.docx Pages 148 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 158: System Warning

    Save Click to save changes. Reset Click to undo any changes made locally and revert to previously saved values. 5.10.2.2 SMTP Settings Figure 150 - SMTP Settings UM-iES20GF-1.92.1-EN.docx Pages 149 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 159: Figure 151 - System Warning - Event Selection

    SYSLOG is the warning method supported by the system. Check the corresponding box to enable the system event warning you want. Please note that the checkboxes cannot be added when SYSLOG is disabled. UM-iES20GF-1.92.1-EN.docx Pages 150 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 160: Monitor And Diagnostic

    MAC Address Table Configuration The MAC address table can be configured on this page. Set timeouts for entries in the dynamic MAC table and configure the static MAC table here. UM-iES20GF-1.92.1-EN.docx Pages 151 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 161: Figure 152 - Mac Address Table Configuration

    Each page shows up to 999 entries from the MAC table, with a default value of 20, selected by the Entries Per Page input field. When first visited, the web page will show the first 20 entries from the UM-iES20GF-1.92.1-EN.docx Pages 152 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 162: Figure 153 - Mac Address Table

    Updates the table starting from the first entry in the MAC Table, i.e. the entry with the lowest VLAN ID and MAC address. >> Updates the table, starting with the entry after the last entry currently displayed. UM-iES20GF-1.92.1-EN.docx Pages 153 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 163: Port Statistic

    Check to enable an automatic refresh of the page. Automatic refresh occurs every 3 Auto-refresh seconds at regular intervals. Click to refresh the page immediately. Refresh Clears the counters for all ports. Clear UM-iES20GF-1.92.1-EN.docx Pages 154 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 164: Detailed Statistics

    The number of frames dropped due to insufficient receive buffer or Rx Drops egress congestion. The number of frames received with CRC or alignment errors. Rx CRC/Alignment UM-iES20GF-1.92.1-EN.docx Pages 155 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 165: Port Monitoring

    Tx only—Frames transmitted on this port are mirrored on the mirror port. Frames received are not mirrored. Enabled—Frames received and frames transmitted are mirrored on the mirror port. UM-iES20GF-1.92.1-EN.docx Pages 156 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 166: System Log Information

    10 and 100 Mbps ports will be linked down while running VeriPHY. Therefore, running VeriPHY on a 10 or 100 Mbps management port will cause the switch to stop responding until VeriPHY is complete. This page allows the user to perform VeriPHY cable diagnostics. UM-iES20GF-1.92.1-EN.docx Pages 157 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 167: Figure 158 - Veriphy Cable Diagnostics

    Cross C - Abnormal cross-pair coupling with pair C Cross D - Abnormal cross-pair coupling with pair D Length: the length (in meters) of the cable pair UM-iES20GF-1.92.1-EN.docx Pages 158 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 168: Sfp Monitor

    (see the second part of the figure above) Click New Ping to return to ICMP Ping screen. The following properties of the issued ICMP packets can be configured: Label Description UM-iES20GF-1.92.1-EN.docx Pages 159 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 169: Ping6

    You can reset the configuration of the stack switch on this page. The IP configuration and/or User/Password ar e retained only if the respective boxes are checked when the switch is restored to factory defaults. Figure 162 - Factory Defaults UM-iES20GF-1.92.1-EN.docx Pages 160 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 170: System Reboot

    Figure 163 - System Reboot - Restart Device Label Description Click to reboot device. Click to return to the System Information page without rebooting. UM-iES20GF-1.92.1-EN.docx Pages 161 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 171: Cli Management

    115200 for Baud rate, 8 for Data bits, None for Parity, 1 bit for Stop and none for Flow control. Then, click OK. Figure 165 – Tera Term VT, Serial port setup UM-iES20GF-1.92.1-EN.docx Pages 162 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 172: Figure 166 - Ies20Gf Command Line Interface - Tera Term Vt

    4. Press “Enter” for the Console login screen to appear. Use the keyboard to enter the Console Username and Password which is same as for Web management (admin for both), then press “Enter”. Figure 166 - iES20GF Command Line Interface - Tera Term VT UM-iES20GF-1.92.1-EN.docx Pages 163 of 180...

  • Page 173: Cli Management By Telnet

    3. The Console login screen appears. Use the keyboard to enter the Console Username and Password, then press “Enter”. This is the same as the Web Browser password. The default Username is “admin” and the default Password is “admin”. Figure 168 - iES20GF Command Line Interface - Telnet UM-iES20GF-1.92.1-EN.docx Pages 164 of 180...

  • Page 174: Command Groups

    Type '<command> ?' to get help on a command, e.g. 'port mode ?'. Commands may be abbreviated, e.g. 'por co' instead of 'port configuration'. > Figure 169 - Command Groups Printout UM-iES20GF-1.92.1-EN.docx Pages 165 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
  • Page 175 IP IPv6 Ping6 <ipv6_addr> [(Length <ping_length>)] [(Count <ping_count>)] [(Interval <ping_interval>)] IP IPv6 SNTP Server1 Add [<ipv6_addr>] IP IPv6 SNTP Server2 Add [<ipv6_addr>] IP IPv6 SNTP Server1 Delete IP IPv6 SNTP Server2 Delete > UM-iES20GF-1.92.1-EN.docx Pages 166 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
  • Page 176 VLAN Lookup [<vid>] [(name <name>)] [combined|static|nas|all] VLAN Name Add <name> <vid> VLAN Name Delete <name> VLAN Name Lookup [<name>] VLAN Status [<port_list>] [combined|static|nas|mstp|all|conflicts] > 6.1.3.6 pvlan >pvlan ? Available Commands: UM-iES20GF-1.92.1-EN.docx Pages 167 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 177: Security Switch Password

    Set the system password. Syntax: ------- Security Switch Password <username> <password> Parameters: ----------- <username>: Username string. <password>: System password string. Use 'clear' or "" to clear the string Security/Switch> UM-iES20GF-1.92.1-EN.docx Pages 168 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 178: Security Switch Https

    Security/Switch> 6.1.3.7.1.6 Security Switch HTTPS Security/Switch>HTTPS ? Available Commands: Security Switch HTTPS Configuration Security Switch HTTPS Mode [enable|disable] Security/Switch> 6.1.3.7.1.7 Security Switch RMON Security/Switch>rmon ? Available Commands: UM-iES20GF-1.92.1-EN.docx Pages 169 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
  • Page 179 Security Network NAS Statistics [<port_list>] [clear|eapol|radius] Security/Network> 6.1.3.7.1.3 Security Network ACL Security/Network>acl ? Available Commands: Security Network ACL Configuration [<port_list>] Security Network ACL Action [<port_list>] [permit|deny] [<rate_limiter>] [<port_redirect>] [<mirror>] [<logging>] [<shutdown>] UM-iES20GF-1.92.1-EN.docx Pages 170 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 180: Security Network Dhcp

    >stp ? Available Commands: STP Configuration STP Version [<stp_version>] STP Txhold [<holdcount>] STP MaxHops [<maxhops>] STP MaxAge [<max_age>] STP FwdDelay [<delay>] STP CName [<config-name>] [<integer>] STP bpduFilter [enable|disable] UM-iES20GF-1.92.1-EN.docx Pages 171 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
  • Page 181 SNMP Group Delete <index> SNMP Group Lookup [<index>] SNMP View Add <view_name> [included|excluded] <oid_subtree> SNMP View Delete <index> SNMP View Lookup [<index>] SNMP Access Add <group_name> <security_model> <security_level> UM-iES20GF-1.92.1-EN.docx Pages 172 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
  • Page 182 QoS Port Policer Mode [<port_list>] [enable|disable] QoS Port Policer Rate [<port_list>] [<rate>] QoS Port Policer Unit [<port_list>] [kbps|fps] QoS Port Policer FlowControl [<port_list>] [enable|disable] QoS Port QueuePolicer Mode [<port_list>] [<queue_list>] [enable|disable] UM-iES20GF-1.92.1-EN.docx Pages 173 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
  • Page 183 Mirror Port [<port>|disable] Mirror Mode [<port_cpu_list>] [enable|disable|rx|tx] > 6.1.3.15 config >config ? Available Commands: Config Save <ip_server> <file_name> Config Load <ip_server> <file_name> [check] 6.1.3.16 firmware >firmware ? Available Commands: UM-iES20GF-1.92.1-EN.docx Pages 174 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 184: Loop Protect

    Event Configuration Event Syslog SystemStart [enable|disable] Event Syslog PowerStatus [enable|disable] Event Syslog SnmpAuthenticationFailure [enable|disable] Event Syslog RingTopologyChange [enable|disable] Event Syslog Port [<port_list>] [disable|linkup|linkdown|both] Event SMTP SystemStart [enable|disable] UM-iES20GF-1.92.1-EN.docx Pages 175 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 185: Dhcp Server

    EdgePort [1st|2nd|none] > 6.1.3.24 ibridge >ibridge ? Available Commands: iBridge Configuration iBridge Mode [enable|disable] iBridge 1stRingPort [<port>] iBridge 2ndRingPort [<port>] iBridge Vender [moxx|advantexx|hirschmaxx] > 6.1.3.25 fastrecovery >fastrecovery ? UM-iES20GF-1.92.1-EN.docx Pages 176 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
  • Page 186 MRP Parameter MRP_TSTshortT [<value>] MRP Parameter MRP_TSTdefaultT [<value>] MRP Parameter MRP_TSTNRmax [<value>] MRP Parameter MRP_LNKdownT [<value>] MRP Parameter MRP_LNKupT [<value>] MRP Parameter MRP_LNKNRmax [<value>] 6.1.3.30 devicebinding >devicebinding ? Available Commands: UM-iES20GF-1.92.1-EN.docx Pages 177 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
  • Page 187 RSTP Port Configuration [<stp_port_list>] RSTP Port Mode [<stp_port_list>] [enable|disable] RSTP Port Edge [<stp_port_list>] [enable|disable] RSTP Port AutoEdge [<stp_port_list>] [enable|disable] RSTP Port P2P [<stp_port_list>] [enable|disable|auto] RSTP Port Cost [<stp_port_list>] [<path_cost>] UM-iES20GF-1.92.1-EN.docx Pages 178 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...
  • Page 188 User’s Manual RSTP Port Priority [<stp_port_list>] [<priority>] > 6.1.3.34 show >show ? Available Commands: Show Configuration Switch Show Configuration Port <port_list> > UM-iES20GF-1.92.1-EN.docx Pages 179 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

  • Page 189: Appendix A: Ies20Gf Modbus Information

    Value :0x0000 10M‐Half 0x0001 10M‐Full 0x0002 100M‐Half 0x0003 100M‐Full 0x0004 1G‐Half 0x0005 1G‐Full 0xffff NoPort 4608 PortFlowCtrl : Port :1~VTSS_PORTS Value :0x0000 Off 0x0001 On 0xffff NoPort UM-iES20GF-1.92.1-EN.docx Pages 180 of 180 © 2021 IS5 COMMUNICATIONS INC. ALL RIGHTS RESERVED...

This manual is also suitable for:
