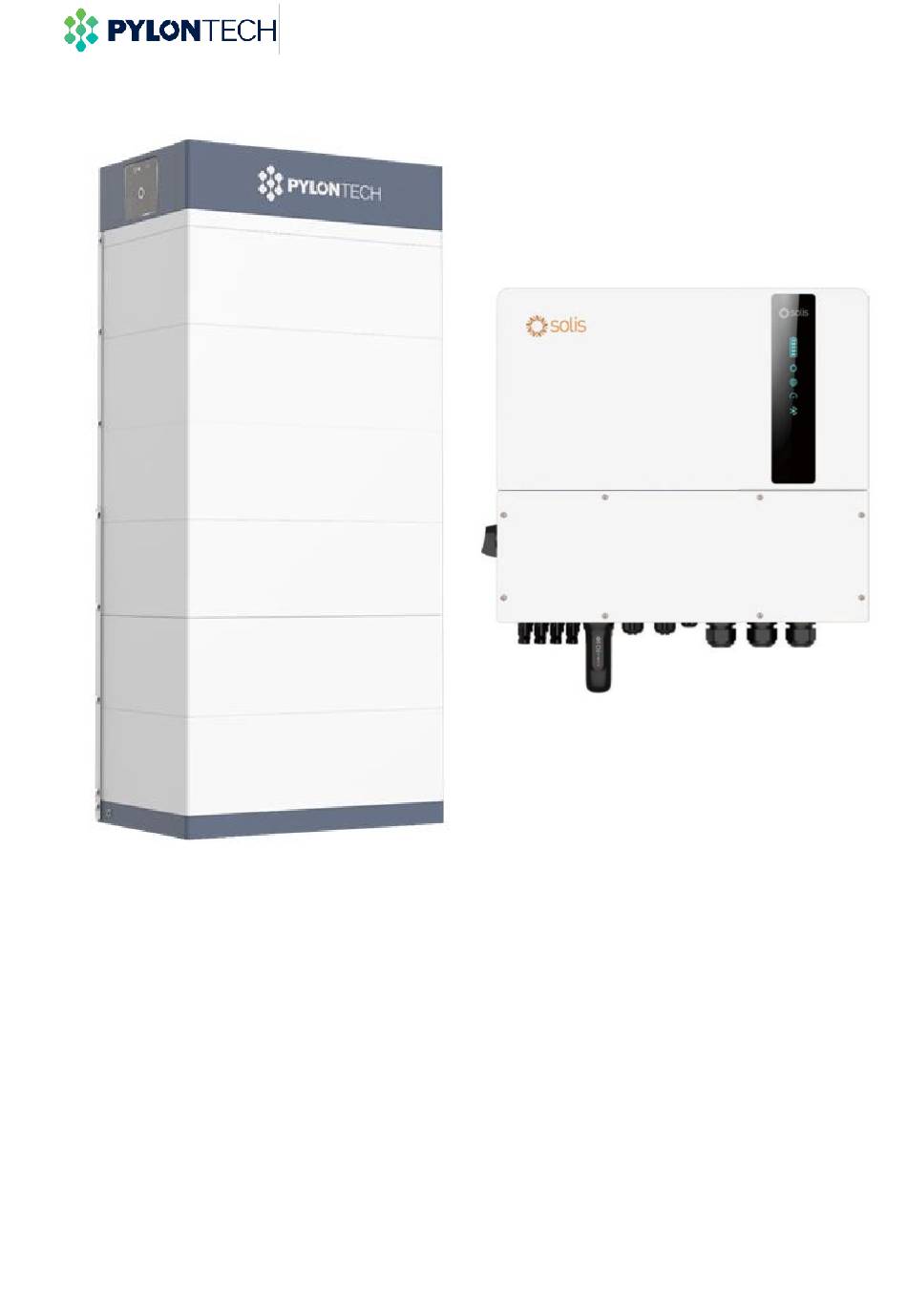

- Page 1 Pylontech Force H Series Battery & Solis Connection Guide 1 / 14...
- Page 2 Note: This is an instruction for connection and commissioning between Force H battery and Solis HV series. Applicable battery models and inverter models are as follows: Battery models Inverter models Force H1 S6-EH3P20K-H Force H1-V2 RH1-1P-HVES-5G series Force H2 RHI-3P-HVES-5G series S5-EH1P(3-6)K-L Force H2-V2 S6-EA1P(3.6-6)K-L...
- Page 3 Installation steps: 1. Power cable wiring: Use the power cables that came in the original packaging of the Pylon products. Model Force H1 Force Force H2 Force Force H3 Items DC+ red external power 1pcs,10 1pcs, 1pcs,10 1pcs, 1pcs, cable 8 AWG 8 AWG 8 AWG...
- Page 4 Connecting power cables Connect the power cables to battery” D+” &” D-” and inverter “BAT”. Inverter side: Connect power cables. Battery side: Connect power cables. 4 / 14...
- Page 5 2. Communication Cable Wiring: NOTE: Use the cables included with battery packing list or in inverter components box. Battery side: Force H1: Connect the communication cable to battery “CAN” port (red box). And fasten the gland for water-proof. Force H1-V2: Connect the communication cable to battery “CAN”...
- Page 6 Force H2-V2: Connect the communication cable to battery “CAN” port (red box). And fasten the gland for water-proof. Force H3: Loosen the 2 screws (green box) on the cover (blue box) as follows, then you can see the CAN port. Connect the communication cable to battery “CAN”...
- Page 7 3. Turn on Force system and Solis inverter: 1. Turn on the AC switch between inverter and grid. 2. Turn on the DC switch between the Pylontech battery and inverter. 3. Switch on the main breaker on the Battery controller.
- Page 8 Press and hold for more than 5 seconds Inverter Commissioning: Download and install SolisCloud app on your smart phone and connect inverter via wireless. Open APP Register an account and login Click on Services and select Local Settings, click on Use Bluetooth Connection 8 / 14...
- Page 9 Select the Bluetooth signal from the inverter. (Bluetooth Name: Inverter SN) Choose whether you are an installer or an owner. Then set your own initial password for control verification. Quick Setting 9 / 14...
- Page 10 Click Settings and select Quick Setting Set time→ select PYLON_HV→Complete Meter/CT Setting, Gride Code and work mode according to your actual needs and instructions of the inverter Click WIFI configuration and scan the QR code on the inverter datalogger. Complete the network allocation in sequence.
- Page 11 Please add the data logger to the power plant Then you can find your inverter in the Plant → Device → Inverter interface and control the inverter 11 / 14...
- Page 12 If the communication between the battery and the inverter is successfully established, the battery parameters such as SOC, voltage, charge and discharge current limit can be displayed on this page. 12 / 14...
- Page 13 For network connection, please scan the QR code below to get Network Connecting Instructions Wi-Fi Portal Introduction or contact Pylontech service team <service@pylontech.com.cn>for further questions. The SN of the Solarman logger is located on the battery control module, as shown in the figure.
- Page 14 Pylon Technologies Co., Ltd Website www.pylontech.com.cn Address No.300, Miaoqiao Road, Kangqiao Town, Pudong New Area, Shanghai 201315, China E-mail Global Service: service@pylontech.com.cn North America Service: service@pylontech.us Germany Service: service@pylontech.de Spain Service: service@pylontech.es Italy Service: service@pylontech.it France Service: service@pylontech.fr Netherlands Service: service@pylontech.nl...
