Page 2
Ruijie Networks reserves the right to modify the content of the document without any notice or prompt. This manual is designed merely as a user guide. Ruijie Networks has tried its best to ensure the accuracy and reliability of the content when compiling this manual, but it does not guarantee that the content of the manual is completely free of errors or omissions, and all the information in this manual does not constitute any explicit or implicit warranties.
Page 3
Intended Audience This document is intended for: Network engineers Technical support and servicing engineers Network administrators Technical Support Official Website of Ruijie Reyee: https://reyee.ruijie.com Technical Support Website: https://reyee.ruijie.com/en-global/support Case Portal: https://www.ruijienetworks.com/support/caseportal Community: https://community.ruijienetworks.com ...
Page 4
Note This manual provides the device installation steps, hardware troubleshooting, module technical specifications, and specifications and usage guidelines for cables and connectors. It is intended for the users who have some experience in installing and maintaining network hardware. At the same time, it is assumed that the users are already familiar with the related terms and concepts.
Page 6
3.2 Before You Begin ........................11 3.3 Safety Precautions During Installation ..................12 3.4 Mounting the Device ........................ 12 3.4.1 Wall Mounting ......................12 3.4.2 Pole Mounting ......................13 3.5 Connecting Cables........................14 3.6 Verifying the Installation ......................16 4 Debugging ............................17 4.1 Power-On ..........................
Page 7
Product Introduction Overview The RG-EST350G is an 802.11ac wireless bridge launched by Ruijie Reyee. It provides surveillance video backhaul function. RG-EST350G works in the 5 GHz frequency band, supports two spatial streams and 2 x 2 MIMO, and provides a wireless link speed of up to 867Mbps. The RG-EST350G utilizes the 2.4 GHz band in single-stream mode for bridge management, while the 5 GHz band is used for data transmission.
Page 8

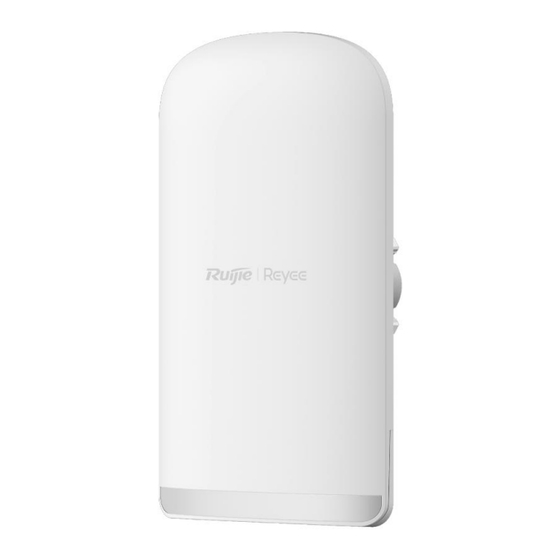

Installation Guide Product Introduction Appearance 1.3.1 Appearance Figure 1-1 Appearance of the RG-EST350G Wireless Bridge Front View Back View...
Page 9
Installation Guide Product Introduction Note The label is located on the back of the device. 1.3.2 Ports, Buttons and LEDs Figure 1-2 Ports, Buttons and LEDs of the RG-EST350G Wireless Bridge Table 1-2 Ports, Buttons and LEDs of the RG-EST350G Wireless Bridge Mark Item Description...
Page 10
Installation Guide Product Introduction Mark Item Description Press and hold the button for less than 2s: The wireless bridge pairs with another wireless bridge (the LED blinks during pairing). Reset/One-Touch Pairing Press and hold the button for 2s to 10s: No action is button triggered.
Page 11
Installation Guide Product Introduction Status Description The RSSI is above –73 dBm. LED 1 on, LED 2 blinking The RSSI is above –71 dBm. LEDs 1 and 2 on The RSSI is above –68 dBm. LEDs 1 and 2 on, LED 3 blinking The RSSI is above –64 dBm.
Page 13
Installation Guide Product Introduction Note The weight refers to the weight of the main unit. Power Supply Technical Specification The RG-EST350G can be powered by 12 V/1.2 A DC power supply, 24 V passive PoE power supply, and IEEE 802.3at/af-compliant PoE power supply. It is supplied with a 24 V/0.6 A DC power adapter and a 1000 Mbps passive PoE injector.
Page 14
Installation Guide Preparing for Installation Preparing for Installation Safety Precautions Note To prevent device damage and physical injury, please read carefully the safety precautions described in this chapter. The following safety precautions do not cover all possible dangers. 2.1.1 General Safety Precautions ...
Page 15
Installation Guide Preparing for Installation Do not place the device in a damp/wet location. Do not let any liquid enter the device. Keep the device far away from the grounding or lightning protection devices of power device. Keep the device away from high-power radio stations, radar stations, and high-frequency high-current devices.
Page 16
Installation Guide Preparing for Installation Table 2-1 Temperature and Humidity Requirements Operating Temperature Operating Humidity: –30° C to +65° C (–22° F to +149° F) 5% RH to 95% RH (non-condensing) 2.2.4 Anti-interference Take interference prevention measures for the power supply system. ...
Page 17
Installation Guide Installation Installation Caution Before installing the device, make sure you have carefully read the requirements described in Chapter 2. Installation Procedure Before You Begin Carefully plan and arrange the installation location, networking mode, power supply, and cabling before installation.
Page 18
Installation Guide Installation Safety Precautions During Installation The device can be mounted on a wall or a pole with adiameter of 35 mm to 89 mm (1.38 in. to 3.50 in.). If the diameter of the pole is out of the range, the customer should prepare a hose clamp. In this case, we strongly recommend you to use a hose clamp with thickness of 2.5 mm (0.10 in.) at least.
Page 19
Installation Guide Installation 3.4.2 Pole Mounting (1) Install the device to the mounting bracket. (2) Secure the mounting bracket to the pole by threading a clamp through the mounting bracket. (3) Adjust the orientation.
Page 20
Installation Guide Installation Connecting Cables (1) Select or make a cable (CAT5e or higher) according to the distance between the wireless bridge and the PoE injector. (2) Connect one end of the Ethernet cable to the PoE port of the 1000 Mbps passive PoE injector, and the other end to the LAN1/PoE port on the bridge.
Page 21
Installation Guide Installation Figure 3-2 Connect the Ethernet cable to a solar panel Solar Panel Solar panels convert light energy from sunlight into electrical energy. The EST350G requires a solar power panel with an output specification of 12V/1.2A DC. Notes for Installing the Solar Panel Because the sun’s position differs between the Northern and Southern Hemispheres, the solar panel should face south in the Northern Hemisphere and north in the Southern Hemisphere to achieve optimal power output.
Page 22
Installation Guide Installation 40° –50° 50° –60° 50° –60° Approximately 60° Warning Remember to install the bottom cover for waterproof and dustproof purpose. Please do not use a switch or a PoE injector of another model. Otherwise, the device may be damaged. Verifying the Installation (1) Check the device ...
Page 23
Method 1: Configure the bridge through Ruijie Reyee App (1) The power cord is properly connected. (2) Scan the QR code on this page or on the device to download and install Ruijie Reyee App. (3) Log in to Ruijie Reyee App.
Page 24
Installation Guide Monitoring and Maintenance Monitoring and Maintenance Monitoring When the RG-EST350G is running, you can monitor the device status by observing the indicator. Maintenance If a hardware error occurs, please contact Ruijie Reyee Technical support for help.
Page 25
Hardware Installation Guide and Reference Troubleshooting Troubleshooting General Troubleshooting Procedure...
Page 26
Hardware Installation Guide and Reference Appendix A Connectors and Media Description Appendix A Connectors and Media Description 1000BASE-T/100BASE-TX/10BASE-T The 1000BASE-T/100BASE-TX/10BASE-T is a 10/100/1000 Mbps auto-negotiation port that supports auto MDI/MDIX. Compliant with IEEE 802.3ab, 1000BASE-T requires Category 5e 100-ohm UTP or STP (STP is recommended) with a maximum distance of 100 meters (328 feet).
Page 27
Hardware Installation Guide and Reference Appendix A Connectors and Media Description Figure 7-3 100BASE-TX/10BASE-T Connection...
