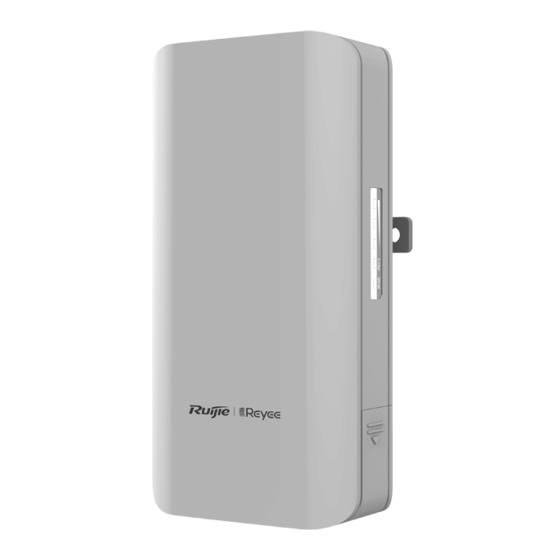

  • Page 1 Ruijie RG-EST Series Bridges Web-Based Configuration Guide...
  • Page 2 This document is provided “as is”. The contents of this document are subject to change without any notice. Please obtain the latest information through the Ruijie Networks website. Ruijie Networks endeavors to ensure content accuracy and will not shoulder any responsibility for losses and damages caused due to content omissions, inaccuracies or errors.
  • Page 3 This manual is intended for:  Network engineers  Technical support and servicing engineers  Network administrators Obtaining Technical Assistance  Ruijie Networks Website: https:/ / www.ruijienetworks.com/  Technical Support Website: https:/ / ruijienetworks.com/ support  Case Portal: https:/ / caseportal.ruijienetworks.com  Community: https:/ / community.ruijienetworks.com...
  • Page 4 This manual uses the following conventions: Convention Description boldface font Commands, command options, and keywords are in boldface. italic font Arguments for which you supply values are in italics. Elements in square brackets are optional. { x | y | z } Alternative keywords are grouped in braces and separated by vertical bars.
  • Page 5 Configuration Guide Overview 1 Overview eWeb is a Web-based network management system that manages and configures devices. You can access eWeb via browsers such as Google Chrome. Web-based management involves the Web server and Web client. The Web server is integrated in a device, and is used to receive and process requests from the client, and return processing results to the client.

  • Page 6: Configuration Guide

    255.255.255.0. The default gateway is device management address 10.44.77.254. Server requirements:  You can log into the eWeb management system through a LAN port or from the Ruijie Cloud on an external network.  The device needs to be enabled with Web service (enabled by default).
  • Page 7 Configuration Guide Configuration Guide To log into the eWeb management system, open the Google Chrome browser, and enter 10.44.77.254 in the address bar, and press Enter. If the device is not configured yet, you can log into eWeb without a password. Figure 2-1-1 Login Page After entering the password and clicking Login, you will enter eWeb.
  • Page 8 Configuration Guide Configuration Guide 2.2 UI Introduction Top: Global settings, including Language, Log Out and Pair Again. Column in Orange: Alarm messages. Middle Column: Settings for all EST devices in the network, including Password, IP Assignment, and SSID. Column in Blue: WDS group and paired devices. Figure 2-2-1 UI Introduction Click Pair Again to set the WDS pair.
  • Page 9 Configuration Guide Configuration Guide Figure 2-2-3 Work Mode Switchover Figure 2-2-4 SSID Settings...
  • Page 10 Configuration Guide Configuration Guide...
  • Page 11 This area displays all WDS groups, password settings, IP assignment and SSID settings. You can manage the EST device by accessing the SSID. The default SSID is @Ruijie-XXXX (the last four digits of the MAC address). After you set a new SSID, the default SSID will be disabled.
  • Page 12 Configuration Guide eWeb Configuration Click IP Assignment, and the IP Assignment page will appear. Figure 3-1-4 IP Assignment Click SSID, and the SSID Settings page will appear. Figure 3-1-5 SSID Settings...
  • Page 13 Configuration Guide eWeb Configuration WDS Group This area displays basic information about each WDS group and the paired devices (AP/CPE). You can click to expand the area or click to collapse the area. Click an IP address of another device, and you will be redirected to its login page. Figure 3-1-6 WDS Group Click to expand the menu of each device, including LAN, WDS and Reboot.
  • Page 14 Configuration Guide eWeb Configuration Click Reboot, and confirmation message “Are you sure you want to reboot device X?” will appear. Check OK, and the device will be rebooted. Figure 3-1-10 Reboot Click a device (AP or APE), and its detailed information will be displayed in the sidebar on the right. Figure 3-1-11 Device Details...
  • Page 15 Configuration Guide eWeb Configuration 3.2 LAN The LAN settings provide two IP assignment options: Static IP Address and DHCP. Figure 3-2 LAN Settings 3.3 Wireless 3.3.1 WDS Figure 3-3-1 WDS Settings...
  • Page 16 Configuration Guide eWeb Configuration Click Scan to view the SSIDs of the nearby networks. Figure 3-3-2 Scan SSID 3.3.2 Region After you change the region, all WDS links will be off. If the specified region does not support the channel settings, the auto channel will be used instead.

  • Page 17: Network Tools

    Configuration Guide eWeb Configuration 3.4 Diagnostics 3.4.1 Network Tools There are three network tools available: Ping, Traceroute, and DNS Lookup.   Figure 3-4-1 Ping Test and Result    Figure 3-4-2 Traceroute Test and Result  Figure 3-4-3 DNS Lookup Test and Result...

  • Page 18: System Tools

    Configuration Guide eWeb Configuration 3.4.2 Fault Collection The Fault Collection module allows you to collect faults by one click and download the fault information to the local device. Figure 3-4-4 Fault Collection 3.5 System Tools 3.5.1 Time This module allows you to set and view system time. Figure 3-5-1 System Time...
  • Page 19 Configuration Guide eWeb Configuration 3.5.2 Management 3.5.2.1 Backup & Import This module allows you to import a configuration file and apply the imported settings. It also allows exporting the configuration file to generate a backup. Figure 3-5-2 Backup & Import 3.5.2.2 Reset This module allows you to reset the device.

  • Page 20: Session Timeout

    Configuration Guide eWeb Configuration Click OK to restore all default values. This function is recommended when the network configuration is incorrect or the network environment is changed. If you fail to access the eWeb management system, check whether the endpoint is connected to the device by referring to Preparation.

  • Page 21: Local Update

    Configuration Guide eWeb Configuration 3.5.3.2 Local Update Select an update package, and click Upload. The device will be updated to the target version. Figure 3-5-7 Local Update 3.5.3.3 Update All Devices This module allows you to update all devices in the network with their configuration retained, as shown in the figure below. Figure 3-5-8 Update All Devices 3.5.4 Reboot This module allows you to reboot the device with a click, as shown in the figure below:...
  • Page 22 (1) Check that the network cable is properly connected to the LAN port of the device and the corresponding LED indicator blinks or is steady on. (2) It is recommended to connect to WiFi @Ruijie-xxxx using IP address 192.168.120.1. (3) Run the ping command to test the connectivity between the PC and the device.
