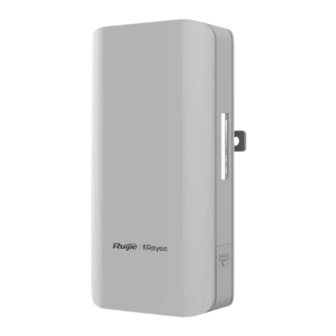

Ruijie Reyee RG-EST310 V2
Wireless Bridge
Hardware Installation and Reference Guide
Document Version: V1.2
Date: 2024.03.28
Copyright © 2024 Ruijie Networks

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Reyee RG-EST310 V2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ruijie Reyee RG-EST310 V2

  • Page 1 Ruijie Reyee RG-EST310 V2 Wireless Bridge Hardware Installation and Reference Guide Document Version: V1.2 Date: 2024.03.28 Copyright © 2024 Ruijie Networks...
  • Page 2 Due to product version upgrades or other reasons, the content of this document will be updated from time to time. Ruijie Networks reserves the right to modify the content of the document without any notice or prompt. This manual is for reference only. Ruijie Networks endeavors to ensure content accuracy and will not shoulder...
  • Page 3: Preface

    Intended Audience This document is intended for:  Network engineers  Technical support and servicing engineers  Network administrators Technical Support  The official website of Ruijie Reyee: https://www.ruijienetworks.com/products/reyee  Technical Support Website: https://www.ruijienetworks.com/support  Case Portal: https://www.ruijienetworks.com/support/caseportal  Community: https://community.ruijienetworks.com...
  • Page 4 Note This manual provides the device installation steps, hardware troubleshooting, module technical specifications, and specifications and usage guidelines for cables and connectors. It is intended for the users who have some experience in installing and maintaining network hardware. At the same time, it is assumed that the users are already familiar with the related terms and concepts.
  • Page 5: Table Of Contents

    Contents Preface ..............................I 1 Product Overview ..........................1 1.1 RG-EST310 V2 .......................... 1 1.2 Package Contents........................1 Appearance ........................... 1 1.3.1 Port & Button ........................3 1.3.2 Power Supply ......................... 3 1.4 Device Specification ........................4 1.5 Power Specification ........................5 1.6 Heat Dissipation .........................
  • Page 6 3.1 Installation Procedure ......................10 3.2 Preparing..........................10 3.3 Precautions ..........................10 3.4 Mounting the Device ........................ 11 3.4.1 Wall Mounting ......................11 3.4.2 Pole Mounting ......................12 3.5 Connecting Cables........................12 3.6 Verifying Installation ......................... 13 4 Verifying Operating Status ........................ 14 4.1 Setting up Configuration Environment ..................
  • Page 7: Product Overview

    Product Overview RG-EST310 V2 The RG-EST310 V2 is an 802.11ac wireless bridge launched by Ruijie Reyee. It provides services such as surveillance video backhaul and wireless remote transmission in elevators, tower cranes, factories, parks, construction sites and other scenarios. RG-EST310 V2 works in the 5GHz frequency band, supports two spatial streams and 2 x 2 MIMO, and provides a wireless transmission speed of up to 867Mbps, which is sufficient to meet the bandwidth requirements of user services for data links.
  • Page 8 Hardware Installation and Reference Guide 0Product Overview Rear View Note The label is located on the back of the device.
  • Page 9: Port & Button

    Hardware Installation and Reference Guide 0Product Overview 1.3.1 Port & Button Figure 1-2 Port & Button Note 1. 12 VDC Port 2. 10/100Base-T Ethernet Port (PoE-capable) 3. Reset button 1.3.2 Power Supply RG-EST310 V2 adopts 12 V/1 A DC or 24 V non-standard PoE power supply. The device is delivered with a 24 V/0.5A power adapter.
  • Page 10: Device Specification

    Hardware Installation and Reference Guide 0Product Overview Table 1-3 Reset Button Description Button Function Operation Reset Reboot Press the button for 2 seconds, and the device will be rebooted. Reset Press the button for over 5 seconds, and the device will be reset.
  • Page 11: Power Specification

    Hardware Installation and Reference Guide 0Product Overview Service Ports One 10/100BASE-T port, supporting 24 V non-standard PoE power supply Management Ports Status LED One system LED, one Ethernet port LED, and three signal LEDs Power Supply 12 VDC and 24 V non-standard PoE power supply Method Max Power Consumption...
  • Page 12: Heat Dissipation

    Hardware Installation and Reference Guide 0Product Overview Caution Please do not use a switch or a PoE adapter of another model for power supply. Otherwise, the device may be damaged. 1.6 Heat Dissipation RG-EST310 V2 adopts a fanless design. Leave sufficient space around the device for ventilation...
  • Page 13: Safety Precautions

    Hardware Installation and Reference Guide 0Safety Precautions Safety Precautions 2.1 Safety Precautions Note ● To prevent device damage and physical injury, please read carefully the safety recommendations described in this chapter. ● The following safety suggestions do not cover all possible dangers. 2.1.1 General Safety Precautions ...
  • Page 14: Installation Environment Requirements

    Hardware Installation and Reference Guide 0Safety Precautions power supply in case of an accident.  Be sure to make a careful check before you shut down the power supply.  Do not place the device in a damp/wet location. Do not let any liquid enter the device. ...
  • Page 15: Waterproof Requirements

    Hardware Installation and Reference Guide 0Safety Precautions 2.2.4 Waterproof Requirements IP65 (Specific Direction) 2.2.5 Anti-interference Requirements  Take interference prevention measures for the power supply sytem.  Keep the device far away from the grounding or lightning protection devices of power device. ...
  • Page 16: Installing The Device

    Hardware Installation and Reference Guide 0Installing the Device Installing the Device Caution ● Before installing the device, make sure you have carefully read the requirements described in Chapter 2. 3.1 Installation Procedure 3.2 Preparing Carefully plan and arrange the installation location, networking mode, power supply, and cabling before installation.
  • Page 17: Mounting The Device

    Hardware Installation and Reference Guide 0Installing the Device Otherwise, you need to prepare a hose clamp of another model. The hose clamp should be at least 2.5 mm thick.  Please make sure the installation site meets the requirement in Chapter 2.2.1.
  • Page 18: Pole Mounting

    Hardware Installation and Reference Guide 0Installing the Device 3.4.2 Pole Mounting Figure 3-2 Pole Mounting 1. Secure the mounting bracket to the pole by threading two clamps through the mounting bracket. 2. Install the device to the mounting bracket. 3.5 Connecting Cables Select a cable (CAT5e or higher) according to the distance between the wireless bridge and the PSE.
  • Page 19: Verifying Installation

    Hardware Installation and Reference Guide 0Installing the Device ● Please do not use a switch or a PoE adapter of another model. Otherwise, the device may be damaged. 3.6 Verifying Installation Checking the Device  Verify if the external power supply matches the specification. ...
  • Page 20: Verifying Operating Status

    Hardware Installation Guide and Reference Verifying Operating Status Verifying Operating Status 4.1 Setting up Configuration Environment Power on the device via 12 VDC or 24 V/0.6 A non-standard PoE power supply. Make sure all power cables are properly connected and meet the safety requirement. 4.2 Checking Environment before/after Power-on 1.
  • Page 21: Monitoring And Maintenance

    Hardware Installation Guide and Reference Monitoring and Maintenance Monitoring and Maintenance 5.1 Monitoring When the RG-EST310 V2 is running, you can monitor the device status by observing the indicator. 5.2 Maintenance If a hardware error occurs, please contact Ruijie Reyee Technical support for help.
  • Page 22: Troubleshooting

    Hardware Installation Guide and Reference Troubleshooting Troubleshooting 6.1 General Troubleshooting Procedure...
  • Page 23: Appendix A Connectors And Media Description

    Hardware Installation Guide and Reference Appendix A Connectors and Media Description Appendix A Connectors and Media Description 1000BASE-T/100BASE-TX/10BASE-T The 1000BASE-T/100BASE-TX/10BASE-T is a 10/100/1000 Mbps auto-negotiation port that supports auto MDI/MDIX. Compliant with IEEE 802.3ab, 1000BASE-T requires Category 5e 100-ohm UTP or STP (STP is recommended) with a maximum distance of 100 meters (328 feet).
  • Page 24 Hardware Installation Guide and Reference Appendix A Connectors and Media Description Figure 1-3 Figure 7-3 100BASE-TX/10BASE-T Connection...
