  • Page 1 Ruijie Reyee RG-EST330F-P Wireless Bridge Installation Guide Document Version: V1.0 Date: March 27, 2025 Copyright © 2025 Ruijie Networks...
  • Page 2 Ruijie Networks reserves the right to modify the content of the document without any notice or prompt. This manual is designed merely as a user guide. Ruijie Networks has tried its best to ensure the accuracy and reliability of the content when compiling this manual, but it does not guarantee that the content of the manual is completely free of errors or omissions, and all the information in this manual does not constitute any explicit or implicit warranties.
  • Page 3 Intended Audience This document is intended for:  Network engineers  Technical support and servicing engineers  Network administrators Technical Support  The official website of Ruijie Reyee: https://reyee.ruijie.com  Technical Support Website: https://reyee.ruijie.com/en-global/support  Case Portal: https://www.ruijienetworks.com/support/caseportal  Community: https://community.ruijienetworks.com...
  • Page 4 Note This manual provides installation steps, troubleshooting, technical specifications, and usage guidelines for cables and connectors. It is intended for users who want to understand the above and have extensive experience in network deployment and management, and assume that users are familiar with related terms and concepts.
  • Page 5 Contents Preface ..............................I 1 Overview ............................1 1.1 About the RG-EST330F-P ......................1 1.2 Package Contents........................1 1.3 Product Appearance ........................2 1.3.1 Appearance of the RG-EST330F-P ................2 1.3.2 Components on the Back Panel ..................3 1.4 Technical Specifications ......................5 1.5 Power Supply Technical Specifications ..................
  • Page 6 3.2 Safety Precautions During Installation ..................11 3.3 Installing the RG-EST330F-P ....................11 3.3.1 Pole Mounting using Band Clamps ................12 3.3.2 Mounting the RG-EST330F-P on a Wall ..............12 3.4 Connecting the Cables ......................13 3.5 Verifying the Installation ......................16 4 Debugging ............................
  • Page 7 Overview Overview About the RG-EST330F-P The RG-EST330F-P is an IEEE 802.11ac-compliant wireless bridge launched by Ruijie Reyee for applications such as video surveillance backhaul and remote data transmission in scenarios covering elevators, tower cranes, factories, campuses, and construction sites. The RG-EST330F-P operates on the 5 GHz frequency band and supports 2x2 Multiple Input Multiple Output (MIMO) with two spatial streams, delivering a maximum wireless throughput of 867 Mbps for bridging applications.

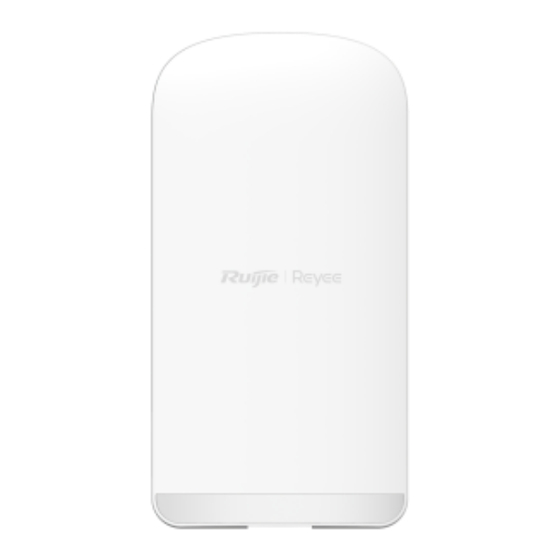

  • Page 8 Installation Guide Overview Product Appearance 1.3.1 Appearance of the RG-EST330F-P Figure 1-1 Front View of the RG-EST330F-P Figure 1-2 Side and Back View of the RG-EST330F-P...
  • Page 9 Installation Guide Overview 1.3.2 Components on the Back Panel Figure 1-3 Components on the Back Panel Note The label is located on the back of the wireless bridge. Table 1-2 Components on the Back Panel Component Description DC power connector Connected to a 12–24 V DC power adapter.
  • Page 10 Installation Guide Overview  Only a wireless bridge that has been reset to factory settings and has not been bridged before can be switched to CPE mode through one-touch pairing.  The one-touch pairing feature is enabled by default and can be disabled through eWeb. ...
  • Page 11 Installation Guide Overview Table 1-3 LEDs Description LED 3, LED 2, and LED 1 off: The bridge is not paired with another bridge. LED 3 on or blinking: The bridge is paired with another bridge, and the Received Signal Strength Indicator (RSSI) is lower than –75 dBm. LED 3 on: The bridge is paired with another bridge, and the RSSI is greater than –75 dBm.
  • Page 12 Installation Guide Overview Model RG-EST330F-P European Union & United Kingdom: 2400 MHz to 2483.5 MHz, EIRP ≤ 20 dBm; 5470 MHz to 5725 MHz, EIRP ≤ 30 dBm Myanmar: 2400 MHz to 2483.5 MHz, EIRP ≤ 23 dBm; 5725 MHz to 5825 MHz, EIRP ≤...
  • Page 13 Installation Guide Overview Model RG-EST330F-P Power Consumption < 9 W (without PoE Out) Operating temperature: –30° C to +55° C (–22° F to +131° F) Storage temperature: –40° C to +85° C (–40° F to +185° F) Environmental Operating humidity: 5% RH to 95% RH (non-condensing) Storage humidity: 5% RH to 95% RH (non-condensing) Wall-mount Mounting...
  • Page 14 Installation Guide Safety Precautions Safety Precautions Safety Guidelines Note  To prevent personal injury and device damage, carefully read the safety guidelines before installing the equipment.  The following safety guidelines may not cover all potential hazards. 2.1.1 General Safety Guidelines ...
  • Page 15 Installation Guide Safety Precautions Site Requirements To ensure the normal operation and prolonged service life of the equipment, the installation site must meet the following requirements. 2.2.1 Installation Requirements  The equipment should be installed in an open environment if possible. If the environment is enclosed, verify that a good ventilation and heat dissipation system is available.
  • Page 16 Installation Guide Safety Precautions  Keep the equipment far away from grounding or lightning protection devices for power equipment.  Keep the equipment away from radio stations, radar stations, high-frequency high-current devices, and microwave ovens. Tools Table 2-2 Tools Common Marker, Phillips screwdriver, hammer drill, hammer, hose clamp, power cords, Ethernet Tools cables, diagonal pliers, cable ties...
  • Page 17 Installation Guide Installation Installation Caution Before installing the equipment, make sure that you have carefully read the requirements described in Section 2 Safety Precautions. Before You Begin Carefully plan and arrange the installation position, networking mode, power supply, and cabling before installation.
  • Page 18 Installation Guide Installation 3.3.1 Pole Mounting using Band Clamps Note The recommended pole diameter ranges from 35 mm (1.38 in.) to 89 mm (3.50 in.). If the pole falls outside this range, you will need to use hose clamps with a wall thickness of at least 2.5 mm (0.10 in.). (1) Thread the band clamps through the mounting bracket on the back of the bridge.
  • Page 19 Installation Guide Installation Figure 3-2 Drilling Holes and Securing the Screws Align the holes on the mounting bracket with the screws, then slide the device into place. Figure 3-3 Mounting the Device Connecting the Cables Warning  After connecting the device to an Ethernet cable, cover the Ethernet port to ensure it is waterproof and dustproof.
  • Page 20 Installation Guide Installation Connect one end of the Ethernet cable to the LAN2 or LAN3 port on the bridge, and the other end to an IP camera. Figure 3-4 Connecting the Ethernet Cable to the Passive PoE Injector  Connect the Ethernet cable to a solar panel: Connect one end of the Ethernet cable to the LAN1/PoE, LAN2, or LAN3 port on the bridge, and the other end to a server or IP camera.
  • Page 21 Installation Guide Installation Figure 3-5 Connect the Ethernet cable to a solar panel Solar Panel Solar panels convert light energy from sunlight into electrical energy. The RG-EST330F-P requires a solar power panel with an output specification of 12V/1.2A DC. Notes for Installing the Solar Panel Because the sun’s position differs between the Northern and Southern Hemispheres, the solar panel should face south in the Northern Hemisphere and north in the Southern Hemisphere to achieve optimal power output.
  • Page 22 Installation Guide Installation Connect one end of the Ethernet cable to a PoE port on the PoE switch, and the other end to the LAN1/PoE port on the bridge. Connect one end of the Ethernet cable to the LAN2 or LAN3 port on the bridge, and the other end to an IP camera.
  • Page 23 Method 1: Configure the bridge through Ruijie Reyee App The power cord is properly connected. Scan the QR code on this page or on the device to download and install Ruijie Reyee App. Log in to Ruijie Reyee App. ...
  • Page 24 Installation Guide Monitoring and Maintenance Monitoring and Maintenance Monitoring You can observe the LEDs to monitor the device in operation. Hardware Maintenance If the hardware is faulty, please contact Ruijie Networks technical support.
  • Page 25 Installation Guide Common Troubleshooting Common Troubleshooting Troubleshooting Flowchart...
  • Page 26 Installation Guide Appendix Appendix Connectors and Media 1000BASE-T/100BASE-TX/10BASE-T Port The 1000BASE-T/100BASE-TX/10BASE-T is a 10/100/1000 Mbps port that supports auto MDI/MDIX Crossover. Compliant with IEEE 802.3ab, 1000BASE-T requires Cat5e 100-ohm UTP or STP (STP is recommended) with a maximum distance of 100 meters (328 ft.). The 1000BASE-T port requires all four pairs of wires to be connected for data transmission.
  • Page 27 Installation Guide Appendix Figure 7-2 100BASE-TX/10BASE-T Twisted Pair Connections St raight -Through Cr ossover Switch Adapter Switch Switch...
