- Page 1 Ruijie RG-EST310 Series Wireless Bridges Hardware Installation and Reference Guide 1.00...
- Page 2 Ruijie Networks reserves all copyrights of this document. Any reproduction, excerption, backup, modification, transmission, translation or commercial use of this document or any portion of this document, in any form or by any means, without the prior written consent of Ruijie Networks is prohibited. Exemption statement This document is provided “as is”.
- Page 3 It is intended for the users who have some experience in installing and maintaining network hardware. At the same time, it is assumed that the users are already familiar with the related terms and concepts. Obtaining Technical Assistance Ruijie Networks Website: https://www.ruijienetworks.com/ Technical Support Website: https://ruijienetworks.com/support...
-
Page 4: Product Overview

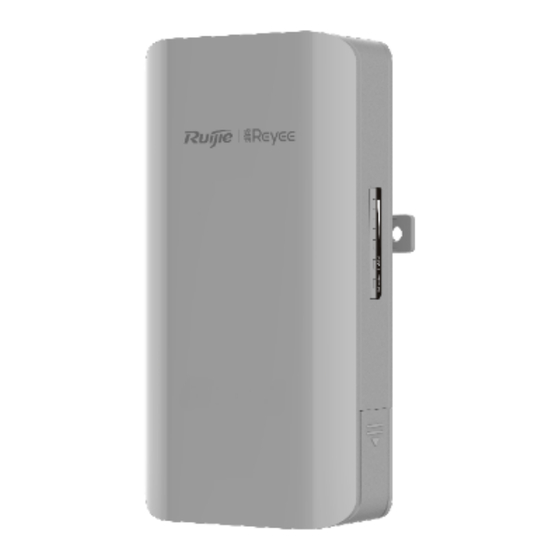

Hardware Installation and Reference Guide Product Overview 1 Product Overview RG-EST310 is an 802.11ac wireless bridge designed for video postback scenario. Its 5GHz radio delivers an access rate of 867Mbps. The IP68 design adapts to inclement outdoor environments such as the cold and humidity. This substantially simplifies installation and maintenance. -
Page 5: Led & Button
Hardware Installation and Reference Guide Product Overview Flammability UV Protection GB4943 Safety Compliance EN/IEC 60950-1 GB9254 EN301 489 EN 62311 Health China Radio Transmission Equipment Type Approval Certificate Radio Frequency EN300 328 Certification EN301 893 1.2 LED & Button Table 1-2 LED State Meaning System Status... - Page 6 Hardware Installation and Reference Guide Product Overview Figure 1-2 Bottom View of RG-EST310 Ports Figure 1-3 Ports...
- Page 7 Hardware Installation and Reference Guide Product Overview Note 1. 12 VDC Port 2. 10/100Base-T Ethernet Port (PoE-capable) 3. Reset Power Supply RG-EST310 adopts 24 V PoE or 12 VDC power supply (standard accessory: 24 V/0.5A PoE adapter). Note Please do not use a PoE adapter or switch of another model. The device may be damaged.
-
Page 8: Preparing For Installation
Hardware Installation and Reference Guide Preparing for Installation 2 Preparing for Installation To prevent device damage and physical injury, please read the safety recommendations carefully as described in this chapter. Suggestions do not cover all possible hazardous situations. 2.1 Lightening Protection ... -
Page 9: Installation Tool
Hardware Installation and Reference Guide Preparing for Installation 2.2.2 Outdoor Installation RG-EST310 supports wall mounting and pole mounting. 2.2.3 EMI Various interference sources, from either outside or inside the device or application system, affect the system in the conductive ways such as capacitive coupling, inductive coupling, and electromagnetic radiation. There are two types of electromagnetic interferences: radiated interference and conducted interference, depending on the type of the propagation path. -
Page 10: Installing The Device
Hardware Installation and Reference Guide Installing the Device 3 Installing the Device Before installing the device, make sure you have carefully read the requirements described in Chapter 2. 3.1 Installation Flowchart Start Check Choose a Site Install a Bracket on a Pole Install a Bracket on a Wall Install Device Adjust Orientation... -
Page 11: Installing Device
Hardware Installation and Reference Guide Installing the Device Please make full preparations as described in Chapter 2 and observe the following precautions before installing the device. Before connecting the power supply, please use the PoE adapter shipped with the device or use a PoE adapter with the same specification. -
Page 12: Connecting Cables
Hardware Installation and Reference Guide Installing the Device Install the device to the mounting bracket. 3.5 Connecting Cables Select a cable according to the distance between the wireless bridge and the PSE. Plug one end of the cable into the PoE port of the PoE injector and plug the other end into the LAN port of the device. Connect the LAN port of the PoE injector to the server or camera. - Page 13 Hardware Installation and Reference Guide Installing the Device Please install the rear cover for waterproof and dustproof purpose. Please do not use a PoE adapter or switch of another model. The device may be damaged.
-
Page 14: Appendix A Connectors And Media
Hardware Installation and Reference Guide Appendix A Connectors and Media Appendix A Connectors and Media 1000BASE-T/100BASE-TX/10BASE-T The 1000BASE-T/100BASE-TX/10BASE-T is a 10/100/1000 Mbps auto-negotiation port that supports auto MDI/MDIX. Compliant with IEEE 802.3ab, 1000BASE-T requires Category 5e 100-ohm UTP or STP (STP is recommended) with a maximum distance of 100 meters (328 feet). -
Page 15: Appendix B Parts List
Appendix B Parts List Appendix B Parts List Table B-1 RG-EST310 Parts List Item Remark RG-EST310 Camera End RG-EST310 Video Recorder End 24V/0.6A Power Adaptor Ruijie RG-EST310 Series Wireless Bridges Hardware Installation Guide and Reference Guide Self-Tapping Screws Screw Anchors Hose Clamp Bracket...
