Summary of Contents for Ruijie RG-EST350 Series

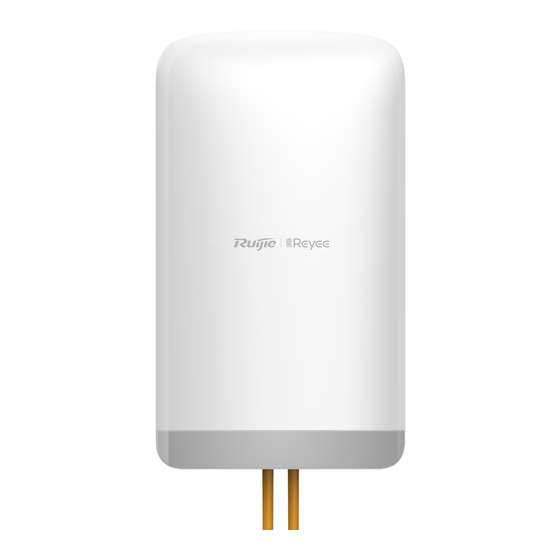

- Page 1 Ruijie RG-EST350 Series Wireless Bridges Hardware Installation and Reference Guide V1.00...
- Page 2 Ruijie Networks reserves all copyrights of this document. Any reproduction, excerption, backup, modification, transmission, translation or commercial use of this document or any portion of this document, in any form or by any means, without the prior written consent of Ruijie Networks is prohibited. Exemption statement This document is provided “as is”.
- Page 3 It is intended for the users who have some experience in installing and maintaining network hardware. At the same time, it is assumed that the users are already familiar with the related terms and concepts. Obtaining Technical Assistance Ruijie Networks Website: https://www.ruijienetworks.com/ Technical Support Website: https://ruijienetworks.com/support...
-
Page 4: Product Overview
Hardware Installation and Reference Guide Product Overview 1 Product Overview RG-EST350 is an 802.11ac wireless bridge designed for video postback scenario. Its 5GHz radio delivers an access rate of 866Mbps. The IP65 design adapts to inclement outdoor environments such as the cold and humidity. This substantially simplifies installation and maintenance. -
Page 5: Led & Button
Hardware Installation and Reference Guide Product Overview Flammability UV Protection Safety Compliance GB4943, EN60601-1-2, UL/CSA 60950-1, EN/IEC 60950-1, EN/IEC 60950-22 GB9254-2008, EN301 489, EN55022, FCC Part15, RSS-210 China Radio Transmission Equipment Type Approval Certificate Radio Frequency EN300 328 Certification EN301 893 1.2 LED &... - Page 6 Hardware Installation and Reference Guide Product Overview Figure 1-2 Bottom View of RG-EST350 Ports Figure 1-3 Ports...
- Page 7 Hardware Installation and Reference Guide Product Overview Note 1. LEDs 2. 12 V DC Port a. SYS LED 3. LAN2 Port b. LAN1/LAN2 LED 4. LAN1/PoE Port c. Signal LED (STR1/STR2/STR3) 5. Reset Button Power Supply RG-EST350 adopts 24 V PoE or 12 V DC power supply (standard accessory: 24 V/0.5A PoE adapter). Note Please do not use a PoE adapter or switch of another model.
-
Page 8: Preparing For Installation
Hardware Installation and Reference Guide Preparing for Installation 2 Preparing for Installation To prevent device damage and physical injury, please read the safety recommendations carefully as described in this chapter. Suggestions do not cover all possible hazardous situations. 2.1 Lightning Protection ... -
Page 9: Installation Tool
Hardware Installation and Reference Guide Preparing for Installation 2.2.2 Outdoor Installation RG-EST350 supports wall mounting and pole mounting. 2.2.3 EMI Various interference sources, from either outside or inside the device or application system, affect the system in the conductive ways such as capacitive coupling, inductive coupling, and electromagnetic radiation. There are two types of electromagnetic interferences: radiated interference and conducted interference, depending on the type of the propagation path. -
Page 10: Installing The Device
Hardware Installation and Reference Guide Installing the Device 3 Installing the Device Before installing the device, make sure you have carefully read the requirements described in Chapter 2. 3.1 Installation Flowchart Start Check Choose a Site Install a Bracket on a Pole Install a Bracket on a Wall Install Device Adjust Orientation... -
Page 11: Installing Device
Hardware Installation and Reference Guide Installing the Device vertical distance be 0.5m, or the horizontal angle of the two bridges should be greater than 120 degrees. The installation site can vary due to on-the-spot surveys conducted by technical personnel. Please make full preparations as described in Chapter 2 and observe the following precautions before installing the device. ... -
Page 12: Connecting Cables
Hardware Installation and Reference Guide Installing the Device Assemble the mounting kit. Secure the device on a pole by Adjust the orientation. using a hose clamp. 3.5 Connecting Cables Select a cable according to the distance between the wireless bridge and the PSE. Plug one end of the cable into the PoE port of the PoE adaptor, and plug the other end into the LAN1/PoE port of the device. -
Page 13: Appendix A Connectors And Media
Hardware Installation and Reference Guide Appendix A Connectors and Media Appendix A Connectors and Media 1000BASE-T/100BASE-TX/10BASE-T The 1000BASE-T/100BASE-TX/10BASE-T is a 10/100/1000 Mbps auto-negotiation port that supports auto MDI/MDIX. Compliant with IEEE 802.3ab, 1000BASE-T requires Category 5e 100-ohm UTP or STP (STP is recommended) with a maximum distance of 100 meters (328 feet). -
Page 14: Appendix B Parts List
Hardware Installation and Reference Guide Appendix B Parts List Appendix B Parts List Table B-1 RG-EST350 Parts List Part Description RG-EST350 Recorder RG-EST350 Camera 24V/0.5A PoE Power Adapters RG-EST350 Product Manual Phillips Pan Head Screws Wall Anchors Universal Joint Assemblies Mounting Brackets Hose Clamps Universal Joint Nuts...
