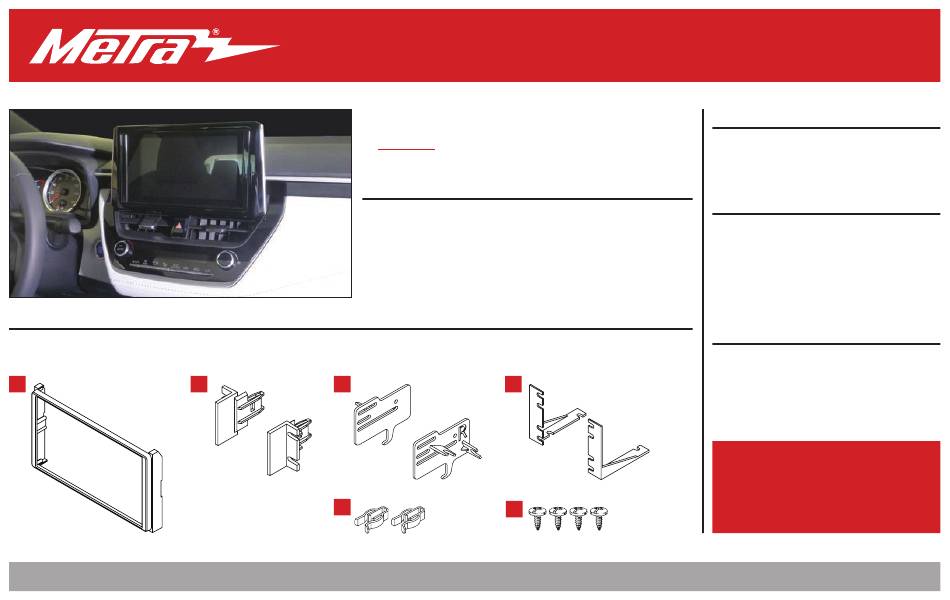

KIT COMPONENTS
A) Trim panel • B) Trim panel clip brackets • C) Radio brackets • D) Pioneer adapter brackets • E) Panel clips (qty. 2) • F) Phillips screws (qty. 4)
A
Metra. The World's Best Kits.
®
Toyota Corolla 2020-Up, Corolla Hatchback
Visit
specific applications
KIT FEATURES
• Designed specifically for the Pioneer DMH-C5500NEX 8-inch radio
• Painted high gloss black to match the factory finish
B
C
E
MetraOnline.com
MetraOnline.com
for more detailed information about the product and up-to-date vehicle
D
F
© COPYRIGHT 2019 METRA ELECTRONICS CORPORATION
108-TO5HG
I N S TA L L AT I O N I N S T R U C T I O N S
2019-Up
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Assembly ..........................................................3
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: 70-1765
Antenna Adapter: 40-LX11
Steering wheel control interface: ASWC-1
12v-to-6v camera step-down: AX-CAM6V
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 10mm socket wrench
Attention!
Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
REV. 12/11/19 INST108-TO5HG
Patent Pending
Advertisement
Related Manuals for Metra Electronics 108-TO5HG
Summary of Contents for Metra Electronics 108-TO5HG
- Page 1 When testing the aftermarket equipment, ensure that all factory equipment is connected before cycling the key to ignition. Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 12/11/19 INST108-TO5HG...
- Page 2 DASH DISASSEMBLY 1. Unclip and remove the radio trim panel. 4. Remove (4) 10mm screws securing the (Figure A) bottom of the radio. Two screws will be clearly visible, but two will be hidden, 2. Unclip, unplug, and remove the climate facing upward.
- Page 3 KIT ASSEMBLY Note: For steps 1 and 2, reference the 5. Locate the factory wiring harness and installation manual provided with the radio antenna connector in the dash and for which hardware to use. The display complete all necessary connections to screen and radio chassis use two different the radio.
- Page 4 Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. Metra recommends MECP certified technicians Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 12/11/19 INST108-TO5HG...
