SDI HPDA-15RM-E1 Operating Manual

High performance

Advertisement

Quick Links

SDI
S
D
I
PECTRA
YNAMICS,
NC.
H
P
D
A
IGH
ERFORMANCE
ISTRIBUTION
MPLIFIER
HPDA-15RM-E1
O
M
PERATING
ANUAL
S
D
I
PECTRA
YNAMICS,
NC • 1849 Cherry St. Unit 2. • Louisville, CO 80027
Phone: (303) 665-1852 • Fax: (303) 604-6088
www.spectradynamics.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the HPDA-15RM-E1 and is the answer not in the manual?

Questions and answers

Summary of Contents for SDI HPDA-15RM-E1

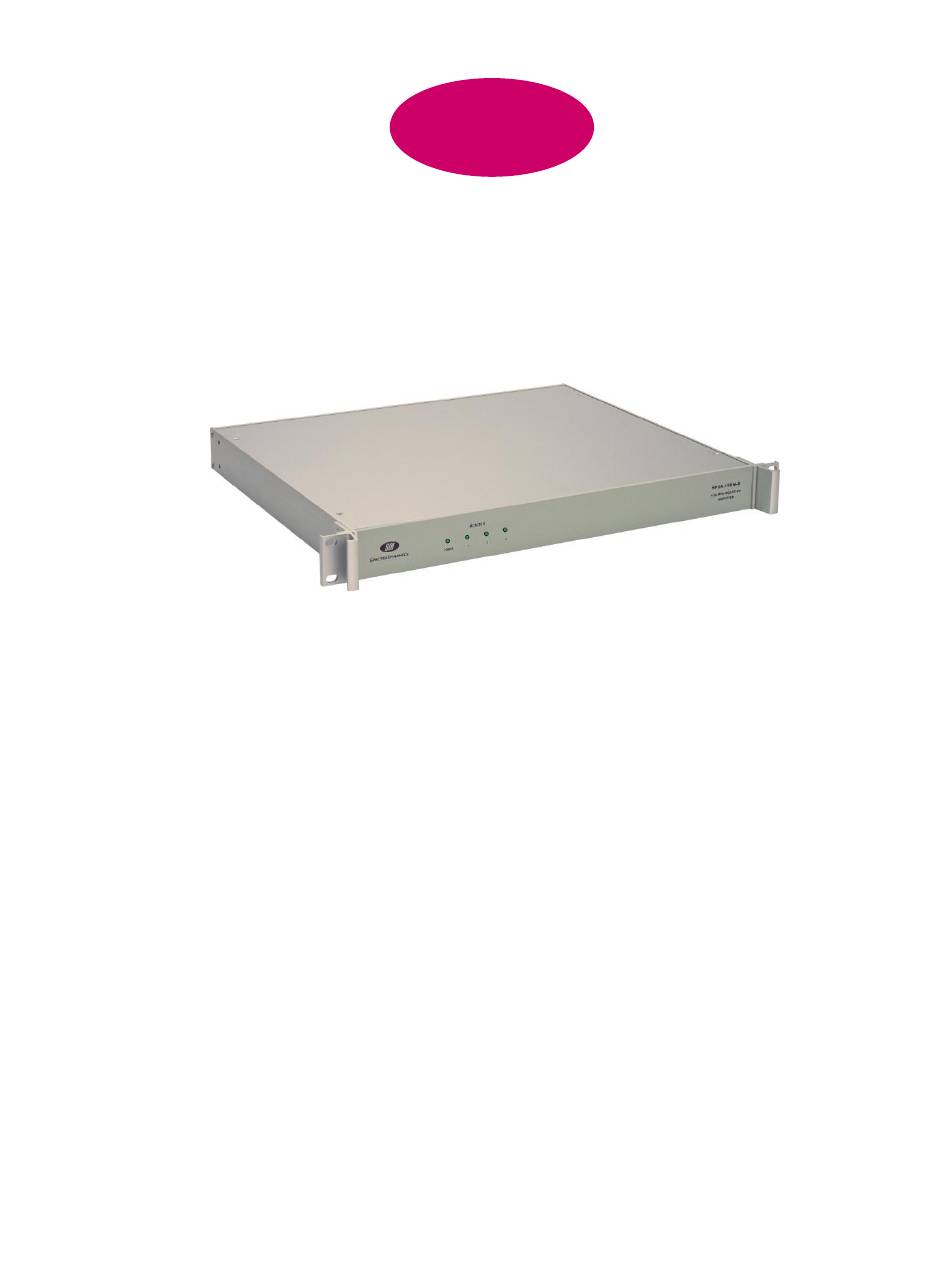

  • Page 1 PECTRA YNAMICS, ERFORMANCE ISTRIBUTION MPLIFIER HPDA-15RM-E1 PERATING ANUAL PECTRA YNAMICS, NC • 1849 Cherry St. Unit 2. • Louisville, CO 80027 Phone: (303) 665-1852 • Fax: (303) 604-6088 www.spectradynamics.com...
  • Page 3 The corresponding five outputs of this third module are therefore 10 MHz outputs. Typical cross-channel isolation of the HPDA-15RM-E1 is 125 dB and reverse isolation is typically greater than 135 dB. The phase noise of the modules is exceptionally low, typically –150 dBc/Hz @ Fourier frequency of 1 Hz and –173 dBc/Hz @ Fourier frequency greater than 10 kHz.
  • Page 4 Line Voltage This instrument may be setup to operate on 100-120 or 220-240 VAC and a line frequency of 50 to 60 Hz. The setup voltage for this HPDA-15RM-E1 is specified on page 4. Fuse A 0.50 Ampere 250V slow-blow fuse is used for 100-120 VAC operation.
  • Page 5 The Front Panel AC Power LED The POWER LED is on when power is applied to unit and the unit is operating properly. Monitor LED The MONITOR LED of each module will turn on if all the output signals to the corresponding module are greater than +7 dBm.
  • Page 6 The Back Panel AC POWER ENTRY MODULE The HPDA-15RM-E1 is configured to operate on:  100-120 VAC  220-240 VAC SMA INPUTS There are three amplifier modules. The first SMA input connector on each module will drive the next set of five SMA outputs. The signal to be multiplied and distributed should be connected to the third SMA jack labeled input.
  • Page 7 Plug the unit into an appropriate power outlet. A green LED on the front panel labeled “POWER” will turn on. Attach the signal to be distributed to any of the SMA input connectors on the back panel. Any HPDA-15RM-E1 output may be used to drive the input of another distribution module.
  • Page 8 SDI SDI Specifications PARAMETER CONDITIONS UNITS Max. Input Power 1 dB compression Bandwidth +/- 1 dB 1 - 20 Gain @ 5 MHz +/- 0.5 Impedance input Ohms output Return Loss input(S11) 5MHz output(S22) 5MHz Distortion +13 dBm Isolation output to output...
  • Page 9 This warranty shall be in effect for one (1) year from the date a HPDA-15RM-E1 is sold by SDI. SDI makes no other warranty, express or implied, and makes no warranty of the fitness for any particular purpose. SDI’s obligation under this warranty shall not include any transportation charges or costs of installation or any liability for direct, indirect, or consequential damages or delay.
  • Page 10 HPDA-15RM-E1:3I-15O/R02...
