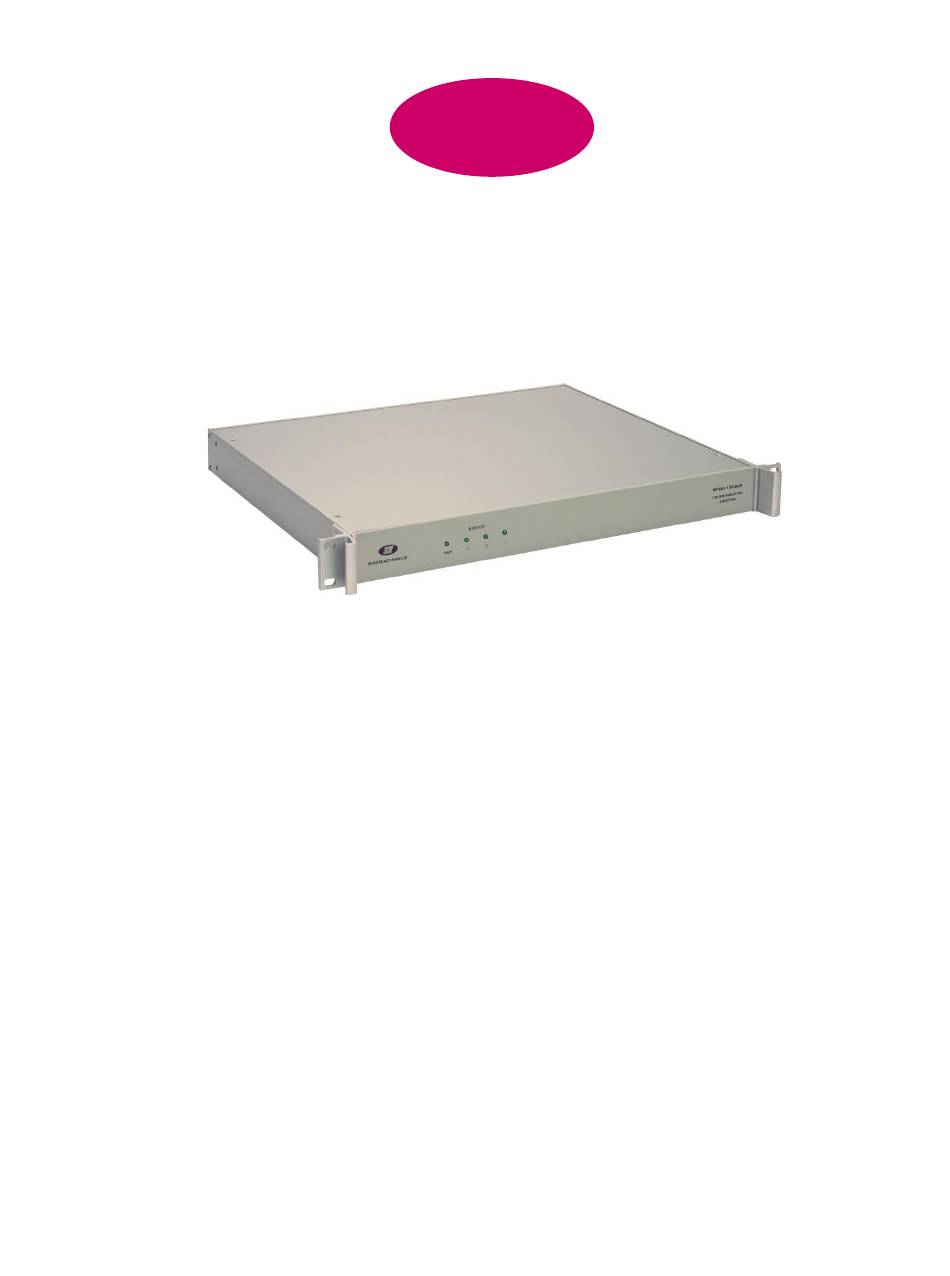

- Page 1 PECTRA YNAMICS, ERFORMANCE ISTRIBUTION MPLIFIER HPDA-15RM-B3 PERATING ANUAL PECTRA YNAMICS, NC • 1849 Cherry St. Unit 2. • Louisville, CO 80027 Phone: (303) 665-1852 • Fax: (303) 604-6088 www.spectradynamics.com...
- Page 3 Description The HPDA-15RM-B3 is a high performance distribution and isolation amplifier. One input signal feeds three HPDA-5 modules each providing five unity gain outputs. The phase noise for this configuration of one input, fifteen outputs is typically –158 dBc/Hz @ Fourier frequency of 10 Hz and –166 dBc/Hz @ Fourier frequency greater than 10 kHz.
-
Page 4: Safety And Preparation For Use
Line Voltage This instrument may be setup to operate on 100-120 or 220-240 VAC and a line frequency of 50 to 60 Hz. The setup voltage for this HPDA-15RM-B3 is specified on page 4. Fuse A 0.50 Ampere 250V slow-blow fuse is used for 100-120 VAC operation. -
Page 5: The Front Panel
The Front Panel AC Power LED The POWER LED is on when power is applied to unit and the unit is operating properly. Monitor LED The three Monitor LEDs will turn on when you apply an input signal to the SMA input connector greater than +7 dBm. -
Page 6: The Back Panel
The Back Panel AC POWER ENTRY MODULE The HPDA-15RM-B3 is configured to operate on: 100-120 VAC 220-240 VAC SMA INPUTS There is one input driving three amplifier modules providing fifteen outputs. The signal to be distributed should be connected to the SMA jack labeled INPUT. -
Page 7: Operation
Plug the unit into an appropriate power outlet. A green LED on the front panel labeled “POWER” will turn on. Attach the signal to be distributed to any of the SMA input connectors on the back panel. Any HPDA-15RM-B3 output may be used to drive the input of another distribution module. -
Page 8: Specifications
Specifications PARAMETER CONDITIONS UNITS Max. Input Power 1 dB compression Bandwidth +/- 1 dB 1 - 20 Gain @ 5 MHz +/- 0.5 Impedance Input Ohms Output Return Loss Input (S11) 5MHz Output (S22) 5MHz Distortion +13 dBm +16 dBm Isolation Output to output Output to input... -
Page 9: Warranty
This warranty shall be in effect for one (1) year from the date a HPDA-15RM-B3 is sold by SDI. SDI makes no other warranty, express or implied, and makes no warranty of the fitness for any particular purpose. SDI’s obligation under this warranty shall not include any transportation charges or costs of installation or any liability for direct, indirect, or consequential damages or delay. - Page 10 HPDA-15RM-B3:1I-15O/R02...
