ON/OFF BUTTON
USED TO TURN
DEHUMIDIFIER ON
CHANGE HUMIDITY
AND OFF
MODE BUTTON
USED FOR OPTIONAL
VENTILATION FEATURE

TABLE OF CONTENTS

SAFETY INSTRUCTIONS � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �2
SPECIFICATIONS � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �3
PREPARING THE UNIT FOR INSTALLATION � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �3
Packaging Content � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �3
Installing the Duct Collars � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �4
Repositioning the User Interface for the Application � � � � � � � � � � � � � � � � � � � �4
INSTALLING THE DEHUMIDIFIER � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �5
Dehumidifier Location � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �5
Installing the Drain � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �5
Leveling and Raising the Dehumidifier � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �6
Condensate Pan, Condensate Pump and Float Switch � � � � � � � � � � � � � � � � � � �6
WIRING � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �6
Wiring to a Float Switch � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �6
Optional: Alert Light � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �6
Model A77 Control� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �7
Alternative External Control � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �8
DAISY CHAIN INSTALLATION INSTRUCTIONS� � � � � � � � � � � � � � � � � � � � � � � � � � � �9
Model A77 as Driving Control� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �9
Alternate External Dry Contact Control as Driving Control � � � � � � � � � � � � � � �9
Model A130 Dehumidifier
Installation and Operating Instructions
DEHUMIDIFIER
UP/DOWN
USER INTERFACE
BUTTONS USED TO
SETTING

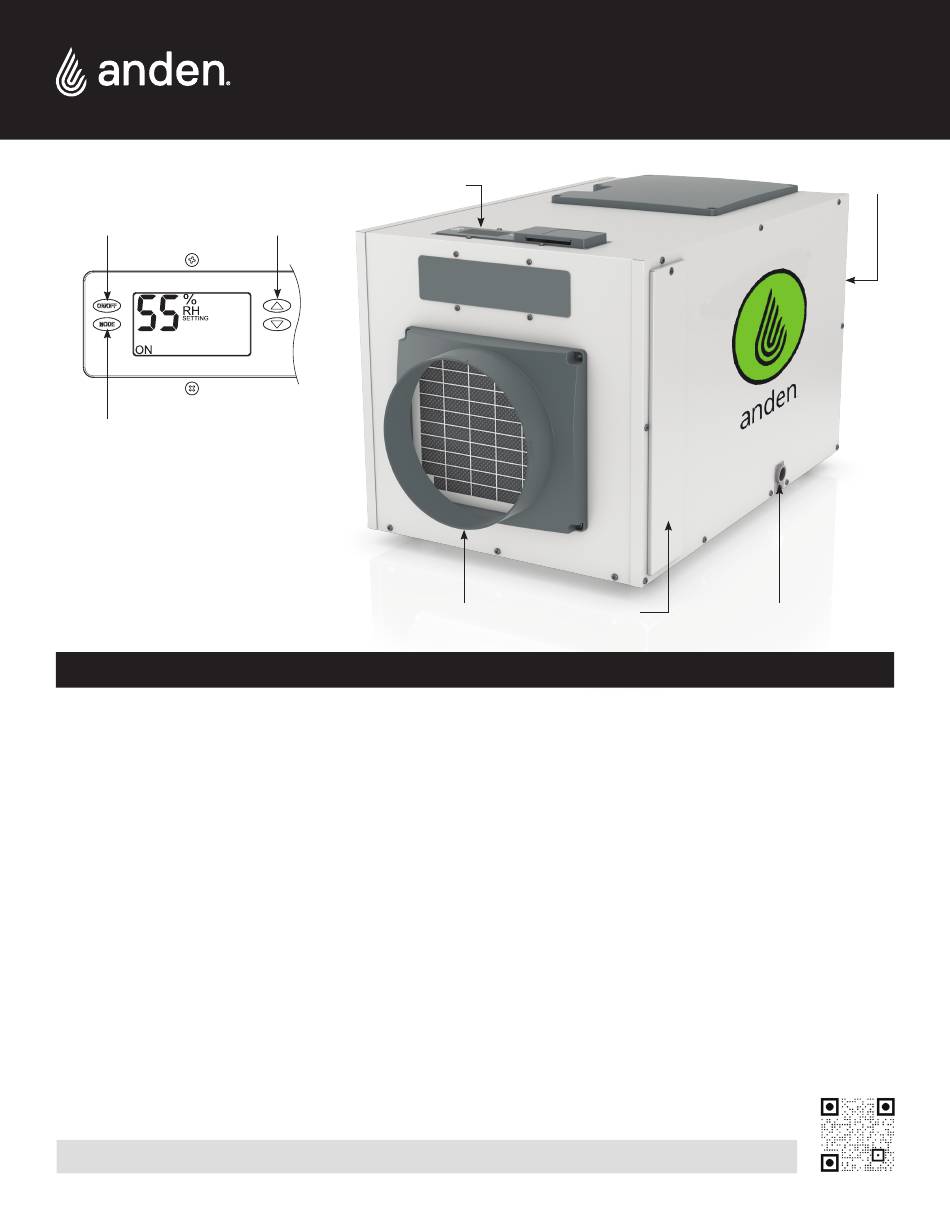

Model A130 shown.
READ AND SAVE THESE INSTRUCTIONS
INLET
FILTER
ACCESS DOOR
SYSTEM SET-UP & CHECKOUT � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 10
Air Sampling� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 10
RH Offset� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 10
Installer Test Mode � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �11
STARTING UP THE UNIT AND SEQUENCE OF OPERATION � � � � � � � � � � � � � � � �11
Using the Dehumidifier Control� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �11
Using the Model A77 Control � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �11
MAINTENANCE � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 12
Replacing the Filter� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 12
Cleaning the Drain � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 12
SERVICE INSTRUCTIONS� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 13
TROUBLESHOOTING� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 14
LIMITED WARRANTY � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 15
A130 SERVICE PARTS � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 16
OUTLET
DRAIN
PRODUCT INFO &
DIGITAL MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A130 and is the answer not in the manual?

Questions and answers

Summary of Contents for Anden A130

  • Page 1: Table Of Contents

    A130 SERVICE PARTS � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �...
  • Page 2: Safety Instructions

    SAFETY INSTRUCTIONS WARNING CAUTION ATTENTION INSTALLER: • SHARP EDGES MAY CAUSE INJURY FROM CUTS. Use care when cutting plenum openings and handling ductwork. Always wear • Read this manual before installing. Improper installation glasses/goggles and gloves when installing the unit. or maintenance may cause property damage or injury.
  • Page 3: Specifications

    SPECIFICATIONS PREPARING THE UNIT FOR INSTALLATION IMPORTANT: Cut the strap securing the compressor shipping support Model A130 bracket and remove the strap and shipping bracket (see FIGURE 1)� Unit Weight 113 lbs� 1. Clip off and remove the plastic straps securing the compressor to the shipping bracket�...
  • Page 4: Installing The Duct Collars

    INSTALLING THE DUCT COLLARS REPOSITIONING THE USER INTERFACE FOR THE APPLICATION • Use the screws in the parts bag to attach the duct collars to the inlet and Locate the onboard user interface (see FIGURE 3) on the top of the outlet of the dehumidifier�...
  • Page 5: Installing The Dehumidifier

    INSTALLING THE DEHUMIDIFIER INSTALLING THE DRAIN USING HARD PIPE DEHUMIDIFIER LOCATION • Install a 3/4" PVC slip x 3/4" MNPT PVC fitting to the dehumidifier and use 3/4" nominal PVC Schedule 40 pipe to run the condensate line to the •...
  • Page 6: Leveling And Raising The Dehumidifier

    Adhere to local codes regarding draining of the condensate pan� If a condensate pump is needed, install it in the condensate pan as well� The Anden A4856 Condensate Pump is capable of lifting water up to 22 feet� 90-1857...
  • Page 7: Model A77 Control

    ALERT LIGHT WIRING MODEL A77 CONTROL 1. Remove the wire access cover� The Model A77 will measure the relative humidity and turn the dehumidifier 2. Remove + – A B and VENT DEH terminal blocks� on and off to control the humidity level to the desired setting� The humidity setting can be adjusted from the control, while the display allows easy access 3.
  • Page 8: Alternative External Control

    TO SET THE DEHUMIDIFIER TO USE THE MODEL A77 CONTROL, COMPLETE ALL STEPS: FIGURE 12: ALTERNATIVE EXTERNAL CONTROL WIRING 1. With power to the dehumidifier, use the ON/OFF button to set the dehumidifier to the OFF position� NOTE: If the display backlight is not on, the first button press (any button) will only turn the backlight on�...
  • Page 9: Daisy Chain Installation Instructions

    When a dry contact control is used to control the first dehumidifier, Unit #1 Anden dehumidifiers can be wired in a daisy chain application, allowing one must be set to EXTERNAL in the set-up menu� All downstream units must be Model A77 or alternate dry contact dehumidistat to control any number of set up to EXTERNAL in each set-up menu�...
  • Page 10: System Set-Up & Checkout

    SYSTEM SET-UP & CHECKOUT AIR SAMPLING Use the button to adjust how frequently the dehumidifier samples Skip set up and proceed to INSTALLER TEST MODE on page 11 unless: the air to determine whether or not to dehumidify� Fewer minutes means the •...
  • Page 11: Installer Test Mode

    STARTING UP THE UNIT INSTALLER TEST MODE AND SEQUENCE OF OPERATION If everything is properly wired, the dehumidifier and all of the Ensure unit is plugged in and power is supplied to the dehumidifier. wired components will turn on and off during Installer Test Mode to demonstrate that all are properly operating�...
  • Page 12: Maintenance

    MAINTENANCE REPLACING THE FILTER After initial installation the air filter should be checked or replaced every 3 months� The CLEAN FILTER service reminder will display on the user interface screen every 3 months� To clear the service message, press the buttons simultaneously for 3 seconds.
  • Page 13: For Additional Assistance

    SERVICE INSTRUCTIONS SYMBOLS SERVICE Approved auxiliary devices: Only approved • The refrigeration system is considered factory auxiliary devices approved by the appliance sealed and puncturing the refrigerant tubing in manufacturer shall be installed in the ductwork� any way is prohibited� •...
  • Page 14: Troubleshooting

    TROUBLESHOOTING NOTICE Troubleshooting and repairs shall be performed by a qualified HVAC service technician, and all safety procedures shall be followed. Technical Support is available Monday through Friday, 7:00 a�m� to 5:00 p�m� CST, at (800) 972-3710� Use the guides on the following pages to identify and correct system faults�...
  • Page 15: Limited Warranty

    WARRANTY REGISTRATION Visit us online at anden.com to register your Anden product� If you do not have online access, please mail a postcard with your name, address, phone number, email address, product purchased, model number, date of purchase, and dealer name and address to: Research Products Corporation, P�O� Box 1467, Madison, WI 53701�...
  • Page 16: A130 Service Parts

    Not Shown Cover, Outlet 71000032 Condensate Pump with Tubing A4856 Fan with 10MFD Capacitor 71000043 Alert Light 71000087 10020798A • 05.24 © 2024 Anden | anden.com | 800.972.3710 Manufacturing Use Only Anden reserves the right to change specifications without notice.
