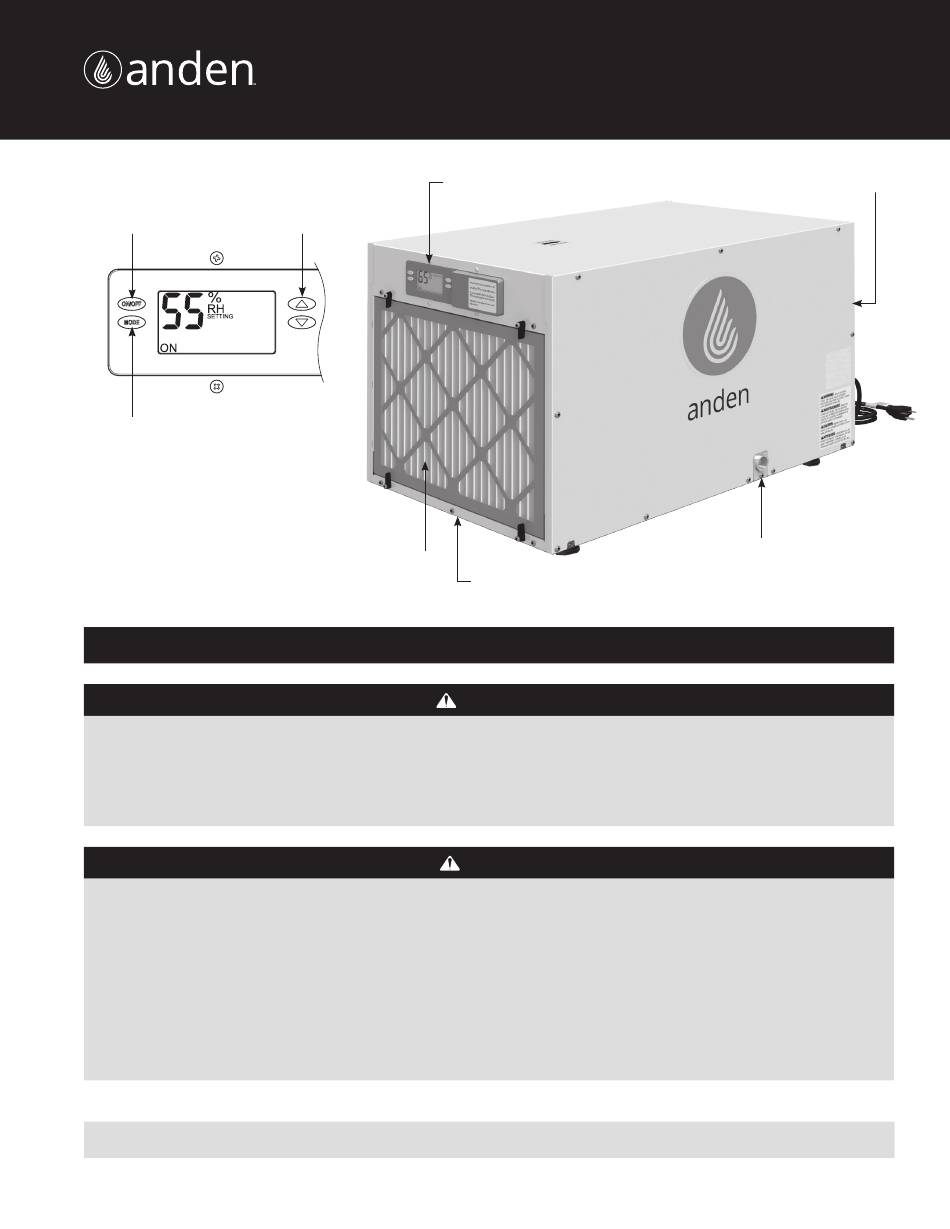

ON/OFF BUTTON
USED TO TURN
BUTTONS USED TO
DEHUMIDIFIER ON
CHANGE HUMIDITY
AND OFF
MODE BUTTON
USED FOR
OPTIONAL FEATURES
SAFETY INSTRUCTIONS
1. 208-240 volts may cause serious injury from electric shock. Disconnect electrical power before starting installation or servicing. Leave power
disconnected until installation/service is completed.
2. Sharp edges may cause serious injury from cuts. Use care when cutting plenum openings and handling duct work.
3. Dropping may cause personal injury or equipment damage. Handle with care and follow installation instructions.
1. Read all instructions before beginning installation.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible
for their safety. Children should be supervised to ensure that they do not play with the appliance.
3. Do not use in pool applications. Pool chemicals can damage the dehumidifier.
4. Do not use solvents or cleaners on or near the circuit board. Chemicals can damage circuit board components.
5. Wait 24 hours before running the unit if it was not shipped or stored in the upright position
6. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
10013307 B2208162E 11.21

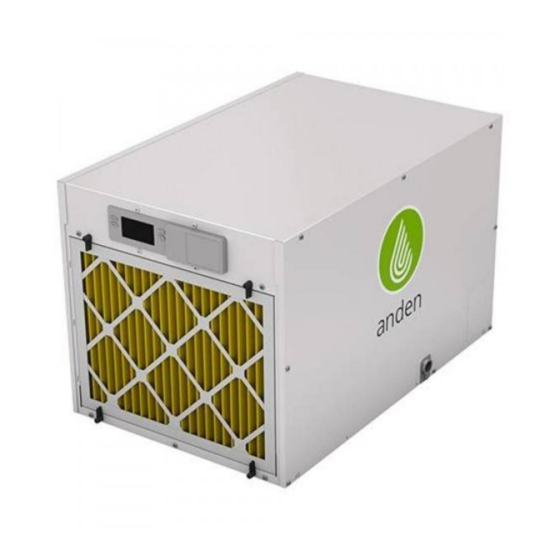

Model A210V1 Dehumidifier
Installation and Operating Instructions
UP/DOWN
DEHUMIDIFER CONTROL
SETTING
FILTER
READ AND SAVE THESE INSTRUCTIONS
INLET
WARNING
CAUTION
OUTLET
DRAIN
90-2393
English 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A210V1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Anden A210V1

Summary of Contents for Anden A210V1

  • Page 1 Model A210V1 Dehumidifier Installation and Operating Instructions ON/OFF BUTTON UP/DOWN DEHUMIDIFER CONTROL OUTLET USED TO TURN BUTTONS USED TO DEHUMIDIFIER ON CHANGE HUMIDITY AND OFF SETTING MODE BUTTON USED FOR OPTIONAL FEATURES DRAIN FILTER INLET 90-2393 SAFETY INSTRUCTIONS WARNING 1. 208-240 volts may cause serious injury from electric shock. Disconnect electrical power before starting installation or servicing. Leave power disconnected until installation/service is completed.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SAFETY INSTRUCTIONS � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 1 SPECIFICATIONS �...

  • Page 3: Specifications

    SPECIFICATIONS ENVIRONMENTAL MECHANICAL ELECTRICAL Operating Temperature Range: 50°F –104°F Weight: 118 lbs (without packaging) Voltage: 208-240 VAC ~, 1ø, 60 HZ Operating Dew Point Lower Limit: 40°F Drain Size: 3/4" FNPT Operating Current: 8�6A @ 80°F, 60% RH Capacity: 210 PPD @ 80°F, 60% RH Efficiency: 3�0 L/kW-hr (6�3 pints/kW-hr) @ 80°F, 60% RH Filter: MERV 11, 17�75"...

  • Page 4: Unpacking The Dehumidifier

    UNPACKING THE DEHUMIDIFIER Remove the unit from the carton� Cut the retaining band that secures the compressor to the shipping bracket and remove the band and the FIGURE 2 – REMOVE SHIPPING BRACKET bracket� See FIGURE 2� REMOVE SCREWS (2) DISCARD SHIPPING BRACKET INCLUDED IN THE CARTON REINSTALL SCREWS (2)

  • Page 5: Suspending The Dehumidifier

    SUSPENDING THE DEHUMIDIFIER INSTALL BRACKETS FOR SUSPENDING UNIT The brackets are designed to accommodate up to 1/2" threaded rod� 1. Insert bracket into slots on the bottom of the base� See FIGURE 4� 2. Rotate the bracket up toward the dehumidifier� With a 5/16" hex socket (not provided), secure the bracket to the side of the dehumidifier using #10 sheet metal screws (provided)�...

  • Page 6: Drain Installation

    DRAIN INSTALLATION The drain outlet on the dehumidifier can be hard piped using a 3/4" PVC Slip x 3/4" MNPT fitting and 3/4" nominal drain tubing or the provided 3/4" MNPT x 3/4" hose barb fitting and 3/4" PVC tubing can be used to drain the dehumidifier� Always maintain a constant downward slope from the dehumidifier to the drain and do not allow soft tubing to curl up which may result in air lock�...

  • Page 7: Hard Wiring - Line Voltage

    8. Insert the ground wire (bare or green) of the electrical service into Model A210V1 the ground lug and secure it in place by tightening the ground lug screw�...

  • Page 8: Start Up And Sequence Of Operation

    START UP AND SEQUENCE OF OPERATION USING THE DEHUMIDIFIER CONTROL 1. Press the ON/OFF button to turn the dehumidifier control ON� The display will show the current setting, and the dehumidifier blower will turn on to start sampling the air� The setting will be replaced by the measured humidity and “AIR SAMPLING”...

  • Page 9: System Set Up & Checkout

    SYSTEM SET-UP & CHECKOUT Skip set up and proceed to INSTALLER TEST MODE on page 9 unless: INSTALLER TEST MODE • A Model A77 or other external control is to be installed • changing the air sampling rate If everything is properly wired, the dehumidifier and all of the 1.

  • Page 10: Wiring And Set

    WIRING AND SET-UP MODEL A77 CONTROL The Model A77 will measure the relative humidity and turn the dehumidifier on and off to control the humidity level to the desired setting� The humidity setting can be adjusted from the control, while the display allows easy access and monitoring of the humidity level in the space� It is recommended that the Model A77 be mounted at/near canopy height�...

  • Page 11: Alternative External Control

    ALTERNATIVE EXTERNAL CONTROL Alternatively, use any other humidity control system as long as it has a dry contact, normally open output dedicated to controlling the dehumidifier� Reference the installation literature provided with the alternative control for wiring, set-up, and operating details� TO INSTALL AND USE AN ALTERNATIVE EXTERNAL CONTROL, TO SET THE DEHUMIDIFIER TO USE THE ALTERNATIVE CONTROL, COMPLETE ALL STEPS:...

  • Page 12: Daisy Chain Wiring

    DAISY CHAIN WIRING Anden dehumidifiers can be wired in a daisy chain application, allowing one Model A77 or alternate dry contact dehumidistat to control any number of dehumidifiers wired together� Reference the dehumidifier Installation and Operation Manual for detailed set-up and operation�...

  • Page 13: Alternate External Dry Contact Control As Driving Control

    ALTERNATE EXTERNAL DRY CONTACT CONTROL AS DRIVING CONTROL When a dry contact control is used to control the first dehumidifier, Unit #1 must be set to ENABLE EXTERNAL in the set-up menu� All downstream units must be set up to ENABLE EXTERNAL in each set-up menu� See page 9 for set up details and wire as shown in FIGURE 13� SEQUENCE OF OPERATION Each unit in the daisy chain responds to the first unit being controlled by the external control�...

  • Page 14: Troubleshooting

    TROUBLESHOOTING Technical Support is available Monday through Friday, 7:00 a�m� to 5:00 p�m� CST, at (800) 972-3710� Use the guides on the following pages to identify and correct system faults� Contact Technical Support before replacing the unit or any components and for additional troubleshooting� DIAGNOSTIC CODES When an error occurs, the Diagnostic Code along with SERVICE REQUIRED will be displayed on the control screen�...

  • Page 15: Limited Warranty

    WARRANTY REGISTRATION Visit us online at anden.com to register your Anden product� If you do not have online access, please mail a postcard with your name, address, phone number, email address, product purchased, model number, date of purchase, and dealer name and address to: Research Products Corporation, P�O� Box 1467, Madison, WI 53701�...

  • Page 16: Service Parts

    Fan Relay 71000072 • Model A77 Control Low Temperature Sensor 71000034 • 30 ft� 20 AWG, 3-wire Thermostat Cable Alert Light 71000087 High Temperature Sensor 71000071 anden.com P.O. Box 1467 Madison, WI 53701-1467 800.972.3710 F: 608.257.4357 Printed in USA. ©2021 Anden. 16 English...
