INSTALLATION IS TO BE IN ACCORDANCE WITH INSTALLATION AND OPERATING INSTRUCTIONS PROVIDED WITH THE DEHUMIDIFIER.
1A. PLACEMENT
18"
MIN
OUTLET
1B. CLEARANCES
18" MINIMUM
INLET SIDE
ELECTRICAL SERVICE PANEL

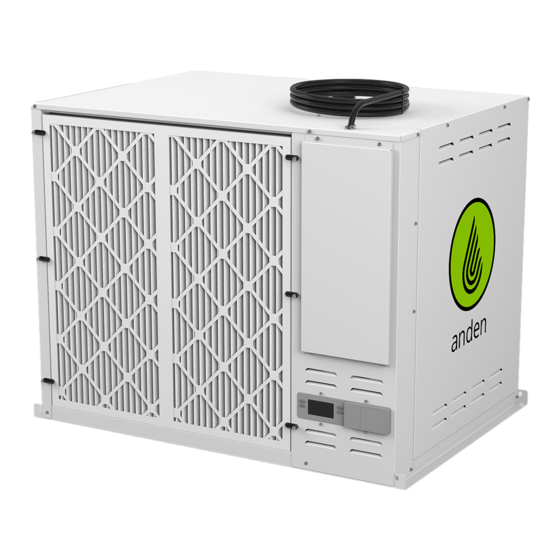

Model A710V1/V3 Dehumidifier
Quick Start Guide
THE QUICK START GUIDE IS TO BE USED AS REFERENCE ONLY.
OUTLET
90-2554
18" RECOMMENDED
INLET
18"
MIN
2. HANGING
90-2530
AVOID
INLET
OUTLET
OUTLET
HVAC RETURN
AIRFLOW
HVAC SUPPLY
DIRECTION
USE 3/8" OR 1/2"
THREADED ROD
4X VIBRATION
ISOLATORS
(OPTIONAL)
90-2555
90-2556
90-2531
1
Advertisement
Related Manuals for Anden A710V1/V3
Summary of Contents for Anden A710V1/V3
- Page 1 Model A710V1/V3 Dehumidifier Quick Start Guide THE QUICK START GUIDE IS TO BE USED AS REFERENCE ONLY. INSTALLATION IS TO BE IN ACCORDANCE WITH INSTALLATION AND OPERATING INSTRUCTIONS PROVIDED WITH THE DEHUMIDIFIER. 1A. PLACEMENT AVOID INLET INLET OUTLET OUTLET HVAC RETURN 18"...
- Page 2 3. NUT & WASHER 4. LEVEL 4X DOUBLE NUT BOTTOM WITH FLAT WASHER, SINGLE NUT ON TOP 90-2531 90-2557 5. DRAIN CONNECTIONS IMPORTANT NOTES: • Do not double trap. OPTIONAL VACUUM • Prime drain trap when installation is complete. BREAK •...
- Page 3 6A. WIRING AND SET-UP – MODEL A77 CONTROL The Model A77 will measure the relative humidity and turn the dehumidifier on and off to control the humidity level to the desired setting. The humidity setting can be adjusted from the control, while the display allows easy access and monitoring of the humidity level in the space. It is recommended that the Model A77 be mounted at/near canopy height.
- Page 4 High Temperature Thermistor Failure Low Temperature Thermistor Failure Float Switch Open Inlet Air Temperature Out of Range Fan or Compressor Fault B2209017B • 10015129 • 1.22 © 2022 Anden | anden.com | 800.972.3710 Anden reserves the right to change specifications without notice.
