ON/OFF BUTTON
USED TO TURN
DEHUMIDIFIER ON
AND OFF
MODE BUTTON USED
FOR OPTIONAL
VENTILATION FEATURE
SAFETY INSTRUCTIONS
1. 120 Volts may cause serious injury from electric shock. Disconnect electrical power before starting installation or servicing. Leave power
disconnected until installation/service is completed.
2. Dropping may cause personal injury or equipment damage. Handle with care and follow installation instructions.
1. Read all instructions before beginning installation.
2. Improper installation may cause property damage or injury. Read instructions before installation, service or maintenance.
3. Do not use in pool applications. Pool chemicals can damage the dehumidifier.
4. Do not use solvents or cleaners on or near the circuit board. Chemicals can damage circuit board components.
5. Wait 24 hours before running the unit if it was not shipped or stored in the upright position
6. Do not use dehumidification to prevent window condensation in the winter. To address window condensation, use ventilation to lower
indoor humidity in the winter.

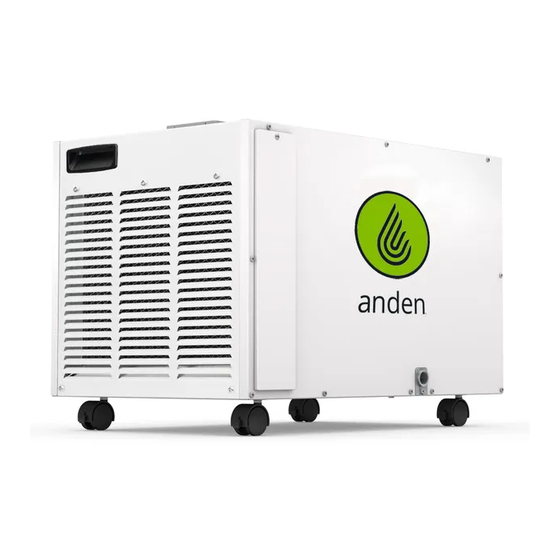

Model A95F Dehumidifier
Installation and Operating Instructions
UP/DOWN
BUTTONS USED TO
CHANGE HUMIDITY
SETTING
INLET
READ AND SAVE THESE INSTRUCTIONS
DEHUMIDIFIER CONTROL
FILTER ACCESS DOOR
WARNING
CAUTION
DRAIN
OUTLET
POWER
SWITCH
90-1952
1
Advertisement
Table of Contents
Related Manuals for Anden A95F
Summary of Contents for Anden A95F
-
Page 1: Safety Instructions

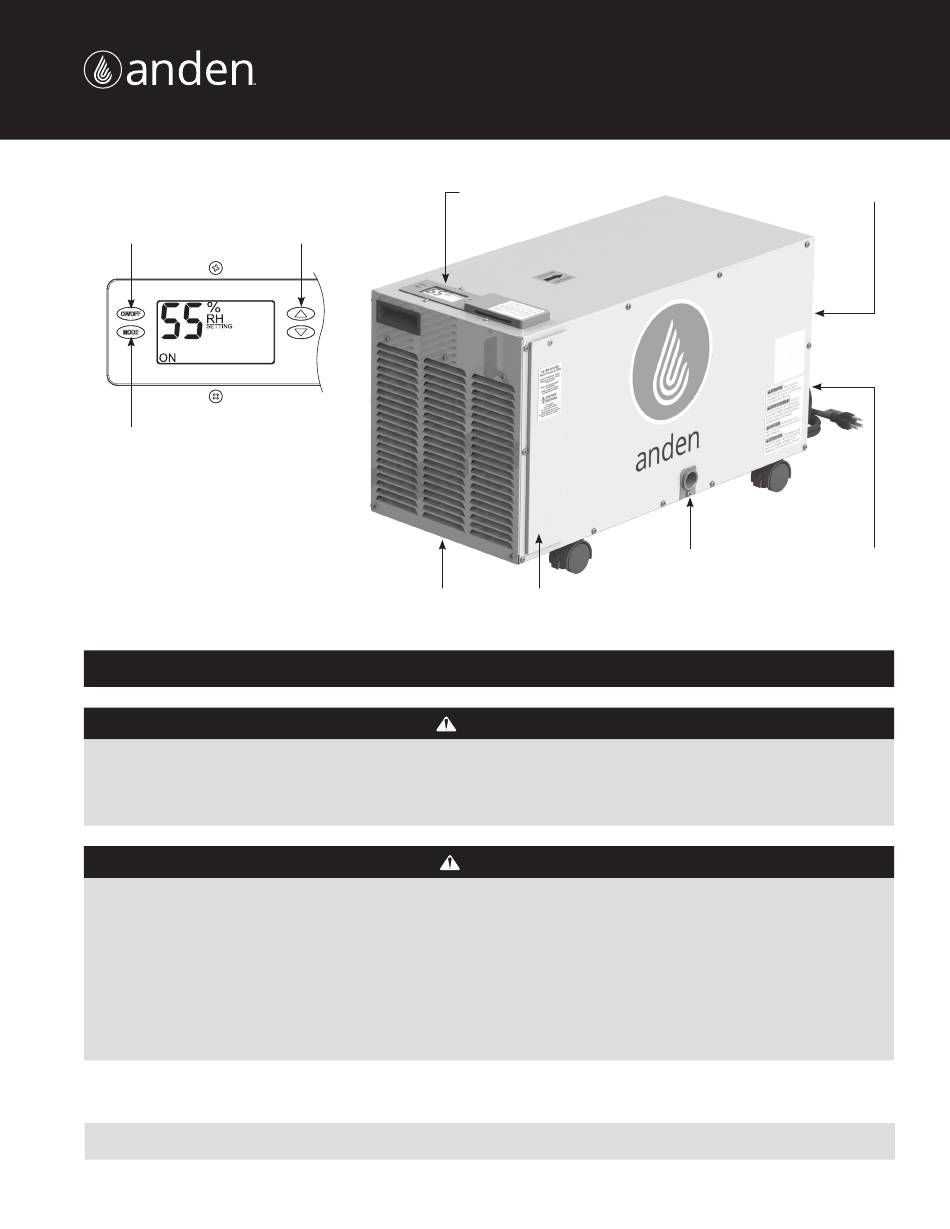

Model A95F Dehumidifier Installation and Operating Instructions ON/OFF BUTTON UP/DOWN DEHUMIDIFIER CONTROL OUTLET USED TO TURN BUTTONS USED TO DEHUMIDIFIER ON CHANGE HUMIDITY AND OFF SETTING MODE BUTTON USED FOR OPTIONAL VENTILATION FEATURE DRAIN POWER SWITCH INLET FILTER ACCESS DOOR... -
Page 2: Table Of Contents
LIMITED WARRANTY � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 12 SPECIFICATIONS Model A95F Weight 70 lbs�... -
Page 3: Set Up Dehumidifier For Installation
SET UP DEHUMIDIFIER FOR INSTALLATION IMPORTANT: Cut the strap securing the compressor shipping support bracket and remove the strap, shipping bracket screws, and FIGURE 1 – REMOVE SHIPPING BRACKET bracket� See FIGURE 1� REMOVE SHIPPING BRACKET CLIP OFF PLASTIC STRAP 90-1944 LOCATION CONSIDERATIONS •... -
Page 4: Drain Installation
DRAIN INSTALLATION The drain outlet on the dehumidifier can be hard piped using a 3/4" PVC Slip x 3/4" MNPT fitting and 3/4" nominal drain tubing or the provided 3/4" MNPT x 3/4" hose barb fitting and 3/4" clear PVC tubing can be used to drain the dehumidifier� Always maintain a constant downward slope from the dehumidifier to the drain and do not allow soft tubing to curl up which may result in air lock�... -
Page 5: Model A77 - Remote Or External Control And Wiring
MODEL A77 – REMOTE OR EXTERNAL CONTROL AND WIRING NOTE: Use 18-22 AWG wire for control wiring� FIGURE 4 – MODEL A77 REMOTE CONTROL WIRING The internal dehumidifier control can be used to control humidity, or a remote Model A77 Control or other external control (see below) can be wired to the dehumidifier�... -
Page 6: System Set-Up & Checkout
SYSTEM SET-UP & CHECKOUT Skip set up and proceed to INSTALLER TEST MODE on page 7 unless: REMOTE CONTROL • A Model A77 or other external control is to be installed If not installing an A77, leave • changing the air sampling rate DISABLED and press MODE to go 1. -
Page 7: Installer Test Mode
AIR SAMPLING INSTALLER TEST MODE Use the UP or DOWN button to If everything is properly wired, the dehumidifier and all of the adjust how frequently the wired components will turn on and off during Installer Test dehumidifier samples the air to Mode to demonstrate that all are properly operating�... -
Page 8: Start Up And Sequence Of Operation
START UP AND SEQUENCE OF OPERATION USING THE DEHUMIDIFIER CONTROL 1. Press the ON/OFF button to turn the dehumidifier control ON� The display will show the current setting, and the dehumidifier blower will turn on to start sampling the air� The setting will be replaced by the measured humidity and “AIR SAMPLING”... -
Page 9: Troubleshooting
TROUBLESHOOTING Technical Support is available Monday through Friday, 7:00 a�m� to 5:00 p�m� CST, at (800) 972-3710� Use the guides on the following pages to identify and correct system faults� Contact Technical Support before replacing the unit or any components and for additional troubleshooting� DIAGNOSTIC CODES When an error occurs, the Diagnostic Code along with SERVICE REQUIRED will be displayed on the control screen�... - Page 10 TABLE 2 – TROUBLESHOOTING GUIDE Symptom Possible Reason Troubleshooting Procedure Dehumidifier does not No power to unit� • Check that the dehumidifier is plugged in� turn on/run� • Check that the power switch is turned ON� • Check that the control is turned ON� •...
-
Page 11: Service Parts
SERVICE PARTS 90-1947 Part Description Part No. Part Description Part No. Filter, 12" x 12" x 1" 5770 Capacitor, 45MFD, 370VAC, 70pt/95pt Deh, 5458 (compressor) Internal Control Board, Deh 5444 Capacitor, 12MFD, 450VAC, 95pt Deh, (fan) 5468 User Interface Assembly, Deh 5738 RH Sensor, Deh 5460... -
Page 12: Limited Warranty
WARRANTY REGISTRATION Visit us online at anden.com to register your Anden product� If you do not have online access, please mail a postcard with your name, address, phone number, email address, product purchased, model number, date of purchase, and dealer name and address to: Research Products Corporation, P�O� Box 1467, Madison, WI 53701�...
