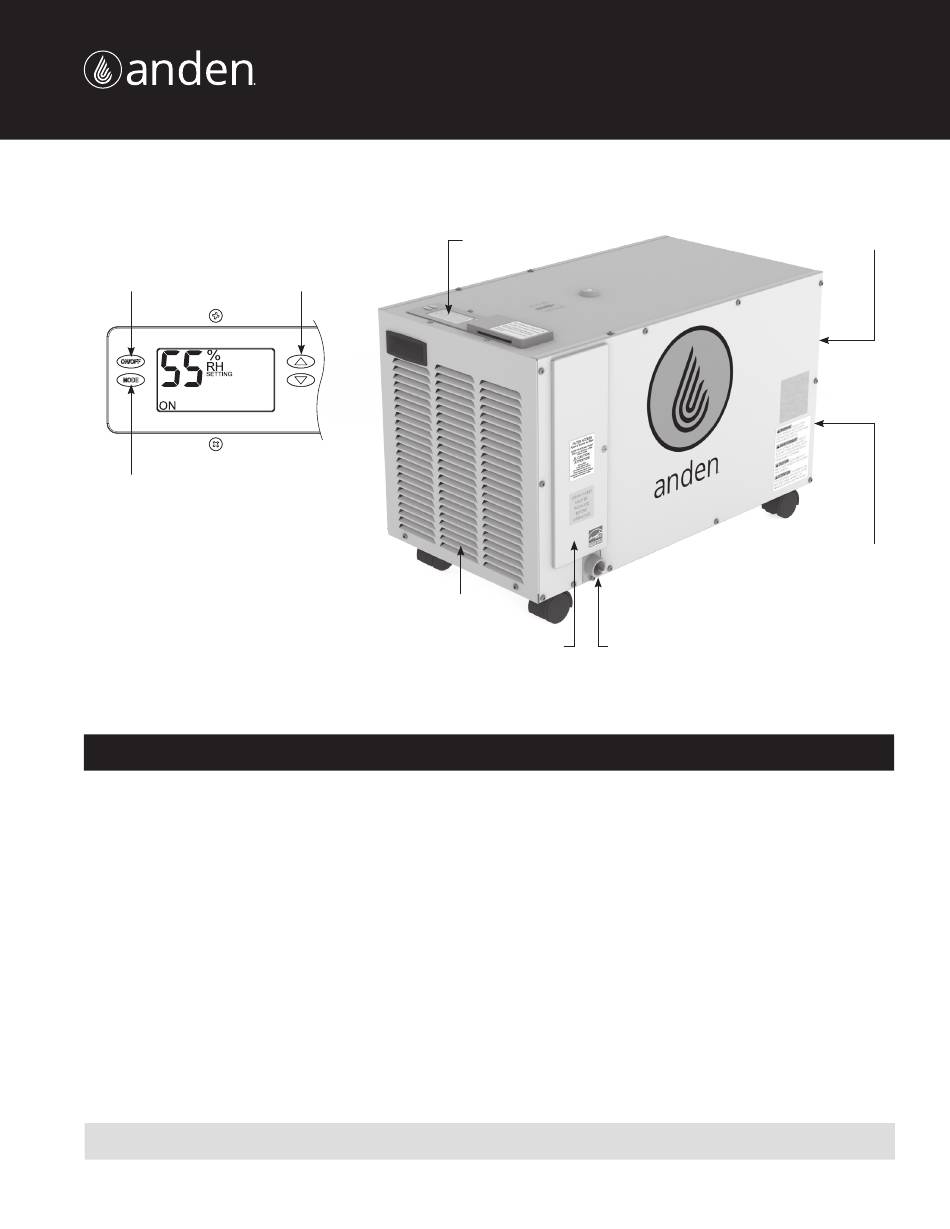

ON/OFF BUTTON
USED TO TURN
DEHUMIDIFIER ON
AND OFF
MODE BUTTON USED
FOR OPTIONAL
VENTILATION FEATURE

TABLE OF CONTENTS

SAFETY INSTRUCTIONS � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 2
SPECIFICATIONS � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 2
SET UP DEHUMIDIFIER FOR INSTALLATION � � � � � � � � � � � � � � � � � � � � � � � � 3
LOCATION CONSIDERATIONS � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3
DRAIN INSTALLATION � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4
Leveling � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5
Condensate Pan, Condensate Pump and Float Switch � � � � � � � � � � � � � � 5
MODEL A77 - REMOTE CONTROL AND WIRING � � � � � � � � � � � � � � � � � � � � 6
Alternate External Controls � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 6
SYSTEM SET-UP & CHECKOUT� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 7
Installer Test Mode� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 8

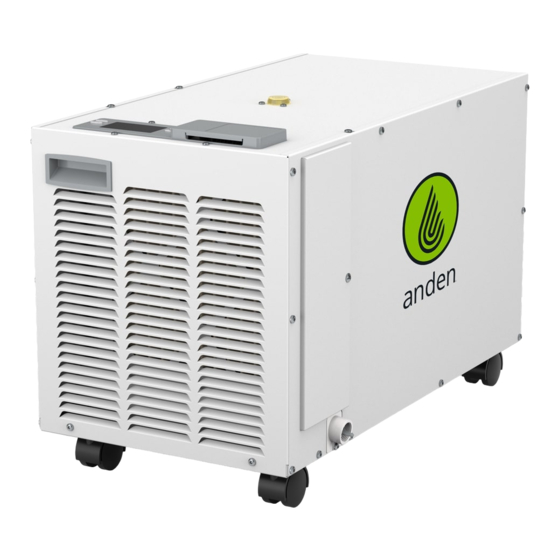

Model A100F Dehumidifier
Installation and Operating Instructions
UP/DOWN
BUTTONS USED TO
CHANGE HUMIDITY
SETTING
READ AND SAVE THESE INSTRUCTIONS
DEHUMIDIFIER CONTROL
INLET
FILTER ACCESS DOOR
DRAIN
START UP AND SEQUENCE OF OPERATION � � � � � � � � � � � � � � � � � � � � � � � � 9
Using the Dehumidifier Control � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 9
Using the Model A77 Remote Control� � � � � � � � � � � � � � � � � � � � � � � � � � � � � 9
MAINTENANCE� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 10
Clean or Replace the Filter � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 10
Drain and Drain Insert Inspection� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 10
Removing and Reinstalling the Drain Insert � � � � � � � � � � � � � � � � � � � � � � � 11
TROUBLESHOOTING � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 12
Table 1 - Diagnostic Codes � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 12
Table 2 - Troubleshooting Guide � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 13
SERVICE PARTS � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 14
LIMITED WARRANTY � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 15
OUTLET
POWER
SWITCH
90-2617
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A100F and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Anden A100F

  • Page 1: Table Of Contents

    Model A100F Dehumidifier Installation and Operating Instructions ON/OFF BUTTON UP/DOWN DEHUMIDIFIER CONTROL OUTLET USED TO TURN BUTTONS USED TO DEHUMIDIFIER ON CHANGE HUMIDITY AND OFF SETTING MODE BUTTON USED FOR OPTIONAL VENTILATION FEATURE POWER SWITCH INLET 90-2617 FILTER ACCESS DOOR...
  • Page 2: Safety Instructions

    8. Children should be supervised to ensure that they do not play with the appliance. 9. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent. SPECIFICATIONS Model A100F Unit Weight 64 lbs�...
  • Page 3: Set Up Dehumidifier For Installation

    SET UP DEHUMIDIFIER FOR INSTALLATION IMPORTANT: Cut the strap securing the compressor shipping support bracket and remove the strap, shipping bracket screws, and FIGURE 1 – REMOVE SHIPPING BRACKET bracket� See FIGURE 1� REMOVE SHIPPING BRACKET CLIP OFF PLASTIC STRAP 90-1944 LOCATION CONSIDERATIONS •...
  • Page 4: Drain Installation

    DRAIN INSTALLATION The drain outlet on the dehumidifier can be hard piped using a 3/4" PVC Slip x 3/4" MNPT fitting and 3/4" nominal drain tubing or the provided 3/4" MNPT x 3/4" hose barb fitting� 3/4" clear PVC tubing can be used to drain the dehumidifier� Always maintain a constant downward slope from the dehumidifier to the drain and do not allow soft tubing to curl up which may result in air lock�...
  • Page 5: Leveling

    LEVELING A level surface is required to ensure proper drainage from the dehumidifier� Refer to top mounted bubble level and adjust position until bubble is within the outer circle� CONDENSATE PAN, CONDENSATE PUMP AND FLOAT SWITCH A condensate pan is recommended when locating in or above a finished space or suspending over the canopy�...
  • Page 6: Model A77 - Remote Control And Wiring

    MODEL A77 – REMOTE CONTROL AND WIRING NOTE: Use 18-22 AWG wire for control wiring� FIGURE 5 – MODEL A77 REMOTE CONTROL WIRING Humidity can be controlled using the internal dehumidifier control, a Model A77 control or a different external control like a thermostat� Installing an external control eliminates the need to run the dehumidifier blower for sampling as the control is constantly measuring the humidity close to the canopy�...
  • Page 7: System Set-Up & Checkout

    SYSTEM SET-UP & CHECKOUT Skip set up and proceed to INSTALLER TEST MODE on page 8 unless: REMOTE CONTROL • A Model A77 or other external control is to be installed If not installing an A77, leave • Changing the air sampling rate DISABLED and press MODE to go 1.
  • Page 8: Installer Test Mode

    AIR SAMPLING INSTALLER TEST MODE Use the UP or DOWN button to If everything is properly wired, the dehumidifier and all of the adjust how frequently the wired components will turn on and off during Installer Test dehumidifier samples the air to Mode to demonstrate that all are properly operating�...
  • Page 9: Start Up And Sequence Of Operation

    START UP AND SEQUENCE OF OPERATION USING THE DEHUMIDIFIER CONTROL 1. Press the ON/OFF button to turn the dehumidifier control ON� The display will show the current setting, and the dehumidifier blower will turn on to start sampling the air� The setting will be replaced by the measured humidity and “AIR SAMPLING”...
  • Page 10: Maintenance

    MAINTENANCE CLEAN OR REPLACE THE AIR FILTER After initial installation the air filter should be checked and cleaned every 6 months� The CLEAN FILTER service reminder will display on the on-board control screen every 6 months� To clear the service message, press the buttons simultaneously for 3 seconds�...
  • Page 11: Removing And Reinstalling The Drain Insert

    REMOVING THE DRAIN INSERT REINSTALLING THE DRAIN INSERT 1. Turn the ON/OFF switch OFF� 1. Reinstall the drain insert by inserting your forefinger into the finger loop and grasping the outer edge of the finger loop with your thumb� 2. Remove the filter access door from the drain side of the dehumidifier� 2.
  • Page 12: Troubleshooting

    TROUBLESHOOTING Technical Support is available Monday through Friday, 7:00 a�m� to 5:00 p�m� CST, at (800) 972-3710� Use the guides on the following pages to identify and correct system faults� Contact Technical Support before replacing the unit or any components and for additional troubleshooting� DIAGNOSTIC CODES When an error occurs, the Diagnostic Code along with SERVICE REQUIRED will be displayed on the control screen�...
  • Page 13 TABLE 2 – TROUBLESHOOTING GUIDE Symptom Possible Reason Troubleshooting Procedure Dehumidifier does not No power to unit� • Check that the dehumidifier is plugged in� turn on/run� • Check that the power switch is turned ON� • Check that the control is turned ON� •...
  • Page 14: Service Parts

    SERVICE PARTS 90-2636 Part Description Part No. Part Description Part No. Filter, 11�88" x 13�5" x 1", MERV 11 5895 Sensor, High Temperature, Deh 5456 Internal Control Board, Deh 5444 Capacitor, Run, 50μF 5594 User Interface Assembly, Deh 5738 Capacitor, 12MFD, 450VAC, 100pt Deh, (fan) 5468 Wiring Access Door, Deh 5446...
  • Page 15: Limited Warranty

    WARRANTY REGISTRATION Visit us online at anden.com to register your Anden product� If you do not have online access, please mail a postcard with your name, address, phone number, email address, product purchased, model number, date of purchase, and dealer name and address to: Research Products Corporation, P�O� Box 1467, Madison, WI 53701�...
  • Page 16 P.O. Box 1467 Madison, WI 53701-1467 800.972.3710 F: 608.257.4357 Printed in USA ©2021 Anden – A Quality brand from Research Products Corporation 10015567 B2209250A 1.21...
