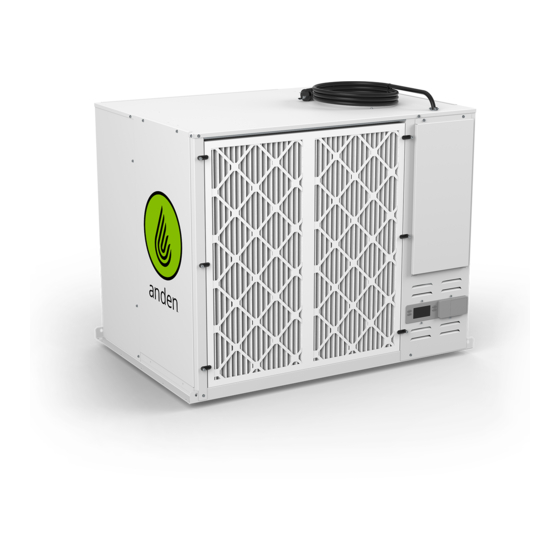

Model A710V1/V3 Dehumidifier
Quick Start Guide
The Quick Start Guide is to be used as reference only. Installation is to be in accordance with Installation and Operating Instructions provided with the dehumidifier.
1A. PLACEMENT
18"
MIN.
OUTLET
AVOID
INLET
OUTLET
HVAC RETURN
AIRFLOW
DIRECTION
1B. CLEARANCES
18" MINIMUM
INLET SIDE
ELECTRICAL SERVICE PANEL
18"
MIN.
OUTLET
90-2554
INLET
OUTLET
HVAC SUPPLY
90-2555
90-2556
18" RECOMMENDED
90-2530
2. HANGING
3. NUT & WASHER
90-2531
4. LEVEL
USE 3/8" OR 1/2" THREADED ROD
4X VIBRATION ISOLATORS
(OPTIONAL)
4X DOUBLE NUT BOTTOM WITH FLAT WASHER,
SINGLE NUT ON TOP
90-2531
90-2557
