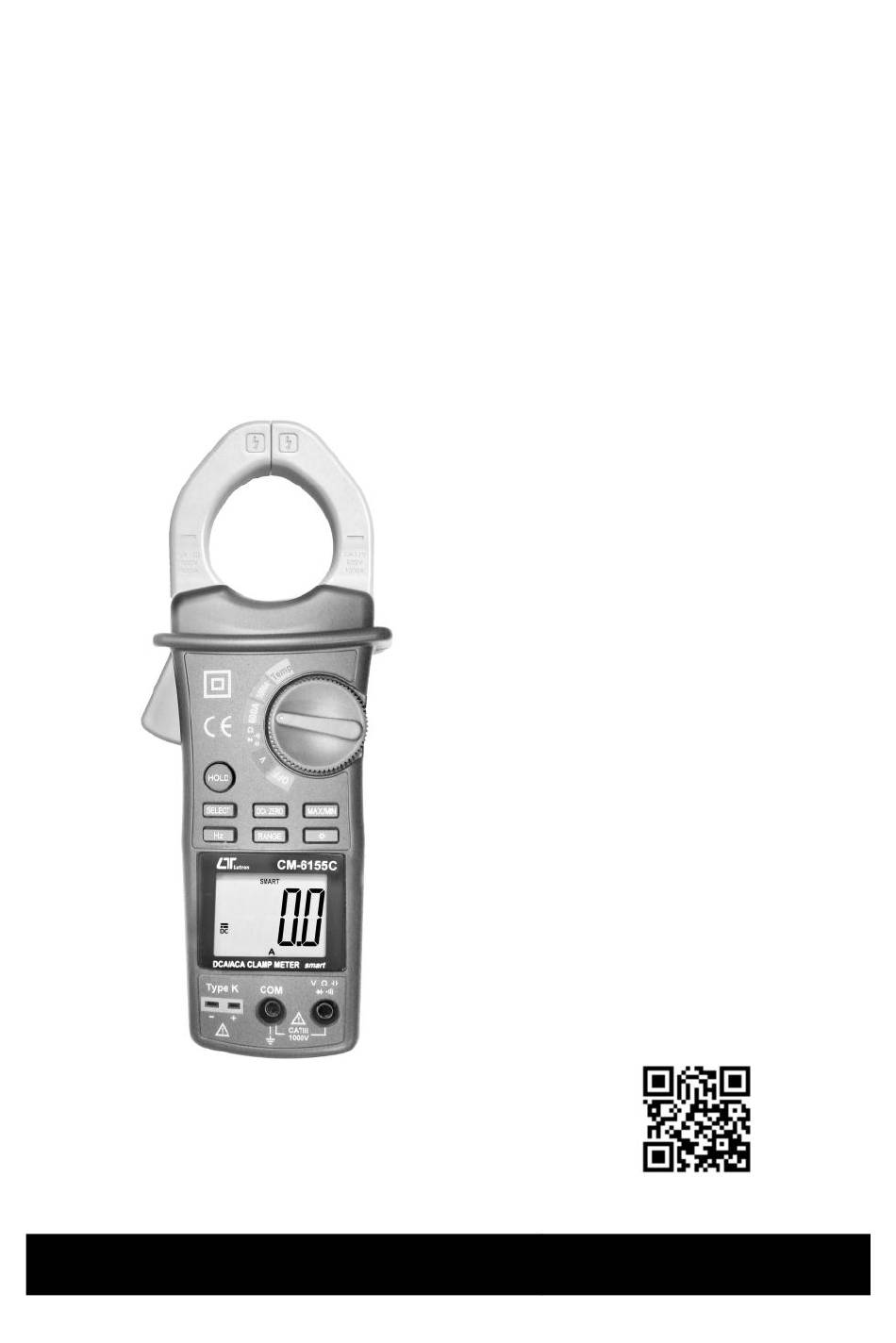

CLAMP METER
Model : CM-6155C
OPERATION MANUAL
Your purchase of this smart
DCA/ACA CLAMP METER
marks a step forward for
you into the field of
precision measurement.
Although this CLAMP
METER is a complex and
delicate instrument, its
durable structure will
allow many years of use
if proper operating
techniques are
developed. Please read
the following
instructions carefully
and always keep this
manual within easy
reach.
Advertisement
Table of Contents
Related Manuals for Lutron Electronics CM-6155C
Summary of Contents for Lutron Electronics CM-6155C
- Page 1 DCA/ACA S mart CLAMP METER Model : CM-6155C Your purchase of this smart DCA/ACA CLAMP METER marks a step forward for you into the field of precision measurement. Although this CLAMP METER is a complex and delicate instrument, its durable structure will...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. FEATURES..................2. SPECIFICATIONS................2-1 General Specifications..............2-2 Electrical Specifications..............3. FRONT PANEL DESCRIPTION............4. PRECAUTIONS & PREPARATIONS FOR MEASUREMENT................5. MEASURING PROCEDURE.............. 5-1 Symbols & Units of Display ............5-2 DC voltage, AC voltage Measurement ........5-3 Resistance Measurement.............. -
Page 3: Features
1. FEATURES Meet IEC 1010 CAT III 1000 V safety requirement. 6000 counts A/D, high resolution. * ACV, ACA, DCV, DCA, ohms, continuity, Hz, Capacitance, Diode,Temperature. * Smart function, Auto range or manual range with hold. * Smart operation, Build in 4 intelligent function : "... -
Page 4: Specifications
2. SPECIFICATIONS 2-1 General Specifications Display 39.5 mm x29.8 mm large LCD display Measurement DCV, ACV, DCA, ACA, Resistance, Capacitance, Frequency, Diode, Continuity beeper,Temperature. A/D counts no. 6000 counts. Smart function " V " function can select ACV, DCV automatically with auto range. "... -
Page 5: Electrical Specifications
Dimension 241 x94 x 46 mm ( 9.5 x 3.7 x 1.8 inch ). Weight 384 g/0.85 LB ( w.o battery ). Accessories Red and Black Test Leads...... 1 Set Included Instruction Manual........1 PC Soft carrying case ........1PC TP-01 Thermocouple Probe with plug .. - Page 6 DC Current, AC Current Range 600A/1000A Resolution 0.1A /1A Accuracy 600 A Range ± ( 1.5% + 15d ) 1000 A Range ± ( 2% +8d ) Over load AC/DC 1000A protection Remark * ACA specification be tested on sine wave 50/60 Hz. * Measurement range︰0.1A to 1000A Diode Short/non conductance, good/defect test...
- Page 7 OHMS * auto range Range 600/6 K/60 K/600 K/6 M/60M Resolution 0.1Ω/0.001K/0.01K/0.1K/0.001M/0.01M Accuracy 600 ohm : ±( 1 % + 2d ) 6K/60K/600K/6M/60M : ±( 1.5 % + 2d ) Over load ±350 DCV, 350 ACV. protection Continuity Beeper Beeper will sound if measured resistance less than 20 ohm. Max.
-
Page 8: Front Panel Description
3. FRONT PANEL DESCRIPTION Fig. 1 3-1 Current Sense Jaws 3-10 Display 3-2 Trigger 3-11 COM input terminal 3-3 Function rotary switch 3-12 V/ohm/Diode/Continuity/Cap. 3-4 HOLD button input terminal 3-5 SELECT button 3-13 Battery compatment/Cover 3-6 DCA Zero buttern 3-14 MAX/MIN buttern 3-7 Hz button 3-15 Temp. -
Page 9: Precautions & Preparations For Measurement
4. PRECAUTIONS & PREPARATIONS FOR MEASUREMENT 1) Ensure that the DC 9V batteries are connected with the right polarity and placed in the battery compartment correctly. 2) Place the Red & Black Test Leads into the proper input terminal before making measurement. 3) Remove either of the test leads from the circuit when changing the measurement range. -
Page 10: Measuring Procedure
5. MEASURING PROCEDURE 5-1 Symbols & units of display Symbols Descriptions Units SMART Appears when selecting " Smart " mode. The meter default mode is " Smart " AUTO Appears when selecting " Automatic range " mode. Appears when selecting DC mode. ( DC voltage or DC current ) Appears when selecting AC mode. -
Page 11: Dc Voltage, Ac Voltage Measurement
5-2 DC Voltage, AC voltage Measurement 1) Connect BLACK test lead into " COM " terminal ( 3-11,Fig. 1) 2) Connect RED test lead into " V " terminal ( 3-12, Fig. 1 ). 3) Select the " Function rotary switch " ( 3-3, Fig. 1 ) to the "... -
Page 12: Dc Current, Ac Current Measurement
5-4 DC Current, AC Current Measurement 1) Select the " Function rotary switch " ( 3-3, Fig. 1 ) to the " 600A" or "1000A " position, Display will show " SMART "marker. meter is under" Smart " mode for Current ACA , DCA auto scanning. 2) Press the "... -
Page 13: Continuity Check
5-6 Continuity Check 1) Connect BLACK test lead into " COM " terminal ( 3-11,Fig 1.) 2) Connect RED test lead into " " treminal (3-12,Fig 1) 3) Select the " Function rotary switch " ( 3-3, Fig. 1 ) to the "... -
Page 14: Capacitance Measurement
When connected as shown in Fig. 3, a reverse check on the diode is made. If the diode under test is good, " OL " will be displayed. If the diode under test is defective, " 0.000 " or other numbers will be displayed. Proper diode testing should include both steps a. -
Page 15: Smart/Auto Function Selection
5-9 Smart/Auto function selection When the Display show the " SMART ", the meter is ready for the Smart mode. Under the " Smart " mode if press the " SELECT button " ( 3-5, Fig. 1 ) once ( or once in sequence ) then can select the individual function, for example ACV, DCV , Diode, Capacitance, Continuity...testing. -
Page 16: Max/Min. Value Record
5-12 Max and Min. value record 1) Application : To record the maximum and the minimum reading value during the measurement. 2) Used the " SELECT button " ( 3-5, Fig. 1 ) to select the desired manual range. For the 600 A ( AC/DC ) range, it is only one range, do not necessary to use the "... -
Page 17: Maintenance
6. MAINTENANCE 6-1 Battery replacement Remove test leads before Caution : opening the battery cover ! 1) When the LCD display showing the mark of " "it is necessary to replace the battery, However in-spec. measurement may still be made for several hours after " Low battery indicator "... -
Page 18: Optional Accessories & Adapters
7. OPTIONAL ACCESSORIES & ADAPTERS Item Model Carrying Case CA-05A Light Adapter LX-02 EMF Adapter EMF-824 Pressure Adapter PS-403 Anemometer Adapter AM-402 Tachometer Adapter TA-601 Sound Adapter SL-406 High Voltage Probe HV-40... -
Page 19: The Address Of After Service Center
8. THE ADDRESS OF AFTER SERVICE CENTER 1502-CM-6155C...
