Lutron Electronics CD-4317SD Operation Manual

Conductivity meter with sd card real time data logger
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

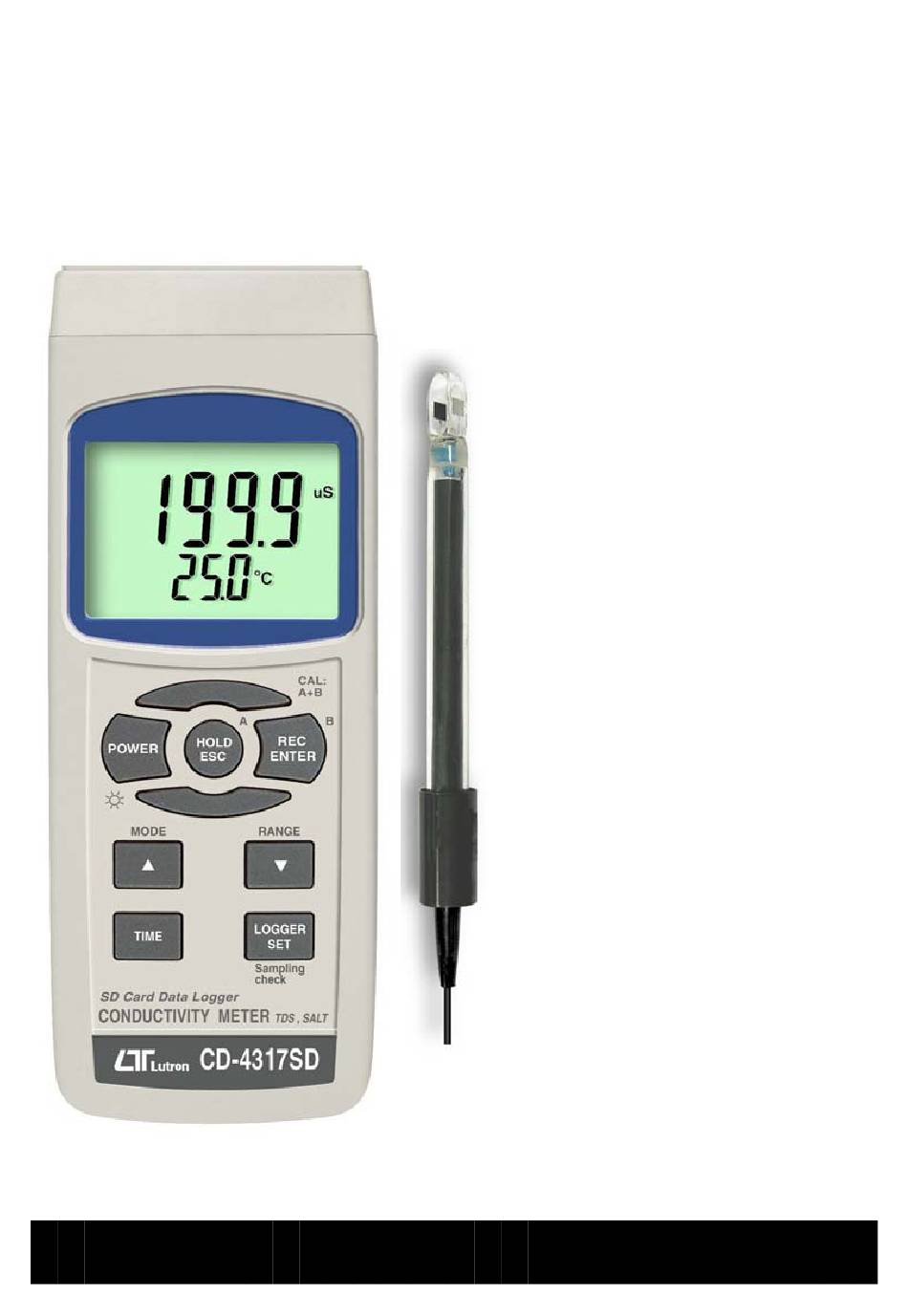

SD card real time data logger
TDS ( Total dissolved solids ), Salt
CONDUCTIVITY METER
Model : CD-4317SD
OPERATION MANUAL
Your purchase of this
CONDUCTIVITY METER
w i t h
S D
DATA LOGGER marks a
step forward for you
into
the
field
precision measurement.
Although this meter a
complex
and
instrument, its durable
structure
will
many years of use if
p r o p e r
o p e r a t i n g
t e c h n i q u e s
developed. Please read
t h e
f o l l o w i n g
instructions
and always keep this
manual
within
reach.
C A R D
of
delicate
allow
a r e
carefully
easy

Advertisement

Table of Contents
loading

Related Manuals for Lutron Electronics CD-4317SD

Summary of Contents for Lutron Electronics CD-4317SD

  • Page 1 SD card real time data logger TDS ( Total dissolved solids ), Salt CONDUCTIVITY METER Model : CD-4317SD Your purchase of this CONDUCTIVITY METER w i t h C A R D DATA LOGGER marks a step forward for you...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. FEATURES..............1 2. SPECIFICATIONS............2 2-1 General Specifications.......... 2 2-2 Electrical Specifications.........4 3. FRONT PANEL DESCRIPTION........6 4. MODE SELECTION.............8 5. CONDUCTIVITY/TDS MEASURING and CALIBRATION PROCEDURE........8 5-1 Conductivity measurement........9 5-2 TDS ( PPM ) measurement........10 5-3 Calibration............11 6.

  • Page 3: Features

    1. FEATURES * One meter for multi purpose operation : Conductivity, TDS ( Total dissolved solids ), Salt measurement. * Pt glass electrode, high performance for the low conductivity ( pure water ) measurement. * Conductivity : 200 uS/2 mS/20 mS/200 mS. * Salt : 0 to 12 % salt ( % weight ).

  • Page 4: Specifications

    2. SPECIFICATIONS 2-1 General Specifications Circuit Custom one-chip of microprocessor LSI circuit. Display LCD size : 52 mm x 38 mm LCD with green backlight ( ON/OFF ). Measurement * Conductivity ( uS, mS ) Function * TDS ( Total Dissolved Solids, PPM ) * Salt ( % Weight ) * Temperature ( ℃...
  • Page 5 Data Hold Freeze the display reading. Memory Recall Maximum & Minimum value. Sampling Time Approx. 1 second. of Display Data Output RS 232/USB PC computer interface. * Connect the optional RS232 cable UPCB-02 will get the RS232 plug. * Connect the optional USB cable USB-01 will get the USB plug.

  • Page 6: Electrical Specifications

    Optional * 1.413 mS Conductivity Standard Accessories Solution.......CD-14 SD memory card ( 1 GB ) SD memory card ( 2 GB ) AC to DC 9V adapter. USB cable, USB-01. RS232 cable, UPCB-02. Data Acquisition software,SW-U801-WIN. 2-2 Electrical Specifications (23± 5 ℃...
  • Page 7 Temperature Function Measuring Range ResolutionAccuracy to 60 0.1 ℃ ± 0.8 ℃ ℃ ℃ ℃ to 140 0.1 ℉ ± 1.5 ℉ ℉ ℉ ℉ * @ 23± 5 ℃ Salt Measurement 0 to 12 % salt ( % weight ). Range Resolution 0.01 % salt.

  • Page 8: Front Panel Description

    3. FRONT PANEL DESCRIPTION...
  • Page 9 3-1 Display 3-2 Power Button ( Backlight Button ) 3-3 Hold Button ( ESC Button ) 3-4 REC Button ( Enter Button ) 3-5 Mode Button ( Button ) ▲ 3-6 Range Button ( Button ) ▼ 3-7 Time Button 3-8 Logger Button ( SET Button, Sampling check ) 3-9 Stand 3-10 Battery Compartment/Cover...

  • Page 10: Mode Selection

    4. MODE SELECTION 1)Turn on the meter by pressing the " Power Button " ( 3-2, Fig. 1 ) momentarily. Pressing the " Power Button " ( 3-2, Fig. 1 ) continuously and > 2 seconds again will turn off the meter.

  • Page 11: Conductivity Measurement

    CDPB-04 probe Fig. 2 5-1 Conductivity measurement 1)Prepare the Conductivity Probe ( CDPB-04, standard accessory, included ), install the " Probe Plug " ( 5-1, Fig. 2 ) into the " Probe Socket " ( 3-13, Fig. 1 ). 2)Power on the meter by pressing " Power Button " ( 3-2, Fig.

  • Page 12: Tds ( Ppm ) Measurement

    Manual range operation The meter is default to be used for the auto range mode. Push the " Range Button " ( 3-6, Fig. 1 ) once in sequence will change the range from 200 uS, 2 mS, 20 mS, 200 mS and auto range. Change the Temp.

  • Page 13: Calibration

    5-3 Calibration 1)Prepare the standard conductivity solution ( optional ) For example : 2 mS range calibration solution : 1.413 mS Conductivity Standard Solution, CD-14 200 uS range calibration solution : 80 uS Conductivity Standard Solution 20 mS range calibration solution : 12.88 mS Conductivity Standard Solution or other Conductivity Standard Solution 2)Install the "...
  • Page 14 6)Press the " Enter Button " ( 3-4, Fig. 1 ), the measuring value will present on both upper and lower Display. Use " Button " ( 3-5, Fig. 1 ), " Button " ( 3-6, Fig. 1 ) ▲ ▼...

  • Page 15: Salt Measuring And Calibration Procedure

    6. SALT MEASURING and CALIBRATION 6-1 Salt measurement 1)Prepare the Probe ( CDPB-04, same probe as the conductivity measurement, refere to Fig. 2, page 9 ), install the " Probe Plug " ( 5-1, Fig. 2 ) into the " Probe Socket "...

  • Page 16: Other Function

    7. OTHER FUNCTION 7-1 Data Hold During the measurement, press the " Hold Button " ( 3-3, Fig. 1 ) once will hold the measured value & the LCD will display a " HOLD " symbol. Press the " Hold Button " once again will release the data hold function.

  • Page 17: Lcd Backlight On/Off

    7-3 LCD Backlight ON/OFF After power ON, the " LCD Backlight " will light automatically. During the measurement, press the " Backlight Button " ( 3-2, Fig. 1 ) once will turn OFF the " LCD Backlight ". Press the " Backlight Button " once again will turn ON the "...

  • Page 18: Auto Datalogger ( Set Sampling Time ≧ 1 Second )

    8-2 Auto Datalogger ( Set sampling time 1 second ) ≧ a. Start the datalogger Press the " REC Button ( 3-4, Fig. 1 ) once , the LCD will show the text " REC ", then press the " Logger Button " ( 3-8, Fig.

  • Page 19: Manual Datalogger ( Set Sampling Time = 0 Second )

    8-3 Manual Datalogger ( Set sampling time = 0 second ) a. Set sampling time is to 0 second Press the " REC Button ( 3-4, Fig. 1 ) once , the LCD will show the text " REC ", then press the " Logger Button " ( 3-8, Fig.

  • Page 20: Check Sampling Time Information

    2)If press " Time Button " ( 3-7, Fig. 1 ) once again , the lower LCD display will present the time information of Year/Month/Date ( yy.mm.dd ) in the lower Display. 3)If press " Time Button " ( 3-7, Fig. 1 ) once again , the LCD will return to normal screen.
  • Page 21 4)The file's route structure : CDA01\ CDA01001.XLS CDA01002.XLS ..... CDA01099.XLS CDA02\ CDA02001.XLS CDA02002.XLS ..... CDA02099.XLS CDAXX\ .......... Remark : XX : Max. value is 10.

  • Page 22: Saving Data From The Sd Card To The Computer

    9. Saving data from the SD card to the computer ( EXCEL software ) 1)After execute the Data Logger function, take away the SD card out from the " SD card socket " ( 3-17, Fig. 1 ). 2)Plug in the SD card into the Computer's SD card slot ( if your computer build in this installation ) or insert the SD card into the "...
  • Page 23 EXCEL data screen/graphic screen ( for example ) EXCEL graphic screen ( for example, graphic )

  • Page 24: Advanced Setting

    10. ADVANCED SETTING Under do not execute the Datalogger function, press the " SET Button " ( 3-8, Fig. 1 ) continuously at least two seconds will enter the " Advanced Setting " mode. then press the " SET Button " ( 3-8, Fig. 1 ) once a while in sequence to select the eight main function, the display will show : Sd F..
  • Page 25 10-1 SD memory card Format When the lower display show " Sd F " 1)Use the " Button " ( 3-5, Fig. 1 ) or " Button " ( ▲ ▼ 3-6, Fig. 1 ) to select the upper value to " yES " or "...
  • Page 26 2)After set all the time value ( Year, Month, Date, Hour, Minute, Second ), press the " SET Button " ( 3-8, Fig. 1 ) once will save the time value, then the screen will jump to Sampling time " setting screen ( Chapter 10-3 ). Remark : After the time value is setting, the internal clock will run precisely even Power off if the battery is under...
  • Page 27 10-4 Auto power OFF management When the lower display show " PoFF " 1)Use the " Button " ( 3-5, Fig. 1 ) or " Button " ▲ ▼ ( 3-6, Fig. 1 ) to select the upper value to " yES " or "...
  • Page 28 10-6 Decimal point of SD card setting The numerical data structure of SD card is default used the " . " as the decimal, for example "20.6" "1000.53" . But in certain countries ( Europe ...) is used the " , " as the decimal point, for example "...
  • Page 29 2)After Display unit is selected to " C " or " F ", press the " Enter Button " ( 3-4, Fig. 1 ) will save the setting function with default. 10-8 Set CD temperature compensation factor When the lower display show " PEr C " 1)This function only for the Conductivity ( TDS ) mode of adjusting the probe's Temp.compensation value in %/per...

  • Page 30: Power Supply From Dc Adapter

    11. POWER SUPPLY from DC ADAPTER The meter also can supply the power supply from the DC 9V Power Adapter ( optional ). Insert the plug of Power Adapter into " DC 9V Power Adapter Input Socket " ( 3-14, Fig. 1 ). The meter will permanent power ON when use the DC ADAPTER power supply ( The power Button function is disable ).

  • Page 31: System Reset

    13. SYSTEM RESET If the meter happen the troubles such as : CPU system is hold ( for example, the key button can not be operated... ). Then make the system RESET will fix the problem. The system RESET procedures will be either following method : During the power on, use a pin to press the "...
  • Page 32 The 16 digits data stream will be displayed in the following format : D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0 Each digit indicates the following status : Start Word When send the upper display data = 1 When send the lower display data = 2 D12, D11 Annunciator for Display uS = 13...

  • Page 33: Optional Accessories

    15. OPTIONAL ACCESSORIES Mmory card SD memory card ( 1 GB ) SD memory card ( 2 GB ) RS232 cable * Computer interface cable. UPCB-02 * Used to connect the meter to the computer ( COM port ). USB cable * Computer interface cable.

  • Page 34: Patent

    16. PATENT The meter ( SD card structure ) already get patent or patent pending in following countries : Germany Nr. 20 2008 016 337.4 JAPAN 3151214 TAIWAN M 358970 M 359043 CHINA ZL 2008 2 0189918.5 ZL 2008 2 0189917.0 Patent pending 1111-CD4317SD...
