ARIETE 1593, 1593/00 Manual

Symbols

The information provided in this manual is marked with the following symbols indicating:
Danger for children
Danger due to electricity
Danger of damage originating from other causes
Material damage

INTENDED USE

You can use the appliance to roll out the pasta dough. You can prepare lasagne, tagliatelle, tagliolini, pappardelle and fettuccine.
This appliance is designed only and solely for private use, and is therefore to be considered unsuitable for industrial or professional purposes. No other use of the appliance is contemplated by the manufacturer, which is exempt from any liability for all types of damages caused by improper use of the appliance. Improper use also results in any form of warranty being forfeited. $ny modification of the appliance is forbidden. It is forbidden to use the appliance with motors or accessories other than the provided ones.

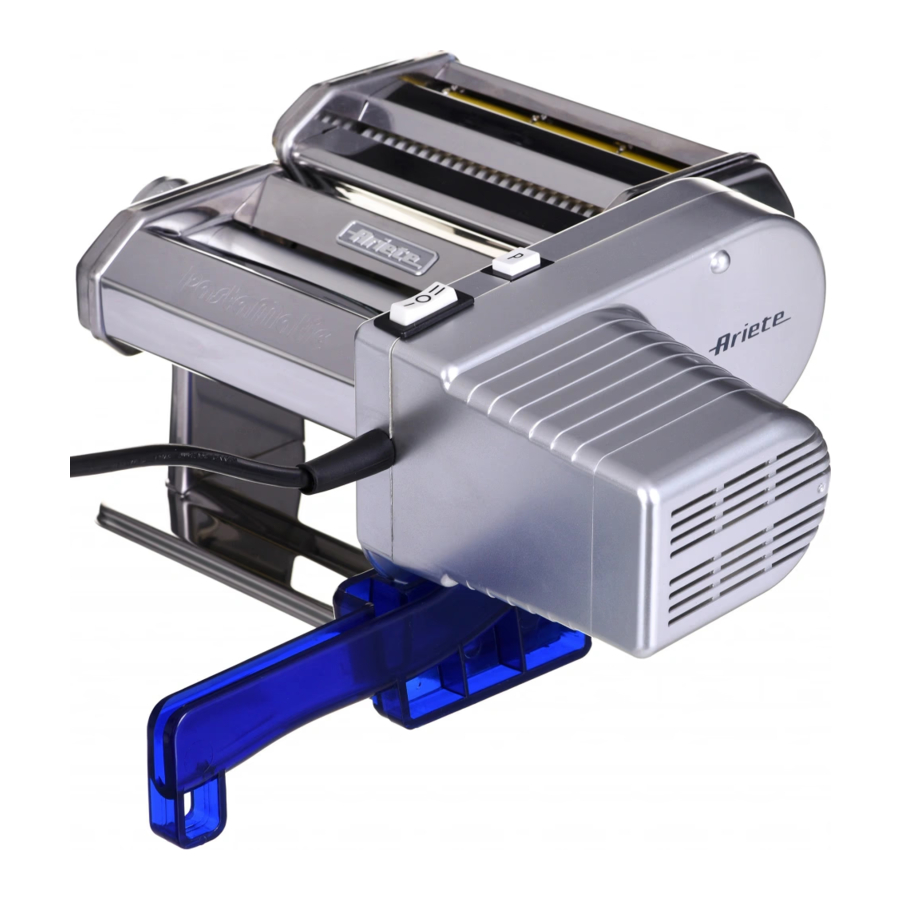

DESCRIPTION OF THE APPLIANCE

1. Double roller for pappardelle and fettuccine
2. Roller attachments
3. Regulator for the dough thickness with 9 positions
4. Base with lasagne rollers
5. Support bracket
6. Clamp
7. Power cord + plug
8. Motor body
9. On/off switch and speed selector
10. Pulse button for pulse functioning
11. Drive shaft
12. Crank handle
13. Double roller for tagliatelle and tagliolini

Identification data
The plate located under the appliance support base shows the following identification data:

• manufacturer and CE marking
• model (Mod. )
• serial number (SN)
• electrical supply voltage (V) and frequency (Hz)
• electrical power consumption (W)
• assistance toll-free phone number

When ordering at Authorized Service Centers, indicate the model and serial number.

INSTRUCTIONS FOR USE

Before use

Attention
Check that the domestic mains voltage is the same as the voltage indicated on the label of the device.
Attention
Always set the on "0" switch on before plugging in.
Before using, make sure the motor can be shut down quickly in case of emergency:
Wash the components as described in the "Cleaning the appliance" paragraph.
The appliance can be used by hand with the crack handle (L), and the clamp (F) or with the motor (H).

Use the appliance with the motor

Attention
Danger of fingers, hair, clothing, bracelets and necklaces dragging. During use, make sure clothing, hair, and jewellery such as bracelets and necklaces cannot get caught in the appliance rollers.

1. Place the base with lasagne roller (D) on an horizontal surface capable of supporting its weight.
2. Insert the support bracket (E) in the right side of the appliance.

3. Take the motor body and insert the drive shaft in the lasagne roller hole.

   If the drive shaft does not enter, try to move the motor body up and down. The drive shaft (K) has to be aligned with the roller hole.

4. Hold the appliance with one hand and with the other push the motor to insert the support tab in the support bracket (Fig. 5). Push firmly (Fig. 6).

5. Make sure that the on/off switch is in the position "0" (Fig. 7). Insert the plug into a power outlet.

6. To start the motor set the on/off switch on the "I" or "II" position based on the desired speed: "I" for normal speed, "II" for turbo speed.
7. Pulse mode can be activated pressing the pulse button (J). Pulse mode can be activated only if the on/off switch is in the position "0". The rollers turn only when the button is pressed.

8. Turn off the motor after use. Set the on/off switch in the position "0". Unplug it from the socket-outlet. Do not use the appliance for more than one hour consecutively, then let rest for one hour.

Use the appliance by hand

1. Place the base with lasagne roller (D) on an horizontal surface capable of supporting its weight.
2. Insert the clamp (F) in the hole on the side of the base with lasagne rollers.

3. Screw the clamp and block the base to the surface.
4. Insert the crank handle (L) in the hole of the desired roller.


Use of the lasagne rollers

If you want to prepare lasagne you can use only the base with lasagne rollers. It is not necessary to use the double rollers.

1. Turn the regulator for the dough thickness counter-clockwise (Fig. 9). Towards "1" for a thicker dough.

2. Introduce between the lasagne rollers the dough previously prepared. Activate the motor or turn the crack handle clockwise to make the rollers turn. You will obtain a first dough sheet. If possible work the dough with both hands, hold the dough as stretched as possible, while you insert it and pull it out from the lasagne rollers.
3. Fold the dough in two. Dust the dough with flour. Roll out the dough again. Repeat the operation till you will have a uniform dough sheet.
4. To reduce the thickness of the dough you must reduce the distance between the rollers. Turn the regulator for the dough thickness clockwise. Towards "9" for a thinner dough.
5. Roll out the dough for several times, flouring it every time, till you will obtain the desired thickness.

For an optimal result we suggest you to dust the dough with flour on each side every time.

Use the double rollers

Before cutting the dough with the double rollers for pappardelle and fettuccine or for tagliatelle and tagliolini you need to roll out the dough. Use the lasagne rollers to roll out the dough.
After making the dough sheets with the lasagne rollers you can cut the dough in the desired pasta format.

1. Remove the motor body (H) or the crack handle (L) from the lasagne rollers.
2. Choose the pasta format that you want to prepare and assemble the suitable roller on the base (Fig. 10). Hook the roller on the roller attachments (B) (Fig. 11).


3. Insert the motor or the crack handle in the hole of the desired roller.

4. If you insert the motor in the external hole of the rollers, it does not need to be fitted in the bracket.
5. Put an end of the dough sheet on the roller and activate the motor or turn the crack handle clockwise.

After using

1. At the end of each use unhook the motor from the support bracket. Pull out the drive shaft or the crack handle from the hole of the lasagne rollers or from one of the holes of the other rollers.

2. Unhook the support bracket opening the inner side (Fig. 14). Pull out the support bracket from the base side.

3. Wash the components as described in the "Cleaning the appliance" paragraph.

APPLIANCE CLEANING

Attention
All cleaning operations described below must be carried out with the appliance off and with the plug disconnected from the outlet.
Attention
Good maintenance and regular cleaning preserve and keep the appliance operating efficiently for a longer period of time.

Cleaning of the motor body
Never wash the motor body with water or in the dishwasher. Clean with a dry cloth before and after every use.

Cleaning the base and the double rollers
At the end of each use remove the double roller from the base with lasagne rollers.
Do not remove the residual dough with blunt objects. Use a soft brush to clean the most difficult parts.
The base with lasagne rollers and the double rollers can be washed in the upper part of the dishwasher or with running water.
Attention
Do not use abrasive detergents or metal utensils as they will scratch the steel surfaces.
Make sure that all the components are completely dry before storing them.

TROUBLESHOOTING

If there are problems with operation, immediately turn off the appliance and unplug it from the socket-outlet.

RESIDUAL RISKS

The constructive characteristics of the appliance, covered by this publication, do not allow to protect the user from dragging due to the rollers movement.
Attention
Danger of fingers, hair, clothing, bracelets and necklaces dragging. During use, make sure clothing, hair, and jewellery such as bracelets and necklaces cannot get caught in the appliance rollers.

IMPORTANT SAFEGUARDS

READ THESE INSTRUCTIONS CAREFULLY.

• ‡This appliance is for household use only.
• ‡We decline any responsibility resulting from misuse or any use other than those covered in this booklet.
• ‡We suggest you keep the original box and packaging, as our free-of-charge service does not cover any damage resulting from inadequate packaging of the product when this is sent back to an Authorised Service Centre.
• ‡This appliance can be used by persons who have reduced physical sensory or mental capabilities, or lack of experience and knowledge, only if they are monitored by a responsible person or if they have received and understood instructions regarding the appliance safe use and if they have understood the dangers which may arise during the appliance use:
• ‡The appliance complies with Regulation EC No of on the materials in contact with food.

Danger for children

• ‡This appliance must not be used by children.
• ‡Children shall not play with the appliance or its components.
• ‡Do not leave the packaging near children because it is potentially dangerous.
• ‡Keep the appliance and its cord out of the reach of children.
• ‡Do not let the power cord hang in a place where it could be grasped by a child.
• ‡In the event that this appliance is to be disposed of, it is suggested that the power cord is cut off. It is also recommended that all potentially dangerous components including the power cord are rendered harmless to prevent personal injury. Do not let children play with the appliance or its components.

Danger due to electricity

• Before connecting the unit to the power supply check that the voltage shown on the plate located under the appliance corresponds to the local mains.
• The use of extensions not approved by the manufacturer can result in damage to property and personal injury.
• If the power cord is damaged, it must be replaced by the manufacturer or by its Technical Assistance Service or by a similarly qualified person in order to avoid any hazard.
• Never put live parts into contact with water: It can cause a short circuit!
• The appliance must not be power supplied by external timers or separate remote-controlled systems.
• Remove the plug from the power outlet before cleaning or maintenance.
• Never touch the appliance, the plug and the power cable with wet hands.
• Do not immerse the motor body in water or other liquids.
• Do not use the appliance near water containers or sinks.
• Always turn off the motor switching the on/off switch on "0" and then unplug.
• If the motor body falls into water, do not try to reach it, but immediately remove the plug from the power socket.
• The components assembly and disassembly must be carried out with the appliance off and power cord unplugged from the power outlet.

Danger of damage originating from other causes

• ‡Choose an adequately illuminated and clean room with easily accessible power outlet.
• ‡Never leave the appliance unattended when it is connected to the power supply.
• ‡The appliance must not be used if it has been dropped, if there are visible signs of damage or leaks of water. Do not use the appliance if the power cord or the plug are damaged, or if the appliance is faulty. To prevent any accident, all repairs, including the replacement of the power cord, must be carried out by an Authorised Service Centre or by suitably qualified personnel.

Material damage

• ‡The appliance must be used and left at rest on a stable surface.
• ‡Always unwind the power cord before use.
• ‡Do not pull the power cord to unplug the appliance.
• ‡Do not use the appliance outdoors.
• ‡Do not position the appliance on very hot surfaces or close to open flames to prevent the casing from being damaged.
• ‡Do not place the appliance close to or on top of hot electric or gas cookers, or close to a microwave oven.
• ‡Do not leave the appliance exposed to weathering rain, sun, etc..
• To dispose of product correctly according to European Directive E8, please refer to and read the provided leaflet enclosed with the product.

Power consumption in off mode: 0,0 W
