ARIETE Vintage 2878 - Milk Frother Manual

INTENDED USE AND PLACE OF USE

The appliance is intended to heat and froth milk. Do not pour any other liquid or solid food in it.
The appliance is designed for home use or similar, such as
- shops, offices or similar workplaces,
- farms,
- hotels, motels, bed and breakfasts and other types of residential structures (for use by its guests).
The appliance is suitable for use in closed and dry places.

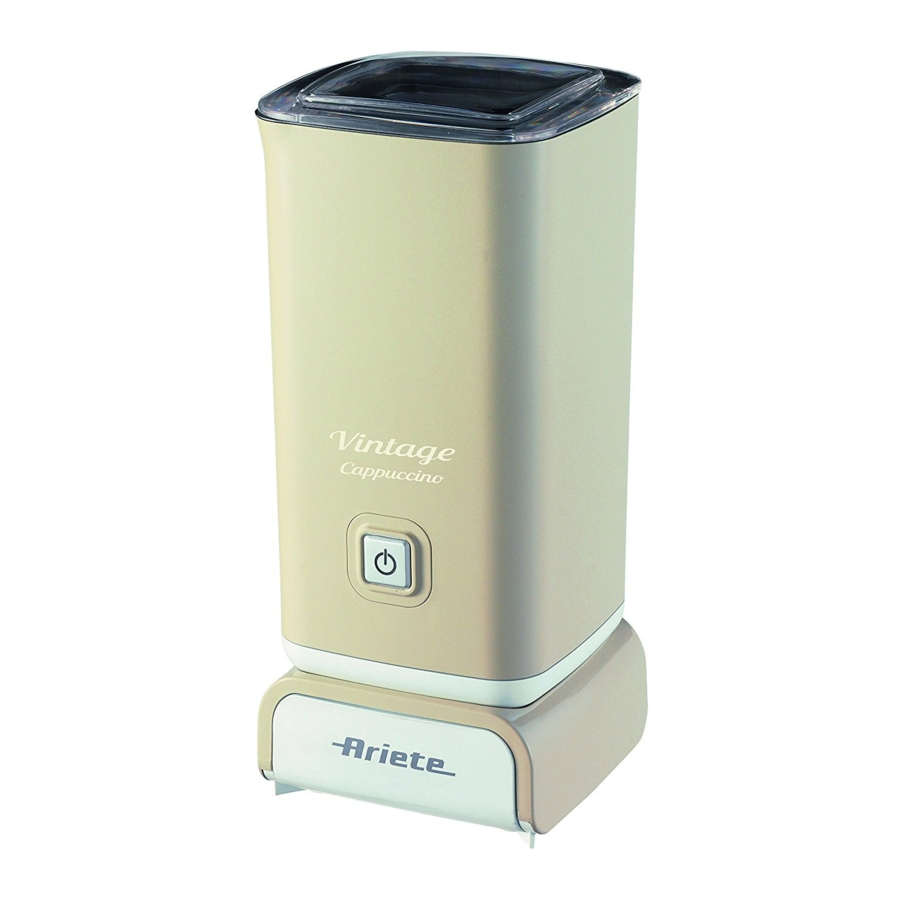

DESCRIPTION OF THE APPLIANCE

DESCRIPTION OF THE APPLIANCE
See Fig. 1

Lid
Insert for rich froth
Insert for light froth
Spout
MAX and MIN level
Container
Sleeve for insert
Operation indicator
On-off switch
Power cord + Plug
Power supply base
Accessory compartment for one insert

PRELIMINARY PHASES FOR USE

Starting the appliance

warning Danger to children - Danger of death by suffocation and ingestion
Do not leave the packaging near children because it is potentially dangerous.

Remove all packaging materials and make sure all components are present.
Clean the container, the inserts, the sealing ring and the lid as described in the "Cleaning" chapter.

Place the base

risk of death by electric shock
Connect the appliance to an electrical outlet installed in accordance with the standards and fitted with a protective contact, whose mains voltage is fully compliant with the technical data of the appliance.

Warning against scalds and burns
Place the appliance on a flat, steady and easily accessible surface. Prevent the appliance from sliding and that the power cable hangs down from the supporting surface.
Prevent children from grabbing the power cord, in this way tipping over the appliance.
Position the appliance so that children cannot reach the hot parts.

material damage
Do not place the appliance or power cord close to or on top of hot electric or gas cookers, or close to a microwave oven.

Place the base on a flat and steady surface.
Plug into the mains socket.

The appliance is ready for use.

Choose the insert and pour milk

To obtain a large amount of froth fit the insert with spiral.

Instead to warm slightly frothed milk or froth smaller amount, use the insert without spiral.

To avoid losing it, keep the insert that is not used in the compartment located at the bottom of the base.

material damage
Respect the MIN and MAX marks inside the container. The sleeve in the bottom of the container must be covered by milk. In case of insufficient amount of milk, the appliance may overheat. In case of excessive amount, milk can instead overflow.

Remove the lid of the container.
Insert the appropriate insert into the sleeve at the bottom of the container.
Pour the milk to the maximum level, shown by the dash at the MAX mark:

	MAX for the insert with spiral.
	MAX for the insert without spiral.

Place the lid firmly on the container.

Froth and heat the milk

information During the first heating a slight odour may develop, which is not dangerous. Provide adequate ventilation.

Shortly press the ON/OFF button.

The operation indicator light switches on in red.
The appliance starts heating and frothing the milk.
When

the insert with spiral is used, the frothing process will have a duration of about 1.5 minutes,
the insert without spiral, the frothing process will have a duration of about 2 minutes.

The heating and frothing process then stops automatically.
Then remove it is possible to remove the container from the base.

Froth the milk cold

It is also possible to froth the milk without heating it. To obtain a soft and creamy froth use only the insert with spiral.

Press the ON/OFF switch and hold down for about 2 seconds, until the appliance starts to froth milk.

The indicator light switches on in blue. The appliance starts to froth milk. After about 1 to 1.5 minutes, the milk frothing process stops automatically. Then remove it is possible to remove the container from the base.

Stop or finishing the milk heating and frothing in advance

Press the ON/OFF switch.

The operation indicator light turns off.

To continue to heat and froth, press the ON/OFF button again:
- briefly, if you want to heat and froth
- for a long time, if you want to froth without heating.

Turn off the appliance

To completely disconnect the appliance from the power supply after use, remove the plug from the electrical outlet.

SAFETY DEVICES

If the appliance has been switched on empty, after about 30-40 seconds it will automatically switch off to avoid overheating. Any intervention must be carried with cold appliance.

CLEANING

Danger - risk of death by electric shock
Unplug it from the electrical outlet before cleaning the appliance.
The base, the plug and the power cable should not be exposed to moisture. These parts must also be protected against possible splashes or drops of water.
The container must never be immersed in water or other liquids. Water must never penetrate in the electrical components.

material damage
For cleaning do not use any chemical, abrasive or aggressive detergent.

information After each heating and frothing process immediately clean the container, in order to avoid that milk dries inside it.

Unplug it from the socket-outlet.
Remove the sealing ring from the lid and remove the insert from the sleeve into the container.
Wash the lid, seal ring and inserts with warm water and a dishwashing liquid.
Only wash the inside of the container with warm water and dishwashing liquid.
If necessary, clean the base with a slightly damp cloth.
Carefully dry all parts, especially the container to avoid the formation of stains.
Re-insert the seal ring in the groove of the lid.

FAULTS AND SOLUTIONS

No operation	Is the plug inserted in the electrical outlet?
The heating and frothing process stops before the required time	If, after a heating and frothing process, a new process starts immediately, this will last much less than usual.
The operation indicator light turn on in blue	The appliance is overloaded. Unplug it from the electrical outlet, pour a small amount ofmilk from the container and restart the appliance. The MAX marking should not be exceeded.
The milk is heated but not frothed	Is the insert for frothing properly inserted into the sleeve on the bottom of the container?
The milk is heated but not frothed in a satisfactory manner	Has the appropriate insert been used? Is there dirt on the insert or on the bottom of the container?
The appliance is unusually noisy	Is there enough milk in the container? Is the insert properly fitted in the sleeve? Is the cover well fixed on the container?

PRELIMINARY NOTE ON THE INSTRUCTIONS FOR USE

This appliance is equipped with all necessary safety devices. Nevertheless, carefully read all the safety warnings and use the appliance only as described in these instructions, to prevent injury or accidental damage. Keep these instructions for future reference at a later time. If the appliance is sold, also deliver these instructions for use to the new owner.
Symbols included in these instructions for use:
warning This symbol warns of the risk of injury
shock hazard This symbol warns of electrical injuries risk.

Indication words:

warns of possible serious injury or danger of death;

warns of injuries and serious damage to property;

warns of minor injuries or damage to property.

Additional information is marked in this way.

IMPORTANT SAFEGUARDS

READ THESE INSTRUCTIONS CAREFULLY.

RISK of using the appliance by children and persons with reduced capabilities

Children shall not play with the appliance. Keep children under 8 years away from the appliance and the power cord.
This appliance can be used by children older than 8 years and by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge only under supervision or after having been instructed on the safe use of the appliance and possible dangers.
Children do not have to clean the appliance, unless they are over 8 years and are supervised.
Place the appliance in a place inaccessible to children.
Keep children away from packaging materials. There is also the danger of suffocation!

DANGER from electricity

The appliance must never be immersed in water or other liquids. Water must never penetrate in the electrical components.
The base, the plug and the power cable must not come into contact with water or other liquids, to avoid the danger of an electric shock. For the same reason do not place the appliance near a sink and/or a tub. Do not use the appliance outdoors or in rooms with high level of humidity.
Never touch the appliance, the plug and the power cable with wet hands.
Connect the appliance to an electrical outlet installed in accordance with the standards and fitted with a protective contact, whose mains voltage complies with the technical data of the appliance.
Never leave the appliance unattended while in use.
Unplug it from the electrical outlet,
- when faults occurs during operation,
- after use,
- in the case of storms
- before cleaning the appliance.

Always disconnect the plug, without pulling the power cable.

The socket must be accessible, so that in case of need the plug can be easily extracted.
The power cable must not be bent or crushed. The device and the power cable must be kept away from hot surfaces and sharp edges.
The appliance must never be connected and put into operation with a timer or a separate remote start-up system.
Do not operate the appliance when there are no signs of visible damage on it or on the power cable, or when the appliance has been dropped.
Do not make any changes to the product. Even the power cable must not be replaced on your own.
Repairs to the appliance or the cable replacement must be carried out by a specialized workshop and/or our service center.
Improper repairs can cause serious danger to the user.

WARNING against scalds and burns

The container and the lid become hot during use! Do not touch the hot surfa-ces. Take the container only from the bottom and the lid only from the edge. Let them cool both before cleaning.
The hot milk and steam can cause burns. Use the appliance only when the lid is firmly on the container. Do not touch the appliance and its top when it is in operation. In particular, pay attention to the release of steam when opening the lid.
Place the appliance on a flat, stable surface, easily accessible and easy to clean. The appliance must not slip or tilt. Lay the power cable properly so as to avoid any danger of tripping. Make sure the power cable does not hang down from the supporting surface in order to avoid it from being pulled causing the appliance to fall to the ground.

material damage

Respect the MIN and MAX marks inside the container. The sleeve in the bottom of the container must be covered by milk. In case of insufficient amount of milk, the appliance may overheat. In case of excessive amount, milk can instead overflow.
Before removing the container from the base, make sure that the heating and foaming process is completed and/or the appliance is off. Place the appliance at a sufficient distance from heat sources, such as. electric cooking plates or stoves.
For cleaning do not use any chemical, abrasive or aggressive detergent.
The appliance and its accessories are not suitable for dishwashers.
Use only original accessories.
It cannot be fully excluded out that certain types of paint, plastic or furniture detergents may attack and soften the non-slip feet material. To avoid the formation of undesirable marks on the furniture, put possibly a non-slip base under the appliance.
Use only original accessories.
SAVE THESE INSTRUCTIONS FOR FUTURE REFE-RENCE.

information The quantity and quality of the foam depend on many factors, including the milk fat content, the use of fresh or long-life milk, the milk temperature and brand.

To avoid that milk froths excessively, if you are using a new type of milk do not immediately fill the container up to the MAX mark, but first make a test with a smaller amount. If milk should spill, immediately turn off the appliance. Wait until it cools a little, then clean it (see "Cleaning"chapter). We got the best results with semi-skimmed milk (1.5% fat).
