Chapter 10. Software RAID Configuration

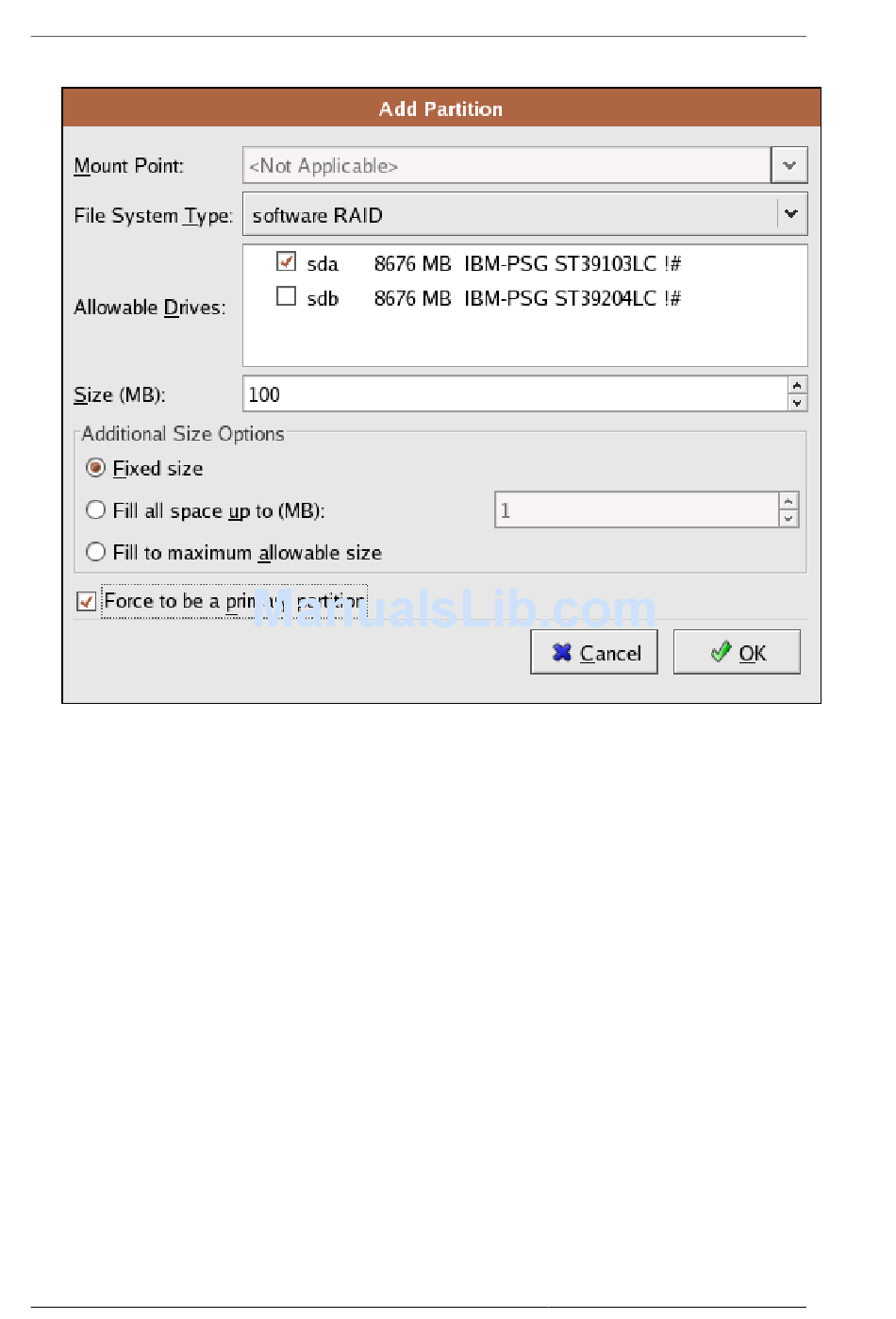

Figure 10.3. Adding a RAID Partition
4. Enter the size that you want the partition to be.
5. Select Fixed size to make the partition the specified size, select Fill all space up to (MB) and
enter a size in MBs to give range for the partition size, or select Fill to maximum allowable size
to make it grow to fill all available space on the hard disk. If you make more than one partition
growable, they share the available free space on the disk.
6. Select Force to be a primary partition if you want the partition to be a primary partition. A
primary partition is one of the first four partitions on the hard drive. If unselected, the partition is
created as a logical partition. If other operating systems are already on the system, unselecting
this option should be considered. For more information on primary versus logical/extended
partitions, refer to the appendix section of the Installation Guide.
7. Click OK to return to the main screen.
Repeat these steps to create as many partitions as needed for your RAID setup. Notice that all the
partitions do not have to be RAID partitions. For example, you can configure only the /boot/ partition
as a software RAID device, leaving the root partition (/), /home/, and swap as regular file systems.
Figure 10.4, "RAID 1 Partitions Ready, Pre-Device and Mount Point Creation"
allocated space for the RAID 1 configuration (for /boot/), which is now ready for RAID device and
mount point creation:
96
shows successfully
