Chapter 17. Network Configuration

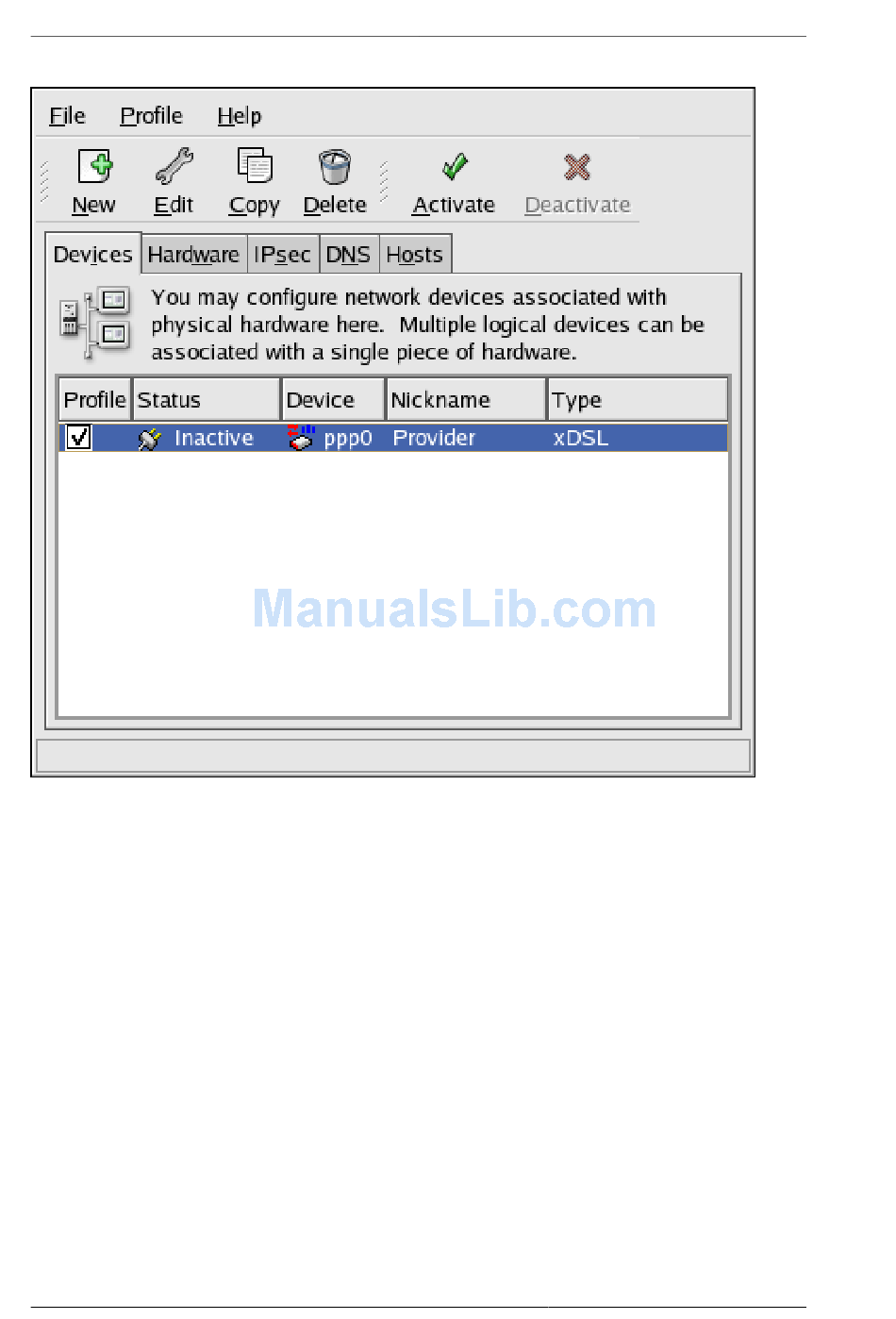

Figure 17.9. xDSL Device
Be sure to select File => Save to save the changes.
After adding the xDSL connection, you can edit its configuration by selecting the device from the
device list and clicking Edit. For example, when the device is added, it is configured not to start at boot
time by default. Edit its configuration to modify this setting.
When the device is added, it is not activated immediately, as seen by its Inactive status. To activate
the device, select it from the device list, and click the Activate button. If the system is configured to
activate the device when the computer starts (the default), this step does not have to be performed
again.

17.6. Establishing a Token Ring Connection

A token ring network is a network in which all the computers are connected in a circular pattern.
A token, or a special network packet, travels around the token ring and allows computers to send
information to each other.
