Red Hat ENTERPRISE LINUX 4 System Administration Manual page 72

Chapter 3. PXE Network Installations

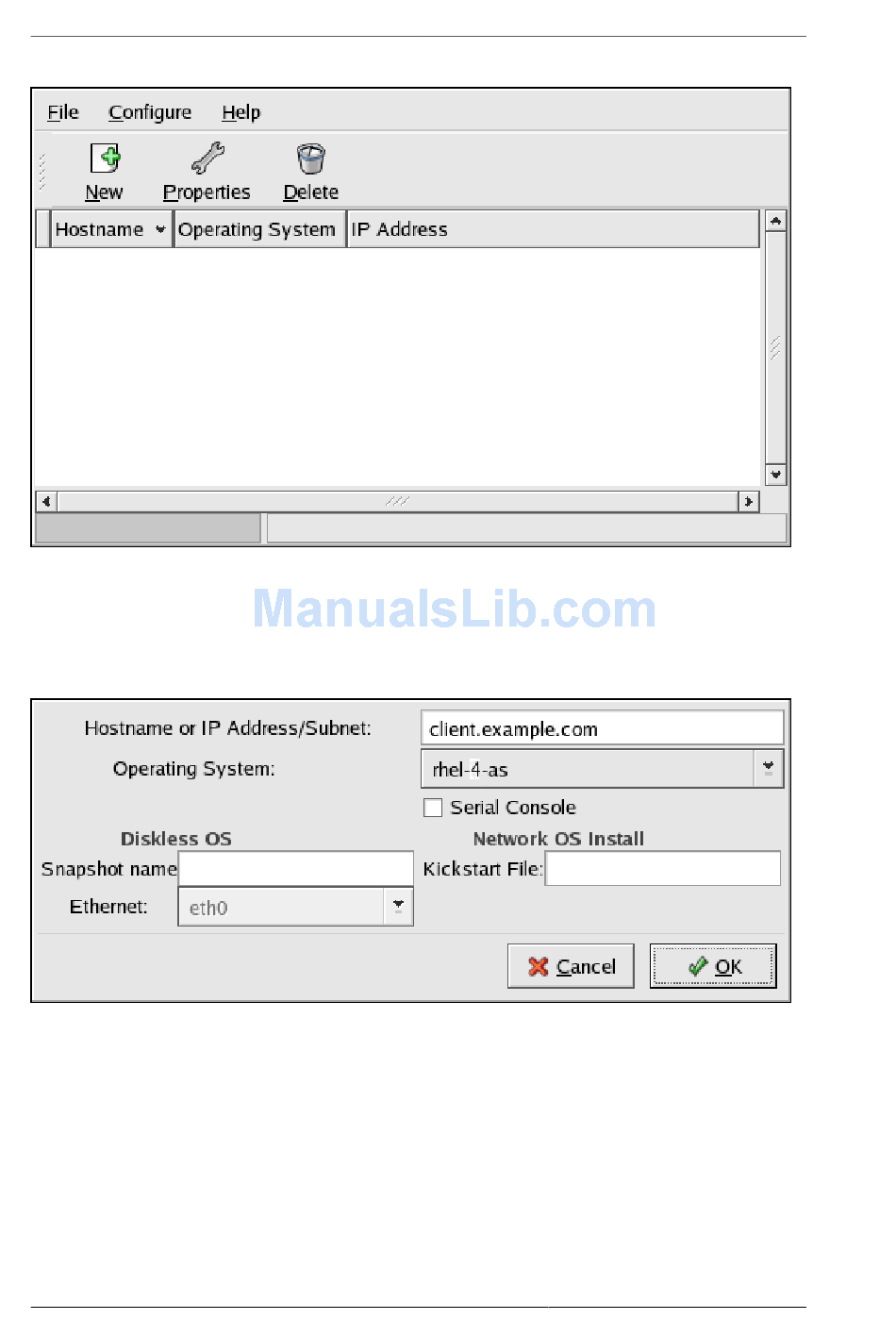

Figure 3.2. Add Hosts
The next step is to configure which hosts are allowed to connect to the PXE boot server. For the
command line version of this step, refer to
To add hosts, click the New button.
Figure 3.3. Add a Host
Enter the following information:
• Hostname or IP Address/Subnet — The IP address, fully qualified hostname, or a subnet of
systems that should be allowed to connect to the PXE server for installations.
• Operating System — The operating system identifier to install on this client. The list is populated
from the network install instances created from the Network Installation Dialog.
• Serial Console — This option allows use of a serial console.
54
Section 3.3.1, "Command Line Configuration".
