Tip
For more information on using token rings under Linux, refer to the Linux Token Ring
Project website available at http://www.linuxtr.net/.
To add a token ring connection, follow these steps:
1. Click the Devices tab.
2. Click the New button on the toolbar.
3. Select Token Ring connection from the Device Type list and click Forward.
4. If you have already added the token ring card to the hardware list, select it from the Tokenring
card list. Otherwise, select Other Tokenring Card to add the hardware device.
5. If you selected Other Tokenring Card, the Select Token Ring Adapter window as shown in
Figure 17.10, "Token Ring Settings"
Select the device name. If this is the system's first token ring card, select tr0; if this is the second
token ring card, select tr1 (and so on). The Network Administration Tool also allows the user to
configure the resources for the adapter. Click Forward to continue.

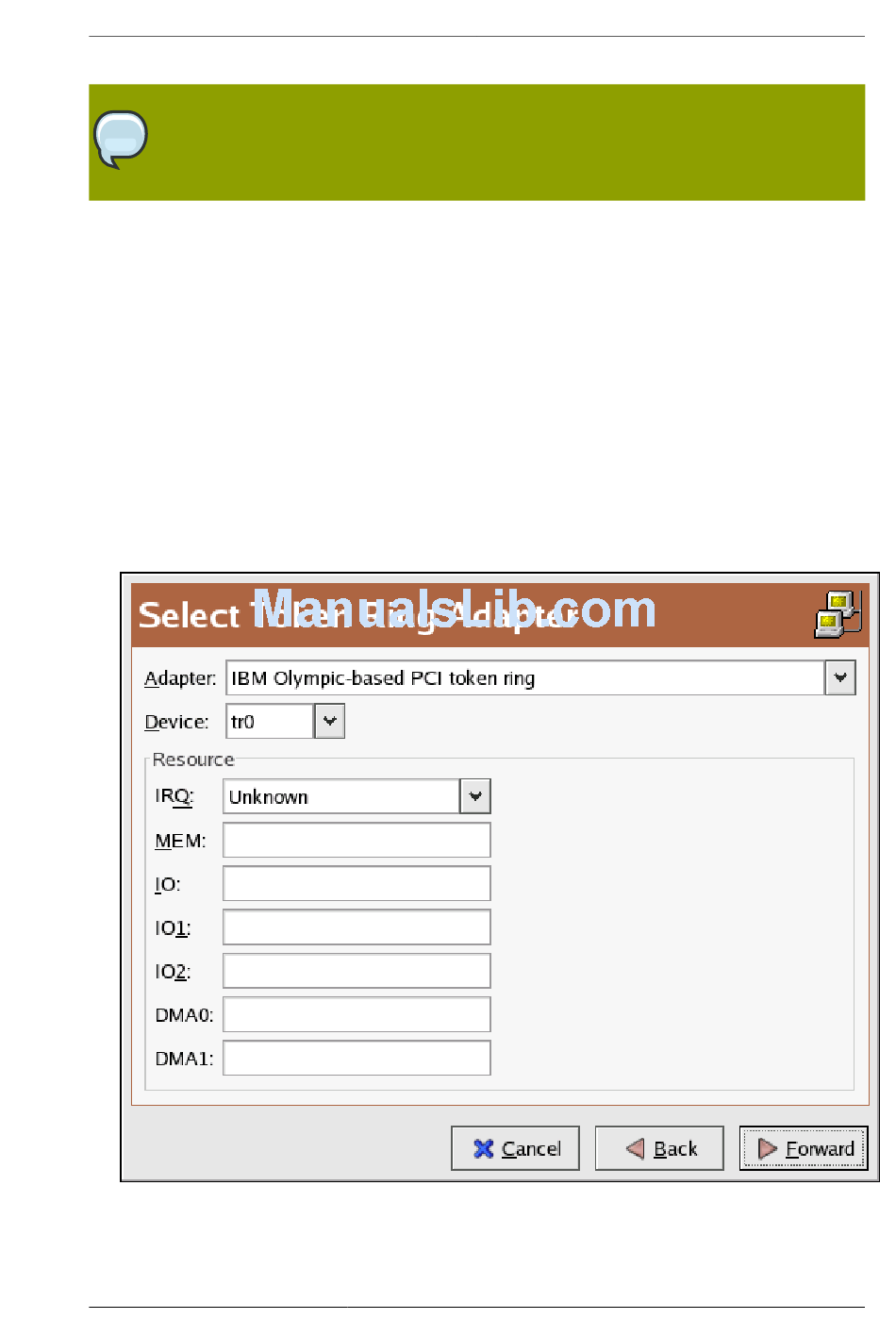

Figure 17.10. Token Ring Settings
appears. Select the manufacturer and model of the adapter.
Establishing a Token Ring Connection
161
