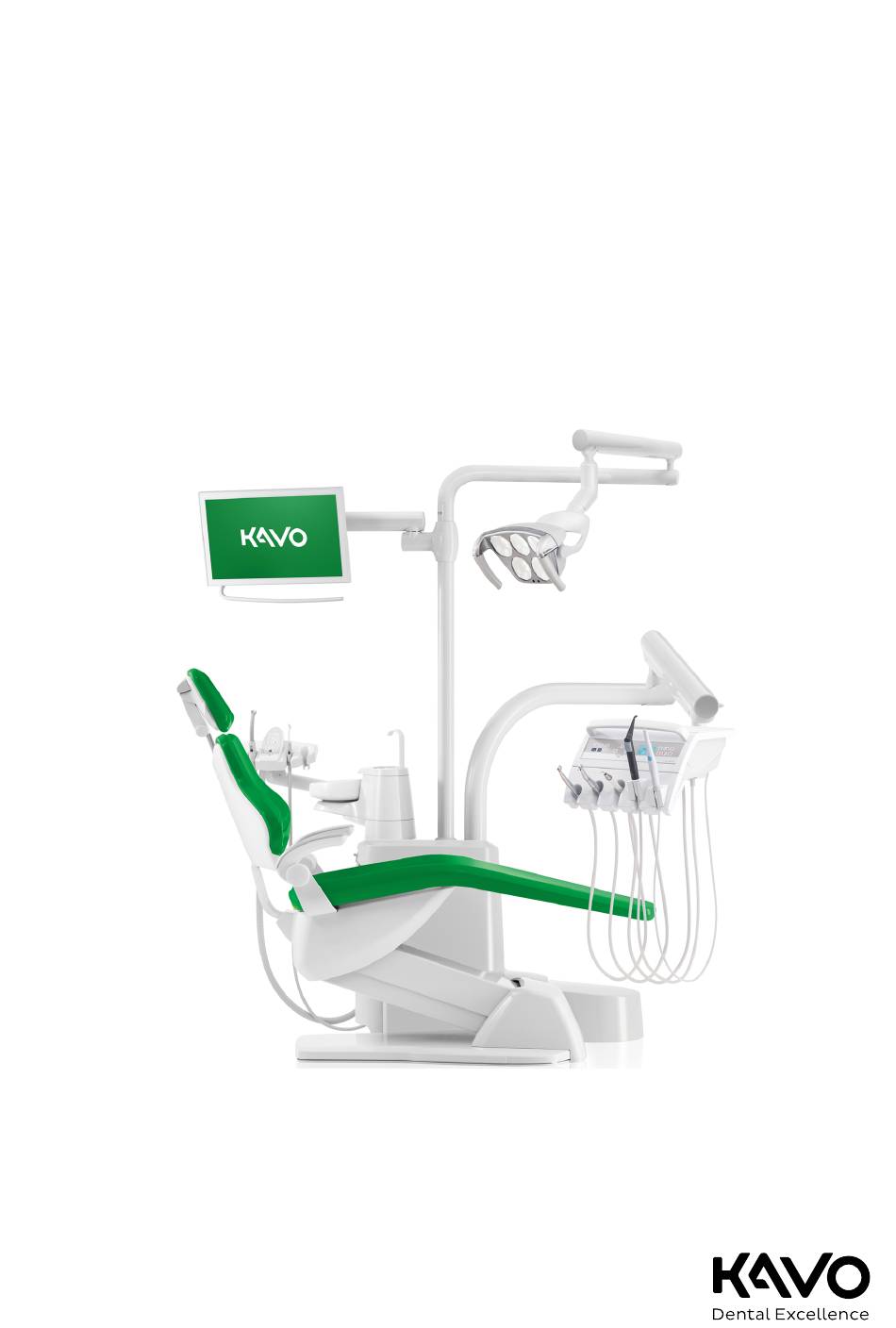

  • Page 1 Instructions for use Primus 1058 Life...
  • Page 2 Distributed by: Manufacturer: KaVo Dental GmbH KaVo Dental GmbH Bismarckring 39 Bismarckring 39 88400 Biberach 88400 Biberach Germany Germany Phone +49 7351 56-0 www.kavo.com Fax +49 7351 56-1488...

  • Page 3: Table Of Contents

    3.1.3 KaVo Primus 1058 Life C................... 15 3.1.4 KaVo Primus 1058 Life C with right-side assembly kit .......... 15 3.2 Patient chair Standard and COMPACTchair............... 16 3.3 Device body with patient unit ..................17 3.4 Versions of the dentist element ..................18 3.4.1...
  • Page 4 Instructions for use Primus 1058 Life Table of contents 4.2.5 Safety shutdown ....................53 4.3 Moving the patient chair ....................56 4.4 Moving the dentist element.................... 56 4.4.1 Move the cart ....................57 4.5 Moving the patient unit....................58 4.5.1 Swinging the patient unit by hand..............
  • Page 5 Instructions for use Primus 1058 Life Table of contents 7.1.6 Notes on recurrent testing................. 101 7.2 Instructions for the safety check..................102 7.2.1 Preparatory measures to be undertaken on the device ......... 102 7.2.2 Visual inspection (inspection by examination)............103 7.2.3...

  • Page 6: User Instructions

    1 User instructions | 1 User instructions Dear user, Congratulations on purchasing this KaVo quality product. By following the notes below you will be able to work smoothly, economically and safely. © Copyright by KaVo Dental GmbH All other trademarks are property of their respective owners.

  • Page 7: Hazard Levels

    Instructions for use Primus 1058 Life 1 User instructions | HIBC Code EAC conformity mark (Eurasian Conformity) Transportation and storage conditions (temperature range) Transportation and storage conditions (air pressure) Transportation and storage conditions (Humidity) Protect from moisture (Keep dry) Protect from impact...

  • Page 8: Terms And Conditions Of Warranty

    Please comply with the regional public waste-disposal system. 1.1 Terms and conditions of warranty KaVo provides the final customer with a warranty that the product cited in the transfer form will function properly and guarantees zero defects in the material...

  • Page 9: Safety

    Instructions for use Primus 1058 Life 2 Safety | 2.1 Explosion hazard 2 Safety The instructions for use are an integral part of the product and must be read carefully prior to use and must be accessible at all times.

  • Page 10: Electrical Shock

    2.4 Technical condition A damaged device, or components that are damaged or NOT KaVo original, could injure patients, users or third parties. 4 Only operate devices or components if they show no signs of damage on the outside.

  • Page 11: Use

    Instructions for use Primus 1058 Life 2 Safety | 2.6 Use High-frequency communications devices may interfere with medical electrical devices. 4 Do not use cell phones in medical offices, hospitals or laboratories. 4 Remove electronic devices such as e.g. computer storage media, hearing aids etc.

  • Page 12: Qualification Of Personnel

    Repairs, servicing and safety checks may only be performed by trained service personnel. The following persons are authorised to do this: ▪ Service technicians of KaVo branches after the appropriate product training ▪ Service technicians of KaVo authorised dealers after the appropriate product...
  • Page 13 Instructions for use Primus 1058 Life 2 Safety | 2.10 Internet security (Cybersecurity) For security reasons, the database and all document files should be backed up regularly. A data backup schedule should be prepared. KaVo recommends daily backup. Backup copies must be stored in a safe place protected from access of third parties.

  • Page 14: Description Of The Product

    Instructions for use Primus 1058 Life 3 Description of the product | 3.1 Treatment centre versions 3 Description of the product 3.1 Treatment centre versions 3.1.1 KaVo Primus 1058 Life TM 3.1.2 KaVo Primus 1058 Life S 14 / 128...

  • Page 15: Kavo Primus 1058 Life C

    Instructions for use Primus 1058 Life 3 Description of the product | 3.1 Treatment centre versions 3.1.3 KaVo Primus 1058 Life C 3.1.4 KaVo Primus 1058 Life C with right-side assembly 15 / 128...

  • Page 16: Patient Chair Standard And Compactchair

    Instructions for use Primus 1058 Life 3 Description of the product | 3.2 Patient chair Standard and COMPACTchair 3.2 Patient chair Standard and COMPACTchair ① Headrest ② Backrest ③ Chair base ④ Bench ⑤ Arm rest (optional) 16 / 128...

  • Page 17: Device Body With Patient Unit

    Instructions for use Primus 1058 Life 3 Description of the product | 3.3 Device body with patient unit 3.3 Device body with patient unit ① Patient element ② Unit body the central control is housed in the unit body. ③ Pressurized water bottle ④...

  • Page 18: Versions Of The Dentist Element

    Instructions for use Primus 1058 Life 3 Description of the product | 3.4 Versions of the dentist element 3.4 Versions of the dentist element 3.4.1 TM/C table ① Handle ② Turbine handpiece (MULTIflex coupling) ③ INTRA LUX Motor KL 703 or ④...

  • Page 19: S-Table

    Instructions for use Primus 1058 Life 3 Description of the product | 3.4 Versions of the dentist element 3.4.2 S-Table NOTE The holder assignment and arrangement of the instruments can be changed as needed and does not have to be as shown in the figure.

  • Page 20: Assistant Element - Versions

    Instructions for use Primus 1058 Life 3 Description of the product | 3.5 Assistant element – Versions 3.5 Assistant element – Versions 3.5.1 Assistant element - Standard/Assistant element - Short ① Three-function or multifunctional ② Spray mist suction handpiece ③ Control element ④...

  • Page 21: Assistant Element Right, Left

    Instructions for use Primus 1058 Life 3 Description of the product | 3.5 Assistant element – Versions 3.5.2 Assistant element right, left (optional, only in conjunction with patient chair Standard) ① Triple function handpiece ② Spray mist suction ③ Control element ④...

  • Page 22: Three-Function And Multifunctional Handpiece (3F Handpiece / Mf Handpiece)

    Instructions for use Primus 1058 Life 3 Description of the product | 3.6 Three-function and multifunctional handpiece (3F handpiece / MF handpiece) 3.6 Three-function and multifunctional handpiece (3F handpiece / MF handpiece) ① Handpiece hose ④ Labelled blue: Three function...

  • Page 23: Control Elements

    Instructions for use Primus 1058 Life 3 Description of the product | 3.8 Control elements 3.8 Control elements 3.8.1 Dentist elements Dentist element TM/C table Group of keys for the dental chair Group of keys for menu selection (MEMOspeed optional)

  • Page 24: Assistant Element

    Instructions for use Primus 1058 Life 3 Description of the product | 3.8 Control elements 3.8.2 Assistant element Group of keys for hygiene Group of keys for illumination Group of keys for the timer Group of keys for the dental chair 3.8.3 Groups of keys...

  • Page 25: Foot Control

    Instructions for use Primus 1058 Life 3 Description of the product | 3.8 Control elements Description Assistant element Dentist element "Collapsed position" key Group of keys for illumination Description Control element "Operating light" key Assistant element "CONEXIO" key or Dentist element "X-ray viewer"...

  • Page 26: Power And Rating Plates

    Instructions for use Primus 1058 Life 3 Description of the product | 3.9 Power and rating plates Item Name Function with hand- Function with handpiece removed piece mounted ① "Spray preselection/AP foot Moves the dental chair Sets the spray pre-selection.
  • Page 27 Instructions for use Primus 1058 Life 3 Description of the product | 3.9 Power and rating plates Outside attachment site for rating plate Rating plate and dentist element ID Site for affixing the nameplate to dentist element Serial number Material number...
  • Page 28 Instructions for use Primus 1058 Life 3 Description of the product | 3.9 Power and rating plates Operating mode: Patient chair on-time: 25 seconds Patient chair pause: 400 seconds (The permissible operating times correspond to common dental pro- cedure.) Fuse rating: The "?????"...
  • Page 29 Instructions for use Primus 1058 Life 3 Description of the product | 3.9 Power and rating plates Labelling and marking of the triple function handpiece and multifunctional handpiece Serial number CE mark for medical devices Can be sterilised at up to 135°C...

  • Page 30: Technical Specifications

    Instructions for use Primus 1058 Life 3 Description of the product | 3.10 Technical Specifications 3.10 Technical Specifications Drilling template and setup plan Installation plan (Mat. no. 2 sheets each right-handed and 2 3.002.4533) sheets left-handed Installation plan with COMPACTchair 2 sheets each right-handed and 2 (Mat.
  • Page 31 2.5 W Pressure and flow values in accordance with DIN EN ISO 7494-2 NOTE These values deviate from the KaVo specific basic setting. Observe pressure and flow values according to the technician's instructions for the treatment centre. Scaler: a) Air flow...

  • Page 32: Water Supply

    In conjunction with the "DVGW water block with integrated germ reduction for water", a germ reduction unit for water is installed in dental units from KaVo. The germ reduction agent OXYGENAL 6 is continually added to the wa- ter at a concentration which is harmless for humans, but hygienically effective to maintain the quality of the treatment water.
  • Page 33 4 ▶ If the Water bottle kit is used with the enclosed dosing attachment (Mat. no. 1.002.0287), add the proper amount of KaVo OXYGENAL 6 (Mat. no. 0.489.3451) with each filling. For the correct amount, please refer to the in- structions of the dosing attachment for water reprocessing.

  • Page 34: Air Supply

    Instructions for use Primus 1058 Life 3 Description of the product | 3.10 Technical Specifications Air supply WARNING Non-compliance with national guidelines concerning the quality of the dental air. Patients, users or third parties could be infected by contaminated medical devices.

  • Page 35: Operating Environment

    Instructions for use Primus 1058 Life 3 Description of the product | 3.10 Technical Specifications Cannula connecting pieces according to DIN EN ISO 7494 - 2 Diameter of cannula of saliva ejector 7 mm and surgical suction Diameter of cannula of spray mist suc- 15 mm...

  • Page 36: Transportation And Storage Conditions

    Instructions for use Primus 1058 Life 3 Description of the product | 3.10 Technical Specifications Transportation and storage conditions Ambient temperature -20 to +55 C / -4 to +131°F Relative Humidity 5% to 95% non-condensing Atmospheric pressure limitation 700 hPa to 1060 hPa (10 psi to 15 psi)

  • Page 37: Kavo Service Table 1568 (Optional Accessory)

    KaVo triple function and multi functional handpieces are dental instruments ac- cording to DIN EN ISO 22569. They support the dental application in the mouth of the patient by supplying air, water or spray. The KaVo multi functional hand- piece additionally offers light and heated media.

  • Page 38: Treatment Units

    Place of installation: This KaVo treatment unit is installed in a fixed position in rooms used for med- ical purposes. The geographical location of the installation is specified in the permissible operating conditions: ▪...

  • Page 39: Connection Of Devices

    ▪ these Instructions for use Regular servicing and safety checks are essential for the permanent assurance of the operating and functional safety of the KaVo product and for the preven- tion of damage and hazards. Testing and maintenance intervals: Maintenance must be performed once a year, the safety checks at intervals of 2 years.
  • Page 40 Connecting IT equipment to the medical electrical system make sure to com- ply with EN 60601-1. NOTE Charge the wireless foot control with the charger supplied by KaVo only. NOTE The wireless foot control charger may only be used indoors and must be pro- tected from moisture.

  • Page 41: Information About Electromagnetic Compatibility

    Dispose of and recycle the packaging appropriately in accordance with current packaging law, employing waste management / recycling companies. Comply with the comprehensive return system. KaVo has had its packaging licensed for this purpose. Please comply with the regional public waste-disposal system.

  • Page 42: Operation

    Instructions for use Primus 1058 Life 4 Operation | 4 Operation Please note also the corresponding instruction and ergonomics videos on the KaVo website. Please use the QR codes or follow the corresponding link: Instruction video: https://www.kavo.com/de/einweisung Ergonomics video: https://www.kavo.com/de-de/rueckenfreundliches-arbeiten WARNING Explosion.

  • Page 43: Switching The Device On And Off

    Instructions for use Primus 1058 Life 4 Operation | 4.1 Switching the device on and off - Irregular running noise - Excessive vibration - Overheating CAUTION Loading of instrument hoses due to stickers. Handpiece hoses can burst. 4 Do not affix stickers or adhesive tape.
  • Page 44 Instructions for use Primus 1058 Life 4 Operation | 4.1 Switching the device on and off 4 Use the main switch to switch on the device. ð The display of the dentist element ① shows the preselected basic menu. ð The green LED "Device turned on" lights up on the assistant element ②.

  • Page 45: Adjusting The Dental Chair

    Allergic reactions and skin irritation. To improve hygiene and increase the service life, KaVo recommends to use ap- propriate covers (e.g. head protection bags) to protect the cushions that are regularly in contact with the skin of the patient. Sweat or hair and skin care products can be a serious strain on the cushions.

  • Page 46: Adjusting The Headrest

    Instructions for use Primus 1058 Life 4 Operation | 4.2 Adjusting the dental chair 4 Swivel the arm rest forward 4 Then swivel the armrest back into place. 4.2.2 Adjusting the headrest Setting locking dial of 2-joint headrest CAUTION Adjusting the headrest.
  • Page 47 Instructions for use Primus 1058 Life 4 Operation | 4.2 Adjusting the dental chair 4 To swing the headrest, turn the locking dial to the left, move the headrest into position, and turn the dial to the right to lock it.

  • Page 48: Positioning The Patient Chair Manually

    Instructions for use Primus 1058 Life 4 Operation | 4.2 Adjusting the dental chair Rotating the head cushion The headrest cushion is a rotating cushion. It can be turned to offer better neck support, for example when treating children. 4 Evenly pull the cushion up and rotate it 180 4 Then snap the head cushion back on.
  • Page 49 Instructions for use Primus 1058 Life 4 Operation | 4.2 Adjusting the dental chair Positioning the chair and backrest manually using the dentist or assistant element Use the following buttons to adjust the chair height and position of the back-...

  • Page 50: Automatic Positioning Of Patient Chair

    Instructions for use Primus 1058 Life 4 Operation | 4.2 Adjusting the dental chair 4.2.4 Automatic positioning of patient chair CAUTION Danger of injury from overload or dynamic load. The patient chair may be damaged by overloading it. 4 Do not subject the (patient chair Standard to a load exceeding 185 kg /pa- tient chair COMPACTchair 135 kg).
  • Page 51 Instructions for use Primus 1058 Life 4 Operation | 4.2 Adjusting the dental chair 4 Briefly press the respective button. ð Chair automatically moves to the saved position. ð Upon arrival at the saved position, the display diode on the button is turned...
  • Page 52 Instructions for use Primus 1058 Life 4 Operation | 4.2 Adjusting the dental chair Recalling automatic positions through the foot control NOTE If an instrument is removed, the chair functions of the foot control are blocked. The locking can be released by briefly pressing the stirrup switch.

  • Page 53: Safety Shutdown

    Instructions for use Primus 1058 Life 4 Operation | 4.2 Adjusting the dental chair Saving an automatic position with the foot control ① Spray preselection/AP foot switch ② Blown air/AP foot switch ③ Foot pedal The chair positions can be saved on two foot switches; the standard setting is as follows: ▪...
  • Page 54 Instructions for use Primus 1058 Life 4 Operation | 4.2 Adjusting the dental chair Safety shutdown for the standard patient chair ① Patient unit pivoted over the pa- ② Assistant element tient chair ③ Backrest ④ Stirrup on foot control ⑤...
  • Page 55 Instructions for use Primus 1058 Life 4 Operation | 4.2 Adjusting the dental chair Safety shutdown for the COMPACTchair patient chair ① Patient unit pivoted over the pa- ② Assistant element tient chair ③ Backrest ④ Stirrup on foot control ⑤...

  • Page 56: Moving The Patient Chair

    Instructions for use Primus 1058 Life 4 Operation | 4.3 Moving the patient chair NOTE The chair's position cannot be changed with the key wheels when a safety shutdown is activated. Exception: The patient unit safety switch only stops the upward and down- ward movement of the patient chair.

  • Page 57: Move The Cart

    Instructions for use Primus 1058 Life 4 Operation | 4.4 Moving the dentist element NOTE Do not pull the dentist element by the instrument hose. 4 To adjust the height of the dentist element, release the locking brake, ad- just the height, and reset the brake.

  • Page 58: Moving The Patient Unit

    Instructions for use Primus 1058 Life 4 Operation | 4.5 Moving the patient unit CAUTION Manual height adjustment. Risk of injury from manual height adjustment. 4 Hold on to the unit and lower it slowly when adjusting it downwards. NOTE The range in which the cart can be moved is restricted by the length of the lines and hoses that connect the cart to the base of the device.

  • Page 59: Moving The Assistant Element

    Instructions for use Primus 1058 Life 4 Operation | 4.6 Moving the assistant element The swivelling range is approx. 250°. CAUTION The left armrest may collide with a manually adjusted patient chair when the chair moves. Risk of injury. 4 Before you adjust the position of the chair (automatically and manually) swivel a manually adjusted patient chair to its resting position.

  • Page 60: Moving The Assistant Element Right, Left (Optional)

    Instructions for use Primus 1058 Life 4 Operation | 4.6 Moving the assistant element ① Tray support ② Holder The support ② for the tray holder ① is an optional accessory. 4.6.2 Moving the assistant element right, left (optional) CAUTION Pinching from the patient chair.
  • Page 61 Instructions for use Primus 1058 Life 4 Operation | 4.6 Moving the assistant element Swinging range of assistant element r, l (optional) 4 Move the backrest up before swinging the assistant element. 4 Move the assistant element to the desired position in its swinging range.

  • Page 62: Using Functions Through The Menu

    Instructions for use Primus 1058 Life 4 Operation | 4.7 Using functions through the menu 4 Undo the clamping screw and push the assistant element into the desired position. 4 Re-tighten the clamping screw. 4.7 Using functions through the menu 4.7.1 Using the user menu...

  • Page 63: Option 1: Displaying The Firmware Version

    Instructions for use Primus 1058 Life 4 Operation | 4.7 Using functions through the menu User menu with MEMOspeed / without MEMOspeed 4 Press the "Next" key (S4) to start-up the user menu. ð The user menu displays options and parameters that can be set and changed by the user.

  • Page 64: Option 3: Set The Date

    Instructions for use Primus 1058 Life 4 Operation | 4.7 Using functions through the menu 4 Press the "reduce value" or "increase value" key to set the marked time of day. 4 Press the "SS:MM" (S1) key to switch between hours and minutes.

  • Page 65: Option 5: Setting The Language

    Instructions for use Primus 1058 Life 4 Operation | 4.7 Using functions through the menu Option 5: Setting the language 4 Press the "reduce value" or "increase value" key to select the menu lan- guage. The following languages can be selected: Deutsch, English, Italiano, Fran- cais.

  • Page 66: Selecting A Function

    Instructions for use Primus 1058 Life 4 Operation | 4.7 Using functions through the menu Selecting a function The display shows display fields with symbols for the operating functions. Below each display field, there is a key for selecting the displayed operating function.
  • Page 67 Instructions for use Primus 1058 Life 4 Operation | 4.7 Using functions through the menu NOTE The device automatically saves the activation of level switching for the current dentist. NOTE Level switching is deactivated using the same key combination as activation.

  • Page 68: Operating The Memospeed Menu (Optional)

    Instructions for use Primus 1058 Life 4 Operation | 4.7 Using functions through the menu Soft key: X-ray viewer key (from 2019) The X-ray viewer can be controlled using the "S2" key. If there is an error mes- sage, the message needs to be deleted first in order to have access to the X- ray viewer function.
  • Page 69 Instructions for use Primus 1058 Life 4 Operation | 4.7 Using functions through the menu Settings menu for minimal/maximal speed 4 Press the "min/max" (S4) keyed to toggle between the settings menus for minimal and maximal speed. 4 Press the "Decrease value" key to decrease the speed.

  • Page 70: Setting The Speed

    Instructions for use Primus 1058 Life 4 Operation | 4.7 Using functions through the menu 4 Briefly press the "Preselect level" (S1) key to select the level. 4 Press the "Preselect level" (S1) key for 4 seconds to change settings.

  • Page 71: Setting The Intensity

    Instructions for use Primus 1058 Life 4 Operation | 4.7 Using functions through the menu ð Saving is acknowledged by a beep. ð This closes the "Settings" menu. Setting the direction of motor rotation NOTE The direction of motor rotation can only be changed when the motor is at rest.
  • Page 72 Instructions for use Primus 1058 Life 4 Operation | 4.7 Using functions through the menu Defining the operating mode (PiezoLED only) NOTE The selection of the mode depends on the treatment method and the tip used. You can find recommendations for the selection of the operating mode and the intensity in the separate adjustment recommendation on the PiezoLED.
  • Page 73 Instructions for use Primus 1058 Life 4 Operation | 4.7 Using functions through the menu 4 Adjust the heating using the "Air/water heating" button. Icon Function Air/water heating "On" Air/water heating "Off" 4 Press the "Save" key to save the values. You can save after setting each value, or after setting all values.

  • Page 74: Using The Conexio Menu (From V2.1)

    Instructions for use Primus 1058 Life 4 Operation | 4.7 Using functions through the menu 4.7.4 Using the CONEXIO menu (from V2.1) CONEXIO permits full access to all clinically relevant data of a patient from a treatment centre. The following functions can be called up in the "CONEXIO" menu: ▪...
  • Page 75 Instructions for use Primus 1058 Life 4 Operation | 4.7 Using functions through the menu Sym- Number/description Pressing button ① No function display only ② Cursor to previous patient short ③ Cursor to next patient short ④ No function ⑤ To patient file of the patient...
  • Page 76 Instructions for use Primus 1058 Life 4 Operation | 4.7 Using functions through the menu Sym- Number/description Pressing button ① Display selected patient display only ② Cursor to previous image short ③ Cursor to next image short ④ Select image (up to 6 in Split...
  • Page 77 Instructions for use Primus 1058 Life 4 Operation | 4.7 Using functions through the menu Single image display (Single) This mode for recording the findings always shows one image only. Once the image is saved, the live image of the camera is shown again. If the camera is being replaced, the latest saved image appears in this view.
  • Page 78 Instructions for use Primus 1058 Life 4 Operation | 4.7 Using functions through the menu Sym- Number/description Pressing button ④ Switch tooth briefly ⑤ Return to previous screen (pa- briefly tient file or Split View) Multi-image view (Split) This mode for patient communication shows up to 6 images, even from differ- ent sources (cameras, microscopes, X-ray), next to each other.

  • Page 79: Using Function Through The Dentist Or Assistant Element

    Instructions for use Primus 1058 Life 4 Operation | 4.8 Using function through the dentist or assistant element Device is inactive Item name Function Pressing button ① Stirrup switch Remove image in active briefly field (does not delete) Return to patient file and...
  • Page 80 Instructions for use Primus 1058 Life 4 Operation | 4.8 Using function through the dentist or assistant element Name Function Control element (SP) is reached, the bowl is rinsed, i.e. the bowl is be- ing wetted. Leav- ing the rinsing pos- ition (SP), the bowl is rinsed again.

  • Page 81: Operating The Illumination

    Instructions for use Primus 1058 Life 4 Operation | 4.8 Using function through the dentist or assistant element 4 Press the "Tumbler filling" key for more than 4 seconds to start the pro- gramming mode. Set time period in 200 ms increments. Minimum: 0.4 s.

  • Page 82: Saving Handpiece Settings (Without Memospeed)

    Instructions for use Primus 1058 Life 4 Operation | 4.8 Using function through the dentist or assistant element Setting the timer Prerequisites ü Standby menu is selected. 4 To set a timer time (e.g. Timer 1), press the "Timer" key until you hear a beep.

  • Page 83: Setting The Motor

    Instructions for use Primus 1058 Life 4 Operation | 4.8 Using function through the dentist or assistant element Setting the cooling status 4 Remove the turbine handpiece from the holder. 4 Press the "Preselected spray" button. 4 "Preselected spray" footswitch.

  • Page 84: Operating The Foot Control

    Instructions for use Primus 1058 Life 4 Operation | 4.9 Operating the foot control Setting the ultrasonic scaler PiezoLED and PIEZOsoft CAUTION Handpiece inserts can be damaged from long-term use, or when dropped or bent. They are not guaranteed to function properly.

  • Page 85: Positioning The Patient Chair With The Foot Control

    Instructions for use Primus 1058 Life 4 Operation | 4.9 Operating the foot control 4.9.2 Positioning the patient chair with the foot control Also refer to: Positioning the patient chair automatically Positioning the patient chair with button cross or 4-way switch 4.9.3 Preselecting the dentist...

  • Page 86: Preselecting Counterclockwise Motor Rotation

    Instructions for use Primus 1058 Life 4 Operation | 4.10 Using handpieces 4.9.7 Preselecting counterclockwise motor rotation 4 Take motor off the holder. ð The handpiece is active. 4 Slide the cross-switch upward ð The direction of motor rotation is reversed each time the cross-switch and/or the "Direction of motor rotation"...
  • Page 87 Instructions for use Primus 1058 Life 4 Operation | 4.10 Using handpieces NOTE Connectors for the spray mist suction and the saliva ejector without slider as well as reducing pieces for the spray mist suction are available as accessories. ▪ Cannula holder, short, for spray mist ejector (mat. no. 0.764.5783) ▪...

  • Page 88: Using The Triple Function Handpiece

    Instructions for use Primus 1058 Life 4 Operation | 4.10 Using handpieces NOTE The following applies to all equipment featuring the selective holder kit: A ser- vice technician can set the vacuum stop function to either stop all suction hoses or only stop the spray mist suction when the saliva ejector is simultan- eously activated.

  • Page 89: Using The Multifunctional Handpiece

    Instructions for use Primus 1058 Life 4 Operation | 4.10 Using handpieces 4 Press the water button ④ and continuously increase or decrease the exiting water jet by applying more or less pressure on the water button ④. 4 Simultaneously press the air button ① and water button ④ and continuously increase or decrease the exiting spray by applying more or less pressure on the two buttons.
  • Page 90 Instructions for use Primus 1058 Life 4 Operation | 4.10 Using handpieces CAUTION Damage due to missing media on the multifunctional handpiece. Air and water heating systems are destroyed. 4 Check if the air and water are connected! 4 Check the air and water supply!

  • Page 91: Replacing The Lamp

    Instructions for use Primus 1058 Life 4 Operation | 4.10 Using handpieces Remove the cannula 4 Hold the 3-way or multifunctional handpiece at the gripping sleeve and take off the cannula with a slight twisting motion. Using the cold light (multifunctional handpiece only) Prerequisites ü...

  • Page 92: Use Multifunctional Handpiece Minilight 3F/G3F

    The lamp must be inserted with the poles in proper orientation for the lamp to work properly. 4 Push the holder ③ forward and pull the defective KaVo MULTI LED lamp ② out of its mount.

  • Page 93: Moving The Service Table

    Instructions for use Primus 1058 Life 4 Operation | 4.11 Service table 1568 (optional accessory) CAUTION Exceeding the load limits. Damage to the service table. 4 Comply with maximum load limits. The service table 1568 can be locked in 4 snap-in positions using the knob ①.

  • Page 94: Third-Party Device Connector

    4 Operation | 4.12 Third-party device connector 4.12 Third-party device connector The third-party device connector allows dental devices from third-party manu- facturers to be used on the KaVo treatment centre. 4 Connect the water ① and air ② supply lines to the couplings. Media connectors Air inlet pressure 4.75 ±...

  • Page 95: Reprocessing Methods Din En Iso 17664

    5 Reprocessing methods DIN EN ISO 17664 NOTE The reprocessing methods are specified in the Care instructions. Please note also the corresponding hygiene video on the KaVo website. Please use the QR code or the following link: https://www.kavo.com/hygiene-easy-way 95 / 128...

  • Page 96: Accessories And Kits

    Instructions for use Primus 1058 Life 6 Accessories and kits | 6.1 Equipment 6 Accessories and kits 6.1 Equipment Description Description Water block DVGW with integrated wa- With a DVGW permit and electronic ter germ reduction unit for water monitoring of the filling level of the dis- infection container.

  • Page 97: Patient Chair

    Instructions for use Primus 1058 Life 6 Accessories and kits | 6.2 Patient chair 6.2 Patient chair Name Description Armrest The patient chair can be fitted with one or two arm rests. 2-hinge head rest with rotary knob Controlled by rotary knob...
  • Page 98 Instructions for use Primus 1058 Life 6 Accessories and kits | 6.4 Dentist element Description Description PiezoLED Dental handpiece for the removal of calculus. PIEZOsoft Dental handpiece for the removal of calculus. Spray heater for instruments without Heater for spray water heating.

  • Page 99: Safety Check - Test Instructions

    NOTE KaVo offers a medical device book for keeping an inventory and recording es- sential master data on the medical device. The medical device book is only available in German (mat. no. 0.789.0480).

  • Page 100: Notes For Medical Electrical Systems

    Instructions for use Primus 1058 Life 7 Safety check - Test instructions | 7.1 Introduction NOTE The following tests and measurements must be documented, for example in the medical device book. We recommend using the templates at the end of the document.

  • Page 101: Functional Test

    Instructions for use Primus 1058 Life 7 Safety check - Test instructions | 7.1 Introduction Measurements ▪ Measurement of the protective earth resistance in accordance with IEC 62353 ▪ Measurement of the equipment leakage current - Alternative measuring method in accordance with IEC 62353 ▪...

  • Page 102: Instructions For The Safety Check

    Instructions for use Primus 1058 Life 7 Safety check - Test instructions | 7.2 Instructions for the safety check 7.2 Instructions for the safety check 7.2.1 Preparatory measures to be undertaken on the device WARNING Electrical power. Death or bodily injury from electric shock.

  • Page 103: Visual Inspection (Inspection By Examination)

    Instructions for use Primus 1058 Life 7 Safety check - Test instructions | 7.2 Instructions for the safety check 7.2.2 Visual inspection (inspection by examination) ▪ Check the following items in advance: Has the configuration of the ME device or the ME system been changed since the last inspection? ▪...
  • Page 104 Instructions for use Primus 1058 Life 7 Safety check - Test instructions | 7.2 Instructions for the safety check Attachment locations: type plate and note, "Comply with the instructions for use" Control of the availability of the necessary documents 4 Check if the required instructions for use and care instructions are available in the surgery.

  • Page 105: Measurements

    L & N on the power input board need not be disconnected. The adapter cable ② is included in the delivery of the KaVo measuring cable and is required for older treatment centres that are not equipped with an X2 connector.
  • Page 106 4 Remove plug X2 from the power input board and plug it into the matching connector X2 of the KaVo measuring cable (Mat. no. 0.411.8811). 4 Plug the second plug X2 of the KaVo measuring cable into the mains board (X2).
  • Page 107 Instructions for use Primus 1058 Life 7 Safety check - Test instructions | 7.2 Instructions for the safety check NOTE The main switch of the ME device / ME system must be turned on during the measurement. Connecting the applied parts [AP] to the safety tester: 4 Connect ①...
  • Page 108 Instructions for use Primus 1058 Life 7 Safety check - Test instructions | 7.2 Instructions for the safety check ACPs on the treatment centre No ACPs need to be connected to the protective conductor (PE) during the measurement on the treatment centre, as all relevant parts are connected to the protective conductor (PE) at the factory and are included in the test.
  • Page 109 Instructions for use Primus 1058 Life 7 Safety check - Test instructions | 7.2 Instructions for the safety check Scanning the treatment centre with the test tip Measuring points on the body base ① Main switch holding plate ② Stand cover base plate ③...
  • Page 110 Instructions for use Primus 1058 Life 7 Safety check - Test instructions | 7.2 Instructions for the safety check Scanning the patient chair with the test tip ① Top part of the chair ② Base plate of chair base ③ Chair switched mode power supply Measuring points COMPACTchair ①...
  • Page 111 Instructions for use Primus 1058 Life 7 Safety check - Test instructions | 7.2 Instructions for the safety check Scanning the operating elements with the test tip ① Dentist element S: Fixing screw ② Dentist element TM: Fixing screw on the underside of the dentist...
  • Page 112 Instructions for use Primus 1058 Life 7 Safety check - Test instructions | 7.2 Instructions for the safety check Scanning the operating light with the test tip Operating light KaVoLUX 540 LED T ① Fastening screw of the handle support when the gripping sleeve...
  • Page 113 Instructions for use Primus 1058 Life 7 Safety check - Test instructions | 7.2 Instructions for the safety check Protection class 1 WARNING Danger to persons due to insufficient diligence during the safety checks and testing. Death or injury from electric shock.

  • Page 114: Functional Tests

    Instructions for use Primus 1058 Life 7 Safety check - Test instructions | 7.2 Instructions for the safety check NOTE In the testing of ME devices with several applied parts, the parts must be con- nected in succession. The measured results must be evaluated using the threshold values.
  • Page 115 Instructions for use Primus 1058 Life 7 Safety check - Test instructions | 7.2 Instructions for the safety check Safety shutdown for the standard patient chair ① Patient unit pivoted over the pa- ② Assistant element tient chair ③ Backrest ④...
  • Page 116 Instructions for use Primus 1058 Life 7 Safety check - Test instructions | 7.2 Instructions for the safety check Patient chair COMPACTchair Safety shutdown for the COMPACTchair patient chair ① Patient unit pivoted over the pa- ② Assistant element tient chair ③...

  • Page 117: Assessment And Documentation

    Instructions for use Primus 1058 Life 7 Safety check - Test instructions | 7.2 Instructions for the safety check 7.2.5 Assessment and documentation NOTE All tests conducted must be documented comprehensively. The docu- ments must contain at least the following particulars:...
  • Page 118 Instructions for use Primus 1058 Life 7 Safety check - Test instructions | 7.2 Instructions for the safety check Test Protocol - Safety Check (Test of safety and function according to §7 section 3 Medical Device Operation Ordinance) Operator Testing organisation Name of the test engineer □...

  • Page 119: Annex - Additional Measuring Points

    Instructions for use Primus 1058 Life 8 Annex - Additional measuring points | 8.1 Additional scan points SL X for the protective earth measurement 8 Annex - Additional measuring points NOTE Regarding accessories, which are not listed here, comply with the specifica- tions of the relevant instructions for use.

  • Page 120: Additional Measuring Points Ap X For The Eul/Epa Measurement

    Instructions for use Primus 1058 Life 8 Annex - Additional measuring points | 8.2 Additional measuring points AP X for the EUL/EPA measurement Ceiling adapter for operating light assembly kit ① Base plate for the ceiling adapter ② Surroundings of the protective conductor connector ③...

  • Page 121: Additional Connection Points Acp X (Additional Earth Connections)

    Instructions for use Primus 1058 Life 8 Annex - Additional measuring points | 8.3 Additional connection points ACP X (additional earth connections) Exemplary depiction of the measuring point on the PiezoLED ultrasonic scaler ① Test probe on ultrasonic scaler tip...

  • Page 122: Troubleshooting

    Instructions for use Primus 1058 Life 9 Troubleshooting 9 Troubleshooting NOTE In case of malfunction, consult the separate instructions for the use and care of the respective instruments (e.g., turbine, motor, camera, etc.). Malfunction Cause Remedy Nothing works. Main switch is off.
  • Page 123 Instructions for use Primus 1058 Life 9 Troubleshooting Malfunction Cause Remedy 4 Preselect spray. No spray in the handpieces. No spray preselected. 4 Open the ring for controlling the spray on Ring for controlling the spray on the handpieces the handpieces.
  • Page 124 Instructions for use Primus 1058 Life 9 Troubleshooting Malfunction Cause Remedy 4 Notify network administrator. No data transmission to the No or faulty ethernet multimedia menu of the unit. connection between dental unit and office network. Camera images are in black/ Electrical or electromag- 4 Restart the CONEXIO PC.

  • Page 125: 10Information Concerning The Electromagnetic Compatibility According To En Iec

    Instructions for use Primus 1058 Life 10 Information concerning the electromagnetic compatibility according to EN IEC 60601-1-2 | 10.1 Operating envir- onment and EMC warning notes 10 Information concerning the electromagnetic compatibility according to EN IEC 60601-1-2 10.1 Operating environment and EMC warning notes This product is neither life-sustaining nor coupled to the patient.
  • Page 126 Instructions for use Primus 1058 Life 10 Information concerning the electromagnetic compatibility according to EN IEC 60601-1-2 | 10.2 Results of the electromagnetic tests Requirement Class / test level [30 MHz – 1000 MHz] DIN EN 61000-3-2 VDE 0838-2 / 03.2010...
  • Page 127 Instructions for use Primus 1058 Life 10 Information concerning the electromagnetic compatibility according to EN IEC 60601-1-2 | 10.2 Results of the electromagnetic tests Requirement Class / test level 6 V in amateur radio bands DIN EN 61000-4-8 VDE 0847-4-8 / 11.2010...

Table of Contents
