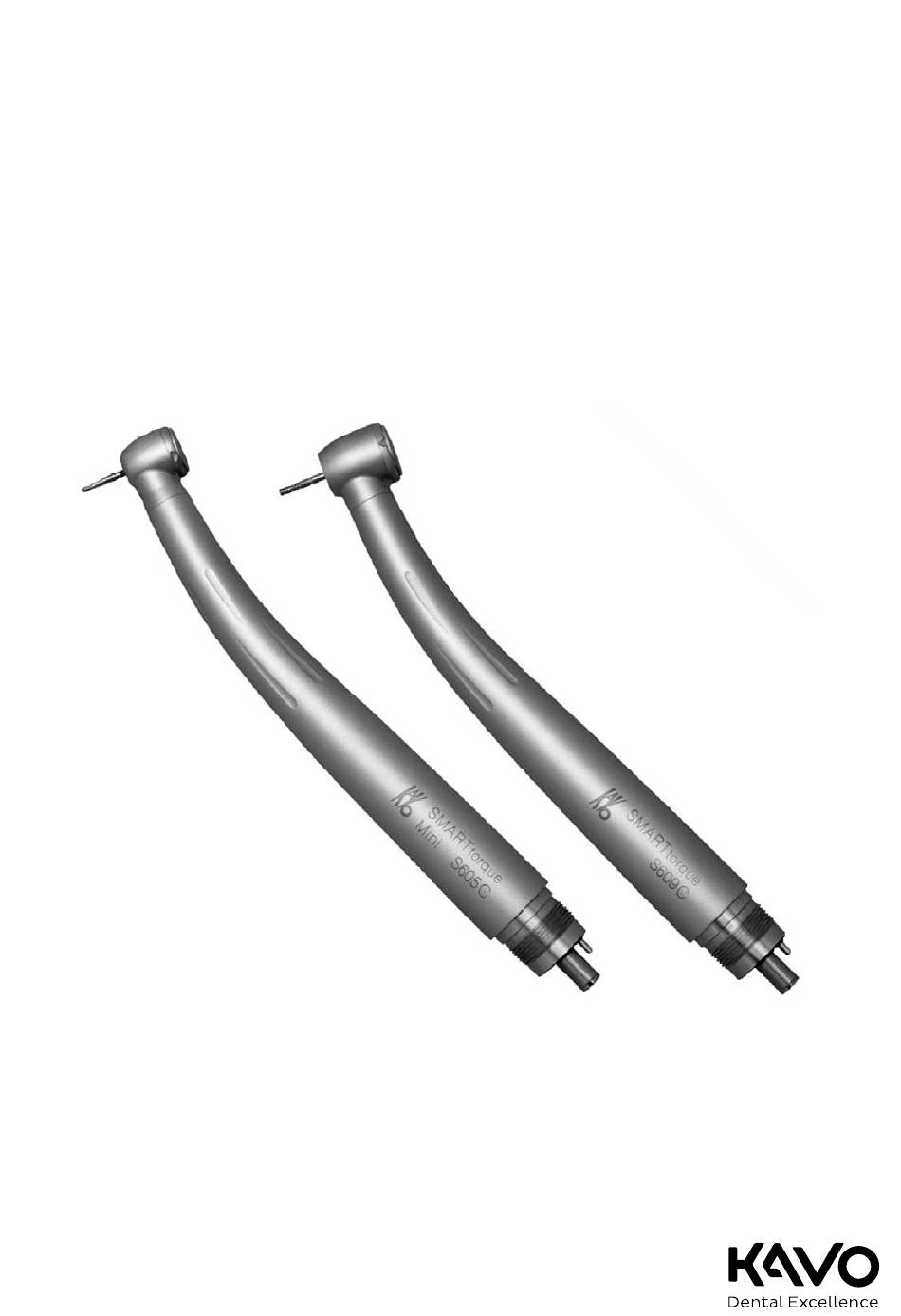

- Page 1 Instructions for use SMARTtorque S609 C – 1.008.1644 SMARTtorque Mini S605 C – 1.008.1645...
- Page 2 Distributed by: Manufacturer: KaVo Dental GmbH KaVo Dental GmbH Bismarckring 39 Bismarckring 39 88400 Biberach 88400 Biberach Germany Germany Phone +49 7351 56-0 www.kavo.com Fax +49 7351 56-1488...
-
Page 3: Table Of Contents
Instructions for use SMARTtorque S609 C – 1.008.1644 SMARTtorque Mini S605 C – 1.008.1645 Table of contents Table of contents 1 User instructions ........................ 4 2 Safety..........................6 2.1 Infection hazard ......................6 2.2 Improper use ........................ 6 2.3 Technical condition ......................7 2.4 Accessories and combination with other equipment............ -
Page 4: User Instructions
KaVo Dental GmbH. All other trademarks are property of their respective owners. KaVo Original Factory Repair In the event of a repair, please ship your product to the KaVo Original Factory Repair using www.ka- vobox.com. KaVo Technical Service If you have any questions or complaints, please contact the KaVo... -
Page 5: Hazard Levels
Instructions for use SMARTtorque S609 C – 1.008.1644 SMARTtorque Mini S605 C – 1.008.1645 1 User instructions Information on the packaging Material number Serial number Manufacturer Note: Please note accompanying documents Follow the electronic instructions for use HIBC Code CE mark according to Medical Devices Directive EC 93/42... -
Page 6: Safety
Instructions for use SMARTtorque S609 C – 1.008.1644 SMARTtorque Mini S605 C – 1.008.1645 2 Safety | 2.1 Infection hazard 2 Safety Note All serious events occurring in relation to the product must be reported to the manufacturer and the competent authority of the member state, in which the user and/or patient resides. -
Page 7: Technical Condition
Instructions for use SMARTtorque S609 C – 1.008.1644 SMARTtorque Mini S605 C – 1.008.1645 2 Safety | 2.3 Technical condition 2.3 Technical condition A damaged device or components could injure patients, users and third parties. ▶ Only operate devices or components if they are undamaged on the outside. -
Page 8: Service And Repair
Instructions for use SMARTtorque S609 C – 1.008.1644 SMARTtorque Mini S605 C – 1.008.1645 2 Safety | 2.6 Service and repair ▶ The device may be used only if the user has completed the appropriate medical training. 2.6 Service and repair Repairs, servicing and safety checks may only be performed by trained service personnel. -
Page 9: Product Description
Instructions for use SMARTtorque S609 C – 1.008.1644 SMARTtorque Mini S605 C – 1.008.1645 3 Product description | 3.1 Purpose – Proper use 3 Product description SMARTtorque S609 C (Mat. no. 1.008.1644) SMARTtorque Mini S605 C (Mat. no. 1.008.1645) 3.1 Purpose – Proper use... -
Page 10: Technical Specifications
Instructions for use SMARTtorque S609 C – 1.008.1644 SMARTtorque Mini S605 C – 1.008.1645 3 Product description | 3.2 Technical Specifications 3.2 Technical Specifications S609 C S605 C Head size Standard Mini Drive pressure 2.1 to 3.0 bar (30 to 44 2.1 to 3.0 bar (30 to 44... -
Page 11: Start Up And Shut Down
Instructions for use SMARTtorque S609 C – 1.008.1644 SMARTtorque Mini S605 C – 1.008.1645 4 Start up and shut down | 4.1 Checking the amount of water 4 Start up and shut down WARNING Hazard from non-sterile products. Infection hazard to the dentist and patient. -
Page 12: Checking The Pressures
Instructions for use SMARTtorque S609 C – 1.008.1644 SMARTtorque Mini S605 C – 1.008.1645 4 Start up and shut down | 4.2 Checking the pressures 4.2 Checking the pressures NOTICE Damage from soiled and moist cooling air/compressed air. Contaminated and moist cooling air can cause malfunctions. -
Page 13: Operation
Instructions for use SMARTtorque S609 C – 1.008.1644 SMARTtorque Mini S605 C – 1.008.1645 5 Operation | 5.1 Attaching the medical device 5 Operation Note At the beginning of each workday, the water-conducting systems should be rinsed for at least 2 minutes (without transmission handpieces being at- tached) and if there is a risk of contamination from reflux or back suction, the system may also need to be rinsed for 20 to 30 seconds after each patient. -
Page 14: Removing The Dental Bur
Instructions for use SMARTtorque S609 C – 1.008.1644 SMARTtorque Mini S605 C – 1.008.1645 5 Operation | 5.4 Removing the dental bur WARNING Use of unauthorised dental burs. Injury to the patient or damage to the medical device. ▶ Comply with the instructions for use and the intended use of the dental bur. - Page 15 Instructions for use SMARTtorque S609 C – 1.008.1644 SMARTtorque Mini S605 C – 1.008.1645 5 Operation | 5.4 Removing the dental bur NOTICE Damage to the chucking system. Material damage. ▶ Never push the push-button while the dental bur is rotating.
-
Page 16: Troubleshooting
Instructions for use SMARTtorque S609 C – 1.008.1644 SMARTtorque Mini S605 C – 1.008.1645 6 Troubleshooting | 6.1 Cleaning the spray nozzle 6 Troubleshooting WARNING Repair WITHOUT using KaVo original spare parts. Parts such as the cover can come loose and cause injury. -
Page 17: Reprocessing Steps In Accordance With Iso 17664
Instructions for use SMARTtorque S609 C – 1.008.1644 SMARTtorque Mini S605 C – 1.008.1645 7 Reprocessing steps in accordance with ISO 17664 | 7.1 Preparations at the site of use 7 Reprocessing steps in accordance with ISO 17664 7.1 Preparations at the site of use WARNING Hazard from contaminated products. -
Page 18: Manual External Disinfection
Instructions for use SMARTtorque S609 C – 1.008.1644 SMARTtorque Mini S605 C – 1.008.1645 7 Reprocessing steps in accordance with ISO 17664 | 7.2 Manual Reprocessing ▶ Hold the can vertically. ▶ Press the spray button three times for 2 seconds each time. -
Page 19: Manual Disinfection - Internal
Instructions for use SMARTtorque S609 C – 1.008.1644 SMARTtorque Mini S605 C – 1.008.1645 7 Reprocessing steps in accordance with ISO 17664 | 7.2 Manual Reprocessing 7.2.4 Manual disinfection - internal WARNING Incomplete disinfection. Infection hazard. ▶ Only use disinfection procedures that are verified to be bactericidal, fungi- cidal and virucidal. -
Page 20: Automated Reprocessing
Instructions for use SMARTtorque S609 C – 1.008.1644 SMARTtorque Mini S605 C – 1.008.1645 7 Reprocessing steps in accordance with ISO 17664 | 7.3 Automated reprocessing 7.3 Automated reprocessing WARNING Incomplete disinfection. Infection hazard. ▶ Only use disinfection procedures that are verified to be bactericidal, fungi- cidal and virucidal. -
Page 21: Care Products And Systems - Servicing
Instructions for use SMARTtorque S609 C – 1.008.1644 SMARTtorque Mini S605 C – 1.008.1645 7 Reprocessing steps in accordance with ISO 17664 | 7.4 Care products and systems - Servicing ▶ Immediately after drying, lubricate the KaVo medical device with care agents from the KaVo care system. -
Page 22: Care With Kavo Sprayrotor
Instructions for use SMARTtorque S609 C – 1.008.1644 SMARTtorque Mini S605 C – 1.008.1645 7 Reprocessing steps in accordance with ISO 17664 | 7.4 Care products and systems - Servicing ▶ Service the product in the QUATTROcare PLUS. See also:... -
Page 23: Servicing With Kavo Quattrocare
Instructions for use SMARTtorque S609 C – 1.008.1644 SMARTtorque Mini S605 C – 1.008.1645 7 Reprocessing steps in accordance with ISO 17664 | 7.5 Packaging ▶ Service the product. See also: 2 Instructions for use KaVo SPRAYrotor 7.4.4 Servicing with KaVo QUATTROcare... -
Page 24: Sterilisation
Instructions for use SMARTtorque S609 C – 1.008.1644 SMARTtorque Mini S605 C – 1.008.1645 7 Reprocessing steps in accordance with ISO 17664 | 7.6 Sterilisation 7.6 Sterilisation Sterilisation in a steam steriliser (autoclave) in accordance with EN 13060 / EN ISO 17665-1 CAUTION Improper service and care. -
Page 25: Optional Aids And Consumables
Instructions for use SMARTtorque S609 C – 1.008.1644 SMARTtorque Mini S605 C – 1.008.1645 8 Optional aids and consumables 8 Optional aids and consumables Available from dental suppliers. Material summary Mat. no. Replacement cartridge Standard 1.008.4163 Replacement cartridge Mini 1.008.4164 Wrench Standard 0.411.3053... -
Page 26: Warranty Terms And Conditions
Instructions for use SMARTtorque S609 C – 1.008.1644 SMARTtorque Mini S605 C – 1.008.1645 9 Warranty terms and conditions | 7.7 Storage 9 Warranty terms and conditions The following warranty conditions apply to this KaVo medical device: KaVo provides the end customer with a warranty of proper function and guar-...
