Touch Panel Interfaces Dialog; To Add A New Touch Panel Interface - AMX DESIGN XPRESS HOME THEATER V1.3 - PROGRAMMER GUIDE Instruction Manual

Using the DXP-HT Project Wizard

Touch Panel Interfaces dialog

DXP-HT requires that at least one touch panel is defined within the system.
You can define up to 8 touch panels in the system

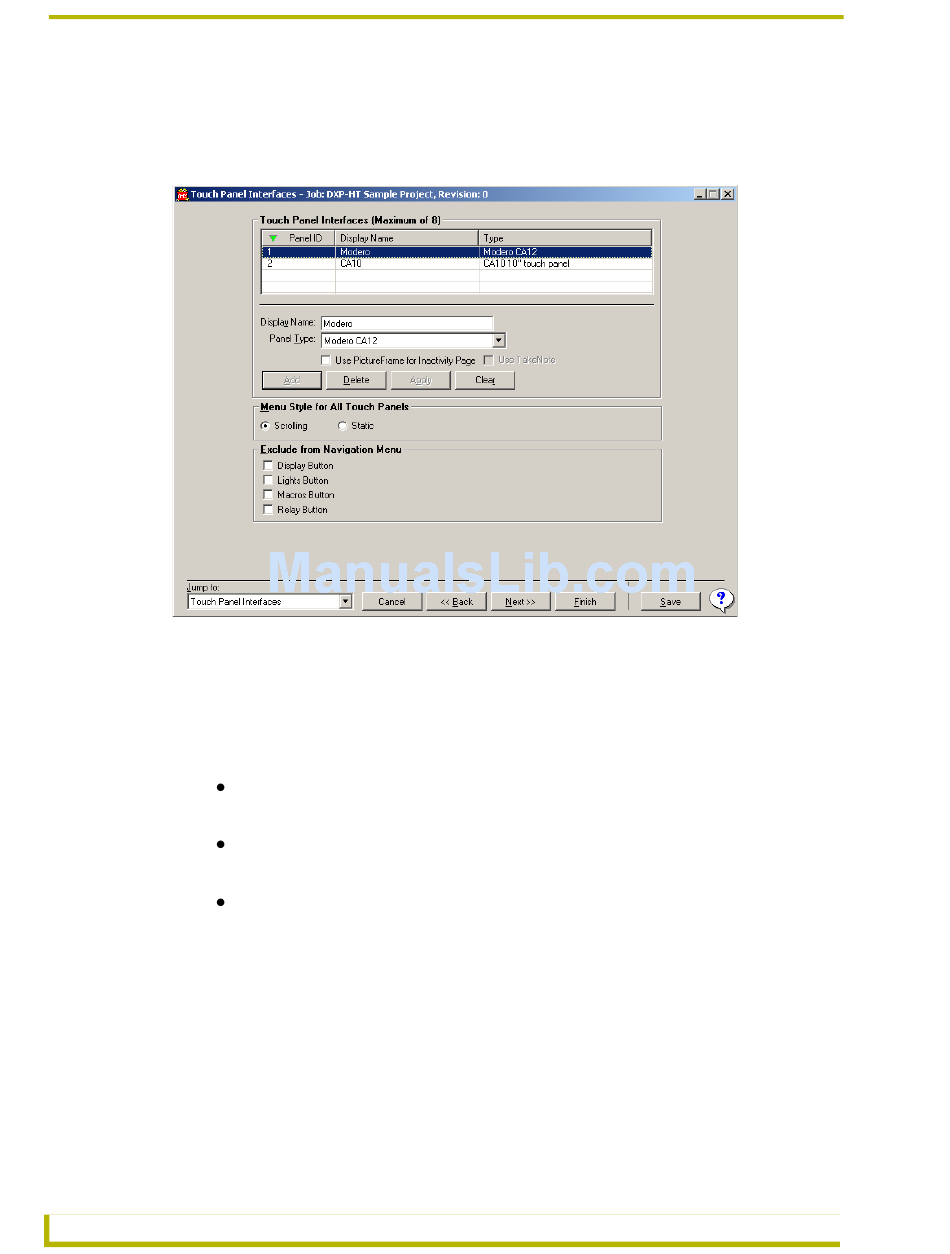

FIG. 10 Touch Panel Interfaces dialog
The Touch Panel Interfaces table can be sorted by clicking on any of the three column header cells
(Panel ID, Display Name and Type). Clicking the header cells toggles between sorting the column
in ascending or descending order. Clicking on any of the cells within the list selects the touch panel
for editing.

To add a new Touch Panel Interface

1. Enter a name for the new panel in the Display Name field.
2. Select a panel type from the Panel Type drop-down list.
3. Click the Add button to add the newly configured panel.
42
The Panel ID is an arbitrary reference to the touch panel and is not the AXlink Device
ID. You can find the AXlink Device ID in the report generated by DXP-HT.
The Display Name is the reference to the touch panel that is used in the installation
report.
The Type determines which touch panel files get modified and added to the NetLinx
Studio Project. There are several supported panel types (see the Modero (G4) touch
panels section on page 5 and G3 touch panels section on page 6 for details).
DXP-HT v1.3 - Programmer's Guide
