System Information dialog

The first dialog in the Project Wizard is the System Information dialog (FIG. 1). This dialog
contains the information used by Design XPress - Home Theater (DXP-HT) to create and program
the control system.
Double-click on any device in the list to access the Device Configuration dialog, containing all
control information associated with the device.

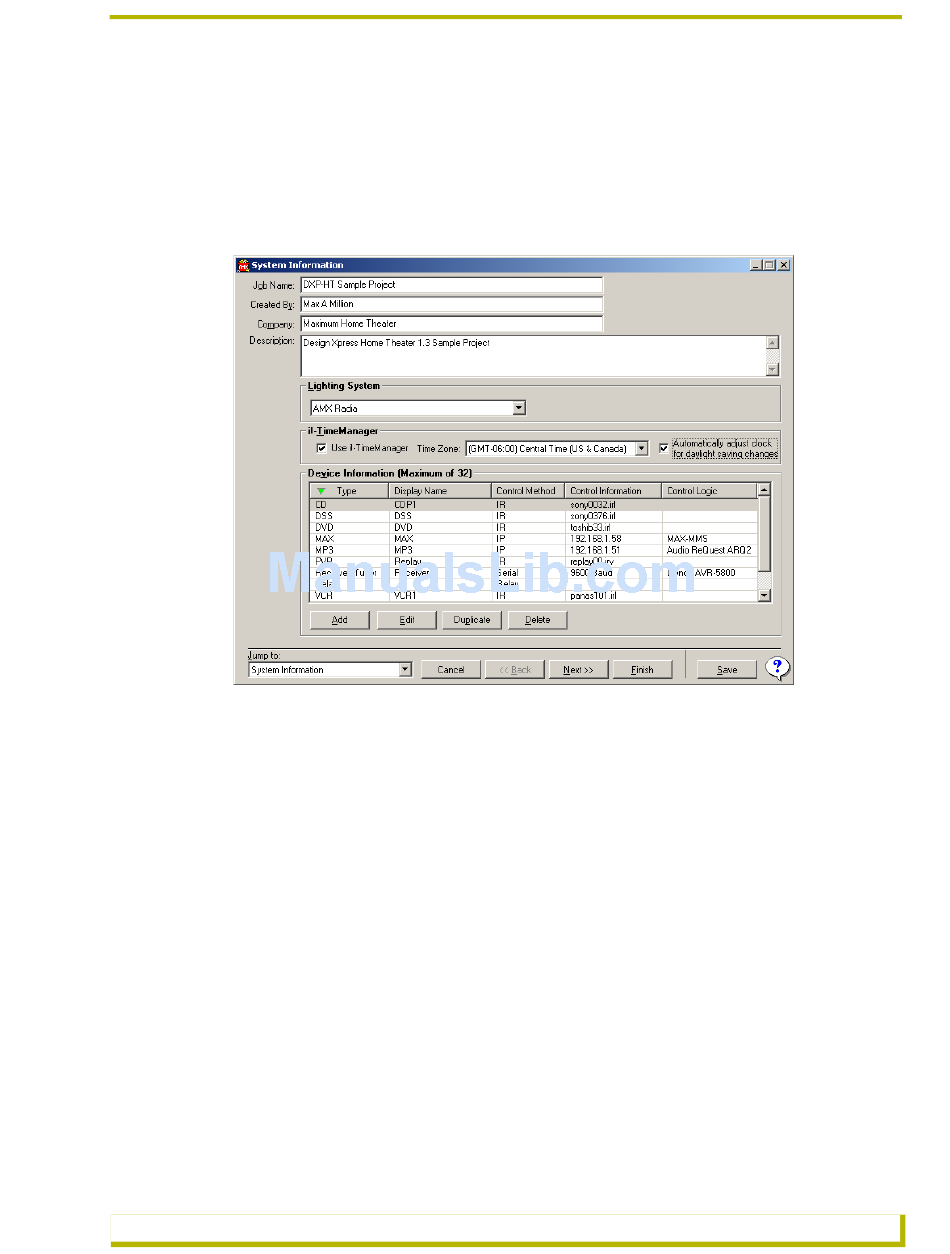

FIG. 1 System Information dialog
The following list describes the items in the System Information dialog:
Note that since the Job Name, Created By and Company names are also used in the NetLinx
program, the characters that you are allowed to use are A-Z, a-z, 0-9, - and _. These fields are all
limited to 40 characters.
DXP-HT v1.3 - Programmer's Guide
• Job Name: Enter the name of the project here. Each new project should be given a
unique Job Name and Description.
• Created By: This field is pre-populated, if this information was entered in the User Infor-
mation dialog. Otherwise, enter or edit the name of the project author here.
• Company: This field is also pre-populated, if this information was entered in the User
Information dialog. Otherwise, enter or edit the name of the company here.
• Description: Enter a description of the project here (8190 characters maximum). Any
alphanumeric character (including punctuation) can be used. Each new
project should be given a unique Job Name and Description.
