  • Page 1: Home Theater

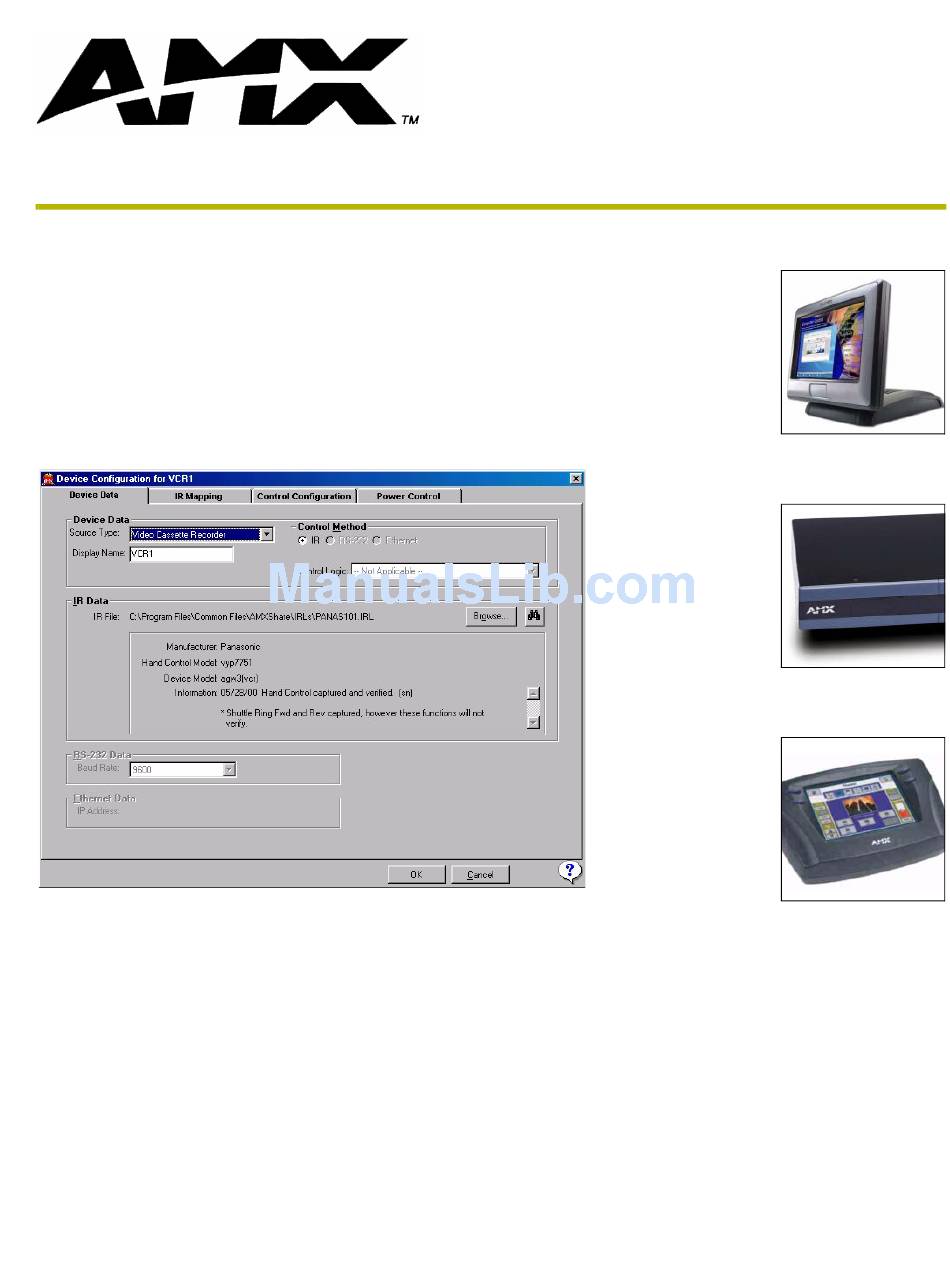

    instruction manual Design XPress - Home Theater version 1.3 Programmer’s Guide So f twa re...
  • Page 2 AMX's entire liability and your exclusive remedy shall be repair or replacement of the AMX Software that does not meet AMX's Limited Warranty and which is returned to AMX. This Limited Warranty is void if failure of the AMX Software has resulted from accident, abuse, or misapplication.

  • Page 3: Table Of Contents

    G3 touch panels ........................6 G3 panels do not support the following..................6 AMX NetLinx Integrated Controllers..................6 CD Players ..........................6 DVD Players ..........................6 MAX Servers by AMX ......................7 Lighting............................. 7 MP3 Players..........................7 Plasma Displays ........................8 Receivers ..........................8 User Interfaces ........................
  • Page 4 Table of Contents Using the DXP-HT Project Wizard ................. 19 Before You Start - Required Information................. 19 Launching the DXP-HT Project Wizard................19 Project Wizard Navigation Controls ..................20 System Information dialog....................21 Adding a Device to the Project....................22 Adding IR-Controlled Devices to the Project................
  • Page 5 Table of Contents Choose Touch Panel Text Colors dialog................45 Channel Preset Categories dialog................... 47 To create new Preset Categories................... 47 To edit the Display Name for an existing Preset Category ............ 48 Channel Preset dialogs ....................48 Relay Control dialog ......................49 Adding a Relay Control Definition to the list................
  • Page 6 Table of Contents Copying a Design XPress - Home Theater Project..............65 Importing a DXP-HT Project....................65 Exporting a DXP-HT Project ....................65 Deleting a DXP-HT Project ....................66 Working With IR Files .................... 67 Selecting an IR File to Use....................67 Searching for IR Files (Search Criteria) ................
  • Page 7 Table of Contents Function Codes: G4CC ......................79 Function Codes: HELP-ABOUT ..................... 80 Function Codes: KBKeyboard....................80 Function Codes: KBShift ......................80 Function Codes: Lights ......................80 Function Codes: Logo ......................81 Function Codes: Macros ......................81 Function Codes: Macros2 ...................... 81 Function Codes: Main Page....................
  • Page 8 Table of Contents Function Codes: TNpenOptions..................... 93 Function Codes: TNtext ......................94 Function Codes: TNshape ..................... 94 Function Codes: Tuner Presets ..................... 94 Function Codes: VCR ......................95 Function Codes: VCR Menu ....................95 Function Codes: VCR Tuner ....................95 Function Codes: VCR Video ....................

  • Page 9: Introduction

    DXP-HT allows control via several types of AMX touch panels (see Supported Touch Panels for details). A wizard-type front-end graphic user interface (GUI) helps you to quickly step through the process of entering information specific to the home theater system being programmed.
  • Page 10 Introduction Support for NI-700 NetLinx Integrated Controller: This new controller is treated the same as any of the other NI Series of Integrated Controllers. If the project requires more ports than the NI-700 can provide (2 Serial and 1 IR), it is disabled as a system controller option.

  • Page 11: Minimum System Requirements

    Image File is required. This image installation is available on the DXP-HT section of the Application Files page on www.amx.com. DXP-HT v1.3 - Programmer’s Guide...

  • Page 12: Dxp-Ht Version Information

    Design XPress - Home Theater (DXP-HT) can be downloaded from the AMX web site. You must first log in as a registered user to the AMX web site then, you can proceed to the Software Center to download the application. You must download all of the files in the Design XPress - Home Theater directory, or you may download the compressed file, which contains all of the other files in the directory.

  • Page 13: Supported Subsystems And Equipment

    DXP-HT (version 1.3 or higher) supports the following subsystems and equipment: AMX touch panels AMX NetLinx Integrated Controllers CD (Compact Disc) Players DVD (Digital Video Disc) Players MAX Integrated Content Servers by AMX Lighting MP3 Players Plasma Displays User Interfaces (AMX Touch Panels)

  • Page 14: G3 Touch Panels

    G3 panels do not support the following MAX Integrated Content Server G4 Computer Control TakeNote! PictureFrame AMX NetLinx Integrated Controllers • NI-700 • NI-2000 • NI-3000 • NI-4000 • NXI equipped with a NXC-ME260/64 Master card CD Players •...

  • Page 15: Max Servers By Amx

    The MAX-MMS and MAX-IMS servers are Ethernet-control only. They must be used with AMX G4 touch panels (see Supported Touch Panels). The MAX-AVM A/V Module(s) connected to the MAX-MMS server must be all set to output to Zone 1.

  • Page 16: Plasma Displays

    SR8200 • Marantz SR8300 • Marantz SR9200 • Marantz SR9300 • Onkyo TX-DS989 • Pioneer Elite VSX-47TX • Sony STR-DA7ES User Interfaces AMX Touch Panels Video Cassette Recorders (VCRs) • JVC SRS365U • Marantz MV8300 DXP-HT v1.3 - Programmer’s Guide...

  • Page 17: Video Projection Devices

    Introduction Video Projection Devices • Barco IQG300 • Barco IQR300 • ChristieDigital DS30 • ChristieDigital RoadRunnerL6 • ChristieDigital VistaS3 • Digital Projection iVisionSXGA • Eiki LCXG200 • Epson PowerLite7800p • Epson PowerLite811p • Epson PowerLite8150i • Epson PowerLite8300i • Hewlett Packard XP8010 •...

  • Page 18: Dxp-Ht Main Screen

    Introduction DXP-HT Main Screen When DXP-HT is launched, the first dialog to be displayed is the Main Screen. Use the Main Screen as the starting point for creating new projects and opening existing projects. The Main Screen also contains command buttons for copying projects and deleting projects. There are three main areas on the Main Screen: the Menu Bar, the Project Selection List, and the Project Maintenance command buttons.

  • Page 19: Dxp-Ht Menu Bar

    Introduction DXP-HT Menu Bar There are four items in the menu bar (on the Main Screen): File Menu The Design XPress - Home Theater (DXP-HT) File menu contains several file control options: • New: Launches the Project Wizard, to create a new DXP-HT project file. •...

  • Page 20: Help Menu

    • Contents: Opens the online help file. • Web Update: Will launch the Web Update application to search the AMX site for an update to the DXP-HT software. Selecting Yes will close DXP-HT, begin the download of the update, and run the installation of the update. You must have an active Internet connection for Web Update to work.

  • Page 21: Project Selection List Context Menu

    Introduction Project Selection List Context Menu Right-click anywhere inside the Project Selection List (on the Main Screen) to open the Project Selection List context menu, containing shortcuts to several project-related operations: • New: Launches the DXP-HT Project Wizard to create a new project. This is the same as click- ing the Create New Project command button (or selecting File >...

  • Page 22: Main Screen Command Buttons

    Introduction Main Screen Command Buttons Create New Project: Click this command button to launch the Design XPress - Home Theater Project Wizard. Use the Project Wizard to step through the process of designing and configuring the system. Open Project: Click to highlight a project in the Project Selection List, and click the Open Project command button to open the selected Project.

  • Page 23: Setting Program Preferences

    Introduction This dialog is also used by the Design XPress application to fill-in some data within the project. This means that if you do an initial installation of DXP-HT you will be asked to enter your information into the User Information dialog. Once this data has been entered, you will not be asked for it again.
  • Page 24 Project Folder: Click the Browse button to navigate to the desired target folder for all Project saves. By default, the Project Folder is set to: Program Files\AMX Control Disc\Design XPress Home Theater\Projects IRLib Path: Click the Browse button to navigate to the desired target folder for all IR (*IRL) files.

  • Page 25: Getting Started

    Introduction Getting Started To launch the DXP-HT Project Wizard Select the sample project (highlight "Sample Updated for DXPHT 1.3" in the Project Selection List (on the Main Screen), and click the Open Project command button). This invokes the first Wizard dialog: System Information, containing a summary of the system information for this project.
  • Page 26 Introduction DXP-HT v1.3 - Programmer’s Guide...

  • Page 27: Using The Dxp-Ht Project Wizard

    Using the DXP-HT Project Wizard Using the DXP-HT Project Wizard DXP-HT uses a Project Wizard to step you through the process of designing a control system. To launch the DXP-HT Project Wizard, click the Create New Project button on the Main Screen. The results of the DXP-HT project are placed in "Projects\Job Name\Rev #", in the application directory.

  • Page 28: Project Wizard Navigation Controls

    Using the DXP-HT Project Wizard At the lower-left corner of this and all Wizard dialogs is a drop-down list titled Jump To. Click the down-arrow to open a list of all Wizard dialogs, and select any dialog from this list to jump to that dialog. Additionally, all of the dialogs in the Project Wizard have a set of Navigation Control buttons along the bottom of the dialog to allow you move back and forth through the wizard dialogs, and save or cancel your changes.

  • Page 29: System Information Dialog

    Using the DXP-HT Project Wizard System Information dialog The first dialog in the Project Wizard is the System Information dialog (FIG. 1). This dialog contains the information used by Design XPress - Home Theater (DXP-HT) to create and program the control system. Double-click on any device in the list to access the Device Configuration dialog, containing all control information associated with the device.

  • Page 30: Adding A Device To The Project

    For example, the LiteTouch 5000LC displays a combo box to select the baud rate for communications with the LiteTouch controller. However, the AMX Radia system does not have a Baud Rate combo box because it communicates via AXlink.

  • Page 31: Adding Ir-Controlled Devices To The Project

    Using the DXP-HT Project Wizard 4. Use the radio buttons to select the Control Method associated with the new device (IR, Serial or IP). If IR is selected, you must locate the associated IRL file by using the Browse button from the IR Data section.

  • Page 32: Adding Serial-Controlled Devices To The Project

    Using the DXP-HT Project Wizard Inversely, you can manually remove any IR functions from Touch Panel functions by selecting a Touch Panel function (from the right-hand table), and click the left-arrows button. When adding multiple devices of similar type to a Project, in some cases the devices could have very different requirements in terms of functionality and associated Touch Panel pages/buttons.

  • Page 33: Adding Ip-Controlled Devices To The Project

    Information dialog to open the Device Configuration dialog - Device Data tab. 1. Select AMX MAX from the Source Type drop-down list. 2. Enter a name for the device in the Display Name field. This is the name for the device that will appear on the touch panel.

  • Page 34: Duplicating A Source Device

    If the i!-Weather application is installed on a Master without a weather account, only AMX-related locations are viewable within the i!-Weather page on the touch panel. To gain access to any zip code's weather information, you must purchase a subscription from AMX.

  • Page 35: Device Configuration Dialog

    This tab is where you specify the IR Mapping for the selected device. Control Configuration: The options in this tab are used to configure the AMX IR port to properly transmit the IR signal to the AV equipment. This tab requires that you know how your equipment operates.
  • Page 36 Using the DXP-HT Project Wizard FIG. 2 Device Configuration dialog (Device Data tab) There are several devices that have device specific options that become visible when the device is selected. • Source Type: Click the down-arrow to open a drop-down list of available device types (Compact Disc Player, Digital Satellite System, Digital Video Disc Player, etc).
  • Page 37 Using the DXP-HT Project Wizard Control Logics are specific device behaviors that have been programmed into the NetLinx Code either through Modules, System Calls or Include files. A list of the applicable Control Logics will appear in the Control Logics combo box. •...

  • Page 38: Device Configuration Dialog - Ir Mapping Tab

    Using the DXP-HT Project Wizard IP Data: For IP-controlled devices, enter the IP address of the device in the IP Address field. The IP Port number is set within the Control Method and is not accessible. This field is only enabled if IP was selected as the Control Method. Each device IP Address must be unique, with only one exception: MAX servers can use one IP with multiple output zones per display name entry.

  • Page 39: Mapping A Function

    Using the DXP-HT Project Wizard The Program Function List is on the right side of the screen. The Program Function List is populated with the supported functions for the Device Type selected on the Device Data tab. Mapping a Function 1.

  • Page 40: Device Configuration Dialog - Control Configuration Tab

    Device Configuration dialog - Control Configuration tab The options in the Control Configuration tab (FIG. 4) allow you to configure the AMX IR port to properly transmit the IR signal to the AV equipment. This tab requires that you know how your equipment operates.

  • Page 41: Device Configuration Dialog - Power Control Tab

    Using the DXP-HT Project Wizard • Mode 4 Mode 4 should only be used for channels 0-199, and sends the same IR sequences as the CH command. Stack Pulse Parameters - If the Tune Using XCH Command option is de-selected, the Stack Pulse Parameters options become available.

  • Page 42: Working With Max Servers

    MAX-IMS assigned to IP Address 1.1.1.1 - Zone 2. But you cannot assign two MAX servers with the same IP Address and Output Zone (you will receive an error message). Refer to the MAX-MMS and MAX-IMS Installation Guides (available online at www.amx.com) for details. DXP-HT v1.3 - Programmer’s Guide...

  • Page 43: Which Screens? Dialog

    Using the DXP-HT Project Wizard Which Screens? dialog The Which Screens? dialog (FIG. 6) is available for selection in the Jump To drop-down, once the project has been finished and re-opened. Use this dialog to specify which Project Wizard dialogs to include in the Jump To list, to further simplify using the application.

  • Page 44: Audio/Video Inputs Dialog

    Using the DXP-HT Project Wizard Audio/Video Inputs dialog The Audio/Video Inputs dialog creates the association between the Devices defined on the System Information dialog, the Inputs defined for the receiver, and the physical input connectors on the back of the receiver. Each source Device must be associated with a Physical Label, an Input Type and the IR or Control Logic command required to switch the receiver.

  • Page 45: Surround Sound Presets Dialog

    Using the DXP-HT Project Wizard • Input Type: This field differentiates audio-only inputs from A/V inputs. Select the appropriate input from the drop-down list (Audio Only, Component, Com- posite, HD Component, HD RGB or S-Video). Note: If you select any Input Type other than Audio Only, an additional drop-down is displayed at the bottom of this dialog - Display Device (see below).

  • Page 46: Adding A Surround Sound Mode

    Using the DXP-HT Project Wizard The Add button will add a new surround mode to the top of the list. Note that you can only add new modes if IR has been specified as the receiver's Control Method (as indicated in the System Information dialog). The Delete button deletes the selected surround mode from the list.

  • Page 47: Lighting Presets Dialog

    Using the DXP-HT Project Wizard Lighting Presets dialog The Lighting Presets dialog sets up the available presets for the Lighting system selected on the System information page. There is a maximum of nine presets available. DXP-HT does not allow for individual zone control or the setting of presets, only the recall of existing presets. FIG.
  • Page 48 • Vantage Qlink Master:Keypad (positive integers) For the AMX ALD-D48, the Address field value is fixed at a value of one (1) and is read-only. This value corresponds to the Device ID of the keypad. Click the Apply button after editing a preset to apply the changes.

  • Page 49: Resorting The Presets List

    TN 543, available via www.amx.com (Dealers > Tech Center > Tech Notes). For detailed configuration information on the ALD-D48, refer to the ALD-D48 Network Lighting Solution Instruction Manual, also available via www.amx.com (Dealers > Tech Center > Tech Docs > Instruction Manuals).

  • Page 50: Touch Panel Interfaces Dialog

    Using the DXP-HT Project Wizard Touch Panel Interfaces dialog DXP-HT requires that at least one touch panel is defined within the system. You can define up to 8 touch panels in the system FIG. 10 Touch Panel Interfaces dialog The Touch Panel Interfaces table can be sorted by clicking on any of the three column header cells (Panel ID, Display Name and Type).

  • Page 51: Use Picture Frame For Inactivity Page

    Using the DXP-HT Project Wizard Use Picture Frame for Inactivity Page Click this option to use the PictureFrame application as a screensaver when the touch panel becomes inactive (this option tells the panel to launch the PictureFrame application from the target PC rather than use the DXP-HT Logo page, when the panel times-out).

  • Page 52: Choose Touch Panel Theme Dialog

    Using the DXP-HT Project Wizard Relay Button All of these selections are dependent on these devices first being defined. For example, if no lighting was previously defined, the Lights Button checkbox will be disabled. Choose Touch Panel Theme dialog The Choose Touch Panel Themes dialog allows you to select from a list of predefined layouts (or themes) for your touch panels.

  • Page 53: Choose Touch Panel Background Dialog

    Using the DXP-HT Project Wizard Choose Touch Panel Background dialog To select a background for your custom touch panel theme, click on one of the background names in the list on the left side of the screen. A small-scale preview image of the selected theme is displayed in this dialog. Click on the Preview button to see a full size preview of the panel page.
  • Page 54 Using the DXP-HT Project Wizard FIG. 13 Choose Touch Panel Buttons dialog FIG. 14 Choose Touch Panel Text Colors dialog DXP-HT v1.3 - Programmer’s Guide...

  • Page 55: Channel Preset Categories Dialog

    Using the DXP-HT Project Wizard Channel Preset Categories dialog This dialog allows you to create up to 8 different preset categories. For example, you might create a presets category for Sports channels, one for Movies channels, another for Children's channels, and so on.

  • Page 56: To Edit The Display Name For An Existing Preset Category

    Using the DXP-HT Project Wizard To edit the Display Name for an existing Preset Category 1. Select one from the list, and enter the new name in the Display Name text field. 2. Click Apply to apply the change. 3. Use the up/down arrow buttons to change the order in which the Preset Category buttons will occur on the touch panel.

  • Page 57: Relay Control Dialog

    Using the DXP-HT Project Wizard The Copy from: drop-down list allows you to copy a previously configured channel preset to the current device. Click the down arrow to view the list, and select the channel preset you want to copy into the Channel Presets table. The Button Image drop-down list contains all of the preset channels in the Design XPress -Home Theater wizard.

  • Page 58: Adding A Relay Control Definition To The List

    Using the DXP-HT Project Wizard The Control Logic drop-down menu allows you to select from 3 control type options: Latching, Momentary and Pulse Type: Latching relays remain on until another relay is selected. Momentary relays will remain on as long as the touch button is being pressed. Pulse Type relays will turn on for ½...

  • Page 59: Presets For Receiver Am/Fm Tuner Dialog

    Using the DXP-HT Project Wizard Presets for Receiver AM/FM Tuner dialog The Presets for Receiver AM/FM Tuner dialog sets up the radio presets for the receiver's AM/FM tuner. You can setup and define as many presets as are present on the AM/FM tuner. The presets must be discrete and must be on the same bank of presets.

  • Page 60: Deleting A Preset From The List

    Using the DXP-HT Project Wizard Deleting a Preset from the List Select one and click the Delete button. CD Titles dialog The CD Titles dialog allows you to setup CD or DVD titles in multi-disc changers. The number of title slots is determined by the changer size as set in the Device Configuration dialog (Device Data tab).

  • Page 61: Adding A New Cd Title

    Using the DXP-HT Project Wizard Adding a new CD title: Manually enter either Artist or Disc Title information to enable the Add button. Click the Add button to add the new CD to the list. Alternatively, you can select an existing CD title from the list, then edit the Artist and Disc Title information, and click the Add as New button.

  • Page 62: Removing A Cd Title (Cd Titles Maintenance Dialog)

    Using the DXP-HT Project Wizard To prevent the CD from playing when it is inserted, hold down the shift key on the keyboard while loading the CD. 2. Click the down-arrow (in the Setting to receive CD data from freedb.org section of the dialog) to view a list of available CD drives on your PC.

  • Page 63: Creating A New Macro And Adding It To The Project

    Using the DXP-HT Project Wizard Creating a new macro and adding it to the Project 1. Click the Add command button in the System Information dialog to open the Device Configuration dialog and begin configuring a new device. 2. Enter a name for the new macro in the Macro Name text field. 3.
  • Page 64 Using the DXP-HT Project Wizard • Device Function: Use this tab to add a device and device function to the macro. Click the down arrow to access the Device drop-down list of devices defined in the System Information dialog. Once a device has been selected, a second set of func- tion-oriented drop-down lists becomes available.

  • Page 65: Navigation And Routing Macros

    Using the DXP-HT Project Wizard Navigation and Routing Macros This dialog is included in the wizard only if you selected the Use Macro for Menu Navigation and Device Routing check box in the Device Configuration dialog (Device Data tab). FIG. 21 Navigation and Routing Macros dialog A macro is a series of commands that are triggered by a single button on the touch panel, in this case the Main menu buttons.

  • Page 66: Building The Project

    Your project files will be located in the Design XPress - Home Theater directory under the folder projects. Typically the installed directory will be: <drive:>\Program Files\AMX Control Disc\Design XPress Home Theater We recommend that you view and print the project HTML report from within the web browser.

  • Page 67: Finishing The Job

    For more information on how to operate NetLinx Studio see the NetLinx Studio Tutorial on the Training page of the AMX web site at www.amx.com, and consult the on-line help file and NetLinx Studio Instruction Manual (also available via the AMX website).

  • Page 68: Transferring Preset Button Text To The Master Via Ftp

    NetLinx software, etc. • AMX Recommended This section of the report lists all of the AMX equipment that will be Equipment List needed to build, install, and run the system. Both model numbers and descriptions are given to make ordering the equipment a simple pro- cess.

  • Page 69: Transferring Cd/Dvd Title Information To The Master Via Ftp

    Using the DXP-HT Project Wizard Transferring CD/DVD Title Information to the Master via FTP Anytime that you assign text to any type of preset button in your project, you must transfer the button text that appears on the buttons in Design XPress to the NetLinx Master, in order to display the button text on the panel(s) in the system.

  • Page 70: Configuring Computer Control (G4Cc)

    (along the lower half of the application window), and begin the transfer process. The files upload progress is reflected on the touch panel LCD. 13. After a successful upload is completed, the touch panel displays an AMX DXP-HT - Logo page.

  • Page 71: Configuring Takenote

    Using the DXP-HT Project Wizard Configuring TakeNote TakeNote is an AMX application that works in conjunction with G4 touch panels, TPDesign4 and G4 Computer Control (G4CC) to allow you to use a G4 panel to annotate to either a windows desktop or on other G4 panels.

  • Page 72: Configuring I!-Timemanager

    This is especially true of the Receiver IR mappings. All custom additions to the generated system need to be made to the Custom.axi include file. AMX does not recommend making modifications to Main.axi or any other include file.

  • Page 73: Copying A Design Xpress - Home Theater Project

    Using the DXP-HT Project Wizard Copying a Design XPress - Home Theater Project There are three ways to copy an existing DXP-HT project file under a new name. All three methods have the same result; they allow you to rename a copy of the Project selected (highlighted) in the Project Selection list (on the Main Screen), via the Copy Project dialog.

  • Page 74: Deleting A Dxp-Ht Project

    Using the DXP-HT Project Wizard Deleting a DXP-HT Project There are three ways to delete an existing DXP-HT project file. All three methods have the same result; they each delete the Project selected (highlighted) in the Project Selection list (on the Main Screen) from the hard drive.

  • Page 75: Working With Ir Files

    Working With IR Files Working With IR Files Selecting an IR File to Use Once you have found the IRL file that you want to use in association with the device (as specified in the Device Configuration dialog): 1. Select the IR file from within the Search Results table. 2.

  • Page 76: Scanning Directories For Irl Files

    IR codes. In some cases the IR file for new equipment may not have been captured or is not available for download from the AMX website. Or perhaps the IR file is available on the web but one or two codes were not captured in the right channels. In these cases it may be necessary for the installer to capture the IR codes or, at least, modify the IR file.

  • Page 77: Dxp-Ht Touch Panel Channel Maps

    DXP-HT Touch Panel Channel Maps DXP-HT Touch Panel Channel Maps Channel Maps (Function Codes) - Overview The channel maps are generated in TPD4. Once you have created a touch panel project: 1. Open a TPD4 template file. 2. From the Main menu, click Panel to open a drop-down menu. 3.
  • Page 78 DXP-HT Touch Panel Channel Maps CH Port: 0, CH Code: 520 CH Port: 0, CH Code: 521 CH Port: 0, CH Code: 522 CH Port: 0, CH Code: 523 CH Port: 0, CH Code: 524 CH Port: 0, CH Code: 525 CH Port: 0, CH Code: 526 CH Port: 0, CH Code: 527 CH Port: 0, CH Code: 543...

  • Page 79: Function Codes: Amfm Tuner

    DXP-HT Touch Panel Channel Maps CH Port: 0, CH Code: 610 CH Port: 0, CH Code: 602 pg up CH Port: 0, CH Code: 604 Button 83 CH Port: 0, CH Code: 70 Function Codes: AMFM Tuner TUNER_BAND_BUTTON CH Port: 1, CH Code: 22, TUNER_TUNEUP_BUTTON CH Port: 1, CH Code: 23, TUNER_TUNEDOWN_BUTTON...

  • Page 80: Function Codes: Cable Video

    DXP-HT Touch Panel Channel Maps CABLE_POWER_BUTTON CH Port: 1, CH Code: 194 CABLE_PRESET_BUTTON CH Port: 3, CH Code: 97 CABLETUNER_0_BUTTON CH Port: 1, CH Code: 180 CABLETUNER_PREVCHAN_BUTTON CH Port: 1, CH Code: 204 Function Codes: Cable Video CABLETUNER_PREVCHAN_BUTTON CH Port: 1, CH Code: 204 CABLETUNER_ENTER_BUTTON CH Port: 1, CH Code: 193 CABLE_GUIDE_BUTTON...

  • Page 81: Function Codes: Cd List

    DXP-HT Touch Panel Channel Maps CDADVANCED_0_BUTTON CH Port: 3, CH Code: 44 CDADVANCED_ENTER_BUTTON CH Port: 3, CH Code: 46 CD_SELECTDISC_BUTTON CH Port: 3, CH Code: 57 AD Port: 3, AD Code: 57 CD_POWER_BUTTON CH Port: 3, CH Code: 25 CDADVANCED_SELECT_BUTTON CH Port: 3, CH Code: 45 CDADVANCED_+100_BUTTON CH Port: 3, CH Code: 47 CDADVANCED_CLEAR_BUTTON...

  • Page 82: Function Codes: Cd List Keyboard

    DXP-HT Touch Panel Channel Maps Function Codes: CD List Keyboard Enter CH Port: 1, CH Code: 234 AD Port: 3, AD Code: 23 AD Port: 3, AD Code: 22 CH Port: 3, CH Code: 8 Function Codes: CD List - Title Only CDTTL_UP_BUTTON CH Port: 3, CH Code: 9 CDTTL_DOWN_BUTTON...

  • Page 83: Function Codes: Channel Preset Categories

    DXP-HT Touch Panel Channel Maps Function Codes: Channel Preset Categories CHANCAT_UP_BUTTON CH Port: 1, CH Code: 130 CHANCAT_DOWN_BUTTON CH Port: 1, CH Code: 129 CHANCAT_HDR_BUTTON AD Port: 1, AD Code: 80 CHANCAT_1_BUTTON CH Port: 1, CH Code: 150 AD Port: 1, AD Code: 150 CHANCAT_2_BUTTON CH Port: 1, CH Code: 151 AD Port: 1, AD Code: 151 CHANCAT_3_BUTTON...

  • Page 84: Function Codes: Display Advanced

    DXP-HT Touch Panel Channel Maps DISPLAY_9_BUTTON CH Port: 2, CH Code: 89 DISPLAY_ENTER_BUTTON CH Port: 2, CH Code: 91 DISPLAY_0_BUTTON CH Port: 2, CH Code: 80 DISPLAY_MENU_BUTTON CH Port: 2, CH Code: 141 DISPLAY_INPUT_BUTTON CH Port: 2, CH Code: 78 DISPLAY_CHANUP_BUTTON CH Port: 2, CH Code: 92 DISPLAY_CHANDN_BUTTON...

  • Page 85: Function Codes: Display - Projector

    DXP-HT Touch Panel Channel Maps Function Codes: Display - Projector PROJ_POWER_BUTTON CH Port: 2, CH Code: 94, PROJ_VIDEO1_BUTTON CH Port: 2, CH Code: 190 AD Port: 2, AD Code: 190 PROJ_VIDEO2_BUTTON CH Port: 2, CH Code: 191 AD Port: 2, AD Code: 191 PROJ_VIDEO3_BUTTON CH Port: 2, CH Code: 192 AD Port: 2, AD Code: 192 PROJ_VIDEO4_BUTTON...

  • Page 86: Function Codes: Dss Tuner

    DXP-HT Touch Panel Channel Maps Function Codes: DSS Tuner DSSTUNER_1_BUTTON CH Port: 2, CH Code: 151 DSSTUNER_2_BUTTON CH Port: 2, CH Code: 152 DSSTUNER_3_BUTTON CH Port: 2, CH Code: 153 DSSTUNER_4_BUTTON CH Port: 2, CH Code: 154 DSSTUNER_5_BUTTON CH Port: 2, CH Code: 155 DSSTUNER_6_BUTTON CH Port: 2, CH Code: 156 DSSTUNER_7_BUTTON...

  • Page 87: Function Codes: Dvd Changer Advanced

    DXP-HT Touch Panel Channel Maps Function Codes: DVD Changer Advanced DVDADVANCED_1_BUTTON CH Port: 2, CH Code: 200 DVDADVANCED_2_BUTTON CH Port: 2, CH Code: 201 DVDADVANCED_3_BUTTON CH Port: 2, CH Code: 202 DVDADVANCED_4_BUTTON CH Port: 2, CH Code: 203 DVDADVANCED_5_BUTTON CH Port: 2, CH Code: 204 DVDADVANCED_6_BUTTON CH Port: 2, CH Code: 205 DVDADVANCED_7_BUTTON...

  • Page 88: Function Codes: Help-About

    DXP-HT Touch Panel Channel Maps Function Codes: HELP-ABOUT AMX_SETUP_BUTTON CH Port: 0, CH Code: 73 SYSINFO_JOBNAME AD Port: 1, AD Code: 210 SYSINFO_FILENAME AD Port: 1, AD Code: 211 SYSINFO_COMPANY AD Port: 1, AD Code: 213 SYSINFO_CREATEDBY AD Port: 1, AD Code: 212 SYSINFO_DATE_CREATED AD Port: 1, AD Code: 215 SYSINFO_SOFTWARE_REV...

  • Page 89: Function Codes: Logo

    DXP-HT Touch Panel Channel Maps Function Codes: Logo LOGO_START_BUTTON CH Port: 4, CH Code: 255 SELECT_LBL_BUTTON AD Port: 4, CH Code: 255 Function Codes: Macros MACRO_1_BUTTON CH Port: 2, CH Code: 220 MACRO_5_BUTTON CH Port: 2, CH Code: 224 MACRO_9_BUTTON CH Port: 2, CH Code: 228 MACRO_13_BUTTON CH Port: 2, CH Code: 232 MACRO_2_BUTTON...

  • Page 90: Function Codes: Main Page

    DXP-HT Touch Panel Channel Maps Function Codes: Main Page MAIN_MENU_STATEVTB1_BUTTON CH Port: 1, CH Code: 19 AD Port: 1, AD Code: 202 MAIN_MENU_3_BUTTON CH Port: 1, CH Code: 3 AD Port: 1, AD Code: 3 MAIN_MENU_4_BUTTON CH Port: 1, CH Code: 4 AD Port: 1, AD Code: 4 MAIN_MENU_5_BUTTON CH Port: 1, CH Code: 5...

  • Page 91: Function Codes: Max Genre

    DXP-HT Touch Panel Channel Maps MAX AUDIO HEADER AD Port: 5, AD Code: 19 MAX AUDIO PLAYLISTS CH Port: 5, CH Code: 70 MAX AUDIO GENRES CH Port: 5, CH Code: 80 MAX AUDIO RECORD CH Port: 5, CH Code: 10 MAX AUDIO SEARCH CH Port: 5, CH Code: 50 Function Codes: MAX Genre...

  • Page 92: Function Codes: Max Movie Search

    DXP-HT Touch Panel Channel Maps Function Codes: MAX Movie Search MAX MOVIE SEARCH TITLE HEADER AD Port: 5, AD Code: 50 MAX MOVIE SEARCH REQUESTED TEXT AD Port: 5, AD Code: 20 MAX MOVIE SEARCH TEXT LABEL AD Port: 5, AD Code: 18 MAX MOVIE SEARCH TITLE 1 CH Port: 5, CH Code: 115 AD Port: 5, AD Code: 115 MAX MOVIE SEARCH TITLE 7...

  • Page 93: Function Codes: Max Video

    DXP-HT Touch Panel Channel Maps Function Codes: MAX Video MAX VIDEO CHAPTER AD Port: 5, AD Code: 22 MAX VIDEO TITLE AD Port: 5, AD Code: 13 MAX VIDEO HEADER AD Port: 5, AD Code: 19 MAX VIDEO PLAY CH Port: 5, CH Code: 100 MAX VIDEO STOP CH Port: 5, CH Code: 101 MAX VIDEO PAUSE...

  • Page 94: Function Codes: Mm - Sources

    DXP-HT Touch Panel Channel Maps Function Codes: MM - Sources STATIC_MENU_SRC1 CH Port: 3, CH Code: 200 STATIC_MENU_SRC2 CH Port: 3, CH Code: 201 STATIC_MENU_SRC3 CH Port: 3, CH Code: 202 STATIC_MENU_SRC4 CH Port: 3, CH Code: 203 STATIC_MENU_SRC5 CH Port: 3, CH Code: 204 STATIC_MENU_SRC6 CH Port: 3, CH Code: 205 STATIC_MENU_SRC7...

  • Page 95: Function Codes: Mp3 Player

    DXP-HT Touch Panel Channel Maps CH Port: 2, CH Code: 118 CH Port: 2, CH Code: 106 CH Port: 2, CH Code: 107 ARQNAV_SONGSLBL_BUTTON AD Port: 2, AD Code: 119 ARQNAV_ALL_BUTTON CH Port: 2, CH Code: 102 ARQNAV_ARTIST_BUTTON CH Port: 2, CH Code: 103 ARQNAV_ALBUM_BUTTON CH Port: 2, CH Code: 104 ARQNAV_JUKEBOX_BUTTON...

  • Page 96: Function Codes: Projector Video

    DXP-HT Touch Panel Channel Maps ARQPLAYER_UP_BUTTON CH Port: 2, CH Code: 128 ARQPLAYER_DOWN_BUTTON CH Port: 2, CH Code: 129 ARQPLAYER_RANDOM_BUTTON CH Port: 2, CH Code: 132 ARQPLAYER_INTRO_BUTTON CH Port: 2, CH Code: 133 ARQPLAYER_SHUFFLE_BUTTON CH Port: 2, CH Code: 131 ARQPLAYER_REPEAT_BUTTON CH Port: 2, CH Code: 130 Function Codes: Projector Video...

  • Page 97: Function Codes: Pvr Tuner

    DXP-HT Touch Panel Channel Maps PVRMNU_LEFT_BUTTON CH Port: 2, CH Code: 50 PVRMNU_RIGHT_BUTTON CH Port: 2, CH Code: 51 PVRMNU_NAVSELECT_BUTTON CH Port: 2, CH Code: 52 PVR_PRESET_BUTTON CH Port: 3, CH Code: 97 PVR_YES_BUTTON CH Port: 2, CH Code: 41 PVR_NO_BUTTON CH Port: 2, CH Code: 42 Function Codes: PVR Tuner...

  • Page 98: Function Codes: Receiver Surround

    DXP-HT Touch Panel Channel Maps RECEIVER_PRESET_BUTTON CH Port: 1, CH Code: 251 RECEIVER_POWER_BUTTON CH Port: 1, CH Code: 21 RECEIVER_REAR_VOLUP_BUTTON CH Port: 1, CH Code: 110 RECEIVER_REAR_VOLDN_BUTTON CH Port: 1, CH Code: 111 RECEIVER_CENTER_VOLUP_BUTTON CH Port: 1, CH Code: 113 RECEIVER_CENTER_VOLDN_BUTTON CH Port: 1, CH Code: 114 Function Codes: Receiver Surround SURROUND_UP_BUTTON...

  • Page 99: Function Codes: Receiver Av In

    DXP-HT Touch Panel Channel Maps Function Codes: Receiver AV In AVINP_UP_BUTTON CH Port: 1, CH Code: 71 AVINP_DOWN_BUTTON CH Port: 1, CH Code: 72 AVINP_1_BUTTON CH Port: 1, CH Code: 31 AD Port: 1, AD Code: 31 AVINP_3_BUTTON CH Port: 1, CH Code: 33 AD Port: 1, AD Code: 33 AVINP_5_BUTTON CH Port: 1, CH Code: 35...

  • Page 100: Function Codes: Tnadvancedcontrols

    DXP-HT Touch Panel Channel Maps Function Codes: TNadvancedControls Advanced CH Port: 0, CH Code: 70 Clear All Screens CH Port: 0, CH Code: 364 Clear All and Flush CH Port: 0, CH Code: 367 Function Codes: TNcolor picker brightnessPicker AD Port: 0, AD Code: 91 colorPicker LV Port: 0, LV Code: 91 brightnessPicker...

  • Page 101: Function Codes: Tnkeypad

    DXP-HT Touch Panel Channel Maps tool_line CH Port: 0, CH Code: 392 tool_rect CH Port: 0, CH Code: 393 tool_ellipse CH Port: 0, CH Code: 394 tool_select_grab CH Port: 0, CH Code: 397 tool_pointer CH Port: 0, CH Code: 391 Key Board CH Port: 0, CH Code: 398 $Vpt...

  • Page 102: Function Codes: Tntext

    DXP-HT Touch Panel Channel Maps Function Codes: TNtext Text Size CH Port: 0, CH Code: 70 Undo 96pt 12pt 48pt $V pt Function Codes: TNshape Shape CH Port: 0, CH Code: 70 Undo shape_4 AD Port: 0, AD Code: 93 shape_6 AD Port: 0, AD Code: 93 shape_3...

  • Page 103: Function Codes: Vcr

    DXP-HT Touch Panel Channel Maps Function Codes: VCR VCR_PLAY_BUTTON CH Port: 1, CH Code: 81 VCR_STOP_BUTTON CH Port: 1, CH Code: 82 VCR_PAUSE_BUTTON CH Port: 1, CH Code: 83 VCR_SRCHREV_BUTTON CH Port: 1, CH Code: 87 VCR_REWIND_BUTTON CH Port: 1, CH Code: 85 VCR_FFWD_BUTTON CH Port: 1, CH Code: 84 VCR_SRCHFWD_BUTTON CH Port: 1, CH Code: 86...

  • Page 104: Function Codes: Vcr Video

    DXP-HT Touch Panel Channel Maps VCRTUNER_PREVCHAN_BUTTON CH Port: 1, CH Code: 89 VCR_MENU_BUTTON CH Port: 1, CH Code: 107 VCRTUNER_+100_BUTTON CH Port: 1, CH Code: 106 Function Codes: VCR Video VCR_PLAY_BUTTON CH Port: 1, CH Code: 81 VCR_STOP_BUTTON CH Port: 1, CH Code: 82 VCR_PAUSE_BUTTON CH Port: 1, CH Code: 83 VCR_RECORD_BUTTON...

  • Page 105: Function Codes: Weatherbrowse

    DXP-HT Touch Panel Channel Maps 72° F AD Port: 1, AD Code: 28 89° F AD Port: 1, AD Code: 34 69° F AD Port: 1, AD Code: 29 86° F AD Port: 1, AD Code: 35 67° F AD Port: 1, AD Code: 30 99°...

  • Page 106: Function Codes: Weatherconfig

    DXP-HT Touch Panel Channel Maps Function Codes: WeatherConfig SN AD Port: 1, AD Code: 75 SN AD Port: 1, AD Code: 76 Function Codes: WeatherDownload PROGRESS LV Port: 1, LV Code: 7 Start Download CH Port: 1, CH Code: 73 Clear CH Port: 1, CH Code: 74 AD Port: 1, AD Code: 74 percent...
  • Page 107 Working With IR Files DXP-HT v1.3 - Programmer’s Guide...
  • Page 108 ATLANTA • BOSTON • CHICAGO • CLEVELAND • DALLAS • DENVER • INDIANAPOLIS • LOS ANGELES • MINNEAPOLIS • PHILADELPHIA • PHOENIX • PORTLAND • SPOKANE • TAMPA 3000 RESEARCH DRIVE, RICHARDSON, TX 75082 USA • 800.222.0193 • 469.624.8000 • 469-624-7153 fax • 800.932.6993 technical support • www.amx.com...

Table of Contents
